Routing issue

RouterOS Forwarding Protocols
1

Good morning all.

I feel like a bit of a sap asking this but I have been struggling with a routing problem all night now.

I have / am in the process of updating my network to use OSPF instead of static routes as its become a little larger than initially anticipated. Since applying the changes:

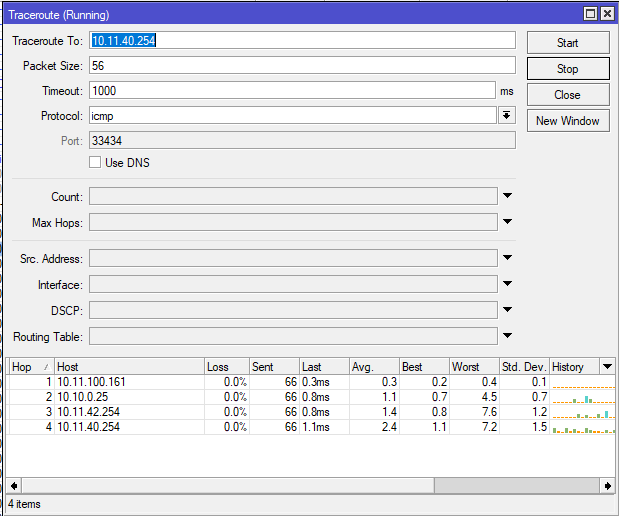

I can traceroute from the internet boundary (CCR1072-1G-8S+) to the various client subsets
From Bounary to Client.PNG
but get stuck when trying to traceroute the client to the internet boundary.
From Client to Boundary.PNG
Looking for some advise to troubleshoot the problem.

2

no one have any ideas?

3

youve given us almost 0 helpful information.

You know the last hop it fails at, jump on that hop check the route-table.

Is it that just ICMP is firewalled / blocked from that ingress point onwards?

4

Hi joegoldman,

Thank you for your response and apologies for the lack of info applied. As you suggested, I checked the last hop it failed at and instead of the OSPF config or the routing table the issue tuned out to be a faulty NAT rule that someone added to configure a camera from its default IP to a routed range and forgot to remove.

Thank you again.
