Good morning everyone!

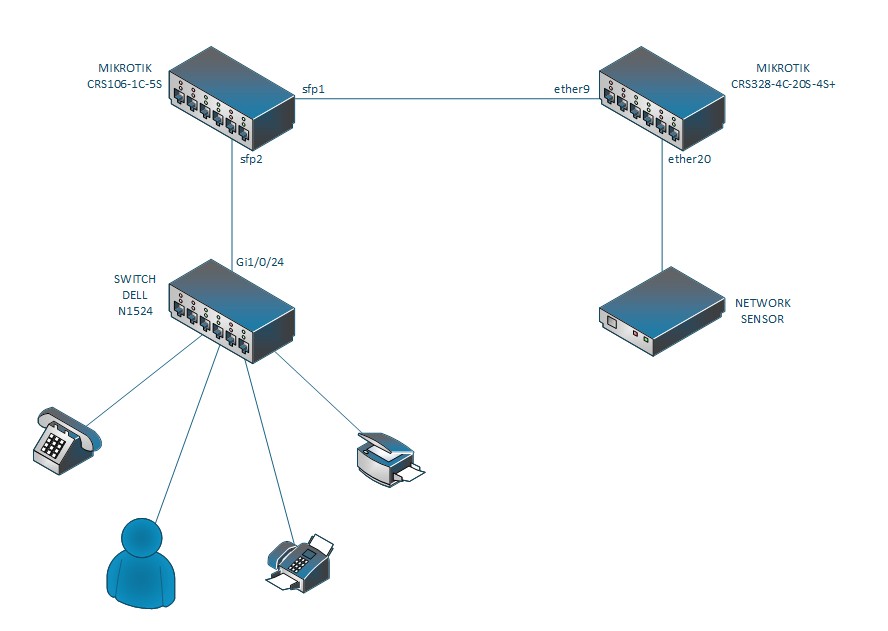

I have this kind of configuration in my network. I need to take all kind of traffic below the DELL N1524 switch and send it to the “Network Sensor” for monitoring purpose.
I’ve defined vlan 901 to use for this kind of usage and configured RSPAN on switch DELL N1524 like that:
show monitor session 1
Session : 1
Admin mode : Enabled
Type : Remote source session
Source ports :
Both : Gi1/0/1-23
Destination port : Gi1/0/24
Remove RSPAN Tag : False
Destination RSPAN VLAN : 901
Can someone help me with RSPAN configuration onto the two MikroTik devices?
I’m using RouterOS 7.20.4 on CRS106 and SwitchOS 2.18 on CRS328 but I can easily switch on RouterOS too.
Thanks to everyone in advance for your help and patience
