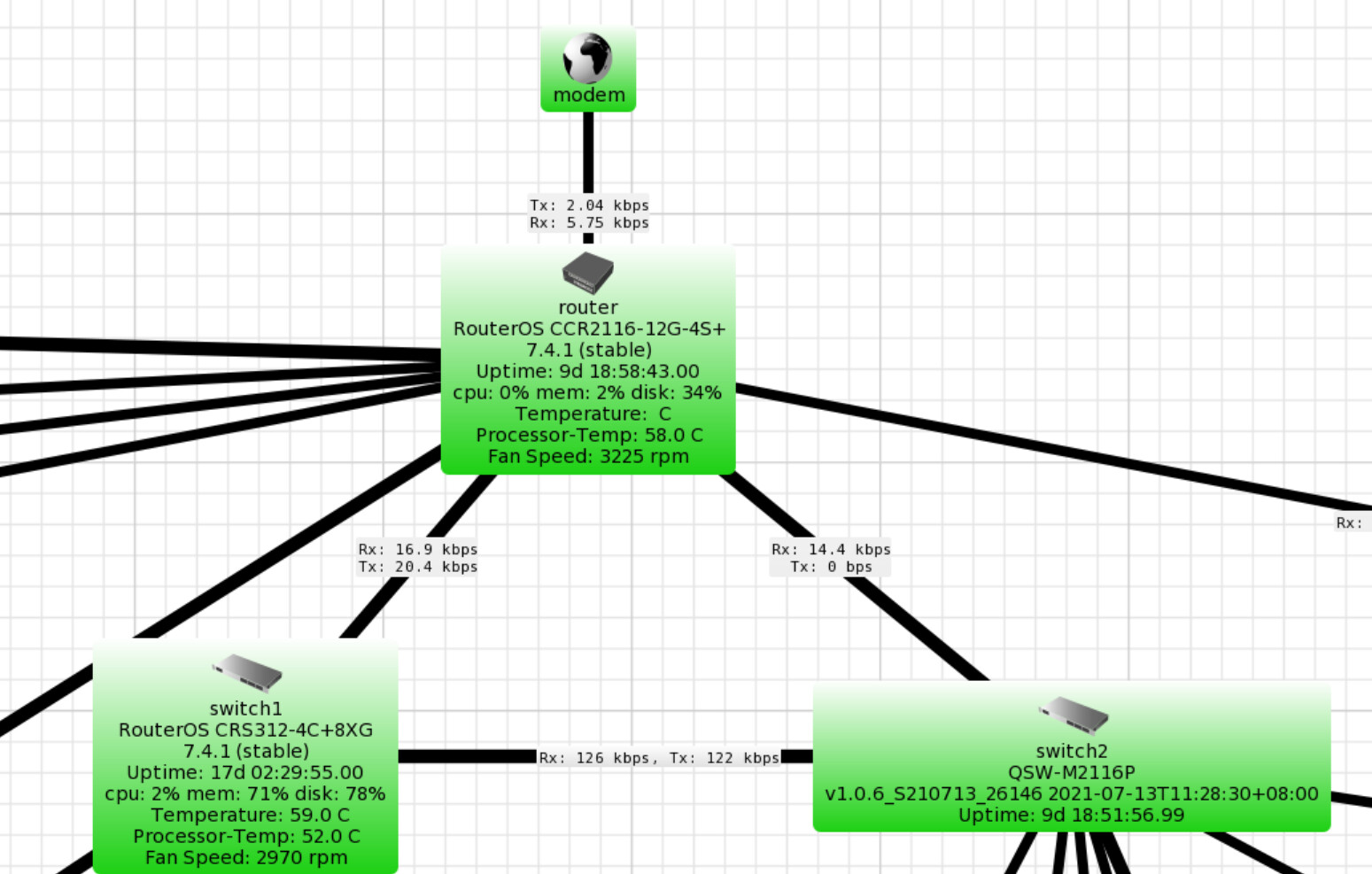

I have a very basic, fully-connected 3 device topology (see picture):
- ccr2116 acting as a router and connected to a cable modem for WAN interface
- crs312 for non-POE 10gbe clients
- qnap qsw-m2116p for 2.5gbe/POE clients
The MT devices are running ROS 7.4.1. Note that the picture shows when ccr2116 has the link manually disabled between it and qsw-m2116p to prevent the loop.
When all links are active the crs312 fails to setup the link between it and the qsw-m2116p as alternate which creates a loop. If loop protection is disabled on the qsw-m2116p the network becomes unstable. If loop protection is enabled one of the links gets completely disconnected and retested every few minutes to break the loop.
- ccr2116 has priority 0x1000 and is identified as the root bridge by all 3 devices
- all links have cost 2000 → qsw-m2116p has fixed cost so I changed all other devices to match
- heartbeat time and other STP parameters match across all 3 devices
- all other links are setup correctly. root ports on the path towards the ccr2116p. designated ports on all other links to switches. qsw-m2116p correctly sets up the link between it and crs312 as alternate.
I have tried the following and it still fails:
- use different physical links on all 3 devices
- replace the qsw-m2116p with a crs309. the crs309 sets up alternate, but crs312 still fails.
- replace the crs312 with a crs309 leaving the qsw-m2116p in the network. the crs309 now fails.
In the packet dump crs312 doesn’t seem to account for the last received BPDU frame identifying the link as alternate or the missing heart beat. It never stops sending heart beats and sets up the link as designated. I filed a ticket with more info, SUP-89438, 2 weeks ago but haven’t received a reply which is unusual. They are usually more responsive. crs312 config attached. combo1 and combo2 are used to connect to ccr2116 and qsw-m2116p, respectively.
Has anyone seen a problem like this before with RSTP on ROS 7.x?
