rx,tx byte rate in interface menu

logros · June 8, 2011, 7:23am

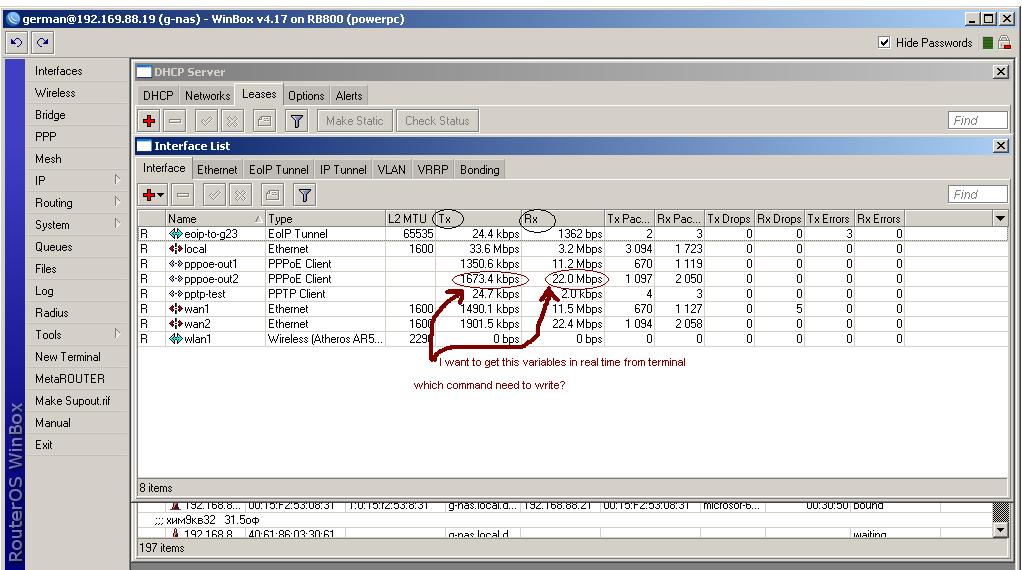

Hi, in picture i write what i need.
please help

Chupaka · June 14, 2011, 10:29pm

/interface monitor-traffic pppoe-out2

logros · June 26, 2011, 9:02pm

thanks,
i need to check every 1 minute with script “rx-bits-per-second” value of interface and if it 0 mbit need to reconnect interface.
how can i do it?

Chupaka · June 27, 2011, 10:25am

/interface monitor-traffic LAN once do={:put $"rx-bits-per-second" }

rovshango · August 22, 2015, 9:13pm

Hi,

How can apply this to TX RC bytes (not bits)

THanks.

JJCinAZ · August 22, 2015, 11:00pm

/interface monitor-traffic LAN once do={:put ($"rx-bits-per-second"/8) }

fengyuclub · July 18, 2019, 10:27am

How to record this value to the log and let it display like 14.5Mbps, retaining a decimal point. Trying to find the entire forum, many will not work.

nostromog · July 18, 2019, 6:57pm

macgaiver:
/interface monitor-traffic LAN once do={:put $"rx-bits-per-second" }
How to record this value to the log and let it display like 14.5Mbps, retaining a decimal point. Trying to find the entire forum, many will not work.

The syntax of Routeros scripting is designed for easy parsing rather than readability or ease to write, but something like this works to one decimal:

/interface monitor-traffic bridge  once do={:put "$"rx-bits-per-second" $($"rx-bits-per-second"/1000000).$(($"rx-bits-per-second"%1000000)/100000)Mbps" }
8591152 8.5Mbps

(with an example output) If you want to show Kbps or have more decimal figures if the value is smaller, etc. you will have to test for values and complicate it even further.
