SCEP server for (macOS & iOS) clients

PerpetuumMobile · July 27, 2023, 10:13am

I have a CA and a SCEP server:

Columns: NAME, COMMON-NAME, SKID
#      NAME         COMMON-NAME  SKID
0 KA T ca.boehm.gl  ca.boehm.gl  41f2a2a9e728b433f3852a38faf0bb9ac50af52f
1 K I  testcert     testcert     1e0a76878a5145f948a633fc74065b8f6568fda5

/certificate scep-server
add ca-cert=ca.boehm.gl path=/scep/boehm

I can request a certificate via command line:

./scepclient -private-key my.key -certificate my.pem -server-url=http://scep.boehm.gl:8123/scep/boehm -country=at -organization=boehm -ou=it -cn=myname

Here the log of tis positive request:

11:06:31 certificate,debug,packet server recv: GET /scep/boehm?operation=GetCACert
 11:06:31 certificate,debug GET GetCACert
 11:06:31 certificate,debug,packet server recv: GET /scep/boehm?operation=GetCACaps
 11:06:31 certificate,debug GET GetCACaps
 11:06:31 certificate,debug,packet server recv: POST /scep/boehm?operation=PKIOperation
 11:06:31 certificate,debug,packet  data: 308209c806092a864886f70d010702a08209b9308209b50201013109300706052b0e03021a3082046b06092a864886f70d010701a082045c048204583082045406092a864886f70d010703a0820445308204410201003182018830820184020100306e3062310b3009060355040613024154310c300a06035504080c034e4f453112301006035504070c09506179657262616368310e300c060355040a0c05626f65686d310b3009060355040b0c0249543114301206035504030c0b63612e626f65686d2e676c0208678249f0c6cd9792300b06092a864886f70d010101048201009c73a6df37876ea8d64bd2711d408d5c662a56e56aa936404e62a795172d
 11:06:31 certificate,debug,packet eaf14b0d416b8b75f5d8c1cf8b623e86a4bd346b2a5c480b5d731c12b8d4bb46ba6a92a5761352414d72562f488e9d87d1314cbfeba2969b720f05785113d9fae56cc3a26f86c71699429d0652c32a417c2d38bcd534b7405062e56f99f0b14e68eea8123e7a7dad5b35b0740e49adc1e3fa8dad1971c25cd9c9579c4fcb6bdbc0266f5c5523e6fe33998d57da1808c876bd10c8b3f65de35ad113e50fe9cf902a09d3e6ee7e964cb45b6ec897b5982ba8659600decb2270e00b51bd26bb1eb38fbc398fa0aa81d90faf07350fb96fddc509227f2d04fa0ebd73b0c219899faaf776308202ae06092a864886f70d010701301106052b0e03020704086dce4567
 11:06:31 certificate,debug,packet 481fa144a082028c04820288c2f5251a5d2a71d9fb5e9ee83e22045eb66a8fc7c7bf92348b788b519d72f964941940e01838d4efa4594093491ae4b2b84b0fb66cedc295c46b479bd03189ac0a5f64c18e462792cc6ae1440b42992c22d622577e4f172b42dd448a75641bdf7f0f0d6e0f54b1c29c42be75db09bfa67e4feebb10cfd1be873ada828b5ef3a14a5ca82947088b38efa138bf9cc14475ee0b9e0e1a3840150472cfeec9e5f92b436ff2f9472d0cf3e022f8591795e6ce00f1fb5e83c9bf8c173814b6774b55b36157bd0f37f9141841477f790227828c722f7a2d6ae4c8ad5df5dc33590a3964b469cda689e2847ed54eccbd54d9bf310aa79958
 11:06:31 certificate,debug,packet 64de7bbfb80fd56be41ec4149ec499df4c0871418396e6e2679d512492e75df438ad13674420e71627d8efe3fa798ff5f3c2c958d027277906c2b71ede5ec20930efdd124d68638be051e493b770dc72f1e5df8eaa040337561cc37b2567a941c4634a316f182c2e3644b445f3f320685f9c2780ccba5164a8acd2c8772d562bf12dee5d8e63e5c9295520005039b50757305fc2082ce584bc4d667a82ab0d8963ef394cc95b9beaf554fec52a35f66c9435962deda5d2b1296c4d28befde0c9ddc35fd81bdc7ad56c5882352e37ab251b1db7a7c806114fbe1f998665690927540e6fe0f92aaf8ba70f96e67c997efbf73f85e76fd8296eae6019d79b5ed2ed
 11:06:31 certificate,debug,packet 1dda1d6cd36a8836ffcb57abb24ed82885f2942a506457b4292a7ac3350431510ec77d2c9be03c14df3153143cbe0934f22216c3e75d385eb3f2739f2c765f34b744fdf643a7bf84a1aaae47bbfb66e7e288dbe0f63b92e8544e41eb14ce66a04f3282a411cf1b28b68b835026f99647c795223a04b2fbd02a27beaf43fcecee267f0069623834123235bd23f02507fb9a35a671a082030f3082030b308201f3a003020102021040575c4134458ae761064dca1a7bfd7f300d06092a864886f70d01010b05003026310e300c060355040a1305626f65686d311430120603550403130b53434550205349474e4552301e170d3233303732373039303633325a17
 11:06:31 certificate,debug,packet 0d3233303732373130303633325a3026310e300c060355040a1305626f65686d311430120603550403130b53434550205349474e455230820122300d06092a864886f70d01010105000382010f003082010a02820101009862d346424e9dddb48eb6efcc7060b3db70a5390c354bba4a4955eccf244c5c9b25a37dd540b9725fb0d1f28dcb5e23553a21bf09c212f7c7bcd7604d7c1dde9bfdeaf14ba58c97ee367b1d693d2507abfca63662752703b6412226e19e2ecee42d775edafa7f980078d7f066ff8de6c5d6aa297979a3e99d73f3ba213b180e6021c82864953fe800eeaf4f672355533bdf2833d0fd769c82a7e2c22d60c680ffb95319edae7414ae
 11:06:31 certificate,debug,packet af1dfb5bbcb48f39af7e2ef5675d46624c2c84633b50f4c555ba67278773dfac94599bed4cfa787ac67b8ed6e93eb6ac5b2b3794aece9e9a53cf610b6332b1ce1a30aff93f6d5fdd7399f6264d3bd528815f3e612f6e770203010001a3353033300e0603551d0f0101ff0404030205a030130603551d25040c300a06082b06010505070301300c0603551d130101ff04023000300d06092a864886f70d01010b05000382010100525ef2081fc02e82dbb8c1abf98c653b1979f62b438944081e6b1f0699d50949d5ded08fc4f7c020d7885d379c29d1b12f7918ee4a7aae121444da89571119d227c1cf01bd5766a7d03411fbb2a596c59cef5ead93eeefab9d
 11:06:31 certificate,debug,packet 0f892d99cc7d169978c01136c2ea88dbb2ec22fb40484dcd183f5ead684ae96a1fdda8ebcb691292abe576fa04a6255c5460de0176ef95ab178e3656567bdf38694adc01a7b2ae5f2ac9a4abe936cfcfd89ff65427f59cee07ccd955fd6fb8ddc4d8f64880bd191a4ecc64ca844f5f42286ac8d24f2fe6ee42c2042cda9255a1bd531fb2ab21f034ca74f3bc626258144c4fc29f8fa87a54b9b9a3f933941762a5d133da703238318202213082021d020101303a3026310e300c060355040a1305626f65686d311430120603550403130b53434550205349474e4552021040575c4134458ae761064dca1a7bfd7f300706052b0e03021aa081c13012060a6086
 11:06:31 certificate,debug,packet 480186f845010902310413023139301806092a864886f70d010903310b06092a864886f70d010701301c06092a864886f70d010905310f170d3233303732373039303633325a3020060a6086480186f8450109053112041038a1ee7247eb691d94053ded009b0d8c302306092a864886f70d010904311604140e059bd226cb571ada20417f94d6627d7893b768302c060a6086480186f845010907311e131c6a764c4d68445249675a32675556317a55517158475a36334831593d300b06092a864886f70d0101050482010012fae8f63eb210e04accb21404cba3d9ab06b9a075bed4a5eec23a25e844bc62b8220111f838efea7e7edfcbbaef3fa77190a3e1
 11:06:31 certificate,debug,packet f92ab292cb0b8308e7285ce3ac45a9fb1dae1d29cea3e1b809a36ce4fca2ac9d6c74750c275d473f1cdb04e9013f4a5a51a920f8450b0f3363f1f00d05cc58f7ed9f3f71adf4c05fe9beb9353c166f2b0eec53f3a0a49fe0d5011d6259415723c3c4e99376e2f532babd49716fc43245375fdd44c56d38229dff646342b302f07157b844aa20f195275254d9d63cf9c036e67600b4024c70c1faae4282e12167a4340c33193b15c01ca693234950b07d61cfbd1930fc31b9fb430b11ae67a44b43d831a10777ba970b4ed0b0
 11:06:31 certificate,debug POST PKIOperation
 11:06:31 certificate,debug signer:
 11:06:31 certificate,debug  issuer: O=boehm,CN=SCEP SIGNER
 11:06:31 certificate,debug  subject: O=boehm,CN=SCEP SIGNER
 11:06:31 certificate,debug,packet decoding message type: PKCS#10 request (19)
 11:06:31 certificate,debug,packet transaction: jvLMhDRIgZ2gUV1zUQqXGZ63H1Y=
 11:06:31 certificate,debug,packet sender nonce: 38a1ee7247eb691d94053ded009b0d8c
 11:06:31 certificate,debug recipient:
 11:06:31 certificate,debug  issuer: C=AT,ST=NOE,L=Payerbach,O=boehm,OU=IT,CN=ca.boehm.gl
 11:06:31 certificate,debug  serial: 678249F0C6CD9792
 11:06:31 certificate,debug content ok
 11:06:31 certificate,debug signer uses self signed cert
 11:06:31 certificate,debug addressed to current CA
 11:06:31 certificate,debug transaction not authorized: jvLMhDRIgZ2gUV1zUQqXGZ63H1Y=
 11:06:31 certificate,debug,packet encoding message type: certRep (3)
 11:06:31 certificate,debug,packet status: pending (3)
 11:06:31 certificate,debug,packet transaction: jvLMhDRIgZ2gUV1zUQqXGZ63H1Y=
 11:06:31 certificate,debug,packet sender nonce: 467e331e9a21ed1d4f4d1176a4273c4d
 11:06:31 certificate,debug,packet recipient nonce: 38a1ee7247eb691d94053ded009b0d8c

If I put the SCEP Info in a MDM Profile for macOS & iOS
(part of the profile) :

<key>PayloadContent</key>
<dict>
	<key>Name</key>
	<string>ca.boehm.gl</string>
	<key>Retries</key>
	<integer>10</integer>
	<key>RetryDelay</key>
	<integer>30</integer>
	<key>Subject</key>
	<array>
		<array>
			<array>
				<string>C</string>
				<string>at</string>
			</array>
		</array>
		<array>
			<array>
				<string>O</string>
				<string>boehm</string>
			</array>
		</array>
		<array>
			<array>
				<string>OU</string>
				<string>it</string>
			</array>
		</array>
		<array>
			<array>
				<string>CN</string>
				<string>anothername</string>
			</array>
		</array>
	</array>
	<key>URL</key>
	<string>http://scep.boehm.gl:8123/scep/boehm</string>
</dict>
<key>PayloadType</key>
<string>com.apple.security.scep</string>

and let the built in (macOS & iOS ) mdmclient do that request it fails with:

 11:09:58 certificate,debug,packet server recv: GET /scep/boehm?operation=GetCACert&message=ca.boehm.gl
 11:09:58 certificate,debug GET GetCACert
 11:09:58 certificate,debug,packet server recv: GET /scep/boehm?operation=GetCACaps&message=ca.boehm.gl
 11:09:58 certificate,debug GET GetCACaps
 11:10:00 certificate,debug,packet server recv: POST /scep/boehm?operation=PKIOperation
 11:10:00 certificate,debug,packet  data: 308006092a864886f70d010702a0803080020101310f300d06096086480165030402030500308006092a864886f70d010701a080248004820490308006092a864886f70d010703a08030800201003182018a30820186020100306e3062310b3009060355040613024154310c300a06035504080c034e4f453112301006035504070c09506179657262616368310e300c060355040a0c05626f65686d310b3009060355040b0c0249543114301206035504030c0b63612e626f65686d2e676c0208678249f0c6cd9792300d06092a864886f70d0101010500048201009cee7aeebb986aff7b74074cbbdbc8d82b6f13744ed0352c2527e8c8557e15a8809c9945
 11:10:00 certificate,debug,packet 28f1945c746e72c576c1779827b6bc21908614d439d00ef3caa7322167734aa7c5a7e6af604ff4fc2dcd1972f081fe0dae4ad69a6ee79be1a6b8bb5904f7a337708ba032005e55edef4749da27c3efedfd7c8ba74a5d45985e81693dc383425f4d22903609e2f51c970f637c9a78add2355609ad796e016491652426178e0aa2b262bf934e7ad74d43f241b2170d920070373fcc9bb37157f225dff773c14d297197a9c5dc9f9f8d20a31426182775a6f0c48b7ac972efcaa30fdc8dbbeffdce053f2a41ed28157d2ff1584a4226b493e0561a0a9900fea7f907548d308006092a864886f70d010701301d060960864801650304010204102eb1adfe5f865b32
 11:10:00 certificate,debug,packet 97918ac42143413ea080048202a0558dcbe16073e18cdbf9d901e6f647c79619bb3bd446d68891aaa49b97b7deef16de8da92eeebc085d99486b02b9b43e9b8d0d72dcb7d688c914e72c7f517dc1b025a74ca5f61b6704afca1c3eea639dcdcd37896a532a48d7f464db7f615ff64899ec57905c89aa7b5aebefe5260a2420d057785d4ceaf1b99ea12e6483b81e4d5a32f8da34fb0347e8f89315f5e00fc8d7f254368efe4f016f0432da26844d2e18cd3549bba6766ad53bdefe13006d5ff9badeb976dfb4651c1dc09191dc6d5438433d6dfd01e909638b1373fabdcc751fcd4511541a43821932feff3be103150bf2d7da36736a41a80fa4078d8bded645
 11:10:00 certificate,debug,packet 0daf976d9a8fefd8351cfb067ba23a183e740257e58ff7d5182d0c8adc2d13b4a43d955ae0499e1e996a70dab11160115149f982142894e4c75c4db00ee6ad470790072737c27485a39ede87c798b9ff1986c2469bc433d7b92911cfacaef3b0365872d7562d39b6b9053c9770475451116048a56fed8989d130bc1454f96a955ddffa072cd7bc28029a005d17f3a7f5dfec09bf281f9caff1dde677ee5c2319a1505767353d060d75cde897ba133835f7ee1846c210371330e49990cd07a6340e5aabf5bd5591e8d710e590f424545665ad01def4bd93cc41b1f8b4aecd0212dc1ea8e07b38d6e6e67427011b51c745b2093ebab469291035dca8aac7242277
 11:10:00 certificate,debug,packet 08bb1e2ec4123a7b9d0d78fa5b11f65b9d9c03ffe9cd37ccff1b9da5cd66845377426ac4ac60ad7527cdaaa240cb4b87b1fb5d9bf22c51b04cfbfe9f5d8783777c20cd1e04439288ff224eefd074505d978dbc49684b0694b52db2ba211b9af2cd7f387c667257d6421981e7582e599b675feb466a6da1b988e4a94299066b1e1f3f9adcf8087511e5b28c0d9313561488ed3669ab8f72d55adbe60e13a4eab061094e07b606da4730d84facf04204108bc60b9746dab9bfe80944ebc0935bfd00000000000000000000000000000000a08203603082035c30820244a003020102020101300d06092a864886f70d01010b0500304c313d303b06035504030c34
 11:10:00 certificate,debug,packet 4d444d2053434550205349474e45522032433738393637432d383131352d343332412d424236322d444432373644304635464334310b3009060355040613024154301e170d3233303732373039313030315a170d3234303732363039313030315a304c313d303b06035504030c344d444d2053434550205349474e45522032433738393637432d383131352d343332412d424236322d444432373644304635464334310b300906035504061302415430820122300d06092a864886f70d01010105000382010f003082010a0282010100dbe19763e5b5719c68d3c0e0be1220ee60f81e130c5272b46c7a7181fe3633ad72393f07ae37aed426a8f22342480655
 11:10:00 certificate,debug,packet d24e5d6ada6c51b54f659ab99e3ed8faf2c91e8d649a1b10378c3f86f3545291549bcb1336d6f6534b8e05d9a65f174946003070b5a19dd0ef3be3b2ea598482f089385a1b6f4d13dc6167f1dd72962b1df5c0aa6ef63b8a0b974f076a5580e2d3aea65d59baa64bed522aa63f66ae12610d16b2971d20b305756d7e36a8b28787c514684d5c24b19b2248dc49831157d09334a80ae5e427c260a6932b6927a8cc39e1315f05376366dea7ed12e24c350d6535c5e1f13879489b885550267ca53f136d650a93c156b3284b8b39962f070203010001a3493047300e0603551d0f0101ff0404030205a030160603551d250101ff040c300a06082b060105050703
 11:10:00 certificate,debug,packet 02301d0603551d0e04160414b39abe8293d7e50c799702a964c19aa3bdad8299300d06092a864886f70d01010b050003820101000593bd0294ead0307171e601e4f4a16031b9520a14266d5228627583337ab246f3943fefd943eb5cba9f91a8fd7b636d597d9a03066ac1d14a153da86ecba8d43114724357b8a8edd929227525b720b48867f11c26e02edcdf5c96c3a46814d7f7704a4df02d6562369ff22b9dd560ac18798bd937f850318fe13c8b9babb4bacef1aa9d00273f02ca9ecfb85f28bd1e91d586b84c99812685e6a6ab232a364f0e7cdd5d1e1229cc00a71eb38129ff71b5e2226ae154cdc7aa7c542192d818228c6aac09f719bb15d11dadf6
 11:10:00 certificate,debug,packet 36a4da7e10de1fd667cd0b6bc4394a88feb6775d0f3eb9aa6ec3e096bb995ef17ef142a9b313a63968877dd8b0b2adec273c506231820278308202740201013051304c313d303b06035504030c344d444d2053434550205349474e45522032433738393637432d383131352d343332412d424236322d444432373644304635464334310b3009060355040613024154020101300d06096086480165030402030500a081f93012060a6086480186f845010902310413023139301806092a864886f70d010903310b06092a864886f70d010701301c06092a864886f70d010905310f170d3233303732373039313030315a3020060a6086480186f8450109053112
 11:10:00 certificate,debug,packet 041095e3a7df2dcda0e1eea5e172332f7ac83038060a6086480186f845010907312a132832414532464337423431393734453234364331374244344432443232383033353834383637313746304f06092a864886f70d0109043142044013abc782fa567b4a0834876c8900ee91fe13882714ea4a3834b591fc9623adf03d8d7755a746a97d94740adf154847f393e2807b14e4426b8c3822c219f1d08f300d06092a864886f70d01010d050004820100c4c1739c396645888dcd5f33e770c9d2f0c0c88587913975d150a9ec10265c35d213d0b04ca6b716058821d34208bee92dcffd2107533a4f6246b360d3c2640fb284b85f3bad870e2230666a13d34bb2
 11:10:00 certificate,debug,packet dda03a31f9f1b1606e40351721d7718370aabe82a1b69d2ac405257e6e086a7a1458b69e2cd6b8a3f7df3afb024d6f0771ac4c82b59e41be91e87341d8bc128b038e326e9e3dd081e83dc3dcb3a3139ffaee38344dc52aba1faebef1c803a4a6bd1e5584b52c815d026a97fbdfecc517098e4cba3f3e753ca4547ac57e3e01746d295c3965ca4c18a1885aade20c951decdec0cd7f0b075f6840f799e639bbaff6b0cc1ad51ed54403207b8b5d3ae29e000000000000
 11:10:00 certificate,debug POST PKIOperation
 11:10:00 certificate,debug signer:
 11:10:00 certificate,debug  issuer: CN=MDM SCEP SIGNER 2C78967C-8115-432A-BB62-DD276D0F5FC4,C=AT
 11:10:00 certificate,debug  subject: CN=MDM SCEP SIGNER 2C78967C-8115-432A-BB62-DD276D0F5FC4,C=AT
 11:10:00 certificate,debug content digest mismatch
 11:10:00 certificate,debug signature verify failed

if I retry that, we can see that the SIGNER is a random UUID that differs on every try:

 11:15:56 certificate,debug signer:
 11:15:56 certificate,debug  issuer: CN=MDM SCEP SIGNER FDD742F3-5D84-41D1-964A-A20420573E04,C=AT
 11:15:56 certificate,debug  subject: CN=MDM SCEP SIGNER FDD742F3-5D84-41D1-964A-A20420573E04,C=AT
 11:15:56 certificate,debug content digest mismatch
 11:15:56 certificate,debug signature verify failed

]11:16:45 certificate,debug signer:
 11:16:45 certificate,debug  issuer: CN=MDM SCEP SIGNER EDDA4899-1DA3-4B77-83FE-5650075F3EE5,C=AT
 11:16:45 certificate,debug  subject: CN=MDM SCEP SIGNER EDDA4899-1DA3-4B77-83FE-5650075F3EE5,C=AT
 11:16:45 certificate,debug content digest mismatch
 11:16:45 certificate,debug signature verify failed

Now my questions:

Can I configure the scep-server to ignore that “content digest mismatch” ?
Can the scep-server leverage a pre-shared secret ?
Cat I configure the scep-server to auto accept a request? or trigger a script per request, where I can verify and accept/deny that request via the script?

In general, a documentation how to setup the scep-server in order to support macOS / iOS (or even Windows) clients would be great.

Background - what do I want do achieve?

I want my client machines to get (themselves / triggered via MDM ) a certificate via scep
then radius should trust those certificates
and finally WIFI leverage wpa enterprise (EAP-TLS)

drebes · August 20, 2024, 6:36pm

Unfortunately I can’t help you but I face exactly the same problem as you (trying to achieve the same end goal).

The only thing I managed to do was to convert the packet dump data from the logs into a binary PKCS#7 file and confirm it’s just a regular self-signed cert by the MDM SCEP SIGNER issuer (random ID, as you described). But OpenSSL has no issue decoding it. I couldn’t find why Mikrotik will complain about it.

Amm0 · June 26, 2025, 4:13pm

I tried this on 7.20beta4 and still does not work.

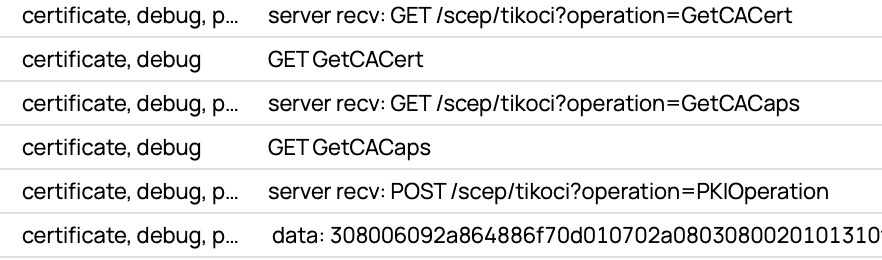

Has any been successful with RouterOS SCEP Server with request coming a Apple device (i.e. via a .mobileprofile file)?

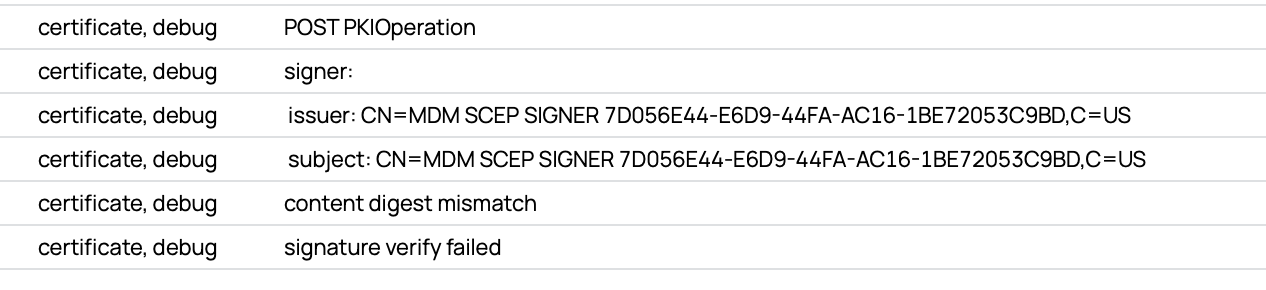

Apple is able to get the RootCA. But when it provides the cert request, RouterOS rejects with HTTP 406 (Not acceptable). RouterOS logs show a content digest mismatch follow by signature verify failed — with no additional details other those message.

In my case the signing issuer and subject matched according the logs.

LMK know if in the intervening year, someone got this work. Now I have not tried older version – only 7.19.2 and 7.20beta4… . But if someone knew it was working in some version that be good to know.
