Hi,
Maybe someone of you has a suggestion/idea whats going on?
I’ve got two MT wireless devices. A RB4011 and a hapac2. (2 buildings 20 meters apart)
Both go from full speed to allmost no speed, every hour from 15-19 ?
So 24 times a day from 300mbit to 0.3mbit !?!?
On both 2.4 and 5ghz.
No DFS logging, no network congestion (librenms)
No scheduled tasks.
Turned off all other APs/Zigbee/Homeautomation, no microwave.
Ethernet thoughput is okay.
Another AP in the building has no problems (another brand)
I turned this one off, and configured the MT with the same settings, but it still had problems.
There are no scheduled tasks
With regards

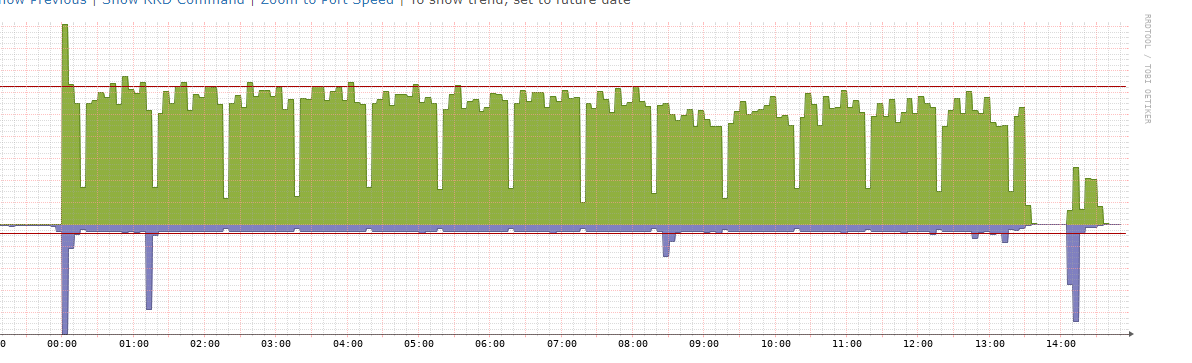

Hourly dip in thoughput

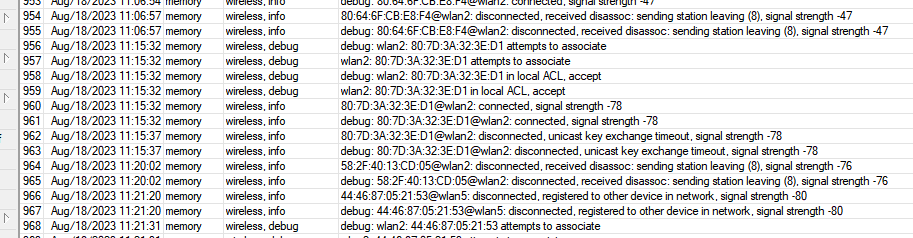

Log part
Followed a lot of the recommendations by Ron Touw and Alain Casailt (both their YT presentations)
Flags: X - disabled; R - running
0 R name=“wlan2” mtu=1500 l2mtu=1600 mac-address=48:8F:5A:48:A4:69 arp=enabled disable-running-check=no interface-type=Atheros AR9300 radio-name=“488F5A48A469” mode=ap-bridge ssid=“MYAP1” area=“” frequency-mode=regulatory-domain country=netherlands
installation=indoor antenna-gain=3 frequency=2457 band=2ghz-g/n channel-width=20mhz secondary-frequency=“” scan-list=default wireless-protocol=any rate-set=default supported-rates-b=1Mbps,2Mbps,5.5Mbps,11Mbps
supported-rates-a/g=6Mbps,9Mbps,12Mbps,18Mbps,24Mbps,36Mbps,48Mbps,54Mbps basic-rates-b=1Mbps basic-rates-a/g=6Mbps max-station-count=2007 distance=indoors tx-power=12 tx-power-mode=all-rates-fixed noise-floor-threshold=default
nv2-noise-floor-offset=default vlan-mode=no-tag vlan-id=1 wds-mode=disabled wds-default-bridge=none wds-default-cost=100 wds-cost-range=50-150 wds-ignore-ssid=no update-stats-interval=disabled bridge-mode=enabled default-authentication=yes
default-forwarding=yes default-ap-tx-limit=0 default-client-tx-limit=0 wmm-support=disabled hide-ssid=no security-profile=myprofile wps-mode=disabled station-roaming=enabled disconnect-timeout=3s on-fail-retry-time=100ms preamble-mode=both
compression=no allow-sharedkey=no station-bridge-clone-mac=00:00:00:00:00:00 ampdu-priorities=0 ampdu-subframes=default guard-interval=any
ht-supported-mcs=mcs-0,mcs-1,mcs-2,mcs-3,mcs-4,mcs-5,mcs-6,mcs-7,mcs-8,mcs-9,mcs-10,mcs-11,mcs-12,mcs-13,mcs-14,mcs-15,mcs-16,mcs-17,mcs-18,mcs-19,mcs-20,mcs-21,mcs-22,mcs-23 ht-basic-mcs=mcs-0,mcs-1,mcs-2,mcs-3,mcs-4,mcs-5,mcs-6,mcs-7
tx-chains=0,1 rx-chains=0,1 amsdu-limit=8192 amsdu-threshold=8192 tdma-debug=0 tdma-test-mode=0 tdma-hw-test-mode=“” tdma-override-rate=disabled tdma-override-size=0 tdma-period-size=2 nv2-queue-count=2 nv2-qos=default nv2-cell-radius=30
nv2-security=disabled nv2-preshared-key=“” nv2-mode=dynamic-downlink nv2-downlink-ratio=50 nv2-sync-secret=“” hw-retries=7 frame-lifetime=0 adaptive-noise-immunity=none hw-fragmentation-threshold=disabled hw-protection-mode=none
hw-protection-threshold=0 frequency-offset=0 rate-selection=advanced multicast-helper=default multicast-buffering=enabled keepalive-frames=enabled skip-dfs-channels=disabled pci-info=“01:00.0”
1 name=“wlan5” mtu=1500 l2mtu=1600 mac-address=48:8F:5A:80:CE:1D arp=enabled disable-running-check=no interface-type=QCA9984 radio-name=“488F5A80CE1D” mode=ap-bridge ssid=“MYAP15” area=“” frequency-mode=regulatory-domain country=netherlands
installation=indoor antenna-gain=3 frequency=5180 band=5ghz-a/n/ac channel-width=20/40mhz-Ce secondary-frequency=“” scan-list=default wireless-protocol=802.11 rate-set=default
supported-rates-a/g=6Mbps,9Mbps,12Mbps,18Mbps,24Mbps,36Mbps,48Mbps,54Mbps basic-rates-a/g=6Mbps max-station-count=2007 distance=indoors tx-power-mode=default vlan-mode=no-tag vlan-id=1 wds-mode=disabled wds-default-bridge=none
wds-default-cost=100 wds-cost-range=50-150 wds-ignore-ssid=no update-stats-interval=disabled bridge-mode=enabled default-authentication=yes default-forwarding=yes default-ap-tx-limit=0 default-client-tx-limit=0 wmm-support=disabled
hide-ssid=no security-profile=myprofile wps-mode=disabled station-roaming=enabled disconnect-timeout=3s on-fail-retry-time=100ms preamble-mode=both compression=no allow-sharedkey=no station-bridge-clone-mac=00:00:00:00:00:00 ampdu-priorities=0
ampdu-subframes=default guard-interval=any ht-supported-mcs=mcs-0,mcs-1,mcs-2,mcs-3,mcs-4,mcs-5,mcs-6,mcs-7,mcs-8,mcs-9,mcs-10,mcs-11,mcs-12,mcs-13,mcs-14,mcs-15,mcs-16,mcs-17,mcs-18,mcs-19,mcs-20,mcs-21,mcs-22,mcs-23
ht-basic-mcs=mcs-0,mcs-1,mcs-2,mcs-3,mcs-4,mcs-5,mcs-6,mcs-7 vht-supported-mcs=mcs0-9,mcs0-9,mcs0-9 vht-basic-mcs=mcs0-7 tx-chains=0,1,2,3 rx-chains=0,1,2,3 amsdu-limit=8192 amsdu-threshold=8192 tdma-debug=0 tdma-test-mode=0
tdma-hw-test-mode=“” tdma-override-rate=disabled tdma-override-size=0 tdma-period-size=2 nv2-queue-count=2 nv2-qos=default nv2-cell-radius=30 nv2-security=disabled nv2-preshared-key=“” nv2-mode=dynamic-downlink nv2-downlink-ratio=50
nv2-sync-secret=“” hw-retries=7 frame-lifetime=0 adaptive-noise-immunity=none hw-fragmentation-threshold=disabled hw-protection-mode=none hw-protection-threshold=0 frequency-offset=0 rate-selection=advanced multicast-helper=default
multicast-buffering=enabled keepalive-frames=enabled skip-dfs-channels=all
