SecureCRT SSH Agent: Ed25519 Authentication Failure with KeePassXC Agent and MikroTik Devices

[chuse]

Hey everyone,

Running into a weird issue with Ed25519 keys and hoping someone here has seen this before.

SETUP
I'm using KeePassXC to manage SSH keys and launch SecureCRT sessions via a cmd:// URL. The flow is: KeePassXC unlocks → injects the private key into the Windows OpenSSH Agent → SecureCRT reads the key from the agent and authenticates. VANDYKE_SSH_AUTH_SOCK is set to \.\pipe\openssh-ssh-agent.

THE WEIRD PART
Everything works perfectly with RSA 4096 keys — both against Ubuntu servers and MikroTik routers. But with Ed25519 keys, it only fails against MikroTik. Same Ed25519 key against Ubuntu: works fine. Same Ed25519 key directly from the Windows SSH CLI (ssh -i): also works fine against MikroTik.

So it's specifically: Ed25519 + SecureCRT (launched from KeePassXC) + MikroTik = fails.

I tried generating the Ed25519 key with -Z aes256-cbc and also with no passphrase (-N ""). Same result either way.

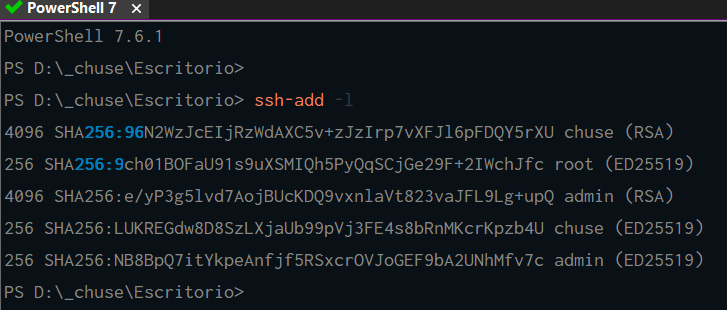

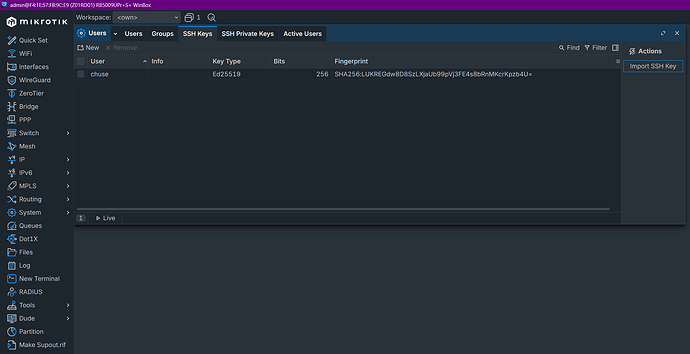

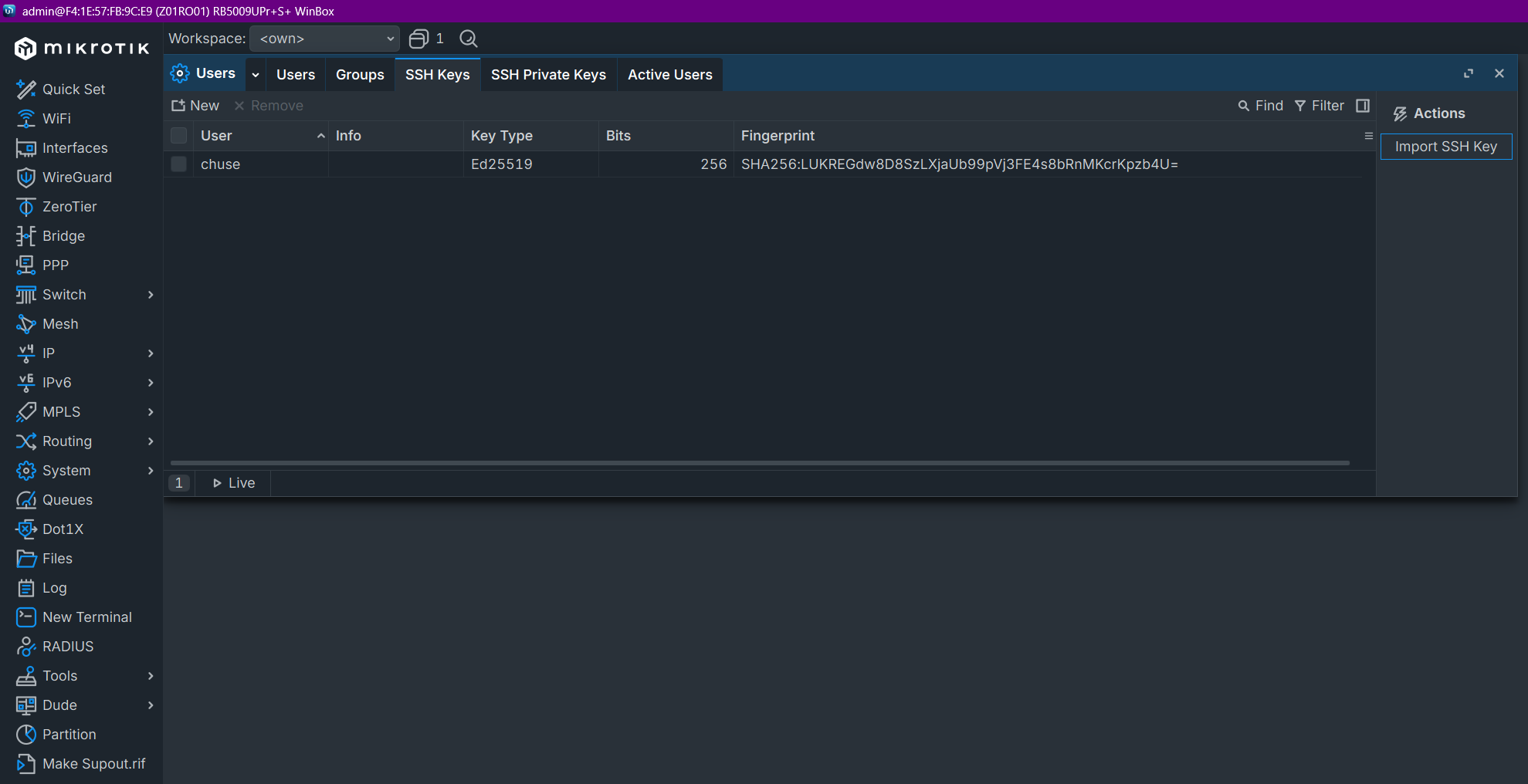

The key is correctly loaded in the agent (ssh-add -l shows it), and it's correctly imported in MikroTik (/user ssh-keys). MikroTik SSH logs show nothing when the failed attempt happens — it's like the connection just drops silently.

The KeePassXC URL I'm using:
cmd://securecrt.exe /T /N "{TITLE}" /SSH2 /L {USERNAME} /PASSWORD {PASSWORD} /ACCEPTHOSTKEYS /AUTH publickey,password {S:IP} /P {S:PORT}

MY GUESS
It might be something in how SecureCRT negotiates the key algorithm with RouterOS when pulling the key from an external agent — maybe it's not advertising Ed25519 properly, or RouterOS is pickier about the signature algorithm format. But I'm not sure.

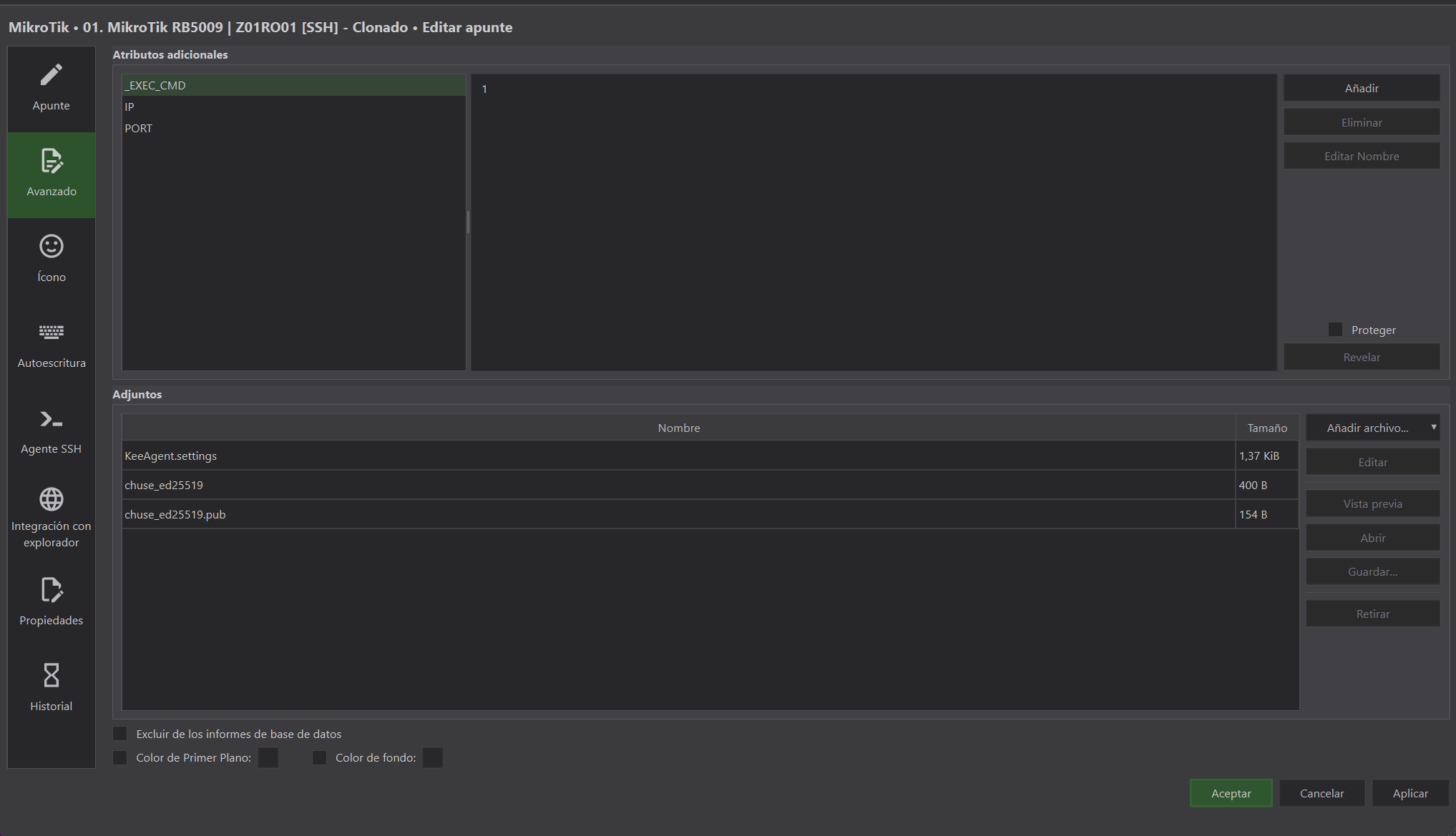

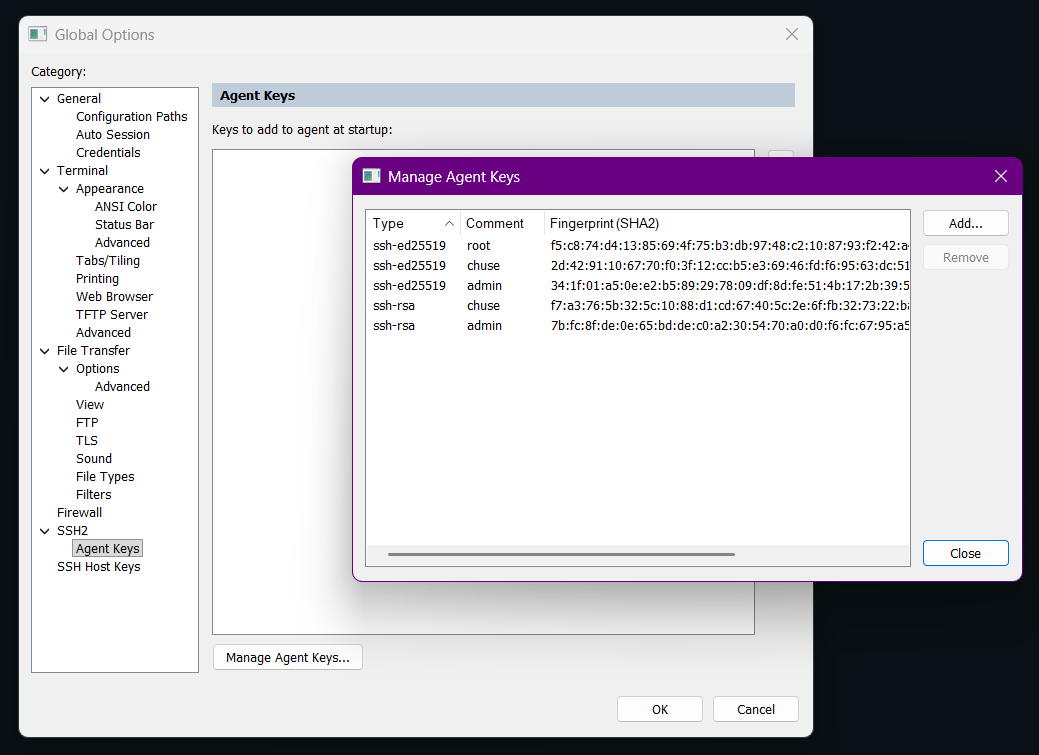

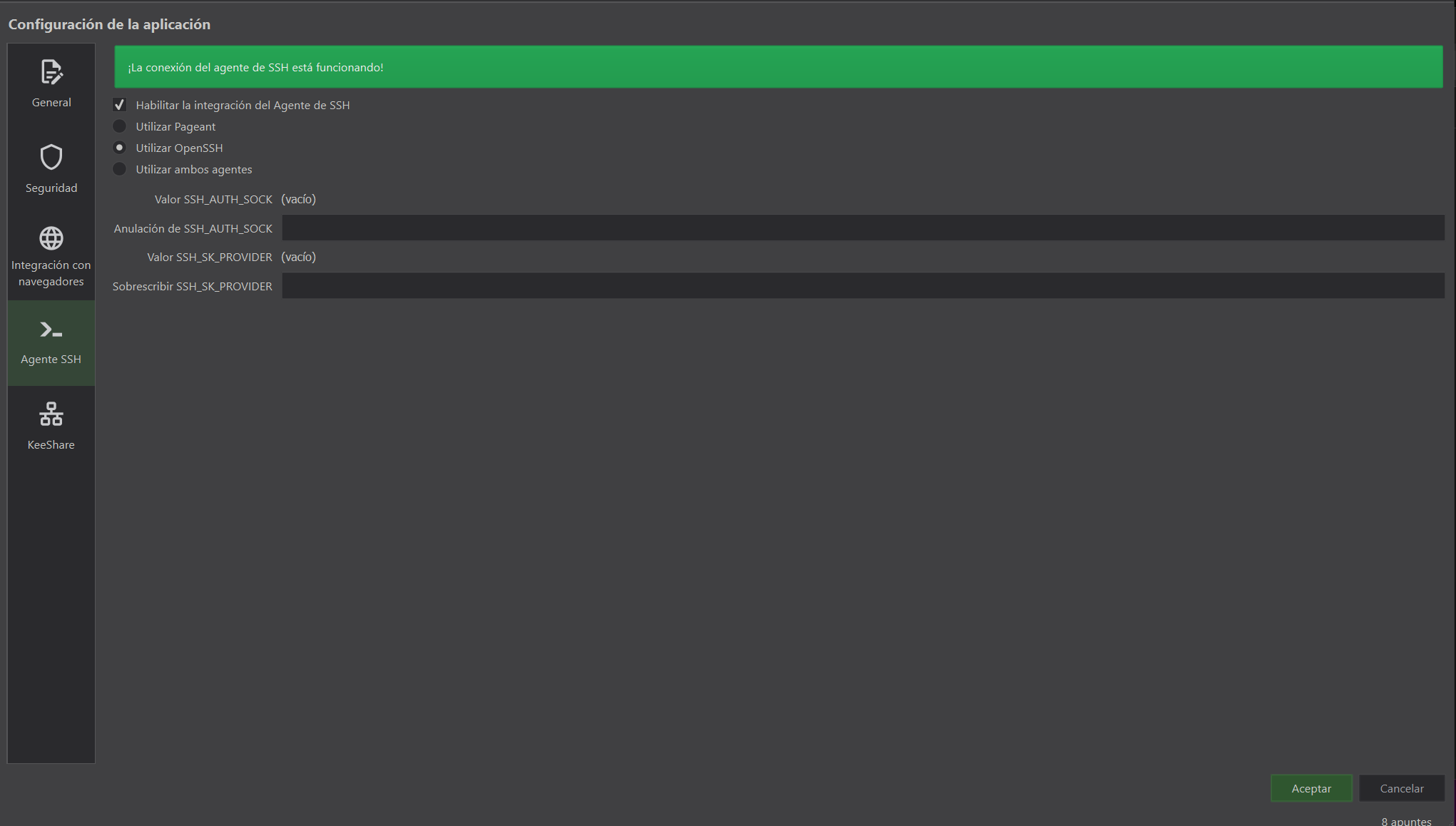

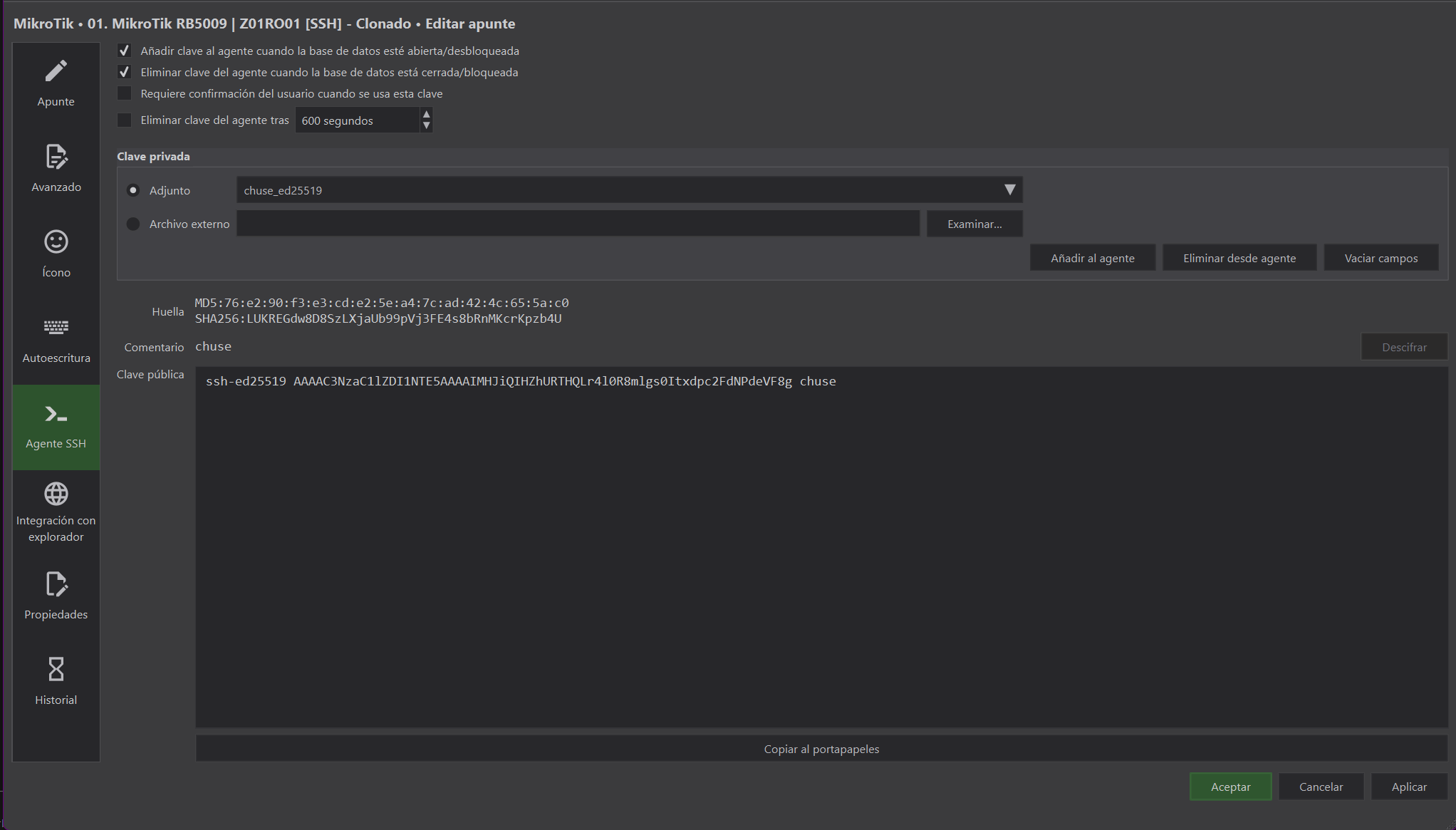

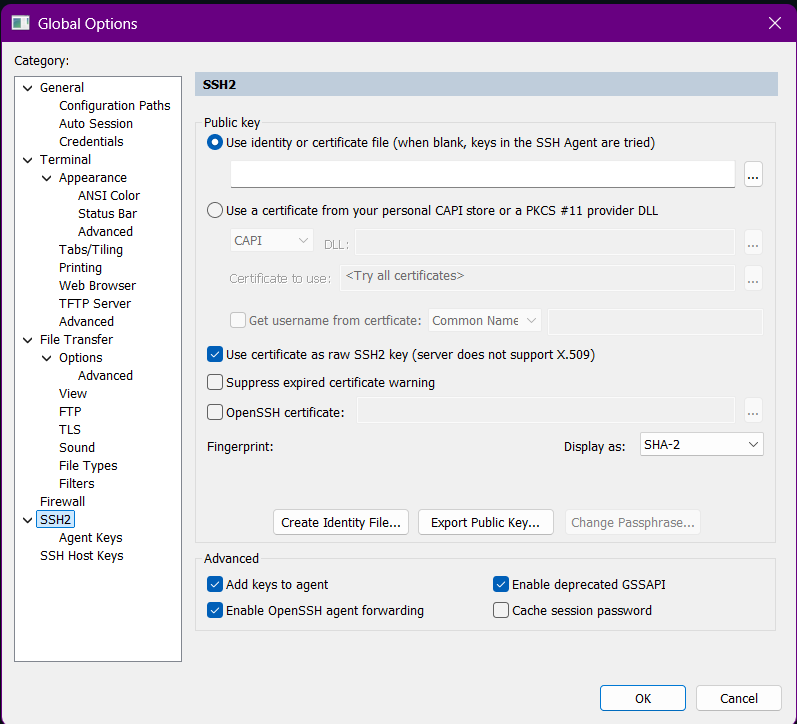

Here are a few screenshots of the configurations…

Has anyone run into this? Any ideas on how to narrow it down or fix it?

Thanks!

[patrikg]

Have you tried to just echo the line to some log.txt file, so you can see that the parameters are correct, and not any illegal characters something like this.

cmd://echo securecrt.exe /T /N "{TITLE}" /SSH2 /L {USERNAME} /PASSWORD {PASSWORD} /ACCEPTHOSTKEYS /AUTH publickey,password {S:IP} /P {S:PORT} > log.txt

And then also maybe just pipe the output to a log file something like this:

cmd://securecrt.exe /T /N "{TITLE}" /SSH2 /L {USERNAME} /PASSWORD {PASSWORD} /ACCEPTHOSTKEYS /AUTH publickey,password {S:IP} /P {S:PORT} > log.txt

[chuse]

Hi @patrikg.

About your two commands:

cmd://securecrt.exe /T /N "{TITLE}" /SSH2 /L {USERNAME} /PASSWORD {PASSWORD} /ACCEPTHOSTKEYS /AUTH publickey,password {S:IP} /P {S:PORT} > log.txt

This command doesn't do anything, no output at all. It doesn't even launch SecureCRT.

cmd://echo securecrt.exe /T /N "{TITLE}" /SSH2 /L {USERNAME} /PASSWORD {PASSWORD} /ACCEPTHOSTKEYS /AUTH publickey,password {S:IP} /P {S:PORT} > log.txt

This other one launches SecureCRT and shows the attached error message (even though the IP is correct and the router is accepting connections):

Neither command generates a log so I can see what's going on.

Where would I be able to check the output of those commands? I've looked for KeePass XC logs but can't find them...

Thank you again for your help mate.

[chuse]

Hi again.

I have just received a response from VanDyke. This turns out to be a known bug affecting SecureCRT, which has already been fixed in the upcoming version of the application (9.8.0.3876).

I have verified that it works correctly using the pre-release build provided by their support team.

Thank you very much for your assistance on this matter.

Best regards,
Chusé Burillo.
