Dear All,

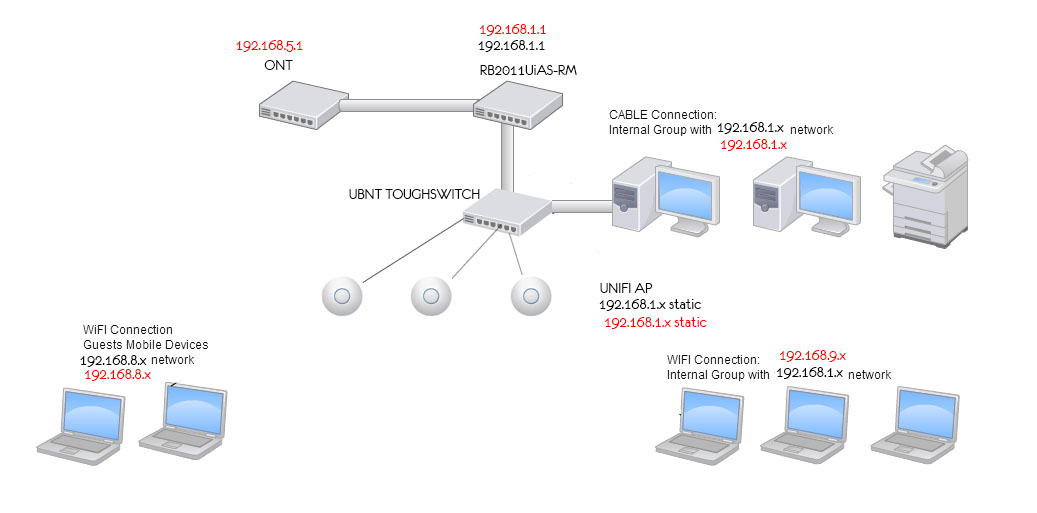

I hope I post this in the correct forum. First, I am a total newbie using Mikrotik system. I had setup my previous network using DSL modem, toughswitches, unifi APs and have 2 networks (management and guest) setup according to this https://help.ubnt.com/hc/en-us/articles/205146150-UniFi-VLAN-switch-configuration. Everything works fine until I upgraded DSL to Fiber optic. I had to replace modem to ONT and my ubiquiti router to mikrotik RB2011. Since I have no experience in mikrotik, I hired a network guy from the local internet company to setup my network. His setup is marked red in the diagram. A problem with this kind of setup is that I have a laptop connected to management wifi with subnet 192.168.9.x, and a network kitchen printer connected to LAN with subnet 192.168.1.x. I can’t seem to be able to print to this printer from that laptop even though I could ping the printer. I think he had set up NAT to communicate between different subnets.
What I want is in black which is only 2 DHCP servers (192.168.1.x for management LAN and wifi and 192.168.8.x for guest wifi). The network guy said that can’t be done for some unknown reason. Therefore, I plan to take over and hope you guys willing to point me to a correct direction on how to do this. Thank you in advance.
