setting up usermanager via winbox

[maxcuban]

hi everyone,

pls i have a new routeroboard RB951-2n and have set up hotspot but i want to
add usermanager to it.

i followed a very convenient online step by step guide but once i completed,

i entered router-ip/userman and i got

ERROR 404 - NOT FOUND

I would like to know if anyone can direct me to a step by step guide that works (using winbox)
to set up user manager or if you can help me fix the problem.

ps. i’ve seen a very similar and recent post but i didn’t follow the solution because according to the OP, everything works right except when creating user. but in my case nothing is really right.

thanks,
max

[skot]

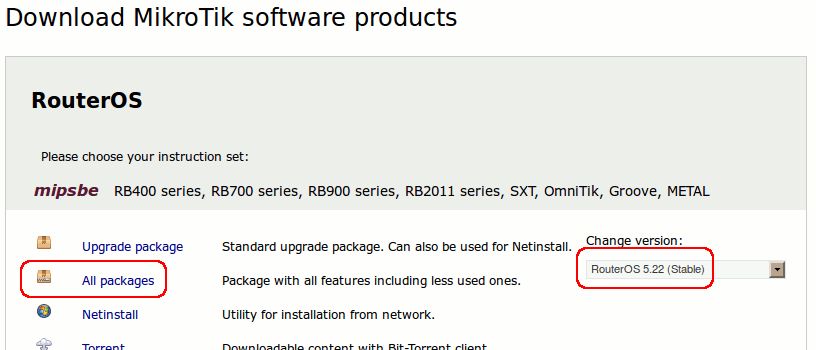

1. You need to download the All Packages files that has the same version as your router from http://www.mikrotik.com/download


2. Extract the user-manager…npk file from the .zip archive.

3. In Winbox, click the Files menu, and drag+drop the user-manager…npk file into this window. You could also use ftp.

4. After the upload is complete, reboot the router (In Winbox, System > Reboot)

After reboot, I think the logs tell you whether the new package was installed successfully or not… Assuming install was successful, router-ip/userman should be accessible.

[maxcuban]

this is exactly the setup i went through.. though i have routerOs 5.16 so i used the all packages for that version and copied the usermanager file from there.

when i go to system → packages, i can see usermanager there

but one thing is i already set up hostpot on i already.. could that be conflicting?

thanks

[skot]

@maxcuban

but one thing is i already set up hostpot on i already.. could that be conflicting?

Perhaps if you trying to connect from behind the hotspot. See the Note at the bottom of this page: http://wiki.mikrotik.com/wiki/User_Manager/Getting_started#Use_web_interface

[samuelongui]

Are you connected to the hotspot’s interface or where?

[maxcuban]

@samuelongui

Are you connected to the hotspot’s interface or where?

yes i am connected to the interface.

but in the mean time i want to try the workaround in the link provided by Skot and see how it goes.

I will provide feedback when am done

thanks

[samir494]

hi,

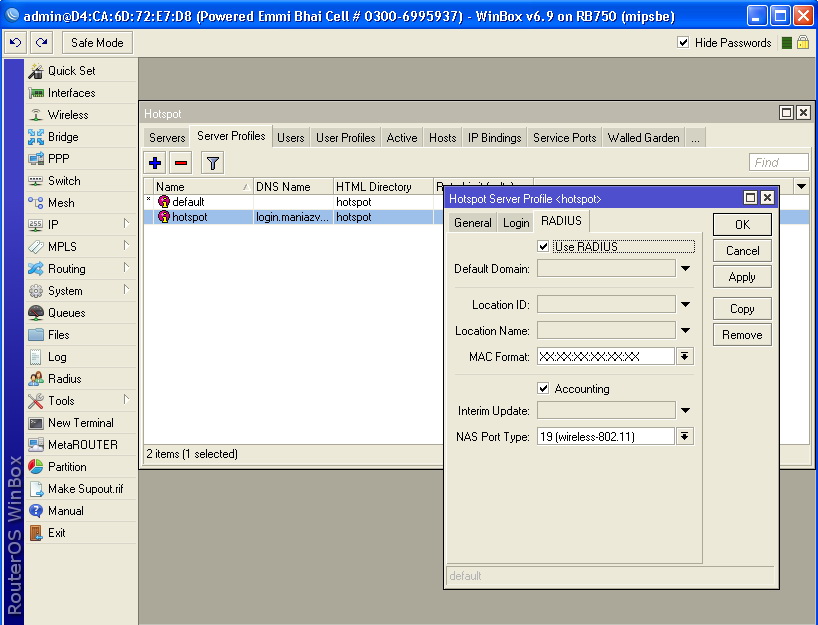

go to ip, hotspot , server profile select you hotspot server, tick us raduis
now move to radius (ln main Menu ) set ip 127.0.0.1
ref attached snaps

[maxcuban]

look at these screen shots.
everything seems to be in order
but still can’t access router-ip/userman
whether inside hotspot or outside hotspot interface.

help needed pls

–max

[samir494]

it seems ok,

let check r u able to login in hotspot ? if yes than share IP add details
or you can share me valid out side ip or Team viewer from your pc which is connect to internet

[maxcuban]

@samir494

it seems ok,

let check r u able to login in hotspot ? if yes than share IP add details
or you can share me valid out side ip or Team viewer from your pc which is connect to internet

my hotspot router_ip is 192.168.88.1 so am trying to connect to userman via 192.168.88.1/userman
with no success.

yes, am able to connect to the hotspot alright. but still 192.168.88.1/userman doesn’t bring up the usermanager interface

[samir494]

try to bypass you ip from hotspot and check you userman access

[maxcuban]

@samir494

try to bypass you ip from hotspot and check you userman access

how do i do that please?

[ditonet]

http://wiki.mikrotik.com/wiki/Manual:IP/Hotspot#IP_Bindings
Read about ‘type=bypassed’.

HTH,

[samir494]

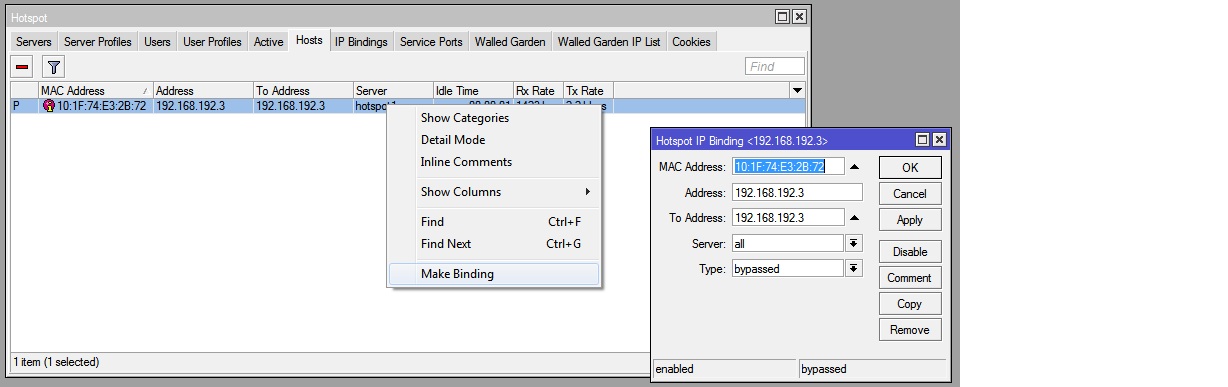

snap attached

[maxcuban]

@samir494

snap attached

thanks very much. I did it yesterday and since then i’ve had usermanager working.

but one more thing pls, the routerboard has 5 ports, I’m using port one for WAN, port 2 for the hotspot interface but i don’t know how to configure it so that ports 3,4,5 will also work as LAN interface so we can connect cables for customers whose laptop’s wireless isn’t functioning..

I really appreciate you help so far, regards, max

[samir494]

open port three , there is option called " master port" select ether2
repeate the same for 4 & 5

[maxcuban]

@samir494

open port three , there is option called " master port" select ether2
repeate the same for 4 & 5

cool, it’s working now..

Thanks man..!!

[mimransa]

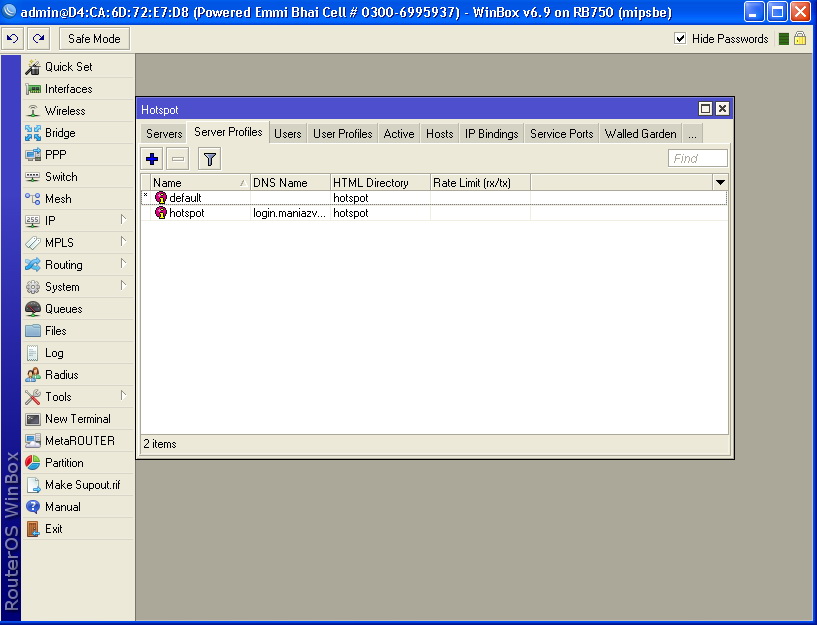

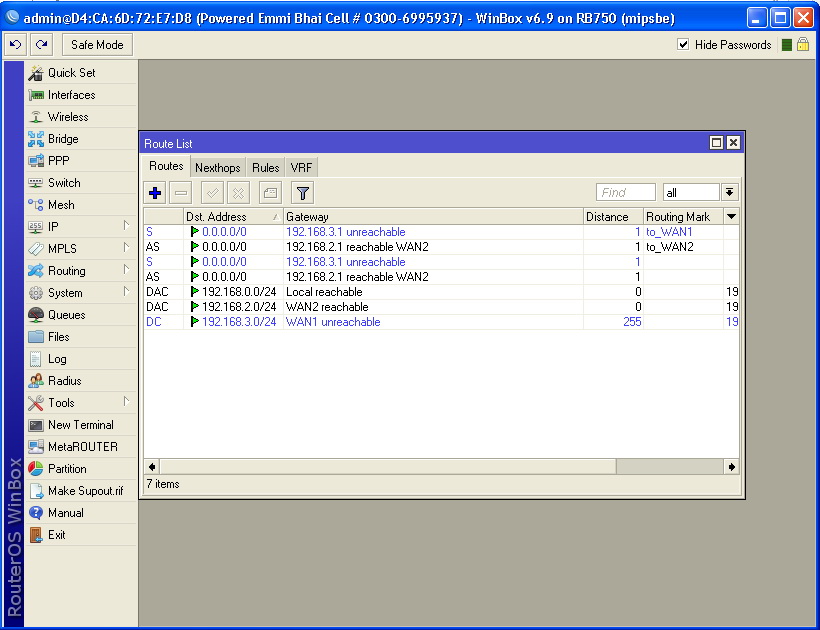

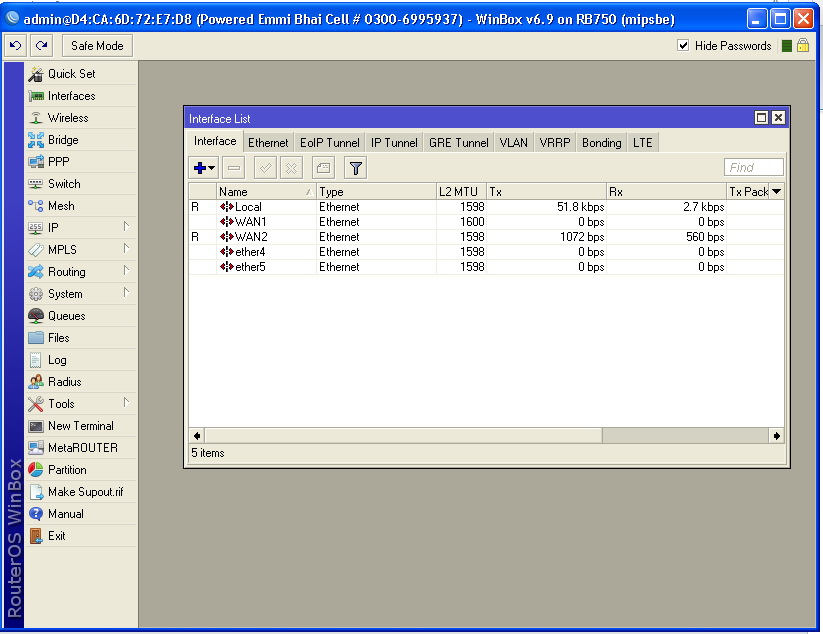

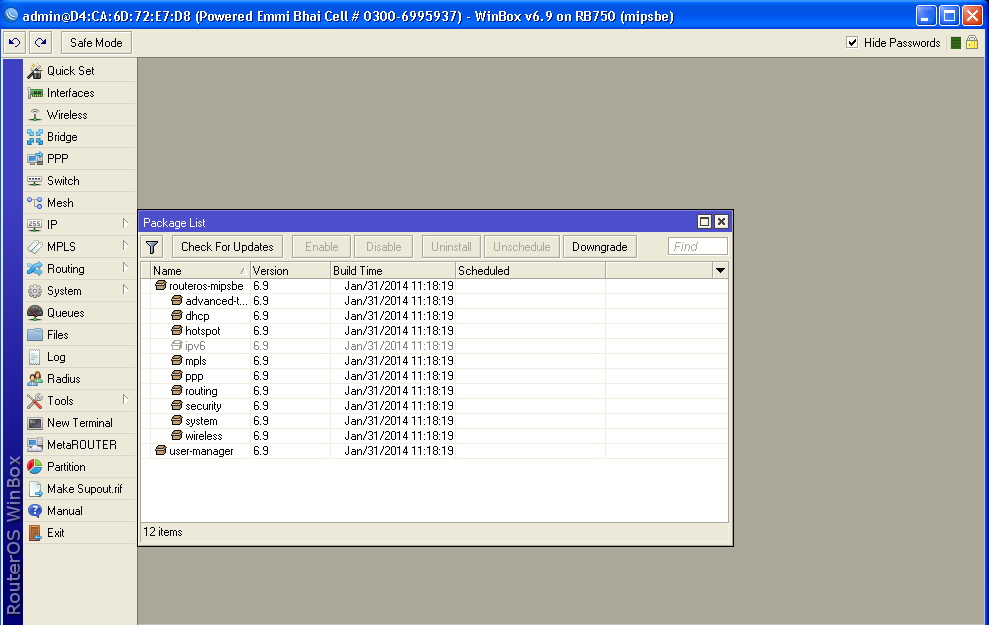

This is my Mikrotik Router Board Configuration and I am still unable to access the user manager page via web browser via the 192.168.0.1/userman and also unable to do IP Binding to bypass the login page.
Can you please guide me where my settings go wrong. I will be highly thankful to you.

[mimransa]

Remaining attached files
