setting up vlan infrastructure and locked myself out

totti4ever · January 4, 2022, 6:34am

Hey there, I had a hEX router and a corresponding switch (CRS328-24P-4S+RM running SWitchOS) up and running together with my Unifi 6 Long-Range Access Point up and running and was living in a nice and cosy world. But then I opened up the vlan windows as I had planned long before. At first it all went well, because I wasn’t really using vlans but rather subnets based on different SSIDs from the AP.

Eventually yesterday night I did try to move everything into their corresponding vlan and now things aren’t working anylonger. Good thing is, I still have access via Webfig and ssh and thus I am hoping, you guys can help me to make things finally right1

Soo, what I want is:

4 vlans: admin (10), personal (20), guest (30) and smart/IoT (50)
3 corresponding wifis for 20, 30 and 50
a couple of ethernet-bound devices in 10, 20 and 50
hEX, CRS and home server should be in vlan 10
no restrictions at first (I felt quite comfortable setting those up in the pre-vlan-subnetting-only-world)

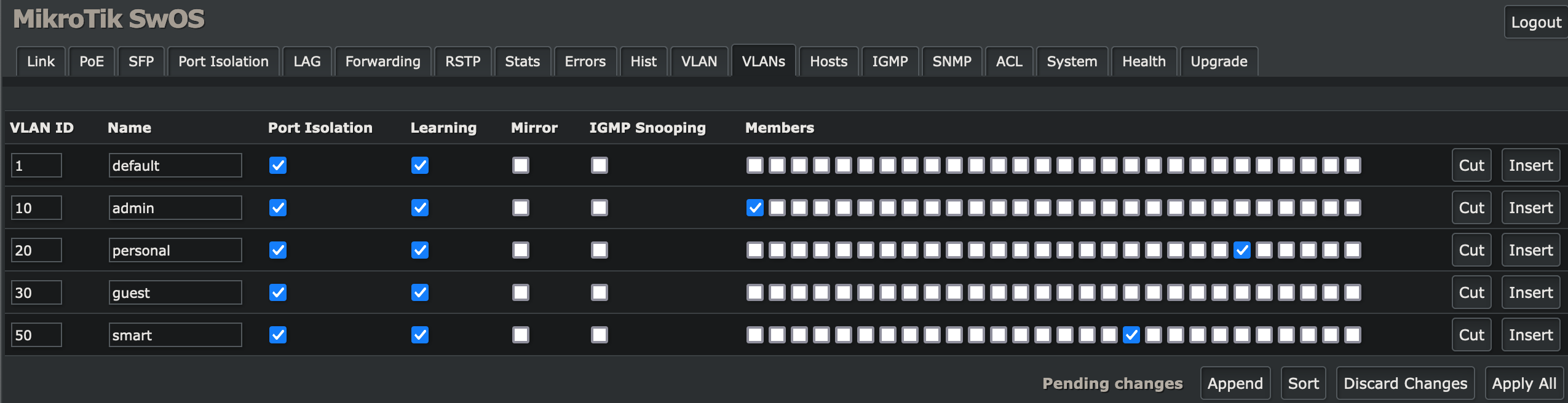

The problems started, when I started setting the vlans in the SwOS:

Actually I am mainly unsecure on what exeactly to configure in /interface bridge vlan and in the vlan setup of router OS. For instance, how to put my wifi AP and the switch in the admin vlan while they still transport traffic from other vlans. And how to make sure they are using the right DHCP server, as when I added a static lease in the admin subnet for the AP and the switch, things started to get weird

Current config looks like this:

[MikroTik-hEX] > /interface print
Flags: D - dynamic, X - disabled, R - running, S - slave
 #     NAME                                TYPE       ACTUAL-MTU L2MTU  MAX-L2MTU MAC-ADDRESS
 0  R  eth1: fritzbox                      ether            1500  1596       2026 08:55:WW:XX:YY:ZZ
 1  RS eth2: switch                        ether            1500  1596       2026 08:55:WW:XX:YY:ZZ
 2  XS ether3                              ether            1500  1596       2026 08:55:WW:XX:YY:ZZ
 3  RS ether4                              ether            1500  1596       2026 08:55:WW:XX:YY:ZZ
 4  XS ether5                              ether            1500  1596       2026 08:55:WW:XX:YY:ZZ
 5  X  sfp1                                ether            1500  1596       2026 08:55:WW:XX:YY:ZZ
 6  R  ;;; defconf
       bridge                              bridge           1500  1596            08:55:WW:XX:YY:ZZ
 7  R  v1-default                          vlan             1500  1592            08:55:WW:XX:YY:ZZ
 8  R  v10-admin                           vlan             1500  1592            08:55:WW:XX:YY:ZZ
 9  R  v20-personal                        vlan             1500  1592            08:55:WW:XX:YY:ZZ
12  R  v30-guest                           vlan             1500  1592            08:55:WW:XX:YY:ZZ
15  R  v50-smart-offline                   vlan             1500  1592            08:55:WW:XX:YY:ZZ

…

[MikroTik-hEX] > /interface vlan print
Flags: X - disabled, R - running
 #   NAME                                                                  MTU ARP             VLAN-ID INTERFACE
 0 R v1-default                                                           1500 enabled               1 bridge
 1 R v10-admin                                                            1500 enabled              10 bridge
 2 R v20-personal                                                         1500 enabled              20 bridge
 5 R v30-guest                                                            1500 enabled              30 bridge
 8 R v50-smart-offline                                                    1500 enabled              50 bridge

…

[MikroTik-hEX] > /interface bridge print
Flags: X - disabled, R - running
 0 R ;;; defconf
     name="bridge" mtu=auto actual-mtu=1500 l2mtu=1596 arp=enabled arp-timeout=auto mac-address=08:55:WW:XX:YY:ZZ protocol-mode=rstp fast-forward=yes igmp-snooping=no
     auto-mac=no admin-mac=08:55:WW:XX:YY:ZZ ageing-time=5m priority=0x8000 max-message-age=20s forward-delay=15s transmit-hold-count=6 vlan-filtering=no dhcp-snooping=no

…

[MikroTik-hEX] > /interface bridge port print
Flags: X - disabled, I - inactive, D - dynamic, H - hw-offload
 #     INTERFACE                                                BRIDGE                                               HW  PVID PRIORITY  PATH-COST INTERNAL-PATH-COST    HORIZON
 0     ;;; defconf
       eth2: switch                                             bridge                                               yes    1     0x80         10                 10       none
 1 I   ;;; defconf
       ether3                                                   bridge                                               yes    1     0x80         10                 10       none
 2     ;;; defconf
       ether4                                                   bridge                                               yes    1     0x80         10                 10       none
 3 I   ;;; defconf
       ether5                                                   bridge                                               yes    1     0x80         10                 10       none
 4 XI   ;;; defconf
       sfp1                                                     bridge                                                      1     0x80         10                 10       none
 5     v30-guest                                                bridge                                                     30     0x80         10                 10       none
 6     v10-admin                                                bridge                                                     10     0x80         10                 10       none
 7     v20-personal                                             bridge                                                     20     0x80         10                 10       none
 8     v1-default                                               bridge                                                      1     0x80         10                 10       none
 9     v50-smart-offline                                        bridge                                                     50     0x80         10                 10       none

…

[MikroTik-hEX] > /interface bridge vlan print
Flags: X - disabled, D - dynamic
 #   BRIDGE                                           VLAN-IDS  CURRENT-TAGGED                                         CURRENT-UNTAGGED
 0   bridge                                           1
                                                      10
                                                      20
                                                      30
                                                      50

…

[MikroTik-hEX] > /ip address print
Flags: X - disabled, I - invalid, D - dynamic
 #   ADDRESS            NETWORK         INTERFACE
 0   ;;; defconf
     192.168.1.1/24     192.168.1.0     bridge
 1   192.168.192.10/24  192.168.192.0   eth1: fritzbox
 2   192.168.30.1/24    192.168.30.0    v30-guest
 3   192.168.20.1/24    192.168.20.0    v20-personal
 8   192.168.50.1/24    192.168.50.0    v50-smart-offline
10   10.0.10.1/24       10.0.10.0       v10-admin

…

[MikroTik-hEX] > /ip dhcp-server print
Flags: D - dynamic, X - disabled, I - invalid
 #    NAME                                      INTERFACE                                    RELAY           ADDRESS-POOL                                    LEASE-TIME ADD-ARP
 0    defconf                                   bridge                                                       dhcp                                            10m
 1    guest                                     v30-guest                                                    dhcp-pool-guest                                 10m
 2    smart-offline                             v50-smart-offline                                            dhcp-pool-smart-offline                         10m
 4    personal                                  v20-personal                                                 dhcp-pool-personal                              10m
 5    admin                                     v10-admin                                                    dhcp-pool-admin                                 10m

…

[MikroTik-hEX] > /ip dhcp-server network print
Flags: D - dynamic
 #   ADDRESS            GATEWAY         DNS-SERVER                                                       WINS-SERVER     DOMAIN
 0   ;;; Administration und Infrastructure
     10.0.10.0/24       10.0.10.1       192.168.1.10                                                                     admin
 1   ;;; defconf
     192.168.1.0/24     192.168.1.1     192.168.1.10                                                                     local
 2   ;;; Personal
     192.168.20.0/24    192.168.20.1    192.168.1.10                                                                     personal
 3   ;;; Guests
     192.168.30.0/24    192.168.30.1    192.168.1.10                                                                     guest
 4   ;;; Smart Home (offline)
     192.168.50.0/24    192.168.50.1    192.168.1.10                                                                     offline.smart

…

[MikroTik-hEX] > /ip pool print
 # NAME                                                                                                                                         RANGES
 0 dhcp                                                                                                                                         192.168.1.201-192.168.1.254
 1 dhcp-pool-guest                                                                                                                              192.168.30.100-192.168.30.254
 2 dhcp-pool-personal                                                                                                                           192.168.20.100-192.168.20.254
 7 dhcp-pool-smart-offline                                                                                                                      192.168.50.220-192.168.50.254
 9 dhcp-pool-admin                                                                                                                              10.0.10.100-10.0.10.254

…

[MikroTik-hEX] > /ip route print
Flags: X - disabled, A - active, D - dynamic, C - connect, S - static, r - rip, b - bgp, o - ospf, m - mme, B - blackhole, U - unreachable, P - prohibit
 #      DST-ADDRESS        PREF-SRC        GATEWAY            DISTANCE
 0 A S  0.0.0.0/0                          192.168.192.1             1
 1 ADC  10.0.10.0/24       10.0.10.1       v10-admin                 0
 4 ADC  192.168.1.0/24     192.168.1.1     bridge                    0
 5 ADC  192.168.20.0/24    192.168.20.1    v20-personal              0
 8 ADC  192.168.30.0/24    192.168.30.1    v30-guest                 0
11 ADC  192.168.50.0/24    192.168.50.1    v50-smart-offline         0
13 ADC  192.168.192.0/24   192.168.192.10  eth1: fritzbox            0

Okay, I hope that’s it

mkx · January 4, 2022, 7:08am

For starters here are two great articles about bridges and VLANs in ROS:

On different bridge personalities
How to properly configure VLANs under ROS

I don’t think there are many tutorials for SwOS, it seems to be supposed to be self-descriptive.

And an advice: when trying to present configuration of your ROS device, use export command, it displays all configuration details in a pretty structured way (and does it recursively from current configuration tree point). It only fails to display dynamic entries, but those are rarely important (if they are, some fellow forum member will ask you to display those). The print command does grat job, but not in such a structured way … some people find it harder to read actually.

When I tried to understand the outputs you presented, I noticed one error you have (but you may have more): it seems you added vlan interfaces (created in /interface vlan) back to bidge as member ports (in /itnerface bridge port). This is wrong as hell. It’s likely you missed a few other things, so I suggest you to read through tutorials I linked and see if you can find your way around.

anav · January 4, 2022, 4:53pm

One more article, to prevent locking yourself out and configuring from a safe location… bridges can be hazardous to your health!!
https://forum.mikrotik.com/viewtopic.php?t=181718

bpwl · January 4, 2022, 6:26pm

For SwOS, follow this help page. There are even VLAN config exemples included.
https://help.mikrotik.com/docs/pages/viewpage.action?pageId=76415036

e.g. the trunk ethernet port between hEX and Switch should normally be member of all VLAN’s. (Now you show 1 port per VLAN only.)

totti4ever · January 7, 2022, 10:31am

For starters here are two great articles about bridges and VLANs in ROS:

On different bridge personalities
How to properly configure VLANs under ROS

I don’t think there are many tutorials for SwOS, it seems to be supposed to be self-descriptive.

And an advice: when trying to present configuration of your ROS device, use export command, it displays all configuration details in a pretty structured way (and does it recursively from current configuration tree point). It only fails to display dynamic entries, but those are rarely important (if they are, some fellow forum member will ask you to display those). The print command does grat job, but not in such a structured way … some people find it harder to read actually.

When I tried to understand the outputs you presented, I noticed one error you have (but you may have more): it seems you added vlan interfaces (created in /interface vlan) back to bidge as member ports (in /itnerface bridge port). This is wrong as hell. It’s likely you missed a few other things, so I suggest you to read through tutorials I linked and see if you can find your way around.

I think the second link was the best for me, especially with the provided rsc file, which I merged with my settings.

Thanks also for this hint!

and for this hint, especially the port assignment was wrong of course!

So, in the end I got everything working, that’s fantastic. Thank you very much for helping out although I assume you have provided similar hints already quite a few times
