Hi,
I have a problem with 100Mbps (155M) SFP on MikroTik CRS328-4C-20S-4S+. They should work on this model in all SFP ports according to this:
https://wiki.mikrotik.com/wiki/MikroTik_wired_interface_compatibility#SFP_interface_compatibility_with_100M_optical_transceivers
SFP interface on the listed devices is compatible with fast ethernet fiber links.
Compatible devices (interface):
CCR1009-7G-1C (combo1)
CCR1009-7G-1C-1S+ (combo1)
CRS106-1C-5S (combo1)
CRS328-4C-20S-4S+ (combo1 - combo4 and SFP1 - SFP20)
LHG XL 52 ac
RBD22/D23/mANTBox 52 15s/NetMetal ac²
For testing purposes I’ve tried to connect two SFP ports (sfp1 and sfp9 in example below) that belong to two separate VLANs:
# 2023-08-28 09:33:43 by RouterOS 7.11
# software id = N882-J2R7
#
# model = CRS328-4C-20S-4S+
/interface bridge
add name=bridge protocol-mode=none \
vlan-filtering=yes
/interface vlan
add interface=bridge name=vlan_88 vlan-id=88
add interface=bridge name=vlan_89 vlan-id=89
/interface bridge port
add bridge=bridge interface=combo1 pvid=88
add bridge=bridge interface=combo2 pvid=88
add bridge=bridge interface=combo3 pvid=89
add bridge=bridge interface=combo4 pvid=89
add bridge=bridge interface=sfp-sfpplus1 pvid=88
add bridge=bridge interface=sfp-sfpplus2 pvid=88
add bridge=bridge interface=sfp-sfpplus3 pvid=89
add bridge=bridge interface=sfp-sfpplus4 pvid=89
add bridge=bridge interface=sfp1 pvid=88
add bridge=bridge interface=sfp2 pvid=88
add bridge=bridge interface=sfp3 pvid=88
add bridge=bridge interface=sfp4 pvid=88
add bridge=bridge interface=sfp5 pvid=88
add bridge=bridge interface=sfp6 pvid=88
add bridge=bridge interface=sfp7 pvid=88
add bridge=bridge interface=sfp8 pvid=88
add bridge=bridge interface=sfp9 pvid=89
add bridge=bridge interface=sfp10 pvid=89
add bridge=bridge interface=sfp11 pvid=89
add bridge=bridge interface=sfp12 pvid=89
add bridge=bridge interface=sfp13 pvid=89
add bridge=bridge interface=sfp14 pvid=89
add bridge=bridge interface=sfp15 pvid=89
add bridge=bridge interface=sfp16 pvid=89
add bridge=bridge interface=sfp17 pvid=89
add bridge=bridge interface=sfp18 pvid=89
add bridge=bridge interface=sfp19 pvid=89
add bridge=bridge interface=sfp20 pvid=89
/interface bridge vlan
add bridge=bridge tagged=bridge untagged="combo1,combo2,sfp1,sfp2,sfp3,sfp4,sf\
p5,sfp6,sfp7,sfp8,sfp-sfpplus1,sfp-sfpplus2" vlan-ids=88
add bridge=bridge tagged=bridge untagged="sfp9,sfp10,sfp11,sfp12,sfp13,sfp14,s\
fp15,sfp16,sfp17,sfp18,sfp19,sfp20,combo3,combo4,sfp-sfpplus3,sfp-sfpplus4\
" vlan-ids=89
/ip address
add address=192.168.88.1/24 interface=vlan_88 network=192.168.88.0
add address=192.168.89.1/24 interface=vlan_89 network=192.168.89.0
But there is no communication between them (tried to ping 192.168.89.1 from combo1 port).
Also tried to force 100M on both SFP ports:
/interface ethernet
set [ find default-name=sfp1 ] auto-negotiation=no speed=100Mbps
set [ find default-name=sfp9 ] auto-negotiation=no speed=100Mbps
This also doesn’t work, except that the links at the SFP ports in MikroTik have lit up and the status “link ok” is in the SFP interface status. Unfortunately, there is no IP communication. TX counter at port status is increasing, but RX is zero.
No firewall applied, no (R)STP on bridge ports.
Same config tested with another different (from other manufacturer) pair SFP 100MBps (155Mbps) and communication also doesn’t work.
Same config tested with few different pair SFP 1Gbps (1,25G) and communication works good.
Tested pair SFP 100MBps (155Mbps) checked on another device (simple media converter Planet IGT-805AT) and works good (same patchord).

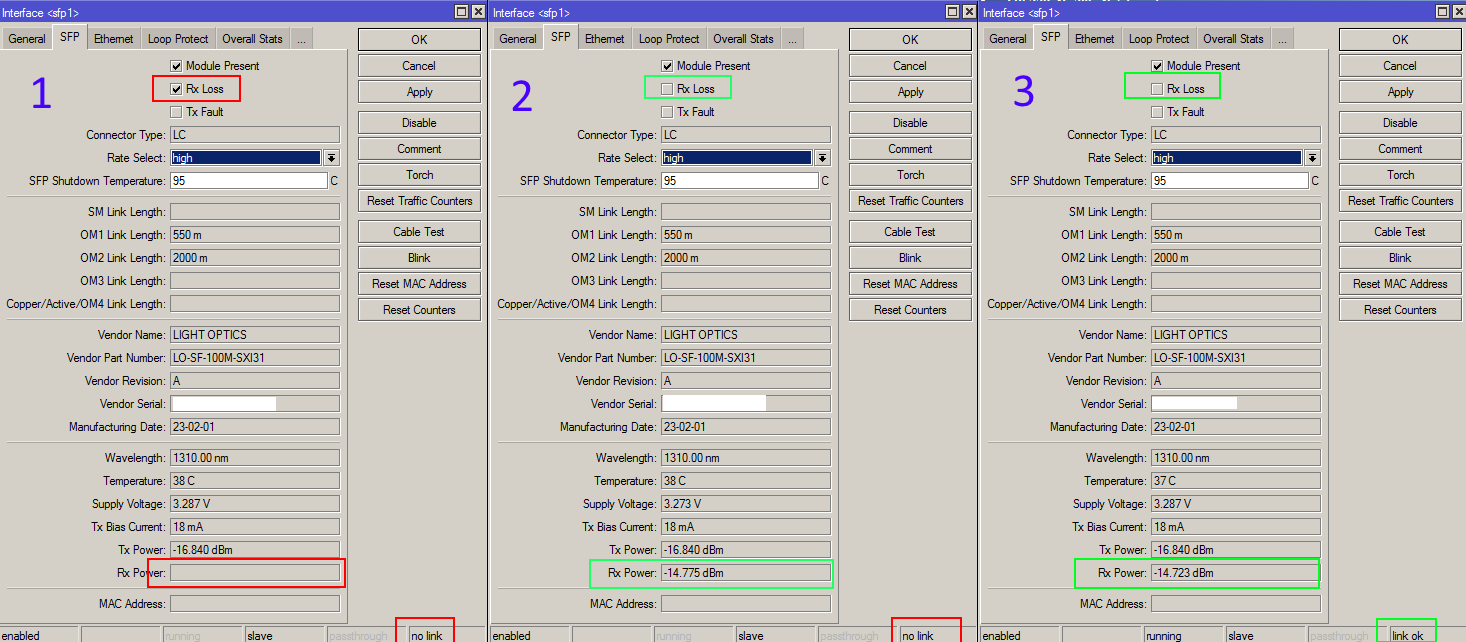

Screenshot in attachment:
- sfp1 status while patchord is disconnected
- sfp1 status while it is connected to sfp9 (autonegotiation)
- sfp1 status while it is connected to sfp9 (forced 100M)
Device info:
routerboard: yes
model: CRS328-4C-20S-4S+
revision: r2
firmware-type: dx3230L
factory-firmware: 6.49.7
current-firmware: 7.11
upgrade-firmware: 7.11
Any suggestions this would work ?
