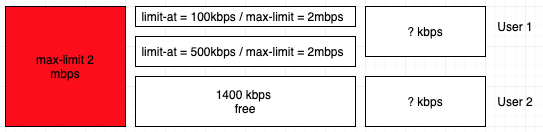

if I have 2mbps and create two leaf queue on queue tree, same priority, PCQ download, Rate=0, 100k limit-at and other with 500k limit-at, both with max-limit 2mbps, if those two clients download at same time, first is satisfied the limit-at, but what happen with the rest of the bandwidth?, will be shared equal on both users? so the 1400k will be Shared and both user will get 1mbps?
this is what really happens, the leaf with higher limit-at will get more bandwidth, the only way to share equal is to set the same limit-at, in that way it will take exactly 1mbps when both are downloading at same time.

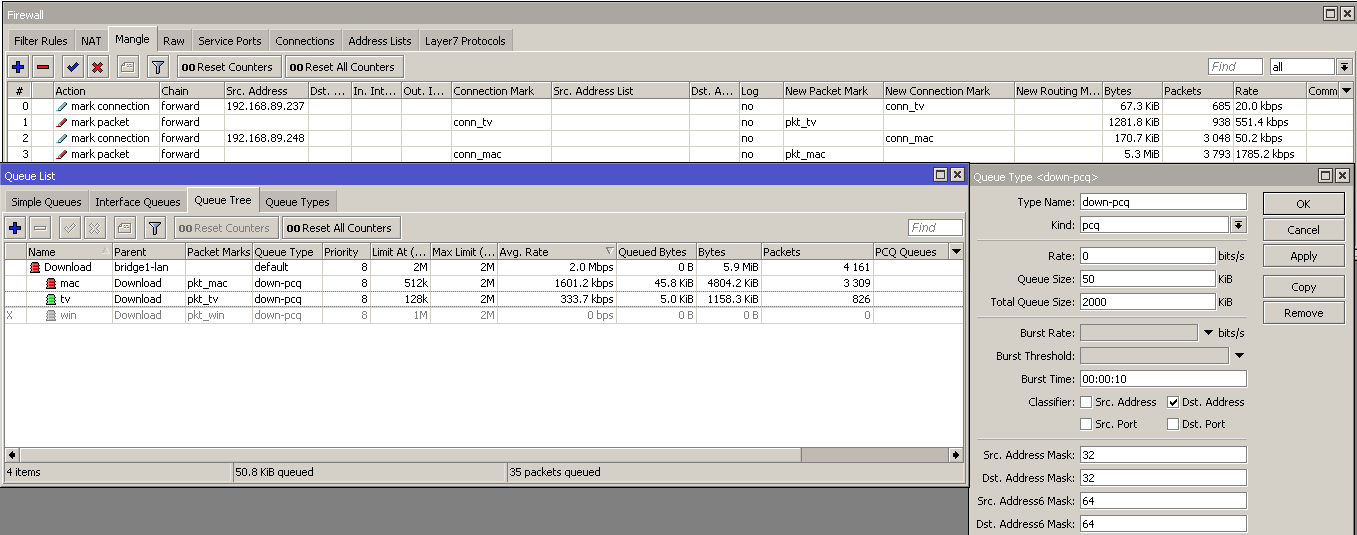

You are confusing queue leaf objects and PCQ in your config.
Either change the queue type in leaf queues to “default-small” which will work perfect for 2M queues, alternatively configure the PCQ queue types correct and assign this to the parent and remove the leave queues
First of all Thanks for help,
I make the change you said, the result is the same, the problem is that the leaf that has more LIMIT-AT always take more bandwith, the only way to share equal is assigning the same LIMIT-AT to all leaves.
see both images

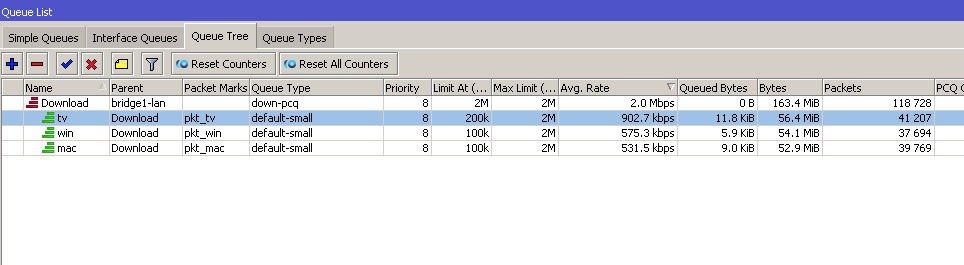

This is with same LIMIT-AT, share perfect
Now this is with different LIMIT-AT
