Is there a tool where I can simulate an ISP provider? for example, mark the GPS which will be my tower and where are my customers. I need a map to show me the distance of each link.
Google earth?
Absolutely sufficient when it comes to bare distances.
For getting elevation profiles into the game, ubnt has quite a nice tool online - but obviously only calculating their own gear.
Or have a look at https://www.towercoverage.com/
-Chris
Re: Is there a tool where I can simulate an ISP provider
I would tell you - but - it has some bugs as indicated below:
- lack of sleep
- never does exactly what you expected
- constantly needs upgrading
- consumes all resources
- requires many people to operate
- forces you to constantly deal with lots of BS
- the simulation requires doubling all hardware & software & co-locations every few months to every few years
So yes - I know of lots of simulation software but I would not recommend it unless you are very serious
North Idaho Tom Jones
search for Radio Mobile. I have used it, takes some effort to install.. ie making directories. etc manually.
They have guides on the website to do this. Its free too! Right in my budget.
Take a look at the WiND Project. https://github.com/wind-project/wind
It allows you to add nodes to a map and add links between them among other things (ie IP address & DNS allocation).
It will calculate the distance, free space loss, LOS and fresnel zone graphs using NASA’s SRTM data.
Here’s an installation of the system used for AWMN (Athens Wireless Metropolitan Network) https://wind.awmn.net/?session_lang=english

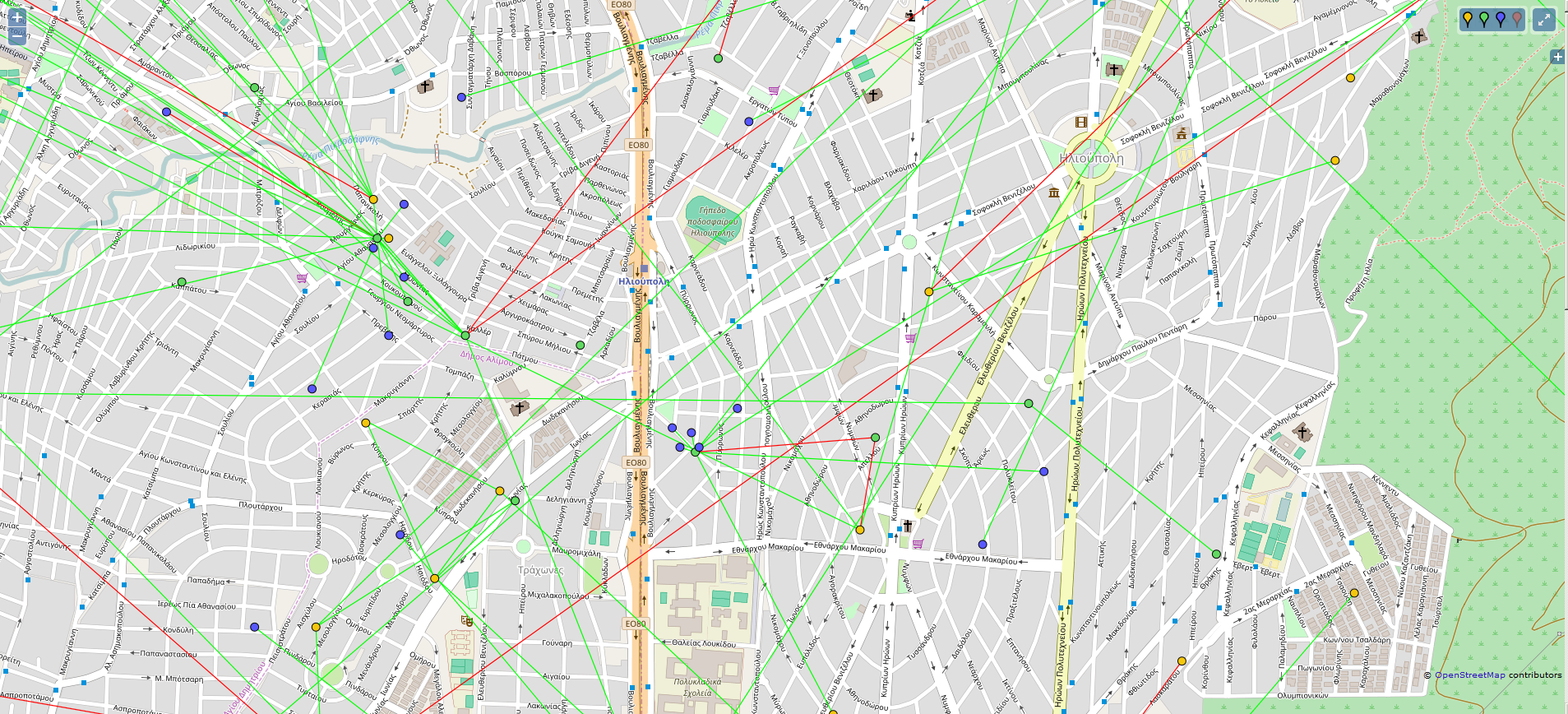

Map View:

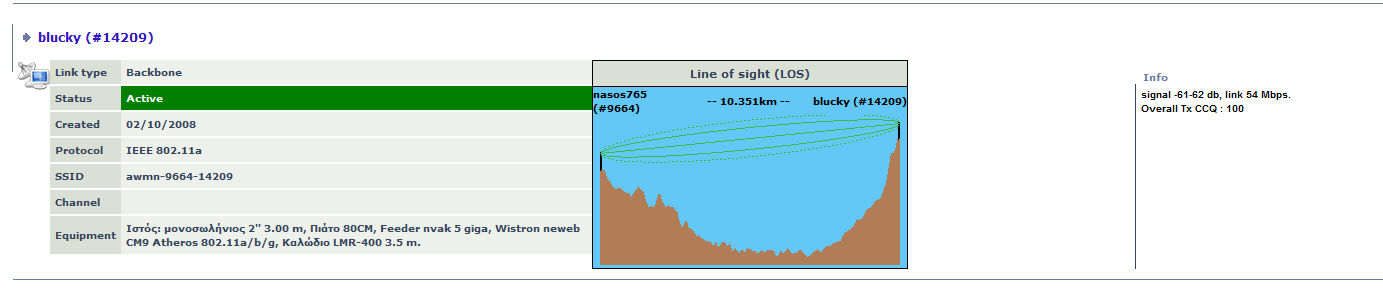

Link View:
LOS View:
