Ok, I’ve done some searching, and som experimenting, and not really getting anywhere.

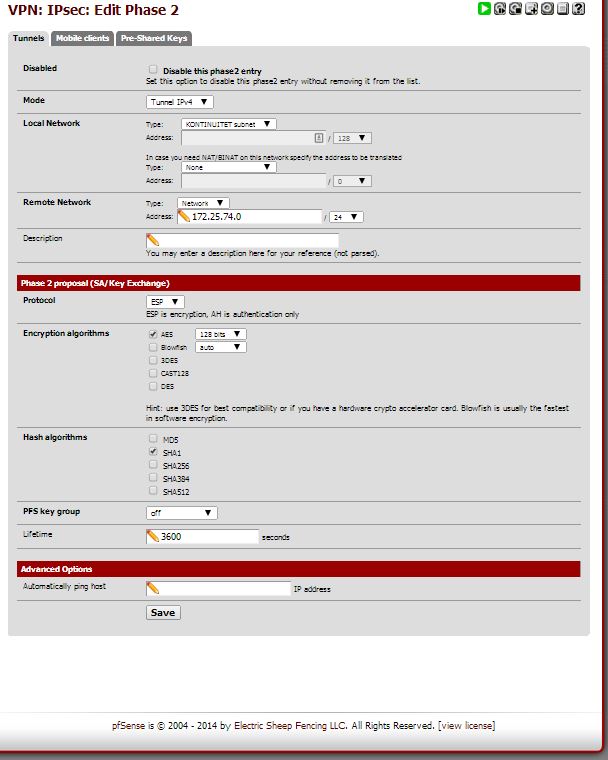

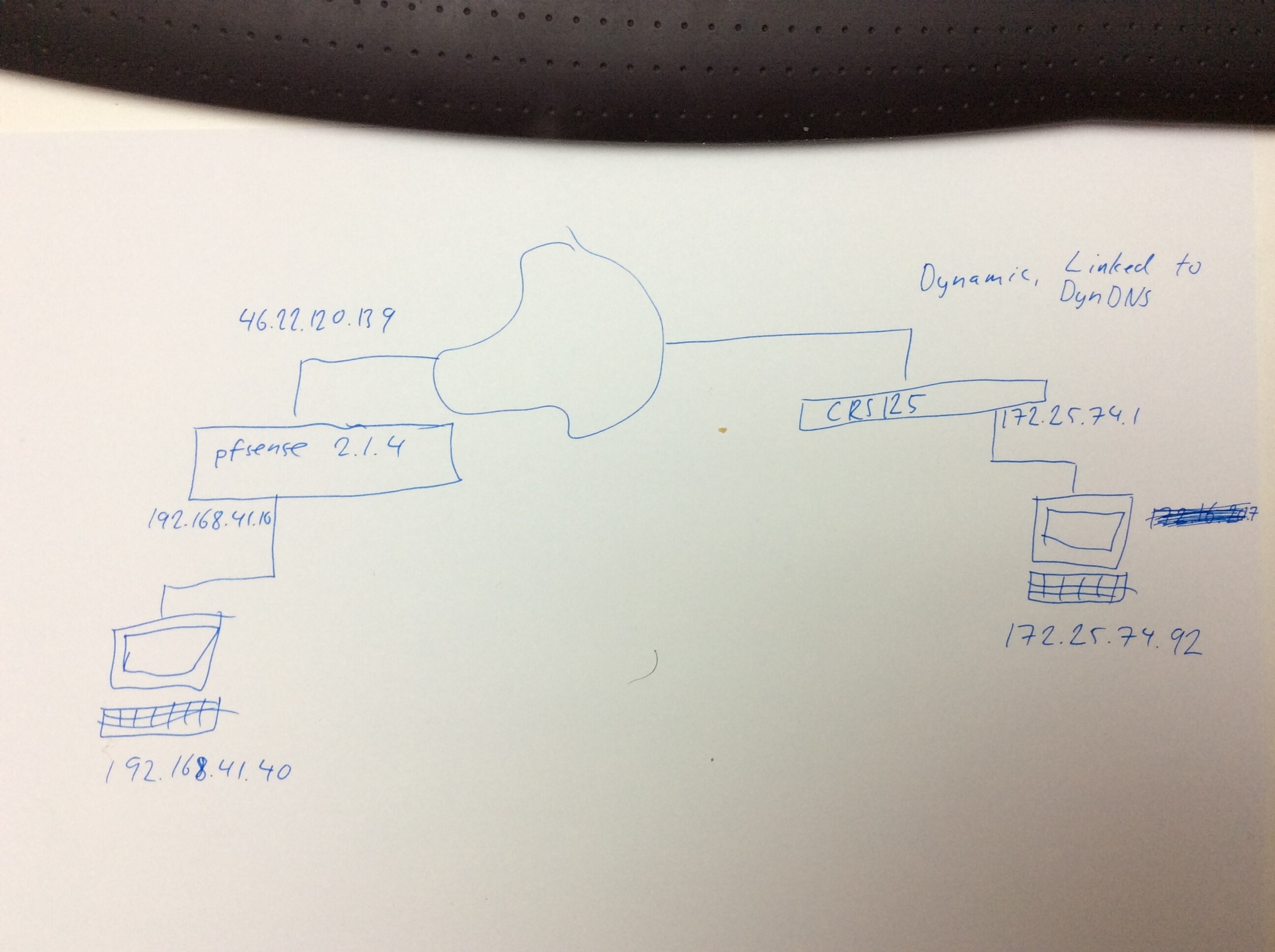

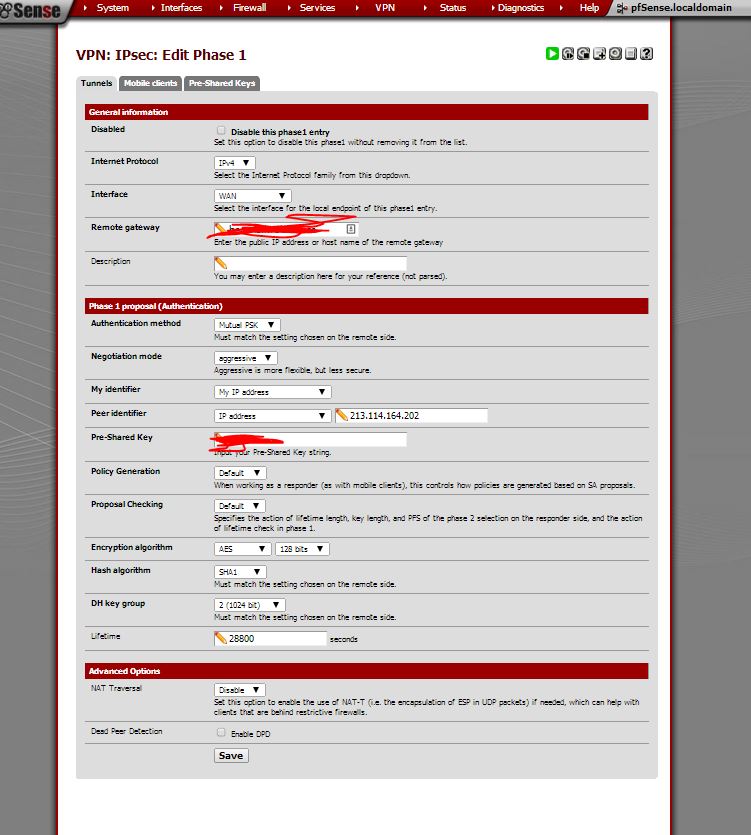

I have attached a quick sketch, and screenshots of pfSense. The machines on both sides have “internet access” via the FW on each side, so routing/nat seem ok. I realize that right now i am using static config in mikrotik. But i figured i would fix a ip-updater once i got something working.
I seem to have something up:
[admin@MikroTik] /ip ipsec remote-peers> print
0 local-address=213.114.164.202 remote-address=46.22.120.139 state=established side=initiator established=43m32s
But, log on mikrotik gives
22:44:38 ipsec,error failed to pre-process ph2 packet.
22:45:07 ipsec,error failed to pre-process ph2 packet.
22:45:17 ipsec,error failed to pre-process ph2 packet.
22:45:27 ipsec,error failed to pre-process ph2 packet.
22:45:56 ipsec,error failed to pre-process ph2 packet.
Partial Config of CRS125
[admin@MikroTik] /ip ipsec> /ip ipsec export
aug/25/2014 23:18:07 by RouterOS 6.18
software id = 2BVE-7BGB
/ip ipsec proposal
set [ find default=yes ] enc-algorithms=3des pfs-group=none
/ip ipsec peer
Unsafe configuration, suggestion to use certificates
add address=46.22.120.139/32 dpd-interval=disable-dpd enc-algorithm=aes-128 exchange-mode=aggressive lifetime=1h nat-traversal=no secret=hiddenfromforum
/ip ipsec policy
set (unknown) dst-address=192.168.41.0/24 src-address=172.25.74.0/24
[admin@MikroTik] /ip ipsec>
[admin@MikroTik] /ip ipsec> /ip firewall export
aug/25/2014 23:19:11 by RouterOS 6.18
software id = 2BVE-7BGB
/ip firewall address-list
add address=172.25.75.0/24 list=Verisure-address-list
add address=172.25.74.0/24 list=Krokolan-address-list
add address=172.25.0.0/16 list=Internal-address-list
/ip firewall filter
add chain=input comment=IPsec dst-port=500 protocol=udp
add chain=input protocol=ipsec-esp
add chain=input dst-port=4500 protocol=udp
add chain=input comment=“Allow winbox” dst-port=8291 in-interface=ether1-gateway-bredbandsbolaget protocol=tcp
add chain=input comment=“Allow Winbox” dst-port=8291 in-interface=ether1-gateway-bredbandsbolaget protocol=udp
add chain=input comment=“Allow SNMP from na01” dst-port=161 in-interface=ether1-gateway-bredbandsbolaget protocol=udp src-address=46.22.120.
add chain=input comment=“Allow ICMP” protocol=icmp
add chain=input comment=“Allow DNS from Internal nets to FW” dst-address=172.25.74.1 dst-port=53 protocol=udp src-address-list=Internal-addr
add chain=input comment=“Allow DNS from Internal nets to FW” dst-port=53 protocol=tcp src-address-list=Internal-address-list
add chain=input comment=“Allow Established Input” connection-state=established
add chain=input comment=“Allow related input” connection-state=related
add chain=input comment=“Allow krokolan to mikrotik” dst-address=172.25.74.1 src-address=172.25.74.0/24
add chain=forward comment=“Allow DNS from Internal nets to FW” dst-address=172.25.74.1 dst-port=53 protocol=udp src-address-list=Internal-ad
add chain=forward comment=“Allow DNS from Internal nets to FW” dst-address=172.25.74.1 dst-port=53 protocol=tcp src-address-list=Internal-ad
add action=reject chain=forward comment=“Disallow verisure->local” dst-address-list=Internal-address-list src-address-list=Verisure-address-
add chain=forward comment=“Allow Established Forward” connection-state=established
add chain=forward comment=“Allow Related Forward” connection-state=related
add chain=forward src-address=46.22.120.140
add action=drop chain=forward comment=“Drop invalid forward” connection-state=invalid
add action=drop chain=input comment=“Drop input fr\E5n BBB” in-interface=ether1-gateway-bredbandsbolaget
add action=drop chain=input comment=“Drop all remaining”
/ip firewall nat
add chain=srcnat dst-address=192.168.41.0/24 src-address=172.25.74.0/24
add action=masquerade chain=srcnat comment=“Default Masq” out-interface=ether1-gateway-bredbandsbolaget
add action=dst-nat chain=dstnat comment=“NAT for na01 → krokopool” dst-port=6556 in-interface=ether1-gateway-bredbandsbolaget protocol=tcp
46.22.120.140 to-addresses=172.25.74.100 to-ports=6557
add action=dst-nat chain=dstnat comment=na01->Krokopool/Http dst-port=10080 in-interface=ether1-gateway-bredbandsbolaget protocol=tcp src-ad
46.22.120.140 to-addresses=172.25.74.100 to-ports=80
add action=dst-nat chain=dstnat comment=“na01 → fibaro 80” dst-port=10580 in-interface=ether1-gateway-bredbandsbolaget protocol=tcp src-add
to-addresses=172.25.74.5 to-ports=80
add action=dst-nat chain=dstnat dst-port=31194 in-interface=ether1-gateway-bredbandsbolaget protocol=udp src-address=46.22.120.140 to-addres
to-ports=31194
[admin@MikroTik] /ip ipsec>
Tl;DR: Sitetosite IPSec between Pfsense and Mikrotik, howto?
