site to site ipsec vpn + Internet routing

RouterOS General
1

Hello all,

I have two site, Site-A and Site-B where I have configured ipsec vpn. In Site-A I have ADSL pppoe connection connected to Mikrortik eth3 port which used to browse internet. I have added default route 0.0.0.0/0 gateway 192.168.5.1 which is adsl lan ip. But I am not able to reach internet from LAN side of SITE-A router. What might be wrong? IPSEC vpn is working fine.

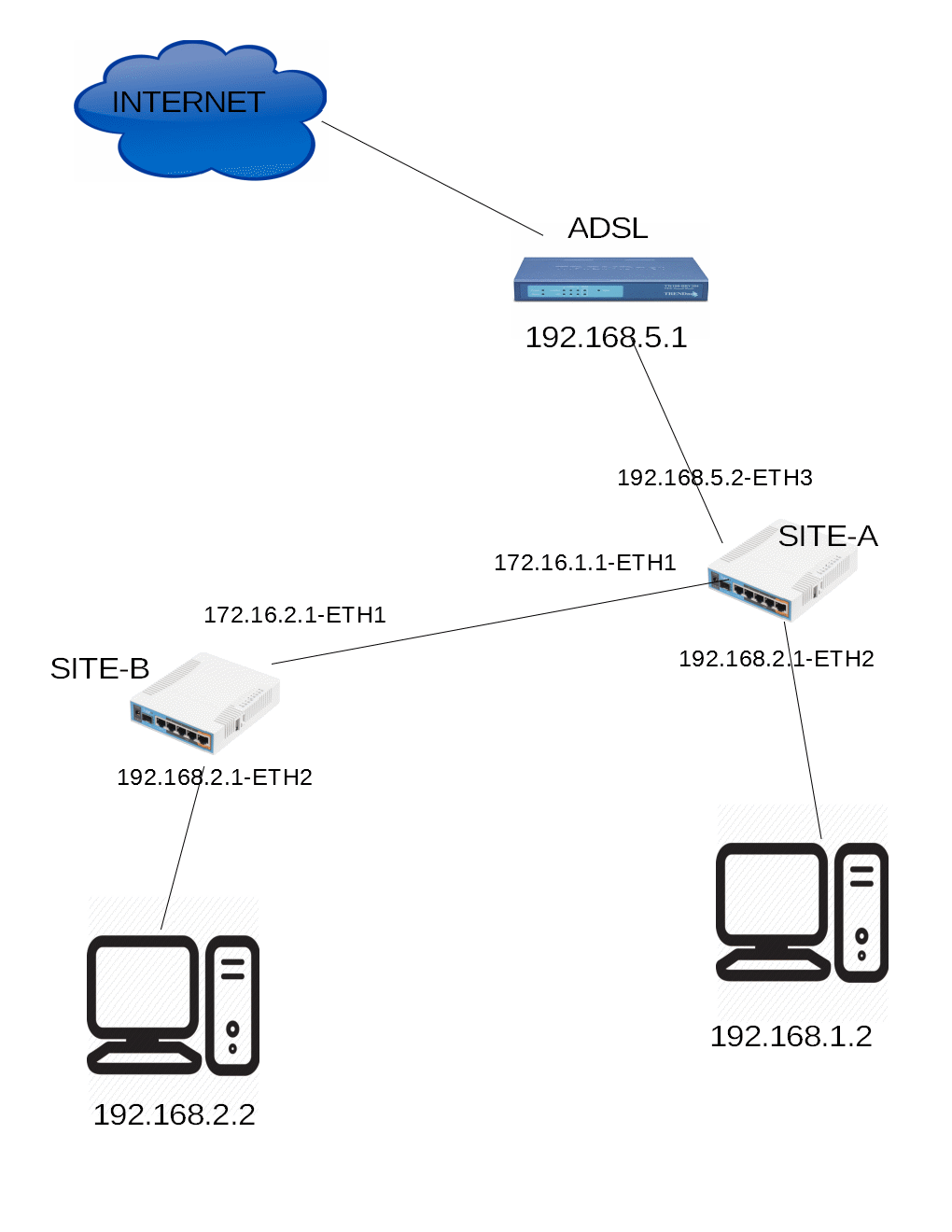

kapilvastunetwork.gif1020×1320 74.4 KB

Below is my setup:
SITE-A
ETH-1: 172.16.1.1 [ VPN WAN IP ]
ETH-2: 192.168.1.1 [ LAN ]
ETH-3 : 192.168.5.2 [ ADSL Internet Gateway is 192.168.5.1]

SITE-B:
ETH-1: 172.16.2.1 [ VPN IP ]
ETH-2: 192.168.2.1 [ LAN IP ]

2

Post

/export hide

output from both routers when asking questions like this.

3

If you have pppoe on mikrotik, that will indicate that the adsl modem/router is in bridge mode (confirm this as it is important)

Then you can’t point default gateway to the adsl modem/router IP, that IP is then only for management purposes. You should get IP/gateway on the mikrotik pppoe interface from supplier and with mikrotik default config, it will automatically add a default route
