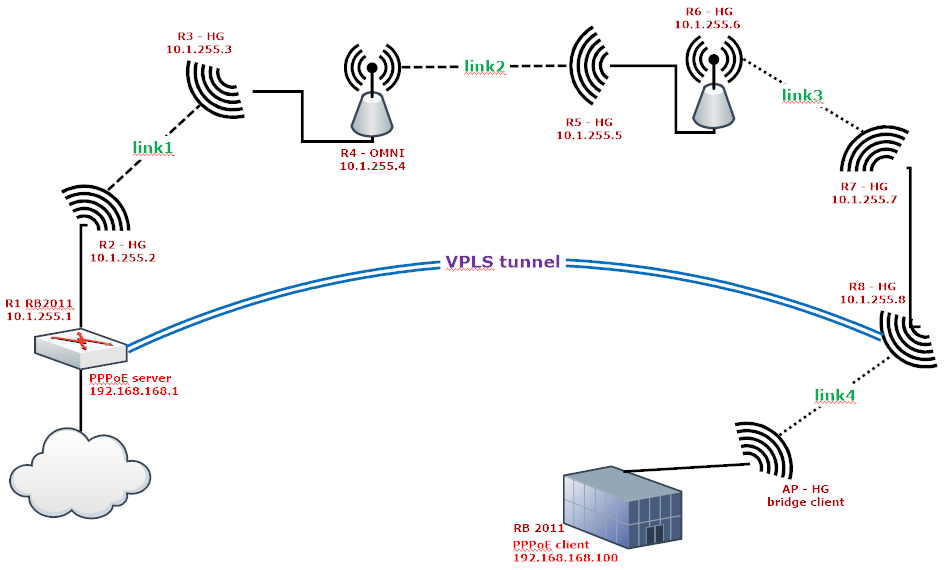

So, I’m having very terrible troubles with my small wireless setup. I can’t get proper speed on the end of the network (on R8). See picture bellow:
This is a simple OSPF network which using VPLS tunnels, over MPLS, to deliver PPPoE service to the customer. Routing works alright, MPLS works alright, but bandwidth test has a strange behavior.
I’ve done some testing between MikroTiks, all on the TCP stream:
R1 send to R8 ~ 5Mbps
R1 send to R6 ~ 9Mbps
R1 send to R4 ~ 30Mbps
R4 send to R8 ~ 7Mbps
R4 send to R6 ~ 55Mbps
R6 send to R8 ~ 30Mbps

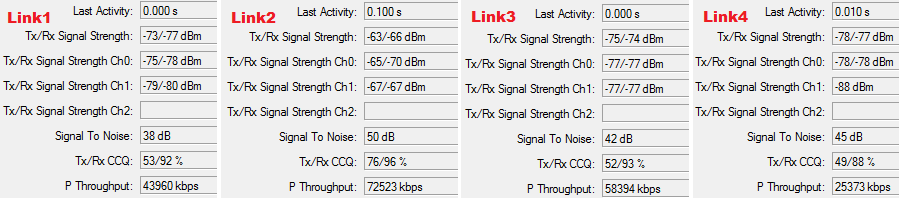

As you can see all links in the backbone have a 30M (one-way) connection at least. When I connect client through R8, dial up pppoe connection and try speedtest.net I get just 6M/6M (like on a bandwidth test result R1 to R8). I know that all my wifi links are not so “flash” (see attachment bellow), but I reckon I should get way more than bloody 6megs even with this setting.

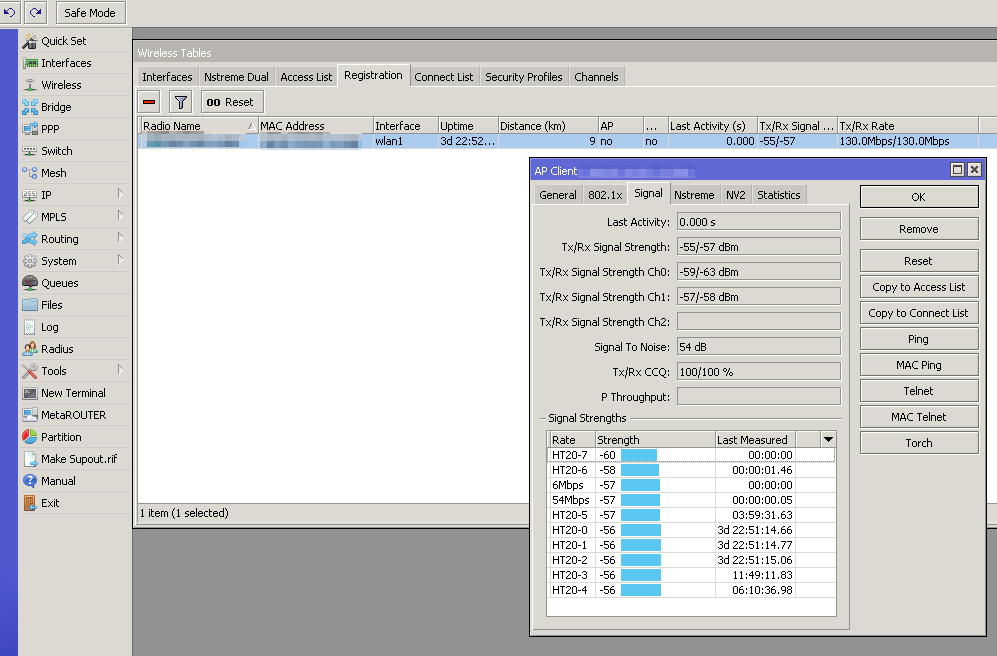

Links:
Additional info:
All links are running on 802.11, nv2 had a same behavior.
I wouldn’t blame the MPLS, but just to be sure:
- all interfaces have L2MTU 1598 at least
- MPLS interface MTU is in default 1508
- I tried get the rid of the MPLS and use old-good eoip, but result on the client was same
For communication between OmniTIKs and “HGs” (R4 ↔ R5 and R6 ↔ R7) I set up a virtualAP interface and running ospf via this one
R3 & R5 are connected and powered from the OmniTIKs (R4 & R6) via eth02. - I must to set in OmniTIK /interface ethernet poe settings ether1-poe-in-long-cable=yes, otherwise did not power up the plugged device (cable to eth01 ~ 15m)
I had a problem between R5 & R6, auto negotion indicated 10M connection so I disabled it and flicked manually to 100M. Apparently it works fine as you can see on the bandwidth test R4 to R6.
I know that I should change ospf interface to non-broadcast one, because of Wi-Fi and multicast, but I don’t think so that the problem of slow connection is there.
Configuration of MikroTiks:
R1 - RB 2011UAS
===============
/ip address
add address=10.1.255.1/32 interface=lobridge
add address=10.1.1.1/30 interface=eth02
/routing ospf instance
set [ find default=yes ] router-id=10.1.255.1
/routing ospf interface
add authentication=md5 authentication-key=xyz interface=eth02 network-type=broadcast
add authentication=md5 authentication-key=xyz interface=lobridge network-type=broadcast passive=yes
/routing ospf network
add area=backbone network=10.1.0.0/16
/mpls ldp
set enabled=yes lsr-id=10.1.255.1 transport-address=10.1.255.1
/mpls ldp interface
add interface=eth02
/interface vpls
add name=tunel1 remote-peer=10.1.255.8 vpls-id=18:1
/ppp profile
add local-address=192.168.169.1 name=pppoe use-encryption=yes
/ppp secret
add name=client password=pwd123 profile=pppoe remote-address=192.168.169.100 service=pppoe
/interface pppoe-server server
add interface=tunel1 default-profile=pppoe one-session-per-host=yes
R2 - RB SXT G-5HPnD r2
======================
/ip address
add address=10.1.255.2/32 interface=lobridge
add address=10.1.1.2/30 interface=eth01
add address=10.1.2.1/30 interface=wlan1
/routing ospf instance
set [ find default=yes ] router-id=10.1.255.2
/routing ospf interface
add authentication=md5 authentication-key=xyz interface=eth01 network-type=broadcast
add authentication=md5 authentication-key=xyz interface=wlan1 network-type=broadcast
add authentication=md5 authentication-key=xyz interface=lobridge network-type=broadcast passive=yes
/routing ospf network
add area=backbone network=10.1.0.0/16
/mpls ldp
set enabled=yes lsr-id=10.1.255.2 transport-address=10.1.255.2
/mpls ldp interface
add interface=eth01
add interface=wlan1
R3 - RB SXT G-5HPnD r2
======================
/ip address
add address=10.1.255.3/32 interface=lobridge
add address=10.1.2.2/30 interface=wlan1
add address=10.1.3.1/30 interface=eth01
/routing ospf instance
set [ find default=yes ] router-id=10.1.255.3
/routing ospf interface
add authentication=md5 authentication-key=xyz interface=eth01 network-type=broadcast
add authentication=md5 authentication-key=xyz interface=wlan1 network-type=broadcast
add authentication=md5 authentication-key=xyz interface=lobridge network-type=broadcast passive=yes
/routing ospf network
add area=backbone network=10.1.0.0/16
/mpls ldp
set enabled=yes lsr-id=10.1.255.3 transport-address=10.1.255.3
/mpls ldp interface
add interface=eth01
add interface=wlan1
RB4 - OmniTIK UPA-5HnD
======================
/interface wireless
add name="wlan2" interface-type=virtual-AP
/ip address
add address=10.1.255.4/32 interface=lobridge
add address=10.1.3.2/30 interface=eth02
add address=10.1.4.1/30 interface=wlan2
/routing ospf instance
set [ find default=yes ] router-id=10.1.255.4
/routing ospf interface
add authentication=md5 authentication-key=xyz interface=eth02 network-type=broadcast
add authentication=md5 authentication-key=xyz interface=wlan2 network-type=broadcast
add authentication=md5 authentication-key=xyz interface=lobridge network-type=broadcast passive=yes
/routing ospf network
add area=backbone network=10.1.0.0/16
/mpls ldp
set enabled=yes lsr-id=10.1.255.4 transport-address=10.1.255.4
/mpls ldp interface
add interface=eth02
add interface=wlan2
R5 - RB SXT G-5HPnD r2
======================
/ip address
add address=10.1.255.5/32 interface=lobridge
add address=10.1.4.2/30 interface=wlan1
add address=10.1.5.1/30 interface=eth01
/routing ospf instance
set [ find default=yes ] router-id=10.1.255.5
/routing ospf interface
add authentication=md5 authentication-key=xyz interface=eth01 network-type=broadcast
add authentication=md5 authentication-key=xyz interface=wlan1 network-type=broadcast
add authentication=md5 authentication-key=xyz interface=lobridge network-type=broadcast passive=yes
/routing ospf network
add area=backbone network=10.1.0.0/16
/mpls ldp
set enabled=yes lsr-id=10.1.255.5 transport-address=10.1.255.5
/mpls ldp interface
add interface=eth01
add interface=wlan1
RB6 - OmniTIK UPA-5HnD
======================
/interface wireless
add name="wlan2" interface-type=virtual-AP
/ip address
add address=10.1.255.6/32 interface=lobridge
add address=10.1.5.2/30 interface=eth02
add address=10.1.6.1/30 interface=wlan2
/routing ospf instance
set [ find default=yes ] router-id=10.1.255.6
/routing ospf interface
add authentication=md5 authentication-key=xyz interface=eth02 network-type=broadcast
add authentication=md5 authentication-key=xyz interface=wlan2 network-type=broadcast
add authentication=md5 authentication-key=xyz interface=lobridge network-type=broadcast passive=yes
/routing ospf network
add area=backbone network=10.1.0.0/16
/mpls ldp
set enabled=yes lsr-id=10.1.255.6 transport-address=10.1.255.6
/mpls ldp interface
add interface=eth02
add interface=wlan2
R7 - RB SXT G-5HPnD r2
======================
/ip address
add address=10.1.255.7/32 interface=lobridge
add address=10.1.6.2/30 interface=wlan1
add address=10.1.7.1/30 interface=eth01
/routing ospf instance
set [ find default=yes ] router-id=10.1.255.7
/routing ospf interface
add authentication=md5 authentication-key=xyz interface=eth01 network-type=broadcast
add authentication=md5 authentication-key=xyz interface=wlan1 network-type=broadcast
add authentication=md5 authentication-key=xyz interface=lobridge network-type=broadcast passive=yes
/routing ospf network
add area=backbone network=10.1.0.0/16
/mpls ldp
set enabled=yes lsr-id=10.1.255.7 transport-address=10.1.255.7
/mpls ldp interface
add interface=eth01
add interface=wlan1
R8 - RB SXT G-5HPnD r2
======================
/ip address
add address=10.1.255.8/32 interface=lobridge
add address=10.1.7.2/30 interface=eth01
/routing ospf instance
set [ find default=yes ] router-id=10.1.255.8
/routing ospf interface
add authentication=md5 authentication-key=xyz interface=eth01 network-type=broadcast
add authentication=md5 authentication-key=xyz interface=lobridge network-type=broadcast passive=yes
/routing ospf network
add area=backbone network=10.1.0.0/16
/mpls ldp
set enabled=yes lsr-id=10.1.255.8 transport-address=10.1.255.8
/mpls ldp interface
add interface=eth01
/interface vpls
add name=tunel1 remote-peer=10.1.255.1 vpls-id=18:1
/ip bridge port
add interface=wlan1 bridge=br-client
add interface=tunel1 bridge=br-client
