Dear all,
I’m using a hHEX 6.36.1 release. I configured Queue simple, I’m able to get SNMP queue simple “name” value, “packet-on” value , but failed to “get bytes-in” or “bytes-out” values !
Model : RouterBOARD 750G r3
Board name : hEX
Version : 6.36.1

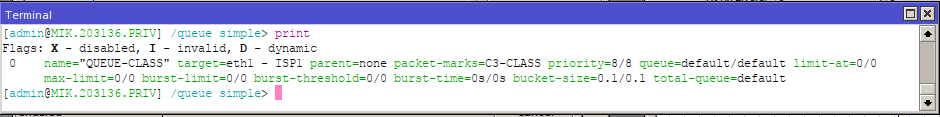

Simple Queue settings :

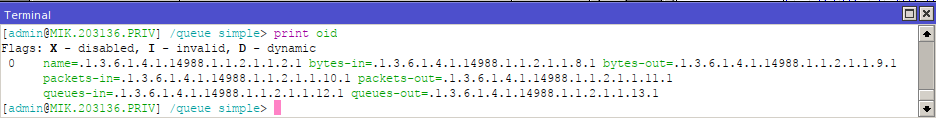

Simple Queue OID :
snmpwalk : SNMP get Simple Queue name value : OK
#snmpwalk -v 1 -c numlog mik.203136.wan .1.3.6.1.4.1.14988.1.1.2.1.1.2.1
SNMPv2-SMI::enterprises.14988.1.1.2.1.1.2.1 = STRING: “QUEUE-CLASS”
snmpwalk : SNMP get Simple Queue "packets-in : OK
#snmpwalk -v 1 -c numlog mik.203136.wan .1.3.6.1.4.1.14988.1.1.2.1.1.10.1
SNMPv2-SMI::enterprises.14988.1.1.2.1.1.10.1 = Counter32: 624172
snmpwalk : SNMP get Simple Queue "bytes-in : FAILED
#snmpwalk -v 1 -c numlog mik.203136.wan .1.3.6.1.4.1.14988.1.1.2.1.1.8.1
Timeout: No Response from mik.203136.wan
Do you have an explanation about this issue ? Many thanks about your assistance.
