Hi All.
recently i bought a CRS125, create pice for the price.
I confgiured a Netwrok Setup with some VLAN’s, managed by the CRS and try to configure the swich chip to get wired speed between the VLAN memebers. But if i copied a large file i get CPU load and the interface dialog show some unexpected traffic on the master port ?

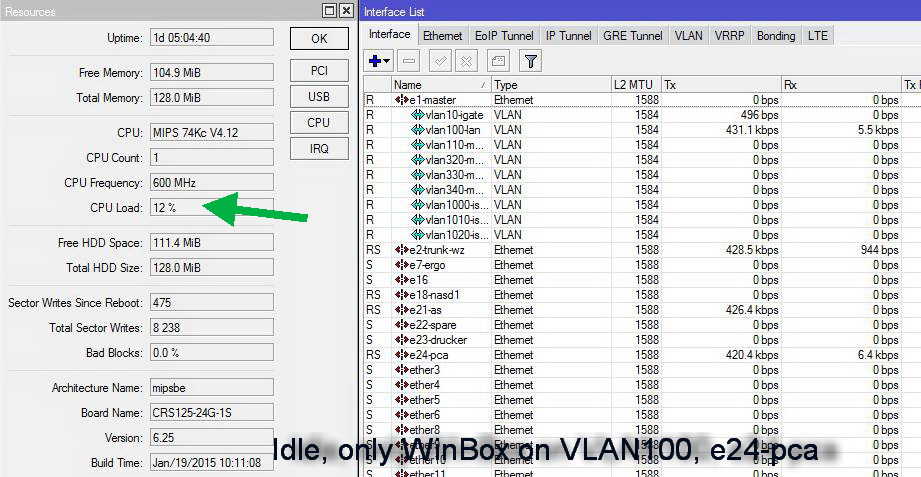

In Idle i get 12% CPU Load

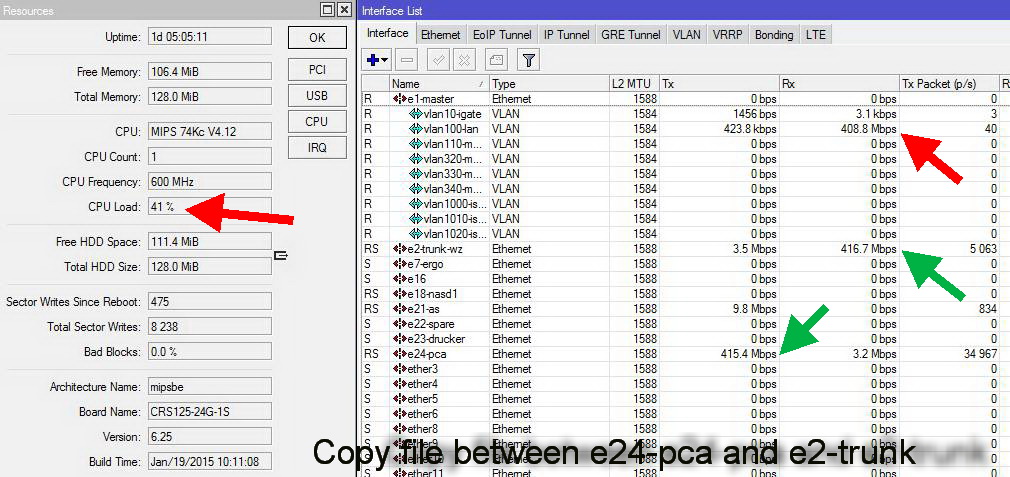

Copy file between two switch members, same VLAN, get Traffic on Master Port and CPU Load 42% ?
Here is my configuration, could someone please give a hint how to get wired speed between the VLAN Switch memebrs ?
/interface> export compact
# jan/26/2015 20:48:05 by RouterOS 6.25
# software id = 0B63-6MZT
#
/interface ethernet
set [ find default-name=ether1 ] name=e1-master
set [ find default-name=ether2 ] master-port=e1-master name=e2-trunk-wz
set [ find default-name=ether7 ] master-port=e1-master name=e7-ergo
set [ find default-name=ether16 ] master-port=e1-master name=e16
set [ find default-name=ether18 ] master-port=e1-master name=e18-nasd1
set [ find default-name=ether21 ] master-port=e1-master name=e21-as
set [ find default-name=ether22 ] master-port=e1-master name=e22-spare
set [ find default-name=ether23 ] master-port=e1-master name=e23-drucker
set [ find default-name=ether24 ] master-port=e1-master name=e24-pca
set [ find default-name=ether3 ] master-port=e1-master
set [ find default-name=ether4 ] master-port=e1-master
set [ find default-name=ether5 ] master-port=e1-master
set [ find default-name=ether6 ] master-port=e1-master
set [ find default-name=ether8 ] master-port=e1-master
set [ find default-name=ether9 ] master-port=e1-master
set [ find default-name=ether10 ] master-port=e1-master
set [ find default-name=ether11 ] master-port=e1-master
set [ find default-name=ether12 ] master-port=e1-master
set [ find default-name=ether13 ] master-port=e1-master
set [ find default-name=ether14 ] master-port=e1-master
set [ find default-name=ether15 ] master-port=e1-master
set [ find default-name=ether17 ] master-port=e1-master
set [ find default-name=ether19 ] master-port=e1-master
set [ find default-name=ether20 ] master-port=e1-master
/interface vlan
add interface=e1-master l2mtu=1584 name=vlan10-igate vlan-id=10
add interface=e1-master l2mtu=1584 name=vlan100-lan vlan-id=100
add interface=e1-master l2mtu=1584 name=vlan110-matrix2 vlan-id=110
add interface=e1-master l2mtu=1584 name=vlan320-matrix3 vlan-id=320
add interface=e1-master l2mtu=1584 name=vlan330-matrix3ms vlan-id=330
add interface=e1-master l2mtu=1584 name=vlan340-matrix3mg vlan-id=340
add interface=e1-master l2mtu=1584 name=vlan1000-isp1 vlan-id=1000
add interface=e1-master l2mtu=1584 name=vlan1010-isp2 vlan-id=1010
add interface=e1-master l2mtu=1584 name=vlan1020-isp3 vlan-id=1020
/interface ethernet switch
set forward-unknown-vlan=no
/interface ethernet switch egress-vlan-tag
add tagged-ports=e2-trunk-wz,switch1-cpu vlan-id=10
add tagged-ports=e2-trunk-wz,e18-nasd1,switch1-cpu vlan-id=320
add tagged-ports=e2-trunk-wz,switch1-cpu vlan-id=100
add tagged-ports=e2-trunk-wz,e18-nasd1,switch1-cpu vlan-id=110
add tagged-ports=e2-trunk-wz,e18-nasd1,switch1-cpu vlan-id=330
add tagged-ports=e2-trunk-wz,e18-nasd1,switch1-cpu vlan-id=340
/interface ethernet switch ingress-vlan-translation
add new-customer-vid=100 ports=e7-ergo,e24-pca,e23-drucker,e22-spare,e21-as
/interface ethernet switch vlan
add ports=e2-trunk-wz,switch1-cpu vlan-id=10
add ports=e2-trunk-wz,e7-ergo,e21-as,e22-spare,e23-drucker,e24-pca,switch1-cpu vlan-id=100
add ports=e2-trunk-wz,e18-nasd1,switch1-cpu vlan-id=110
add ports=e2-trunk-wz,e18-nasd1,e23-drucker,switch1-cpu vlan-id=320
add ports=e2-trunk-wz,e18-nasd1,switch1-cpu vlan-id=330
add ports=e2-trunk-wz,switch1-cpu vlan-id=340
add ports=switch1-cpu vlan-id=1000
add ports=switch1-cpu vlan-id=1010
add ports=switch1-cpu vlan-id=1020
/ip> export compact
# jan/26/2015 20:48:52 by RouterOS 6.25
# software id = 0B63-6MZT
#
/ip pool
add name=dhcp_pool1 ranges=192.168.10.100-192.168.10.200
add name=dhcp_pool2 ranges=192.168.11.100-192.168.11.200
add name=dhcp_pool3 ranges=192.168.32.100-192.168.32.200
add name=dhcp_pool4 ranges=192.168.33.100-192.168.33.200
add name=dhcp_pool5 ranges=192.168.34.100-192.168.34.200
/ip address
add address=192.168.10.1/24 interface=vlan100-lan network=192.168.10.0
add address=192.168.11.1/24 interface=vlan110-matrix2 network=192.168.11.0
add address=192.168.32.1/24 interface=vlan320-matrix3 network=192.168.32.0
add address=192.168.33.1/24 interface=vlan330-matrix3ms network=192.168.33.0
add address=192.168.34.1/24 interface=vlan340-matrix3mg network=192.168.34.0
/ip dhcp-client
add default-route-distance=0 dhcp-options=hostname,clientid disabled=no interface=vlan10-igate
/ip dhcp-server
add address-pool=dhcp_pool1 disabled=no interface=vlan100-lan lease-time=3d name=dhcp1
add address-pool=dhcp_pool2 disabled=no interface=vlan110-matrix2 lease-time=3d name=dhcp2
add address-pool=dhcp_pool3 disabled=no interface=vlan320-matrix3 lease-time=3d name=dhcp3
add address-pool=dhcp_pool4 disabled=no interface=vlan330-matrix3ms lease-time=3d name=dhcp4
add address-pool=dhcp_pool5 disabled=no interface=vlan340-matrix3mg lease-time=3d name=dhcp5
/ip dhcp-server network
add address=192.168.10.0/24 dns-server=192.168.10.1 gateway=192.168.10.1
add address=192.168.11.0/24 dns-server=192.168.11.1 gateway=192.168.11.1
add address=192.168.32.0/24 dns-server=192.168.32.1 gateway=192.168.32.1
add address=192.168.33.0/24 dns-server=192.168.33.1 gateway=192.168.33.1
add address=192.168.34.0/24 dns-server=192.168.34.1 gateway=192.168.34.1
/ip dns
set allow-remote-requests=yes cache-size=8096KiB
/ip firewall address-list
add address=192.168.10.0/24 list=LAN
add address=192.168.11.0/24 list=LAN
add address=192.168.32.0/24 list=LAN
add address=192.168.33.0/24 list=LAN
add address=192.168.34.0/24 list=LAN
