Hello! I have:

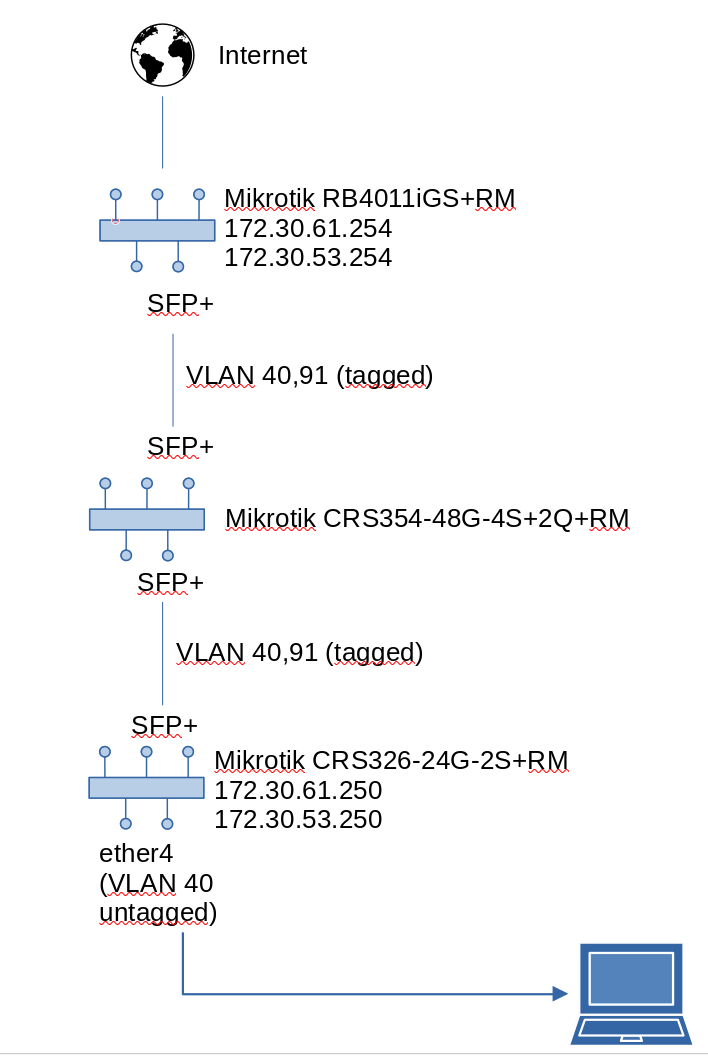

- DHCP server on MikroTik RB4011iGS+RM
- DHCP relay on MikroTik CRS326-24G-2S+RM (ROS)
They are both in 2 VLANs: 91 (management VLAN) and 40 (workstation VLAN). My goal is to have information about switch and port client PC is connected in.
If I just set up relay, it work perfect. But if I add option 82 to bridge settings on both RB4011 and CRS326 - DHCP stops working (no errors in dhcp server debug log). Tried ROS 7.7 and 7.10 since ROS is very unstable in version 7.
What should I do to fix this?
RB4011:
# 2023-06-29 16:43:04 by RouterOS 7.10
# software id = WGV5-0GJK
#
# model = RB4011iGS+
# serial number = F0380FD92BC4
/caps-man channel
add band=2ghz-b/g/n frequency=2412 name=2ghz
add band=5ghz-a/n/ac frequency=5300 name=5ghz
/interface pptp-client
add connect-to=1.1.1.1 disabled=no name=AAAA user=lll1
/interface bridge
add comment="Loopback interface" name=br-lo
add arp=reply-only dhcp-snooping=yes name=bridge-vlan10 pvid=10 \
vlan-filtering=yes
add arp=reply-only dhcp-snooping=yes name=bridge-vlan20 pvid=20 \
vlan-filtering=yes
add add-dhcp-option82=yes dhcp-snooping=yes name=bridge-vlan40 pvid=40 \
vlan-filtering=yes
add dhcp-snooping=yes name=bridge-vlan50 pvid=50 vlan-filtering=yes
add dhcp-snooping=yes name=bridge-vlan60 pvid=60 vlan-filtering=yes
add arp=reply-only dhcp-snooping=yes name=bridge-vlan70 pvid=70 \
vlan-filtering=yes
add dhcp-snooping=yes name=bridge-vlan80 pvid=80 vlan-filtering=yes
add arp=reply-only dhcp-snooping=yes name=bridge-vlan90 pvid=90 \
vlan-filtering=yes
add add-dhcp-option82=yes dhcp-snooping=yes name=bridge-vlan91 pvid=91 \
vlan-filtering=yes
add dhcp-snooping=yes name=bridge-vlan100 pvid=100 vlan-filtering=yes
add arp=reply-only dhcp-snooping=yes name=bridge-vlan110 pvid=110 \
vlan-filtering=yes
add arp=reply-only dhcp-snooping=yes name=bridge-vlan120 pvid=120 \
vlan-filtering=yes
add dhcp-snooping=yes name=bridge-vlan130 pvid=130 vlan-filtering=yes
/interface wireguard
add listen-port=25000 mtu=1420 name=wg01
/interface vlan
add arp=reply-only interface=bridge-vlan10 name=vlan10-bridge-if vlan-id=10
add interface=sfp-sfpplus1 name=vlan10-sfp-if vlan-id=10
add arp=reply-only interface=bridge-vlan20 name=vlan20-bridge-if vlan-id=20
add interface=sfp-sfpplus1 name=vlan20-sfp-if vlan-id=20
add interface=bridge-vlan40 name=vlan40-bridge-if vlan-id=40
add interface=sfp-sfpplus1 name=vlan40-sfp-if vlan-id=40
add interface=bridge-vlan50 name=vlan50-bridge-if vlan-id=50
add interface=sfp-sfpplus1 name=vlan50-sfp-if vlan-id=50
add interface=bridge-vlan60 name=vlan60-bridge-if vlan-id=60
add interface=sfp-sfpplus1 name=vlan60-sfp-if vlan-id=60
add arp=reply-only interface=bridge-vlan70 name=vlan70-bridge-if vlan-id=70
add interface=sfp-sfpplus1 name=vlan70-sfp-if vlan-id=70
add interface=bridge-vlan80 name=vlan80-bridge-if vlan-id=80
add interface=sfp-sfpplus1 name=vlan80-sfp-if vlan-id=80
add arp=reply-only interface=bridge-vlan90 name=vlan90-bridge-if vlan-id=90
add interface=sfp-sfpplus1 name=vlan90-sfp-if vlan-id=90
add interface=bridge-vlan91 name=vlan91-bridge-if vlan-id=91
add interface=sfp-sfpplus1 name=vlan91-sfp-if vlan-id=91
add interface=bridge-vlan100 name=vlan100-bridge-if vlan-id=100
add interface=sfp-sfpplus1 name=vlan100-sfp-if vlan-id=100
add arp=reply-only interface=bridge-vlan110 name=vlan110-bridge-if vlan-id=\
110
add interface=sfp-sfpplus1 name=vlan110-sfp-if vlan-id=110
add arp=reply-only interface=bridge-vlan120 name=vlan120-bridge-if vlan-id=\
120
add interface=sfp-sfpplus1 name=vlan120-sfp-if vlan-id=120
add interface=bridge-vlan130 name=vlan130-bridge-if vlan-id=130
add interface=sfp-sfpplus1 name=vlan130-sfp-if vlan-id=130
/caps-man datapath
add bridge=bridge-vlan20 client-to-client-forwarding=no name=datapath-guest \
vlan-id=20 vlan-mode=use-tag
/caps-man security
add authentication-types=wpa2-psk encryption=aes-ccm name=wifi-guest
/caps-man configuration
add channel=2ghz country=russia datapath=datapath-guest mode=ap name=\
guest-wifi-2ghz security=wifi-guest ssid=dfgd-7n-2GHz
add channel=5ghz country=russia datapath=datapath-guest mode=ap name=\
guest-wifi-5ghz security=wifi-guest ssid=dfgd-7n-5GHz
/interface list
add name=WAN
add name=LAN
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=Gate
/ip pool
add name=pool-vlan10-office ranges=172.30.50.101-172.30.50.190
add name=pool-vlan20-guest ranges=172.30.51.101-172.30.51.190
add name=pool-ovpn ranges=172.30.52.91-172.30.52.120
add name=pool-vlan40-engineer1 ranges=172.30.53.101-172.30.53.190
add name=pool-vlan50-engineer2 ranges=172.30.54.101-172.30.54.190
add name=pool-vlan60-cameras ranges=172.30.55.101-172.30.55.190
add name=pool-vlan70-phones ranges=172.30.56.101-172.30.56.190
add name=pool-vlan80-skud ranges=172.30.57.101-172.30.57.190
add name=pool-vlan90-coders ranges=172.30.58.102-172.30.58.190
add name=pool-vlan91-management ranges=172.30.61.101-172.30.61.190
add name=pool-vlan100-engineer3 ranges=172.30.59.101-172.30.59.190
add name=pool-vlan110-services ranges=172.30.60.101-172.30.60.190
add name=pool-vlan120-additional ranges=172.30.62.101-172.30.62.190
add name=pool-local-mgmt ranges=172.30.63.101-172.30.63.190
add name=pool-vlan130-engineer4 ranges=172.30.64.101-172.30.64.190
add name=TFTP ranges=192.168.88.1-192.168.88.3
/ip dhcp-server
add add-arp=yes address-pool=pool-vlan10-office interface=vlan10-bridge-if \
lease-time=3h name=dhcp-vlan10-office relay=255.255.255.255
add add-arp=yes address-pool=pool-vlan20-guest interface=vlan20-bridge-if \
lease-time=3h name=dhcp-vlan20-guest
add add-arp=yes address-pool=pool-vlan40-engineer1 interface=vlan40-bridge-if \
lease-time=3h name=dhcp-vlan40-engineer1 relay=255.255.255.255
add add-arp=yes address-pool=pool-vlan50-engineer2 interface=vlan50-bridge-if \
lease-time=3h name=dhcp-vlan50-engineer2
add add-arp=yes address-pool=pool-vlan60-cameras interface=vlan60-bridge-if \
lease-time=3h name=dhcp-vlan60-cameras
add add-arp=yes address-pool=pool-vlan70-phones interface=vlan70-bridge-if \
lease-time=3h name=dhcp-vlan70-phones
add add-arp=yes address-pool=pool-vlan80-skud interface=vlan80-bridge-if \
lease-time=3h name=dhcp-vlan80-skud
add add-arp=yes address-pool=pool-vlan90-coders interface=vlan90-bridge-if \
lease-time=3h name=dhcp-vlan90-coders
add add-arp=yes address-pool=pool-vlan91-management interface=\
vlan91-bridge-if lease-time=3h name=dhcp-vlan91-management
add add-arp=yes address-pool=pool-vlan100-engineer3 interface=\
vlan100-bridge-if lease-time=3h name=dhcp-vlan100-engineer3
add add-arp=yes address-pool=pool-vlan110-services interface=\
vlan110-bridge-if lease-time=3h name=dhcp-vlan110-services
add add-arp=yes address-pool=pool-vlan120-additional interface=\
vlan120-bridge-if lease-time=3h name=dhcp-vlan120-additional
add add-arp=yes address-pool=pool-local-mgmt interface=ether1 name=\
dhcp-local-mgmt
add add-arp=yes address-pool=pool-vlan130-engineer4 interface=\
vlan130-bridge-if lease-time=3h name=dhcp-vlan130-engineer4
/port
set 0 name=serial0
set 1 name=serial1
/ppp profile
set *0 use-ipv6=no use-upnp=no
add local-address=172.30.52.254 name=ovpn remote-address=pool-ovpn use-ipv6=\
no use-upnp=no
set *FFFFFFFE use-ipv6=no use-upnp=no
/interface ovpn-client
add certificate=x.lll.office.support1 cipher=aes256-cbc comment=\
"d lll office" connect-to=1.1.1.1 mac-address=\
FE:F1:30:DE:F6:6E name=x-lll-ovpn port=9001 profile=\
default-encryption use-peer-dns=no user=support-1
/queue tree
add max-limit=90M name=DOWNLOAD_main parent=global
add max-limit=90M name=UPLOAD_main parent=global
/queue type
add kind=pcq name=SERVICE_DL pcq-classifier=dst-address \
pcq-dst-address6-mask=64 pcq-src-address6-mask=64
add kind=pcq name=SIP_DL pcq-classifier=dst-address pcq-dst-address6-mask=64 \
pcq-src-address6-mask=64
add kind=pcq name=OPERATING_DL pcq-classifier=dst-address \
pcq-dst-address6-mask=64 pcq-src-address6-mask=64
add kind=pcq name=OTHER_DL pcq-classifier=dst-address pcq-dst-address6-mask=\
64 pcq-src-address6-mask=64
add kind=pcq name=SERVICE_UL pcq-classifier=dst-address \
pcq-dst-address6-mask=64 pcq-src-address6-mask=64
add kind=pcq name=SIP_UL pcq-classifier=dst-address pcq-dst-address6-mask=64 \
pcq-src-address6-mask=64
add kind=pcq name=OPERATING_UL pcq-classifier=dst-address \
pcq-dst-address6-mask=64 pcq-src-address6-mask=64
add kind=pcq name=OTHER_UL pcq-classifier=dst-address pcq-dst-address6-mask=\
64 pcq-src-address6-mask=64
add kind=pcq name=WEB_DL pcq-classifier=dst-address pcq-dst-address6-mask=64 \
pcq-src-address6-mask=64
add kind=pcq name=WEB_UL pcq-classifier=dst-address pcq-dst-address6-mask=64 \
pcq-src-address6-mask=64
/queue tree
add name=SERVICE_DL packet-mark=SERVICE parent=DOWNLOAD_main priority=1 queue=\
SERVICE_DL
add limit-at=2M max-limit=90M name=SIP_DL packet-mark=SIP parent=DOWNLOAD_main \
priority=2 queue=SIP_DL
add name=OPERATING_DL packet-mark=OPERATING parent=DOWNLOAD_main priority=5 \
queue=OPERATING_DL
add name=OTHER_DL packet-mark=OTHER parent=DOWNLOAD_main queue=OTHER_DL
add name=WEB_DL packet-mark=WEB parent=DOWNLOAD_main priority=3 queue=WEB_DL
add name=SERVICE_UL packet-mark=SERVICE parent=UPLOAD_main priority=1 queue=\
SERVICE_UL
add limit-at=2M max-limit=90M name=SIP_UL packet-mark=SIP parent=UPLOAD_main \
priority=2 queue=SIP_UL
add name=WEB_UL packet-mark=WEB parent=UPLOAD_main priority=3 queue=WEB_UL
add name=OPERATING_UL packet-mark=OPERATING parent=UPLOAD_main priority=5 \
queue=OPERATING_UL
add name=OTHER_UL packet-mark=OTHER parent=UPLOAD_main queue=OTHER_UL
/routing table
add comment=555 disabled=no fib name=to_wan1
add comment=res disabled=no fib name=to_wan2
add comment=TEST disabled=yes fib name=to_x_lll
/caps-man manager
set enabled=yes
/caps-man manager interface
set [ find default=yes ] forbid=yes
add disabled=no interface=vlan91-bridge-if
/caps-man provisioning
add action=create-dynamic-enabled master-configuration=guest-wifi-2ghz \
name-format=prefix-identity name-prefix=2G radio-mac=DC:2C:6E:1E:AE:9C
add action=create-dynamic-enabled master-configuration=guest-wifi-5ghz \
name-format=prefix-identity name-prefix=5G radio-mac=DC:2C:6E:1E:AE:9D
add action=create-dynamic-enabled master-configuration=guest-wifi-2ghz \
name-format=prefix-identity name-prefix=2G radio-mac=DC:2C:6E:1E:BA:AC
add action=create-dynamic-enabled master-configuration=guest-wifi-5ghz \
name-format=prefix-identity name-prefix=5G radio-mac=DC:2C:6E:1E:BA:AD
/interface bridge filter
add action=drop chain=forward in-bridge=bridge-vlan10
add action=drop chain=forward in-bridge=bridge-vlan20
add action=drop chain=forward in-bridge=bridge-vlan70
add action=accept chain=forward disabled=yes dst-mac-address=\
00:17:C8:B9:99:74/FF:FF:FF:FF:FF:FF in-bridge=bridge-vlan110 out-bridge=\
bridge-vlan110 src-mac-address=A8:5E:45:2F:27:8C/FF:FF:FF:FF:FF:FF
add action=accept chain=forward disabled=yes dst-mac-address=\
A8:5E:45:2F:27:8C/FF:FF:FF:FF:FF:FF in-bridge=bridge-vlan110 out-bridge=\
bridge-vlan110 src-mac-address=00:17:C8:B9:99:74/FF:FF:FF:FF:FF:FF
add action=drop chain=forward in-bridge=bridge-vlan110
/interface bridge port
add bridge=bridge-vlan91 frame-types=admit-only-untagged-and-priority-tagged \
interface=ether10 pvid=91
add bridge=bridge-vlan91 frame-types=admit-only-untagged-and-priority-tagged \
interface=ether2 pvid=91
add bridge=bridge-vlan10 frame-types=admit-only-untagged-and-priority-tagged \
interface=ether3 pvid=10
add bridge=bridge-vlan10 frame-types=admit-only-untagged-and-priority-tagged \
interface=vlan10-sfp-if pvid=10
add bridge=bridge-vlan20 frame-types=admit-only-untagged-and-priority-tagged \
interface=vlan20-sfp-if pvid=20
add bridge=bridge-vlan40 frame-types=admit-only-untagged-and-priority-tagged \
interface=vlan40-sfp-if pvid=40 trusted=yes
add bridge=bridge-vlan50 frame-types=admit-only-untagged-and-priority-tagged \
interface=vlan50-sfp-if pvid=50
add bridge=bridge-vlan60 frame-types=admit-only-untagged-and-priority-tagged \
interface=vlan60-sfp-if pvid=60
add bridge=bridge-vlan70 frame-types=admit-only-untagged-and-priority-tagged \
interface=vlan70-sfp-if pvid=70
add bridge=bridge-vlan80 frame-types=admit-only-untagged-and-priority-tagged \
interface=vlan80-sfp-if pvid=80
add bridge=bridge-vlan90 frame-types=admit-only-untagged-and-priority-tagged \
interface=vlan90-sfp-if pvid=90
add bridge=bridge-vlan91 frame-types=admit-only-untagged-and-priority-tagged \
interface=vlan91-sfp-if pvid=91 trusted=yes
add bridge=bridge-vlan100 frame-types=admit-only-untagged-and-priority-tagged \
interface=vlan100-sfp-if pvid=100
add bridge=bridge-vlan110 frame-types=admit-only-untagged-and-priority-tagged \
interface=vlan110-sfp-if pvid=110
add bridge=bridge-vlan120 frame-types=admit-only-untagged-and-priority-tagged \
interface=vlan120-sfp-if pvid=120
add bridge=bridge-vlan130 frame-types=admit-only-untagged-and-priority-tagged \
interface=vlan130-sfp-if pvid=130
add bridge=bridge-vlan91 frame-types=admit-only-untagged-and-priority-tagged \
interface=ether9 pvid=91
add bridge=bridge-vlan91 frame-types=admit-only-untagged-and-priority-tagged \
interface=ether5 pvid=91
/interface bridge settings
set use-ip-firewall-for-vlan=yes
/ip neighbor discovery-settings
set discover-interface-list=none
/ipv6 settings
set accept-redirects=no accept-router-advertisements=no disable-ipv6=yes \
forward=no
/interface bridge vlan
add bridge=bridge-vlan10 tagged=bridge-vlan10 untagged=ether3 vlan-ids=10
add bridge=bridge-vlan20 tagged=bridge-vlan20 vlan-ids=20
add bridge=bridge-vlan40 tagged=bridge-vlan40 vlan-ids=40
add bridge=bridge-vlan50 tagged=bridge-vlan50 vlan-ids=50
add bridge=bridge-vlan60 tagged=bridge-vlan60 vlan-ids=60
add bridge=bridge-vlan70 tagged=bridge-vlan70 vlan-ids=70
add bridge=bridge-vlan80 tagged=bridge-vlan80 vlan-ids=80
add bridge=bridge-vlan90 tagged=bridge-vlan90 vlan-ids=90
add bridge=bridge-vlan91 tagged=bridge-vlan91 vlan-ids=91
add bridge=bridge-vlan100 tagged=bridge-vlan100 vlan-ids=100
add bridge=bridge-vlan110 tagged=bridge-vlan110 vlan-ids=110
add bridge=bridge-vlan120 tagged=bridge-vlan120 vlan-ids=120
add bridge=bridge-vlan130 tagged=bridge-vlan130 vlan-ids=130
/interface list member
add interface=ether6 list=WAN
add interface=ether7 list=WAN
add interface=vlan10-bridge-if list=LAN
add interface=vlan20-bridge-if list=LAN
add interface=vlan40-bridge-if list=LAN
add interface=vlan50-bridge-if list=LAN
add interface=vlan70-bridge-if list=LAN
add interface=vlan90-bridge-if list=LAN
add interface=vlan91-bridge-if list=LAN
add interface=vlan100-bridge-if list=LAN
add interface=vlan110-bridge-if list=LAN
add interface=vlan120-bridge-if list=LAN
add interface=vlan130-bridge-if list=LAN
add interface=vlan60-bridge-if list=LAN
add interface=vlan80-bridge-if list=LAN
/interface ovpn-server server
set auth=sha256,sha512 certificate=ovpn-server.crt cipher=\
aes128-cbc,aes256-cbc default-profile=ovpn enabled=yes port=25001 \
protocol=udp require-client-certificate=yes
/interface wireguard peers
add allowed-address="172.30.65.101/32,172.29.50.0/24,172.29.51.0/24,172.29.52.\
0/24,172.29.53.0/24,172.29.54.0/24,172.29.55.0/24,172.29.56.0/24,172.29.58\
.0/24" comment="7 - lp" endpoint-address=2.2.2.2 \
endpoint-port=16701 interface=wg01 public-key=\
"/pngEGcF3Qm0GEgMhB0PffQqEpamqZMHxiO25zG5eiM="
add allowed-address=172.30.65.111/32 interface=wg01 public-key=\
"7WSmPS66IDKVjl8SEjTuC4tO5W7j2EUolMzK1KmHghM="
/ip address
add address=172.30.50.254/24 interface=vlan10-bridge-if network=172.30.50.0
add address=172.30.51.254/24 interface=vlan20-bridge-if network=172.30.51.0
add address=172.30.53.254/24 interface=vlan40-bridge-if network=172.30.53.0
add address=172.30.54.254/24 interface=vlan50-bridge-if network=172.30.54.0
add address=172.30.55.254/24 interface=vlan60-bridge-if network=172.30.55.0
add address=172.30.56.254/24 interface=vlan70-bridge-if network=172.30.56.0
add address=172.30.57.254/24 interface=vlan80-bridge-if network=172.30.57.0
add address=172.30.58.254/24 interface=vlan90-bridge-if network=172.30.58.0
add address=172.30.61.254/24 interface=vlan91-bridge-if network=172.30.61.0
add address=172.30.59.254/24 interface=vlan100-bridge-if network=172.30.59.0
add address=172.30.60.254/24 interface=vlan110-bridge-if network=172.30.60.0
add address=172.30.62.254/24 interface=vlan120-bridge-if network=172.30.62.0
add address=3.3.3.3/29 comment=555 interface=ether6 network=\
3.3.3.0
add address=172.30.63.254/24 comment="Local MGMT" interface=ether1 network=\
172.30.63.0
add address=3.3.3.4/29 comment=555 interface=ether6 network=\
3.3.3.0
add address=3.3.3.5/29 comment=555 interface=ether6 network=\
3.3.3.0
add address=3.3.3.6/29 comment=555 interface=ether6 network=\
3.3.3.0
add address=3.3.3.7/29 comment=555 interface=ether6 network=\
3.3.3.0
add address=172.30.64.254/24 interface=vlan130-bridge-if network=172.30.64.0
add address=172.30.65.100/24 interface=wg01 network=172.30.65.0
add address=192.168.88.254 comment="For TFTP server" interface=\
vlan40-bridge-if network=192.168.88.254
/ip arp
add address=172.30.58.101 interface=vlan90-bridge-if mac-address=\
D4:5D:64:1E:07:67
/ip dhcp-client
add add-default-route=no dhcp-options=clientid,hostname interface=ether7 \
script=":if (\$bound=1) do={\
\n /ip route remove [ find gateway=\"4.2.2.2\" ]; /ip route remove [ fin\
d where dst-address ~\"4.2.2.2\" ]\
\n /ip route add check-gateway=ping comment=\"For recursive check remote\
\_host via res\" distance=2 dst-address=4.2.2.2/32 gateway=\$\"gateway-a\
ddress\" scope=11\
\n /ip route add check-gateway=ping comment=\"Unmarked via res\" dista\
nce=2 gateway=4.2.2.2 target-scope=11\
\n /ip route add comment=\"Marked via res Main\" distance=1 gateway=4.\
2.2.2 routing-table=to_wan2 target-scope=11\
\n /ip route add comment=\"Marked via main Backup1\" distance=2 gateway=4\
.2.2.2 routing-table=to_wan1 target-scope=11\
\n :if [:tobool ([/ip firewall/nat/ find comment=\"NAT via res\"])] do\
={\
\n /ip firewall nat set [find comment=\"NAT via res\"] action=src-nat \
chain=srcnat ipsec-policy=out,none out-interface=\$\"interface\" to-addres\
ses=\$\"lease-address\" \
\n } else={/ip firewall nat add action=src-nat chain=srcnat ipsec-polic\
y=out,none out-interface=\$\"interface\" to-addresses=\$\"lease-address\" \
comment=\"NAT via res\"}\
\n :if [:tobool ([/routing/rule find comment=\"From res IP to Inet\"]\
)] do={\
\n /routing/rule/set [find comment=\"From res IP to Inet\"] action=\
lookup src-address=\$\"lease-address\" table=to_wan2\
\n } else={/routing/rule/add action=lookup comment=\"From res IP to I\
net\" src-address=\$\"lease-address\" table=to_wan2 }\
\n} else={\
\n /ip route remove [find gateway=\"4.2.2.2\"]; /ip route remove [find w\
here dst-address ~\"4.2.2.2\"]\
\n /ip firewall nat remove [find comment=\"NAT via res\"]\
\n /routing/rule/remove [find comment=\"From res IP to Inet\"]\
\n}\
\n" use-peer-dns=no use-peer-ntp=no
/ip dhcp-server config
set store-leases-disk=never
/ip dhcp-server network
add address=172.30.50.0/24 dns-server=172.30.50.254 gateway=172.30.50.254 \
netmask=24 ntp-server=172.30.50.254
add address=172.30.51.0/24 dns-server=172.30.51.254 gateway=172.30.51.254 \
netmask=24 ntp-server=172.30.51.254
add address=172.30.53.0/24 dns-server=172.30.53.254 gateway=172.30.53.254 \
netmask=24 ntp-server=172.30.53.254
add address=172.30.54.0/24 dns-server=172.30.54.254 gateway=172.30.54.254 \
netmask=24 ntp-server=172.30.53.254
add address=172.30.55.0/24 dns-server=172.30.55.254 gateway=172.30.55.254 \
netmask=24 ntp-server=172.30.55.254
add address=172.30.56.0/24 dns-server=172.30.56.254 gateway=172.30.56.254 \
netmask=24 ntp-server=172.30.56.254
add address=172.30.57.0/24 dns-server=172.30.57.254 gateway=172.30.57.254 \
netmask=24 ntp-server=172.30.57.254
add address=172.30.58.0/24 dns-server=172.30.58.254 gateway=172.30.58.254 \
netmask=24 ntp-server=172.30.58.254
add address=172.30.59.0/24 dns-server=172.30.59.254 gateway=172.30.59.254 \
netmask=24 ntp-server=172.30.59.254
add address=172.30.60.0/24 dns-server=172.30.60.254 gateway=172.30.60.254 \
netmask=24 ntp-server=172.30.60.254
add address=172.30.61.0/24 dns-server=172.30.61.254 gateway=172.30.61.254 \
netmask=24 ntp-server=172.30.61.254
add address=172.30.62.0/24 dns-server=172.30.62.254 gateway=172.30.62.254 \
netmask=24 ntp-server=172.30.62.254
add address=172.30.63.0/24 dns-server=172.30.63.254 gateway=172.30.63.254 \
netmask=24 ntp-server=172.30.63.254
add address=172.30.64.0/24 dns-server=172.30.64.254 gateway=172.30.64.254 \
netmask=24 ntp-server=172.30.64.254
add address=192.168.88.0/24 gateway=192.168.88.254
/ip dns
set allow-remote-requests=yes servers=8.8.4.4,8.8.8.8
/ip firewall address-list
add address=172.30.50.1-172.30.50.253 list=vlan10-office
add address=172.30.51.1-172.30.51.253 list=vlan20-guest
add address=172.30.52.31-172.30.52.50 list=ovpn-engineers
add address=172.30.52.51-172.30.52.70 list=ovpn-coders
add address=172.30.53.1-172.30.53.253 list=vlan40-engineer1
add address=172.30.54.1-172.30.54.253 list=vlan50-engineer2
add address=172.30.55.1-172.30.55.253 list=vlan60-cameras
add address=172.30.56.1-172.30.56.253 list=vlan70-phones
add address=172.30.57.1-172.30.57.253 list=vlan80-skud
add address=172.30.58.1-172.30.58.253 list=vlan90-coders
add address=172.30.61.1-172.30.61.253 list=vlan91-management
add address=172.30.59.1-172.30.59.253 list=vlan100-engineer3
add address=172.30.60.1-172.30.60.253 list=vlan110-services
add address=172.30.62.1-172.30.62.253 list=vlan120-additional
add address=172.30.64.1-172.30.64.253 list=vlan130-engineer4
add address=0.0.0.0/8 comment="defconf: RFC6890" list=no_forward_ipv4
add address=169.254.0.0/16 comment="defconf: RFC6890" list=no_forward_ipv4
add address=224.0.0.0/4 comment="defconf: multicast" list=no_forward_ipv4
add address=255.255.255.255 comment="defconf: RFC6890" list=no_forward_ipv4
add address=172.30.52.71-172.30.52.90 list=ovpn-other
add address=172.30.52.71-172.30.52.72 list=murahtaevy
add address=172.30.50.1-172.30.64.253 list=LAN
add address=172.30.65.1-172.30.65.254 list=wireguard
add address=172.30.65.101 list=g-net
add address=172.30.52.245 list=g-net
add address=192.168.115.0/24 list=AAAA
add address=192.168.116.0/24 list=AAAA
add address=192.168.51.0/24 list=777-ovpn
add address=172.30.52.74 list=777-ovpn-support
add address=172.30.60.191-172.30.60.200 list=gn-printers
add address=172.29.50.0/24 list=g
add address=172.29.51.0/24 list=g
add address=172.29.52.0/24 list=g
add address=172.29.53.0/24 list=g
add address=172.29.54.0/24 list=g
add address=172.29.55.0/24 list=g
add address=172.29.56.0/24 list=g
add address=172.29.58.0/24 list=g
add address=172.29.56.0/24 list=g-net
add address=172.30.53.31 comment="Old office user support" list=user-support
add address=172.30.54.100 list=user-support
add address=172.30.59.100 list=user-support
add address=172.29.50.101-172.29.50.102 list=old-office-users
/ip firewall filter
add action=accept chain=input comment=Podstrahovka disabled=yes src-address=\
172.30.61.31
add action=add-src-to-address-list address-list=KNOCK-1 address-list-timeout=\
35s chain=input dst-port=13000 in-interface-list=WAN protocol=tcp
add action=add-src-to-address-list address-list=KNOCK-2 address-list-timeout=\
35s chain=input dst-port=13001 in-interface-list=WAN protocol=tcp \
src-address-list=KNOCK-1
add action=add-src-to-address-list address-list=KNOCK-ACCEPT \
address-list-timeout=15s chain=input dst-port=13002 in-interface-list=WAN \
protocol=tcp src-address-list=KNOCK-2
add action=accept chain=input comment="Accept established, related" \
connection-state=established,related
add action=drop chain=input comment="Drop invalid" connection-state=invalid
add action=fasttrack-connection chain=forward comment=\
"Accept established, related" connection-state=established,related \
disabled=yes hw-offload=yes
add action=accept chain=forward comment="Accept established, related" \
connection-state=established,related
add action=drop chain=forward comment="Drop invalid" connection-state=invalid
add action=drop chain=forward comment="Drop bad forward IPs" \
src-address-list=no_forward_ipv4
add action=drop chain=forward comment="Drop bad forward IPs" \
dst-address-list=no_forward_ipv4
add action=drop chain=forward comment="Drop forward from cameras" \
src-address-list=vlan60-cameras
add action=accept chain=forward comment=\
"Accept forward from hh VM to internet" disabled=yes in-interface=\
vlan80-bridge-if out-interface-list=WAN src-address=172.30.57.110
add action=accept chain=forward comment=\
"Allow forward from hh VM (SKUD) to lp controller" \
dst-address=172.29.58.101 out-interface=wg01 src-address=172.30.57.110
add action=drop chain=forward comment="Drop forward from SKUD" \
src-address-list=vlan80-skud
add action=accept chain=input comment=\
"defconf: accept to local loopback (for CAPsMAN)" dst-address=127.0.0.1
add action=accept chain=forward comment=\
"Accept forward from LAN list to internet" in-interface-list=LAN \
out-interface-list=WAN
add action=accept chain=forward comment="Allow forward to k2" dst-address=\
172.30.58.102 in-interface-list=LAN out-interface=vlan90-bridge-if
add action=accept chain=forward comment=\
"Accept coders forward from OpenVPN to their network" dst-address-list=\
vlan90-coders in-interface=all-ppp protocol=tcp src-address-list=\
ovpn-coders
add action=accept chain=forward comment=\
"Accept forward from engineers (OpenVPN)" in-interface=all-ppp \
src-address-list=ovpn-engineers
add action=accept chain=forward comment=\
"Allow forward from office to printers" dst-address-list=gn-printers \
in-interface=vlan10-bridge-if out-interface=vlan110-bridge-if \
src-address-list=vlan10-office
add action=accept chain=forward comment="Allow forward from engineer 1" \
in-interface=vlan40-bridge-if src-address=172.30.53.31
add action=accept chain=forward comment=\
"Allow forward from VLAN40 (engineer 1) to VLAN110 (services)" \
dst-address-list=vlan110-services in-interface=vlan40-bridge-if \
out-interface=vlan110-bridge-if src-address-list=vlan40-engineer1
add action=accept chain=forward comment=\
"Allow forward from VLAN50 (engineer 2) to VLAN110 (services)" \
dst-address-list=vlan110-services in-interface=vlan50-bridge-if \
out-interface=vlan110-bridge-if src-address-list=vlan50-engineer2
add action=accept chain=forward comment=\
"Allow forward from VLAN100 (engineer 3) to printers" dst-address-list=\
gn-printers in-interface=vlan100-bridge-if out-interface=\
vlan110-bridge-if src-address-list=vlan100-engineer3
add action=accept chain=forward comment=\
"Accept other OpenVPN users forward to k2" dst-address=172.30.58.102 \
in-interface=all-ppp protocol=tcp src-address-list=ovpn-other
add action=accept chain=forward comment=\
"Accept other OpenVPN users forward to AAAA" dst-address-list=AAAA \
in-interface=all-ppp protocol=tcp src-address-list=ovpn-other
add action=accept chain=forward comment=\
"Allow forward from VLAN50 (engineer 2) to 777 OVPN over d" \
dst-address-list=777-ovpn in-interface=vlan50-bridge-if src-address=\
172.30.54.100
add action=accept chain=forward comment=\
"Accept forward to 777 OVPN over d" dst-address-list=777-ovpn \
in-interface=all-ppp protocol=tcp src-address-list=777-ovpn-support
add action=accept chain=forward comment=\
"Accept forward from OpenVPN yer to yur's net" dst-address-list=\
vlan130-engineer4 in-interface=all-ppp src-address-list=murahtaevy
add action=accept chain=forward comment=\
"Accept forward from OpenVPN yer to coders network" \
dst-address-list=vlan90-coders in-interface=all-ppp src-address-list=\
murahtaevy
add action=accept chain=forward comment=\
"Accept forward from OpenVPN i.gorbunov to his network" dst-address-list=\
vlan100-engineer3 in-interface=all-ppp src-address=172.30.52.77
add action=accept chain=forward comment=\
"Allow forward from engineer 1 to VLAN90 (coders)" disabled=yes \
dst-address-list=vlan90-coders in-interface=vlan40-bridge-if \
out-interface=vlan90-bridge-if src-address=172.30.53.31
add action=accept chain=forward comment=\
"Allow forward from engineer 2 to VLAN90 (coders)" dst-address-list=\
vlan90-coders in-interface=vlan50-bridge-if out-interface=\
vlan90-bridge-if src-address=172.30.54.100
add action=accept chain=forward comment=\
"Allow forward from engineer 1 to VLAN70 (phones)" disabled=yes \
dst-address-list=vlan70-phones in-interface=vlan40-bridge-if \
out-interface=vlan70-bridge-if src-address=172.30.53.31
add action=accept chain=forward comment=\
"Allow forward from engineer 2 to VLAN70 (phones)" dst-address-list=\
vlan70-phones in-interface=vlan50-bridge-if out-interface=\
vlan70-bridge-if src-address=172.30.54.100
add action=accept chain=forward comment=\
"Allow forward from engineer windows server to VLAN70 (phones)" disabled=\
yes dst-address-list=vlan70-phones in-interface=vlan110-bridge-if \
out-interface=vlan70-bridge-if src-address=172.30.60.101
add action=accept chain=forward comment=\
"Allow forward from engineer 1 to VLAN80 (SKUD)" disabled=yes \
dst-address-list=vlan80-skud in-interface=vlan40-bridge-if out-interface=\
vlan80-bridge-if src-address=172.30.53.31
add action=accept chain=forward comment=\
"Allow forward from engineer 2 to VLAN80 (SKUD)" dst-address-list=\
vlan80-skud in-interface=vlan50-bridge-if out-interface=vlan80-bridge-if \
src-address=172.30.54.100
add action=accept chain=forward comment=\
"Allow forward from engineer 1 to VLAN10 (office)" disabled=yes \
dst-address-list=vlan10-office in-interface=vlan40-bridge-if \
out-interface=vlan10-bridge-if src-address=172.30.53.31
add action=accept chain=forward comment=\
"Allow forward from engineer 2 to VLAN10 (office)" dst-address-list=\
vlan10-office in-interface=vlan50-bridge-if out-interface=\
vlan10-bridge-if src-address=172.30.54.100
add action=accept chain=forward comment=\
"Allow forward from engineer 3 to Brother QL-800" dst-address=\
172.30.50.156 in-interface=vlan100-bridge-if out-interface=\
vlan10-bridge-if src-address=172.30.59.100
add action=accept chain=forward comment=\
"Allow forward from engineer 1 to AAAA" disabled=yes dst-address-list=\
AAAA in-interface=vlan40-bridge-if src-address=172.30.53.31
add action=accept chain=forward comment=\
"Allow forward from engineer 2 to AAAA" dst-address-list=AAAA \
in-interface=vlan50-bridge-if src-address=172.30.54.100
add action=accept chain=forward comment=\
"Allow forward from engineer 2 to engineer 3 network" disabled=yes \
dst-address-list=vlan100-engineer3 in-interface=vlan50-bridge-if \
out-interface=vlan100-bridge-if src-address=172.30.54.100
add action=accept chain=forward comment=\
"Allow forward inside VLAN110 (services)" disabled=yes dst-address-list=\
vlan110-services in-interface=vlan110-bridge-if out-interface=\
vlan110-bridge-if src-address-list=vlan110-services
add action=accept chain=forward comment=\
"Allow forward from engineer 1 to 777" disabled=yes dst-address-list=\
777-ovpn in-interface=vlan40-bridge-if src-address=172.30.53.31
add action=accept chain=forward comment=\
"Allow forward from engineer 2 to 777" disabled=yes dst-address-list=\
777-ovpn in-interface=vlan50-bridge-if src-address=172.30.54.100
add action=accept chain=forward comment=\
"Allow forward from MGMT VLAN to 7 lp gate (over WireGuard)" \
dst-address-list=g-net in-interface=vlan91-bridge-if src-address-list=\
vlan91-management
add action=accept chain=forward comment=\
"Allow forward from lp controller to hh VM (SKUD)" \
dst-address=172.30.57.110 in-interface=wg01 src-address=172.29.58.101
add action=accept chain=forward comment=\
"Allow forward from office engineers to lp VLAN 10 (office)" \
dst-address-list=old-office-users out-interface=wg01 src-address-list=\
user-support
add action=accept chain=forward comment=\
"Allow forward from engineer 1 to 7 lp service network" \
disabled=yes dst-address=172.29.55.0/24 in-interface=vlan40-bridge-if \
src-address=172.30.53.31
add action=accept chain=forward comment=\
"Allow forward from engineer 1 (WireGuard)" in-interface=wg01 \
src-address=172.30.65.111
add action=accept chain=forward comment=\
"Accept forward from OpenVPN to internet" disabled=yes in-interface=\
all-ppp out-interface-list=WAN
add action=accept chain=forward comment="Allow forward dstnat'ed" \
connection-nat-state=dstnat connection-state=new
add action=drop chain=forward comment=\
"defconf: drop all from WAN not DSTNATed" connection-nat-state=!dstnat \
connection-state=new disabled=yes in-interface-list=WAN
add action=drop chain=forward comment="Drop forward not dstnat'ed" \
connection-nat-state=!dstnat disabled=yes
add action=drop chain=forward
add action=accept chain=input comment="Accept DNS from LAN" disabled=yes \
dst-port=53 in-interface-list=LAN protocol=tcp
add action=accept chain=input comment="Accept DNS and DHCP from LAN" \
disabled=yes dst-port=53,67 in-interface-list=LAN protocol=udp
add action=accept chain=input comment="Accept DNS from VLAN10 (office)" \
dst-address=172.30.50.254 dst-port=53 protocol=tcp src-address-list=\
vlan10-office
add action=accept chain=input comment=\
"Accept DNS and DHCP from VLAN10 (office)" dst-address=172.30.50.254 \
dst-port=53,67 protocol=udp src-address-list=vlan10-office
add action=accept chain=input comment="Accept DNS from VLAN20 (guest)" \
dst-address=172.30.51.254 dst-port=53 in-interface=vlan20-bridge-if \
protocol=tcp src-address-list=vlan20-guest
add action=accept chain=input comment=\
"Accept DNS and DHCP from VLAN20 (guest)" dst-address=172.30.51.254 \
dst-port=53,67 in-interface=vlan20-bridge-if protocol=udp \
src-address-list=vlan20-guest
add action=accept chain=input comment="Accept DNS from OpenVPN" dst-address=\
172.30.52.254 dst-port=53 in-interface=all-ppp protocol=tcp src-address=\
172.30.52.0/24
add action=accept chain=input comment="Accept DNS and DHCP from OpenVPN" \
dst-address=172.30.52.254 dst-port=53,67 in-interface=all-ppp protocol=\
udp src-address=172.30.52.0/24
add action=accept chain=input comment="Engineers input from OpenVPN" \
dst-port=80,25003 in-interface=all-ppp protocol=tcp src-address-list=\
ovpn-engineers
add action=accept chain=input comment="Accept DNS from VLAN40 (engineer1)" \
dst-address=172.30.53.254 dst-port=53 in-interface=vlan40-bridge-if \
protocol=tcp src-address-list=vlan40-engineer1
add action=accept chain=input comment=\
"Accept DNS and DHCP from VLAN40 (engineer1)" dst-address=172.30.53.254 \
dst-port=53,67 in-interface=vlan40-bridge-if protocol=udp \
src-address-list=vlan40-engineer1
add action=accept chain=input comment="Accept DNS from VLAN50 (engineer2)" \
dst-address=172.30.54.254 dst-port=53 in-interface=vlan50-bridge-if \
protocol=tcp src-address-list=vlan50-engineer2
add action=accept chain=input comment=\
"Accept DNS and DHCP from VLAN50 (engineer2)" dst-address=172.30.54.254 \
dst-port=53,67 in-interface=vlan50-bridge-if protocol=udp \
src-address-list=vlan50-engineer2
add action=accept chain=input comment="Accept DHCP from VLAN60 (cameras)" \
dst-address=172.30.55.254 dst-port=67 in-interface=vlan60-bridge-if \
protocol=udp src-address-list=vlan60-cameras
add action=accept chain=input comment="Accept DNS from VLAN70 (phones)" \
dst-address=172.30.56.254 dst-port=53 in-interface=vlan70-bridge-if \
protocol=tcp src-address-list=vlan70-phones
add action=accept chain=input comment=\
"Accept DNS and DHCP from VLAN70 (phones)" dst-address=172.30.56.254 \
dst-port=53,67 in-interface=vlan70-bridge-if protocol=udp \
src-address-list=vlan70-phones
add action=accept chain=input comment="Accept DNS from VLAN80 (skud)" \
dst-address=172.30.57.254 dst-port=53 in-interface=vlan80-bridge-if \
protocol=tcp src-address-list=vlan80-skud
add action=accept chain=input comment=\
"Accept DNS and DHCP from VLAN80 (skud)" dst-address=172.30.57.254 \
dst-port=53,67 in-interface=vlan80-bridge-if protocol=udp \
src-address-list=vlan80-skud
add action=accept chain=input comment="Accept DNS from VLAN90 (coders)" \
dst-address=172.30.58.254 dst-port=53 in-interface=vlan90-bridge-if \
protocol=tcp src-address-list=vlan90-coders
add action=accept chain=input comment=\
"Accept DNS and DHCP from VLAN90 (coders)" dst-address=172.30.58.254 \
dst-port=53,67 in-interface=vlan90-bridge-if protocol=udp \
src-address-list=vlan90-coders
add action=accept chain=input comment=\
"Accept DNS and DHCP from VLAN91 (management)" dst-address=172.30.61.254 \
dst-port=53,67 in-interface=vlan91-bridge-if protocol=udp \
src-address-list=vlan91-management
add action=accept chain=input comment="Accept input from VLAN91 (management)" \
dst-address=172.30.61.254 dst-port=53,80,8291,25003 in-interface=\
vlan91-bridge-if protocol=tcp src-address-list=vlan91-management
add action=accept chain=input comment=\
"Accept DNS and DHCP from MGMT interface" dst-address=172.30.63.254 \
dst-port=53,67 in-interface=ether1 protocol=udp src-address=\
172.30.63.0/24
add action=accept chain=input comment="Accept NTP from LAN" dst-port=123 \
in-interface-list=LAN protocol=udp
add action=accept chain=input comment="Accept input from MGMT interface" \
dst-address=172.30.63.254 dst-port=80,8291,25003 in-interface=ether1 \
protocol=tcp src-address=172.30.63.0/24
add action=accept chain=input comment="Accept DNS for engineer 1 (WireGuard)" \
dst-address=172.30.65.100 dst-port=53 in-interface=wg01 protocol=udp \
src-address=172.30.65.111
add action=accept chain=input comment=\
"Accept input from engineer 1 (WireGuard)" dst-address=172.30.65.100 \
dst-port=53,80,25003 in-interface=wg01 protocol=tcp src-address=\
172.30.65.111
add action=accept chain=input comment="Accept DNS from VLAN100 (engineer3)" \
dst-address=172.30.59.254 dst-port=53 in-interface=vlan100-bridge-if \
protocol=tcp src-address-list=vlan100-engineer3
add action=accept chain=input comment=\
"Accept DNS and DHCP from VLAN100 (engineer3)" dst-address=172.30.59.254 \
dst-port=53,67 in-interface=vlan100-bridge-if protocol=udp \
src-address-list=vlan100-engineer3
add action=accept chain=input comment="Accept DNS from VLAN110 (services)" \
dst-address=172.30.60.254 dst-port=53 in-interface=vlan110-bridge-if \
protocol=tcp src-address-list=vlan110-services
add action=accept chain=input comment=\
"Accept DNS and DHCP from VLAN110 (services)" dst-address=172.30.60.254 \
dst-port=53,67 in-interface=vlan110-bridge-if protocol=udp \
src-address-list=vlan110-services
add action=accept chain=input comment="Accept DNS from VLAN120 (additional)" \
dst-address=172.30.62.254 dst-port=53 in-interface=vlan120-bridge-if \
protocol=tcp src-address-list=vlan120-additional
add action=accept chain=input comment=\
"Accept DNS and DHCP from VLAN120 (additional)" dst-address=172.30.62.254 \
dst-port=53,67 in-interface=vlan120-bridge-if protocol=udp \
src-address-list=vlan120-additional
add action=accept chain=input comment="Accept DNS from VLAN130 (engineer4)" \
dst-address=172.30.64.254 dst-port=53 in-interface=vlan130-bridge-if \
protocol=tcp src-address-list=vlan130-engineer4
add action=accept chain=input comment=\
"Accept DNS and DHCP from VLAN130 (engineer4)" dst-address=172.30.64.254 \
dst-port=53,67 in-interface=vlan130-bridge-if protocol=udp \
src-address-list=vlan130-engineer4
add action=accept chain=input comment="Accept OpenVPN" dst-port=25001 \
in-interface-list=WAN protocol=udp
add action=accept chain=input comment="Accept Wireguard" dst-port=25000 \
in-interface-list=WAN protocol=udp
add action=accept chain=input comment="Accept SSH from WAN" dst-port=25003 \
in-interface-list=WAN protocol=tcp src-address-list=KNOCK-ACCEPT
add action=accept chain=input comment="Accept ICMP" disabled=yes \
in-interface-list=LAN protocol=icmp
add action=accept chain=input comment="Accept ICMP from WAN k2 address" \
dst-address=3.3.3.213 in-interface=ether6 protocol=icmp
add action=accept chain=input comment="Accept ICMP from VLAN10 (office)" \
dst-address=172.30.50.254 protocol=icmp src-address-list=vlan10-office
add action=accept chain=input comment="Accept ICMP from VLAN20 (guest)" \
dst-address=172.30.51.254 in-interface=vlan20-bridge-if protocol=icmp \
src-address-list=vlan20-guest
add action=accept chain=input comment="Accept ICMP from OpenVPN" dst-address=\
172.30.52.254 in-interface=all-ppp protocol=icmp src-address=\
172.30.52.0/24
add action=accept chain=input comment="Accept ICMP from VLAN40 (engineer1)" \
dst-address=172.30.53.254 in-interface=vlan40-bridge-if protocol=icmp \
src-address-list=vlan40-engineer1
add action=accept chain=input comment="Accept ICMP from VLAN50 (engineer2)" \
dst-address=172.30.54.254 in-interface=vlan50-bridge-if protocol=icmp \
src-address-list=vlan50-engineer2
add action=accept chain=input comment="Accept ICMP from VLAN60 (cameras)" \
dst-address=172.30.55.254 in-interface=vlan60-bridge-if protocol=icmp \
src-address-list=vlan60-cameras
add action=accept chain=input comment="Accept ICMP from VLAN70 (phones)" \
dst-address=172.30.56.254 in-interface=vlan70-bridge-if protocol=icmp \
src-address-list=vlan70-phones
add action=accept chain=input comment="Accept ICMP from VLAN80 (skud)" \
dst-address=172.30.57.254 in-interface=vlan80-bridge-if protocol=icmp \
src-address-list=vlan80-skud
add action=accept chain=input comment="Accept ICMP from VLAN90 (coders)" \
dst-address=172.30.58.254 in-interface=vlan90-bridge-if protocol=icmp \
src-address-list=vlan90-coders
add action=accept chain=input comment="Accept ICMP from VLAN91 (management)" \
dst-address=172.30.61.254 in-interface=vlan91-bridge-if protocol=icmp \
src-address-list=vlan91-management
add action=accept chain=input comment="Accept ICMP from MGMT interface" \
dst-address=172.30.63.254 in-interface=ether1 protocol=icmp src-address=\
172.30.63.0/24
add action=accept chain=input comment="Accept ICMP from VLAN100 (engineer3)" \
dst-address=172.30.59.254 in-interface=vlan100-bridge-if protocol=icmp \
src-address-list=vlan100-engineer3
add action=accept chain=input comment="Accept ICMP from VLAN110 (services)" \
dst-address=172.30.60.254 in-interface=vlan110-bridge-if protocol=icmp \
src-address-list=vlan110-services
add action=accept chain=input comment="Accept ICMP from VLAN120 (additional)" \
dst-address=172.30.62.254 in-interface=vlan120-bridge-if protocol=icmp \
src-address-list=vlan120-additional
add action=accept chain=input comment="Accept ICMP from VLAN130 (engineer4)" \
dst-address=172.30.64.254 in-interface=vlan130-bridge-if protocol=icmp \
src-address-list=vlan130-engineer4
add action=accept chain=input comment="Accept ICMP from WireGuard" \
dst-address=172.30.65.100 protocol=icmp src-address-list=wireguard
add action=drop chain=input connection-state=""
add action=accept chain=output comment="Accept output"
add action=accept chain=forward comment="defconf: accept in ipsec policy" \
disabled=yes ipsec-policy=in,ipsec
add action=accept chain=forward comment="defconf: accept out ipsec policy" \
disabled=yes ipsec-policy=out,ipsec
add action=drop chain=input comment="defconf: drop all not coming from LAN" \
disabled=yes in-interface-list=!LAN
/ip firewall mangle
add action=mark-packet chain=forward comment=\
"Mark forward ICMP packets with SERVICE mark" new-packet-mark=SERVICE \
passthrough=yes protocol=icmp
add action=mark-packet chain=postrouting comment=\
"Mark DNS (TCP) packets with SERVICE mark" new-packet-mark=SERVICE \
passthrough=yes port=53 protocol=tcp
add action=mark-packet chain=postrouting comment=\
"Mark DNS (UDP) packets with SERVICE mark" new-packet-mark=SERVICE \
passthrough=yes port=53 protocol=udp
add action=mark-packet chain=postrouting comment=\
"Mark forward ICMP packets with SERVICE mark" new-packet-mark=SERVICE \
packet-size=0-123 passthrough=yes protocol=tcp tcp-flags=ack
add action=mark-packet chain=forward comment=\
"Mark forward SIP packets with SIP mark" dst-address-list=vlan70-phones \
new-packet-mark=SIP passthrough=yes
add action=mark-packet chain=forward comment=\
"Mark forward SIP packets with SIP mark" new-packet-mark=SIP passthrough=\
yes src-address-list=vlan70-phones
add action=mark-packet chain=forward comment=\
"Mark forward SSH packets with OPERATING mark" new-packet-mark=OPERATING \
passthrough=yes port=22 protocol=tcp
add action=mark-packet chain=forward comment=\
"Mark forward RDP packets with OPERATING mark" new-packet-mark=OPERATING \
passthrough=yes port=3389 protocol=tcp
add action=mark-packet chain=forward comment=\
"Mark forward WEB packets with WEB mark" new-packet-mark=WEB passthrough=\
yes port=80,443 protocol=tcp
add action=mark-packet chain=prerouting comment=\
"Mark input OpenVPN packets with OPERATING mark" new-packet-mark=\
OPERATING passthrough=yes port=25001 protocol=udp
add action=mark-packet chain=prerouting comment=\
"Mark input Wireguard packets with OPERATING mark" new-packet-mark=\
OPERATING passthrough=yes port=25000 protocol=udp
add action=mark-routing chain=prerouting comment=\
"Routemark transit out via main to Chel office" disabled=yes \
dst-address-type=!local in-interface-list=!WAN new-routing-mark=\
to_x_lll passthrough=no
add action=mark-connection chain=prerouting comment="Connmark in from main" \
connection-mark=no-mark in-interface=ether6 new-connection-mark=conn_wan1 \
passthrough=no
add action=mark-connection chain=prerouting comment="Connmark in from res" \
connection-mark=no-mark in-interface=ether7 new-connection-mark=conn_wan2 \
passthrough=no
add action=mark-routing chain=prerouting comment=\
"Routemark transit out via main" connection-mark=conn_wan1 \
dst-address-type=!local in-interface-list=!WAN new-routing-mark=to_wan1 \
passthrough=no
add action=mark-routing chain=prerouting comment=\
"Routemark transit out via res" connection-mark=conn_wan2 \
dst-address-type=!local in-interface-list=!WAN new-routing-mark=to_wan2 \
passthrough=no
add action=mark-routing chain=output comment="Routemark local out via main" \
connection-mark=conn_wan1 dst-address-type=!local new-routing-mark=\
to_wan1 passthrough=no
add action=mark-routing chain=output comment="Routemark local out via res" \
connection-mark=conn_wan2 dst-address-type=!local new-routing-mark=\
to_wan2 passthrough=no
/ip firewall nat
add action=masquerade chain=srcnat comment=\
"Masquerade to 7 lp (OpenVPN)" disabled=yes dst-address=\
172.30.52.245 ipsec-policy=out,none
add action=masquerade chain=srcnat comment="defconf: masquerade" disabled=yes \
ipsec-policy=out,none out-interface-list=WAN
add action=src-nat chain=srcnat comment="NAT via main for office vlan" \
ipsec-policy=out,none out-interface=ether6 src-address-list=vlan10-office \
to-addresses=3.3.3.211
add action=src-nat chain=srcnat comment="NAT via main for guest vlan" \
ipsec-policy=out,none out-interface=ether6 src-address-list=vlan20-guest \
to-addresses=3.3.3.212
add action=src-nat chain=srcnat comment="NAT via main" ipsec-policy=out,none \
out-interface=ether6 to-addresses=3.3.3.3
add action=dst-nat chain=dstnat comment="k2 HTTP (main)" dst-address=\
3.3.3.213 dst-port=80 protocol=tcp to-addresses=172.30.58.102 \
to-ports=80
add action=dst-nat chain=dstnat comment="k2 HTTP (res)" dst-port=80 \
in-interface=ether7 protocol=tcp to-addresses=172.30.58.102 to-ports=80
add action=dst-nat chain=dstnat comment="k2 9191 (main)" disabled=yes \
dst-address=3.3.3.213 dst-port=9191 in-interface-list=WAN protocol=\
tcp to-addresses=172.30.58.102 to-ports=9191
add action=dst-nat chain=dstnat comment="k2 9191 (res)" disabled=yes \
dst-port=9191 in-interface=ether7 protocol=tcp to-addresses=172.30.58.102 \
to-ports=9191
add action=dst-nat chain=dstnat comment="k2 1313 (main)" dst-address=\
3.3.3.3 dst-port=1313 in-interface-list=WAN protocol=tcp \
to-addresses=172.30.58.102 to-ports=1313
add action=dst-nat chain=dstnat comment="k2 1313 (res)" dst-port=1313 \
in-interface=ether7 protocol=tcp to-addresses=172.30.58.102 to-ports=1313
add action=dst-nat chain=dstnat comment="Dev station 8000,8080 (main)" \
dst-address=3.3.3.3 dst-port=8000,8080 protocol=tcp to-addresses=\
172.30.58.101
add action=dst-nat chain=dstnat comment="Dev station 8000,8080 (res)" \
dst-port=8000,8080 in-interface=ether7 protocol=tcp to-addresses=\
172.30.58.101
add action=dst-nat chain=dstnat comment="3080 SSH (main)" dst-address=\
3.3.3.3 dst-port=50005 in-interface-list=WAN protocol=tcp \
to-addresses=172.30.58.103 to-ports=22
add action=dst-nat chain=dstnat comment="3080 SSH (res)" dst-port=50005 \
in-interface=ether7 protocol=tcp to-addresses=172.30.58.103 to-ports=22
add action=dst-nat chain=dstnat comment="k2 SSH (main)" dst-address=\
3.3.3.3 dst-port=50006 in-interface-list=WAN protocol=tcp \
to-addresses=172.30.58.102 to-ports=22
add action=dst-nat chain=dstnat comment="k2 SSH (res)" dst-port=50006 \
in-interface=ether7 protocol=tcp to-addresses=172.30.58.102 to-ports=22
add action=masquerade chain=srcnat comment=\
"k2 HTTP from LAN (Hainpin NAT)" dst-address=172.30.58.102 dst-port=80 \
protocol=tcp src-address-list=vlan90-coders
add action=dst-nat chain=dstnat comment=\
"Dev station 8000,8080 from LAN (Hairpin NAT)" disabled=yes dst-address=\
3.3.3.3 dst-port=8000,8080 protocol=tcp src-address=\
172.30.50.0/24 to-addresses=172.30.58.101
add action=masquerade chain=srcnat comment=\
"Dev station 8000,8080 from LAN (Hairpin NAT)" disabled=yes dst-address=\
3.3.3.3 dst-port=8000,8080 protocol=tcp src-address-list=LAN
add action=masquerade chain=srcnat comment=AAAA out-interface=AAAA
add action=masquerade chain=srcnat comment="d dfgd office" \
out-interface=x-lll-ovpn
add action=masquerade chain=srcnat comment="7 lp" disabled=yes \
dst-address-list=g out-interface=wg01
add action=src-nat chain=srcnat comment="NAT via res" ipsec-policy=out,none \
out-interface=ether7 to-addresses=6.6.6.6
/ip firewall raw
add action=drop chain=prerouting comment="defconf: drop bad UDP" port=0 \
protocol=udp
add action=drop chain=bad_tcp comment="defconf: TCP flag filter" protocol=tcp \
tcp-flags=!fin,!syn,!rst,!ack
add action=drop chain=bad_tcp comment=defconf protocol=tcp tcp-flags=fin,syn
add action=drop chain=bad_tcp comment=defconf protocol=tcp tcp-flags=fin,rst
add action=drop chain=bad_tcp comment=defconf protocol=tcp tcp-flags=fin,!ack
add action=drop chain=bad_tcp comment=defconf protocol=tcp tcp-flags=fin,urg
add action=drop chain=bad_tcp comment=defconf protocol=tcp tcp-flags=syn,rst
add action=drop chain=bad_tcp comment=defconf protocol=tcp tcp-flags=rst,urg
add action=drop chain=bad_tcp comment="defconf: TCP port 0 drop" port=0 \
protocol=tcp
/ip route
add disabled=yes distance=1 dst-address=0.0.0.0/0 gateway=3.3.3.209 \
pref-src="" routing-table=main scope=30 suppress-hw-offload=no \
target-scope=10
add comment="Emergency route" distance=254 gateway=br-lo
add check-gateway=ping comment="For recursive check remote host via main" \
disabled=no distance=1 dst-address=8.8.4.4/32 gateway=3.3.3.209 \
pref-src="" routing-table=main scope=11 suppress-hw-offload=no \
target-scope=10
add check-gateway=ping comment="Unmarked via main" disabled=no distance=1 \
dst-address=0.0.0.0/0 gateway=8.8.4.4 pref-src="" routing-table=main \
scope=30 suppress-hw-offload=no target-scope=11
add comment="Marked via main Main" disabled=no distance=1 dst-address=\
0.0.0.0/0 gateway=8.8.4.4 pref-src="" routing-table=to_wan1 scope=30 \
suppress-hw-offload=no target-scope=11
add comment="Marked via res Backup1" disabled=no distance=2 dst-address=\
0.0.0.0/0 gateway=8.8.4.4 pref-src="" routing-table=to_wan2 scope=30 \
suppress-hw-offload=no target-scope=11
add disabled=no dst-address=192.168.115.162/32 gateway=172.16.1.1 \
routing-table=main suppress-hw-offload=no
add disabled=no distance=1 dst-address=192.168.116.171/32 gateway=172.16.1.1 \
pref-src=0.0.0.0 routing-table=main scope=30 suppress-hw-offload=no \
target-scope=10
add dst-address=172.29.55.0/24 gateway=wg01
add dst-address=172.29.56.0/24 gateway=wg01
add disabled=no dst-address=192.168.115.144/32 gateway=172.16.1.1 \
routing-table=main suppress-hw-offload=no
add comment="TEST lll x" disabled=yes distance=1 dst-address=\
192.168.51.0/24 gateway=x-lll-ovpn pref-src="" routing-table=\
to_x_lll suppress-hw-offload=no target-scope=12
add dst-address=172.29.50.0/24 gateway=wg01
add dst-address=172.29.51.0/24 gateway=wg01
add dst-address=172.29.52.0/24 gateway=wg01
add dst-address=172.29.53.0/24 gateway=wg01
add dst-address=172.29.54.0/24 gateway=wg01
add dst-address=172.29.58.0/24 gateway=wg01
add check-gateway=ping comment="For recursive check remote host via res" \
distance=2 dst-address=4.2.2.2/32 gateway=34.34.34.34 scope=11
add check-gateway=ping comment="Unmarked via res" distance=2 gateway=\
4.2.2.2 target-scope=11
add comment="Marked via res Main" distance=1 gateway=4.2.2.2 routing-table=\
to_wan2 target-scope=11
add comment="Marked via main Backup1" distance=2 gateway=4.2.2.2 \
routing-table=to_wan1 target-scope=11
/ip service
set telnet disabled=yes
set ftp disabled=yes
set www address="172.30.63.0/24,172.30.61.0/24,172.30.52.0/24,172.30.65.111/32\
,127.0.0.1/32"
set ssh port=25003
set api disabled=yes
set winbox address=172.30.63.0/24,172.30.61.0/24
set api-ssl disabled=yes
/ip ssh
set forwarding-enabled=local host-key-size=4096 strong-crypto=yes
/ip tftp
add ip-addresses=192.168.88.1-192.168.88.3 real-filename=\
swos-css610pi-2.16.bin
/ipv6 firewall filter
add action=drop chain=forward
add action=drop chain=input
add action=drop chain=output
/routing rule
add action=lookup dst-address=172.30.50.0/24 table=main
add action=lookup dst-address=172.30.51.0/24 table=main
add action=lookup dst-address=172.30.53.0/24 table=main
add action=lookup dst-address=172.30.54.0/24 table=main
add action=lookup dst-address=172.30.55.0/24 table=main
add action=lookup dst-address=172.30.56.0/24 table=main
add action=lookup dst-address=172.30.57.0/24 table=main
add action=lookup dst-address=172.30.58.0/24 table=main
add action=lookup dst-address=172.30.59.0/24 table=main
add action=lookup dst-address=172.30.60.0/24 table=main
add action=lookup dst-address=172.30.61.0/24 table=main
add action=lookup dst-address=172.30.62.0/24 table=main
add action=lookup comment="From main IP to Inet" src-address=3.3.3.3 \
table=to_wan1
add action=lookup dst-address=172.30.52.0/24 table=main
add action=lookup disabled=yes interface=x-lll-ovpn table=to_x_lll
add action=lookup dst-address=172.30.64.0/24 table=main
add action=lookup dst-address=172.30.65.0/24 table=main
add action=lookup comment="From res IP to Inet" src-address=6.6.6.6 \
table=to_wan2
/system clock
set time-zone-autodetect=no time-zone-name=Europe/Moscow
/system clock manual
set time-zone=+02:00
/system identity
set name=7-new-Gate
/system note
set show-at-login=no
/system ntp client
set enabled=yes
/system ntp server
set enabled=yes manycast=yes multicast=yes
/system ntp client servers
add address=195.91.239.8
add address=85.21.78.23
/system routerboard settings
set auto-upgrade=yes
/system script
add dont-require-permissions=no name=find_mac owner=i policy=read,test,sniff \
source="{\r\
\n:local macToFind \"64:16:7F:64:2A:7F\"\r\
\n\r\
\n/interface bridge host\r\
\n:foreach i in=[find mac-address=\$macToFind] do={\r\
\n :if ([:len [find on-interface=[get \$i on-interface]]] = 1) do={\r\
\n :put (\"Found \$macToFind as only host on interface \" . [get \$i on\
-interface])\r\
\n }\r\
\n}\r\
\n}\r\
\n"
/tool bandwidth-server
set enabled=no
/tool graphing interface
add allow-address=172.30.61.0/24 store-on-disk=no
/tool graphing resource
add allow-address=172.30.61.0/24 store-on-disk=no
/tool mac-server
set allowed-interface-list=none
/tool mac-server mac-winbox
set allowed-interface-list=none
/tool mac-server ping
set enabled=no
/tool sniffer
set file-name=001 filter-interface=*F00008 memory-limit=10240KiB
CRS326:
# jun/29/2023 16:43:28 by RouterOS 7.7
# software id = FRYU-5HYJ
#
# model = CRS326-24G-2S+
# serial number = DA720E991DCA
/interface bridge
add add-dhcp-option82=yes dhcp-snooping=yes ingress-filtering=no name=bridge \
pvid=91 vlan-filtering=yes
/interface vlan
add interface=bridge name=vlan40-bridge-if vlan-id=40
add interface=bridge name=vlan91-management-if vlan-id=91
/interface ethernet switch port
set 0 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 1 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 2 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 3 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 4 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 5 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 6 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 7 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 8 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 9 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 10 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 11 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 12 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 13 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 14 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 15 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 16 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 17 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 18 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 19 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 20 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 21 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 22 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
set 23 limit-unknown-multicasts=yes limit-unknown-unicasts=yes storm-rate=3
/interface list
add name=LAN
/interface lte apn
set [ find default=yes ] ip-type=ipv4 use-network-apn=no
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip pool
add name=local-mgmt ranges=172.30.63.101-172.30.63.190
/ip dhcp-server
add address-pool=local-mgmt interface=ether1 lease-time=3h name=local-mgmt
/port
set 0 name=serial0
/interface bridge port
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether2 pvid=40
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether3 pvid=40
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether4 pvid=40
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether5 pvid=40
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether6 pvid=40
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether7 pvid=40
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether8 pvid=40
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether9 pvid=50
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether10 pvid=50
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether11 pvid=50
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether12 pvid=50
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether13 pvid=100
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether14 pvid=100
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether15 pvid=100
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether16 pvid=100
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether17 pvid=10
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether18 pvid=10
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether19 pvid=10
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether20 pvid=10
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether21 pvid=10
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether22 pvid=10
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether23 pvid=10
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether24 pvid=10
add bridge=bridge frame-types=admit-only-vlan-tagged interface=sfp-sfpplus1 \
pvid=150 trusted=yes
add bridge=bridge frame-types=admit-only-vlan-tagged interface=sfp-sfpplus2 \
pvid=150
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=vlan40-bridge-if pvid=40
/ip neighbor discovery-settings
set discover-interface-list=none
/ip settings
set max-neighbor-entries=8192
/ipv6 settings
set accept-redirects=no accept-router-advertisements=no disable-ipv6=yes \
forward=no
/interface bridge vlan
add bridge=bridge tagged=sfp-sfpplus1 vlan-ids=10
add bridge=bridge tagged=sfp-sfpplus1,bridge vlan-ids=40
add bridge=bridge tagged=sfp-sfpplus1 vlan-ids=50
add bridge=bridge tagged=sfp-sfpplus1,bridge vlan-ids=91
add bridge=bridge tagged=sfp-sfpplus1 vlan-ids=100
/ip address
add address=172.30.61.250/24 interface=vlan91-management-if network=\
172.30.61.0
add address=172.30.63.250/24 interface=ether1 network=172.30.63.0
add address=172.30.53.250/24 interface=vlan40-bridge-if network=172.30.53.0
/ip dhcp-relay
add dhcp-server=172.30.61.254 disabled=no interface=vlan40-bridge-if \
local-address=172.30.53.250 name=vlan40-relay
/ip dhcp-server config
set accounting=no store-leases-disk=never
/ip dhcp-server network
add address=172.30.63.0/24 dns-server=172.30.63.254 gateway=172.30.63.253 \
netmask=24
/ip dns
set servers=172.30.61.254
/ip firewall address-list
add address=0.0.0.0/8 comment="defconf: RFC6890" list=no_forward_ipv4
add address=169.254.0.0/16 comment="defconf: RFC6890" list=no_forward_ipv4
add address=224.0.0.0/4 comment="defconf: multicast" list=no_forward_ipv4
add address=255.255.255.255 comment="defconf: RFC6890" list=no_forward_ipv4
add address=172.30.65.0/24 list=mgmt
add address=172.30.63.0/24 list=mgmt
add address=172.30.61.0/24 list=mgmt
add address=172.30.52.0/24 list=mgmt
/ip firewall filter
add action=accept chain=input comment="Accept established, related" \
connection-state=established,related
add action=drop chain=input comment="Drop invalid" connection-state=invalid
add action=accept chain=input dst-port=22,80,8291 in-interface=\
vlan91-management-if protocol=tcp src-address-list=mgmt
add action=accept chain=input dst-port=22,80,8291 in-interface=ether1 \
protocol=tcp src-address=172.30.63.0/24
add action=accept chain=input comment="Allow DHCP input" dst-port=67 \
protocol=udp
add action=accept chain=input comment="Allow DHCP input on MGMT interface" \
dst-port=67 in-interface=ether1 protocol=udp
add action=accept chain=input comment="Accept ICMP" protocol=icmp
add action=accept chain=input comment="Accept ICMP" in-interface=ether1 \
protocol=icmp
add action=drop chain=input
add action=fasttrack-connection chain=forward comment=\
"Accept established, related" connection-state=established,related \
disabled=yes hw-offload=yes
add action=accept chain=forward comment="Accept established, related" \
connection-state=established,related disabled=yes
add action=drop chain=forward comment="Drop invalid" connection-state=invalid \
disabled=yes
add action=accept chain=forward comment="Accept forward" disabled=yes \
in-interface=ether1
add action=drop chain=forward comment="Drop forward"
add action=accept chain=output comment="Accept output"
/ip firewall raw
add action=drop chain=prerouting comment="defconf: drop bad UDP" port=0 \
protocol=udp
add action=drop chain=bad_tcp comment="defconf: TCP flag filter" protocol=tcp \
tcp-flags=!fin,!syn,!rst,!ack
add action=drop chain=bad_tcp comment=defconf protocol=tcp tcp-flags=fin,syn
add action=drop chain=bad_tcp comment=defconf protocol=tcp tcp-flags=fin,rst
add action=drop chain=bad_tcp comment=defconf protocol=tcp tcp-flags=fin,!ack
add action=drop chain=bad_tcp comment=defconf protocol=tcp tcp-flags=fin,urg
add action=drop chain=bad_tcp comment=defconf protocol=tcp tcp-flags=syn,rst
add action=drop chain=bad_tcp comment=defconf protocol=tcp tcp-flags=rst,urg
add action=drop chain=bad_tcp comment="defconf: TCP port 0 drop" port=0 \
protocol=tcp
/ip route
add disabled=no dst-address=0.0.0.0/0 gateway=172.30.61.254
/ip service
set telnet disabled=yes
set ftp disabled=yes
set www address=\
172.30.65.0/24,172.30.63.0/24,172.30.61.0/24,172.30.52.0/24,127.0.0.1/32
set ssh address=172.30.65.0/24,172.30.63.0/24,172.30.61.0/24,172.30.52.0/24
set api disabled=yes
set winbox address=172.30.63.0/24,172.30.61.0/24
set api-ssl disabled=yes
/ipv6 firewall filter
add action=drop chain=forward
add action=drop chain=input
add action=drop chain=output
/system clock
set time-zone-autodetect=no time-zone-name=Europe/Moscow
/system clock manual
set time-zone=+02:00
/system identity
set name=SW24P
/system ntp client
set enabled=yes
/system ntp client servers
add address=195.91.239.8
add address=85.21.78.23
/system routerboard settings
# Firmware upgraded successfully, please reboot for changes to take effect!
set auto-upgrade=yes boot-os=router-os
/tool bandwidth-server
set enabled=no
/tool graphing interface
add allow-address=172.30.61.0/24 store-on-disk=no
/tool graphing resource
add allow-address=172.30.61.0/24 store-on-disk=no
/tool mac-server
set allowed-interface-list=none
/tool mac-server mac-winbox
set allowed-interface-list=none
