hello friends…
i have having the following setup.
2 x RB7115 - MMXC connector boards.
2 x 22dbi patch panel antenna’s
i have setup a small test link in my house and the antennas are hardly 20 meters apart. i tried to do a FTP from machine to machine but could not achieve speeds above 1MBPS. bandwidth test shows around 80MBPS.
the config is as below:
BRIDGE:
Flags: X - disabled, R - running
0 R name=“wlan1” mtu=1500 mac-address=00:0C:42:93:D5:AB arp=enabled
interface-type=Atheros 11N mode=bridge ssid=“MPLS” frequency=5825
band=5ghz-onlyn channel-width=20/40mhz-ht-above scan-list=default
wireless-protocol=nv2-nstreme wds-mode=disabled wds-default-bridge=none
wds-ignore-ssid=no bridge-mode=enabled default-authentication=yes
default-forwarding=yes default-ap-tx-limit=0 default-client-tx-limit=0
hide-ssid=no security-profile=default compression=no
Client
Flags: X - disabled, R - running
0 R name=“wlan1” mtu=1500 mac-address=00:0C:42:94:5B:07 arp=enabled
interface-type=Atheros 11N mode=station ssid=“MPLS” frequency=5825
band=5ghz-onlyn channel-width=20/40mhz-ht-above scan-list=default
wireless-protocol=nv2-nstreme wds-mode=disabled wds-default-bridge=none
wds-ignore-ssid=no bridge-mode=enabled default-authentication=yes
default-forwarding=yes default-ap-tx-limit=0 default-client-tx-limit=0
hide-ssid=no security-profile=default compression=no
any idea why is this happening? anything wrong in my settings?? how do i get the max because i need to deploy this link on a 8 kms outdoor location.

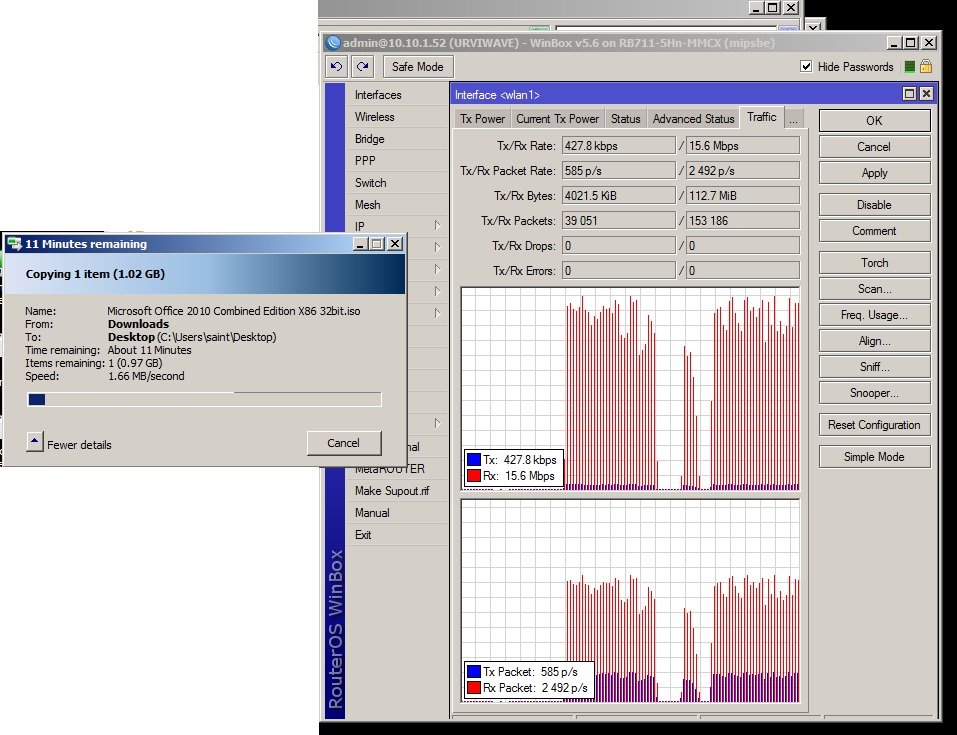

the transfer at actual and speed as shown by routeros
