Dears

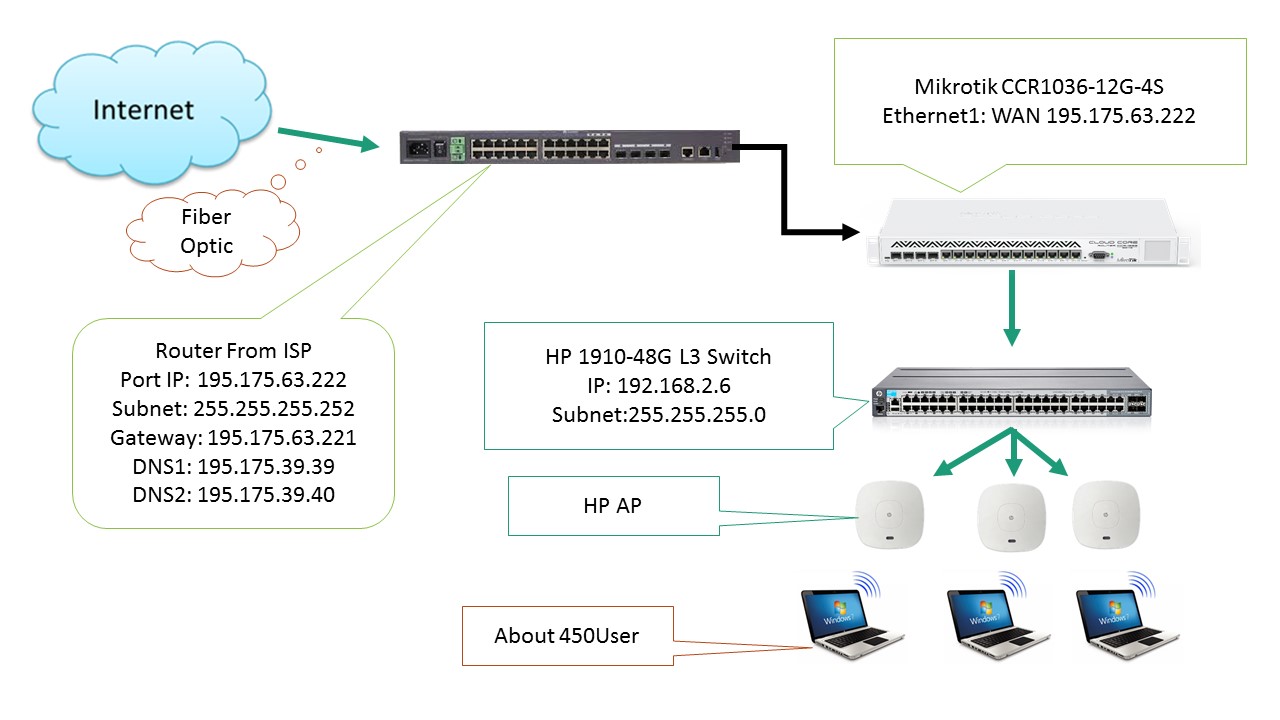

I have CCR1036-12G-4S and I want to make static router configuration like att picture and I need your help I’m beginner beginner in Mikrotik
Thank you very much
Now that's pretty little information you provide.
IS the CCR intended to be a DHCP server?
Any static IPs in your LAN beside the Switch?
Any servers in your LAN that need to be reached from WAN?
See below the default configuration script for a RB2011 - beware that the CCR does not have switch chips, so you'll need to add all the ethernet ports you'd like to use on the LAN side to a bridge.
Remove DHCP-Clients from ether1 and sfp1.
Apply your static IP to ether1.
Alter the IP addresses and pools to your needs.
Add DNS entries. Allow remote requests.
Add a default route (which is 0.0.0.0) pointing to 195.175.63.221
Strip all static IPs of your LAN off the DHCP-Range.
I'd advise you to rather consider this config as a guideline, not a ready-2-go-configuration for your CCR.
When reading (and understanding) you'll find your way through all necessary steps quite quickly.
Good luck!
-Chris
jan/ 9/1970 3:39:24 by RouterOS 6.12
script: #|
#| WAN (gateway) Configuration:
#| gateway: sfp1 ether1 (renamed with extension '-gateway');
#| firewall: enabled;
#| NAT: enabled;
#| DHCP Client: enabled;
#|
#| LAN Configuration:
#| LAN Port: bridge-local;
#| switch group: ether6 (master), ether7, ether8, ether9, ether10
#| (renamed with extensions '-master-local' and '-slave-local')
#| LAN IP: 192.168.88.1;
#| DHCP Server: enabled;
:global action;
#-------------------------------------------------------------------------------
# Apply configuration.
# these commands are executed after installation or configuration reset
#-------------------------------------------------------------------------------
:if ($action = "apply") do={
# wait for interfaces
:while ([/interface ethernet find] = "") do={ :delay 1s; };
/interface set sfp1 name="sfp1-gateway";
/interface set ether1 name="ether1-gateway";
/ip dhcp-client add interface=sfp1-gateway disabled=no comment="default configuration";
/ip dhcp-client add interface=ether1-gateway disabled=no comment="default configuration";
/interface {
set ether6 name=ether6-master-local;
set ether7 name=ether7-slave-local;
set ether8 name=ether8-slave-local;
set ether9 name=ether9-slave-local;
set ether10 name=ether10-slave-local;
}
/interface ethernet {
set ether7-slave-local master-port=ether6-master-local;
set ether8-slave-local master-port=ether6-master-local;
set ether9-slave-local master-port=ether6-master-local;
set ether10-slave-local master-port=ether6-master-local;
}
/interface bridge
add name=bridge-local disabled=no auto-mac=no protocol-mode=rstp;
:local bMACIsSet 0;
:foreach k in=[/interface find] do={
:local tmpPortName [/interface get $k name];
:if (!($tmpPortName~"bridge" || $tmpPortName~"sfp1" || $tmpPortName~"ether1"|| $tmpPortName~"slave")) do={
:if ($bMACIsSet = 0) do={
:if ([/interface get $k type] = "ether") do={
/interface bridge set "bridge-local" admin-mac=[/interface ethernet get $tmpPortName mac-address];
:set bMACIsSet 1;
}
}
/interface bridge port
add bridge=bridge-local interface=$tmpPortName;
}
}
/ip address add address=192.168.88.1/24 interface=bridge-local comment="default configuration";
/ip pool add name="default-dhcp" ranges=192.168.88.10-192.168.88.254;
/ip dhcp-server
add name=default address-pool="default-dhcp" interface=bridge-local lease-time=10m disabled=no;
/ip dhcp-server network
add address=192.168.88.0/24 gateway=192.168.88.1 dns-server=192.168.88.1 comment="default configuration";
/ip dns {
set allow-remote-requests=yes
static add name=router address=192.168.88.1
}
/ip firewall nat add chain=srcnat out-interface=sfp1-gateway action=masquerade comment="default configuration"
/ip firewall nat add chain=srcnat out-interface=ether1-gateway action=masquerade comment="default configuration"
/ip firewall {
filter add chain=input action=accept protocol=icmp comment="default configuration"
filter add chain=input action=accept connection-state=established comment="default configuration"
filter add chain=input action=accept connection-state=related comment="default configuration"
filter add chain=input action=drop in-interface=sfp1-gateway comment="default configuration"
filter add chain=input action=drop in-interface=ether1-gateway comment="default configuration"
filter add chain=forward action=accept connection-state=established comment="default configuration"
filter add chain=forward action=accept connection-state=related comment="default configuration"
filter add chain=forward action=drop connection-state=invalid comment="default configuration"
}
/tool mac-server disable [find];
/tool mac-server mac-winbox disable [find];
:foreach k in=[/interface find] do={
:local tmpName [/interface get $k name];
:if (!($tmpName~"sfp1-gateway" || $tmpName~"ether1-gateway")) do={
/tool mac-server add interface=$tmpName disabled=no;
/tool mac-server mac-winbox add interface=$tmpName disabled=no;
}
}
/ip neighbor discovery set [find name="sfp1-gateway"] discover=no
/ip neighbor discovery set [find name="ether1-gateway"] discover=no
}
#-------------------------------------------------------------------------------
# Revert configuration.
# these commands are executed if user requests to remove default configuration
#-------------------------------------------------------------------------------
:if ($action = "revert") do={
# remove wan port protection
/ip firewall {
:local o [nat find comment="default configuration"]
:if ([:len $o] != 0) do={ nat remove $o }
:local o [filter find comment="default configuration"]
:if ([:len $o] != 0) do={ filter remove $o }
}
/tool mac-server remove [find interface!=all]
/tool mac-server set [find] disabled=no
/tool mac-server mac-winbox remove [find interface!=all]
/tool mac-server mac-winbox set [find] disabled=no
# reset wan ports;
/ip neighbor discovery set [find name="sfp1-gateway"] discover=yes
/interface set "sfp1-gateway" name=sfp1;
/ip neighbor discovery set [find name="ether1-gateway"] discover=yes
/interface set "ether1-gateway" name=ether1;
:local o [/ip dhcp-server network find comment="default configuration"]
:if ([:len $o] != 0) do={ /ip dhcp-server network remove $o }
:local o [/ip dhcp-server find name="default" address-pool="default-dhcp" interface="bridge-local" !disabled]
:if ([:len $o] != 0) do={ /ip dhcp-server remove $o }
/ip pool {
:local o [find name="default-dhcp" ranges=192.168.88.10-192.168.88.254]
:if ([:len $o] != 0) do={ remove $o }
}
:local o [/ip dhcp-client find comment="default configuration"]
:if ([:len $o] != 0) do={ /ip dhcp-client remove $o }
/ip dns {
set allow-remote-requests=no
:local o [static find name=router address=192.168.88.1]
:if ([:len $o] != 0) do={ static remove $o }
}
/ip address {
:local o [find comment="default configuration"]
:if ([:len $o] != 0) do={ remove $o }
}
# remove switch
/interface set ether6-master-local name=ether6;
/interface ethernet set ether7-slave-local master-port=none;
/interface set ether7-slave-local name=ether7;
/interface ethernet set ether8-slave-local master-port=none;
/interface set ether8-slave-local name=ether8;
/interface ethernet set ether9-slave-local master-port=none;
/interface set ether9-slave-local name=ether9;
/interface ethernet set ether10-slave-local master-port=none;
/interface set ether10-slave-local name=ether10;
/interface bridge port remove [find bridge="bridge-local"]
/interface bridge remove [find name="bridge-local"]
}
Dear Christopher
Thank you very much

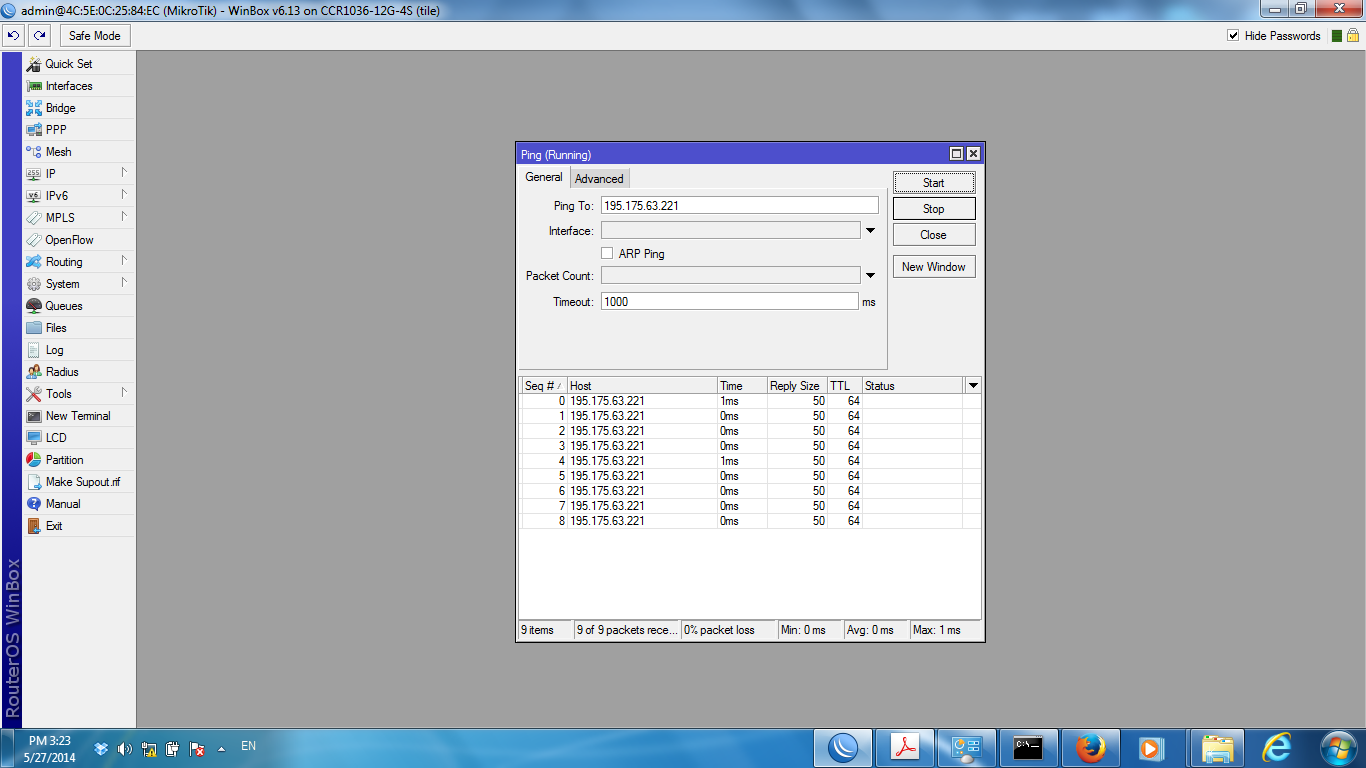

I do every think it’s look like ok I can PING gateway 195.175.63.221 from router and PC but can’t PING DNS 195.175.39.39 or any other DNS, CCR is DHCP server yes and I made the DHCP Configurations.
backup.rar (3.75 KB)
Dear Christopher
Thank you very much
Yes, CCR is DHCP server and I made confugration it’s OK,

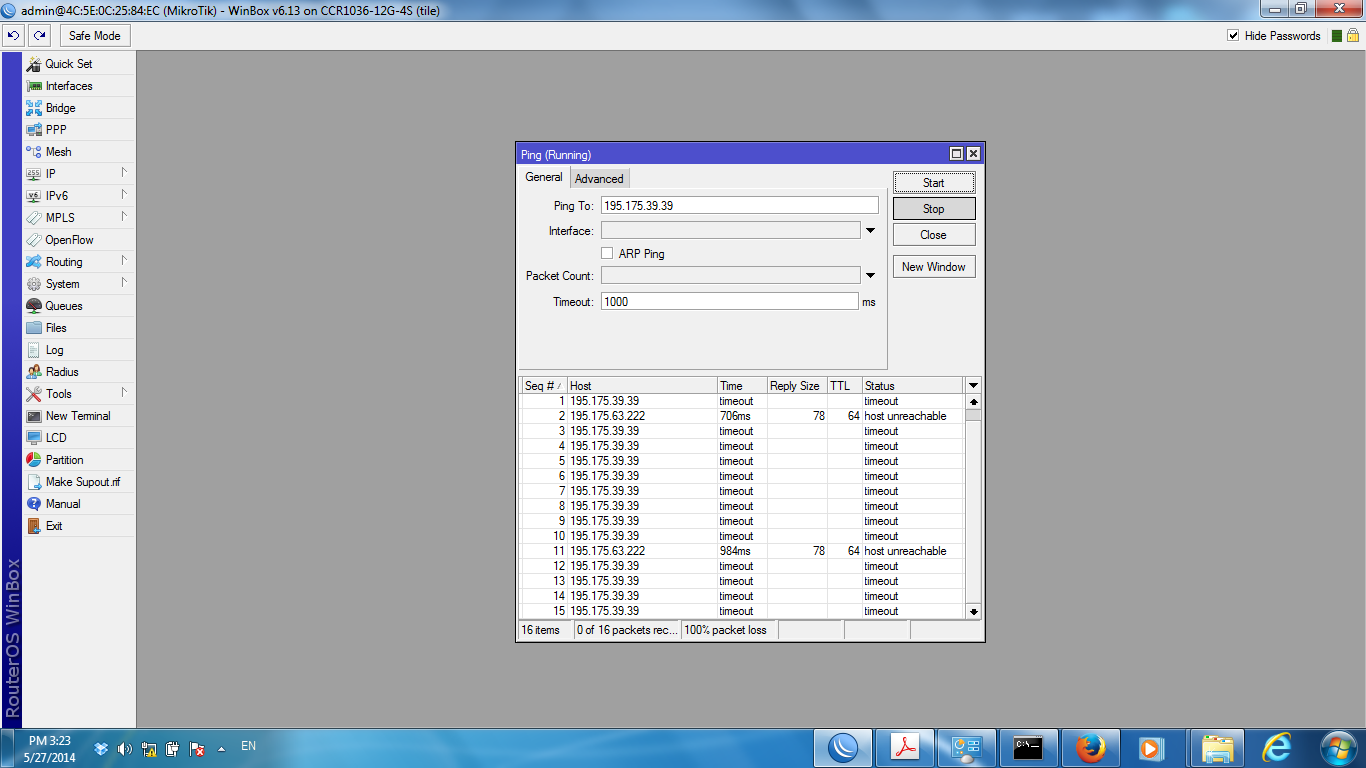

Now after I followed all steps I can PING gateway 195.175.63.221 from CCR and PC but I can’t PING DNS servers or any other DNS like google DNS 8.8.8.8
backup.rar (3.75 KB)
You have this in place?
/ip route
add disabled=no distance=1 gateway=192.175.63.222Did you apply the correct subnet mask for your WAN IP?
-Chris
Dear Christopher
It’s done thank you very much
Hello all i also have the same kind of scenario but one thing is different i need to connect my ISP’s fibre directly into my CCR-1036 12G-4S SFP port. How can i achieve this any idea i mean how do i configure my SFP port as a internet gateway and currently i have use my ether1 as DHCP server port and switch feature is not available so how do i bridge all the port and make all ports as a DHCP server?
How is your ISP handing off your fiber? Directly from the MDF?
You can still create a bridge on CCR devices
