Hello, I need some help on port forwarding to internal web server on port 80.
Here are the rules that I created on the wireless antenna (CPE Client)

/ip firewall nat
add action=masquerade chain=srcnat comment=“” disabled=no src-address=
192.168.1.0/24
add action=dst-nat chain=dstnat comment=“” disabled=no dst-port=53 protocol=
udp to-addresses=192.168.1.251 to-ports=53
add action=dst-nat chain=dstnat comment=“” disabled=no dst-address=
XXX.XXX.XXX.XXX dst-port=80 protocol=tcp to-addresses=YYY.YYY.YYY.YYY
to-ports=80

where:
XXX.XXX.XXX.XXX is the ip of wireless side of cpe
YYY.YYY.YYY.YYY is the ip of the webserver on the ether side

Any help? I think this is correct.
Many thanks.

2

forwarding rule to server looks correct. Do you have any problems?

3

Yes, I have still problem.
I cannot reach the webserver, I see in the connection tracking of the firewall, the syn packet of tcp, but I don’t see any reply. (In the lan I reach the webserver).
If I torch the ether1, I see the connection form my host to the webserver. No idea because the rule don’t work.
How can i see the firewall log of mikrotik?
Many thanks.

PS I have ros 3.31 on rb411 preinstalled

4

Did you cleared connection table after setting nat rule? If you had connection tracking entry already in the table before nat rule was added then, it will not work until connection table is cleared.

Look if nat rule is matching any packets
/ip firewall nat print stats

5

I rebooted the board. The rule is matching the packets.

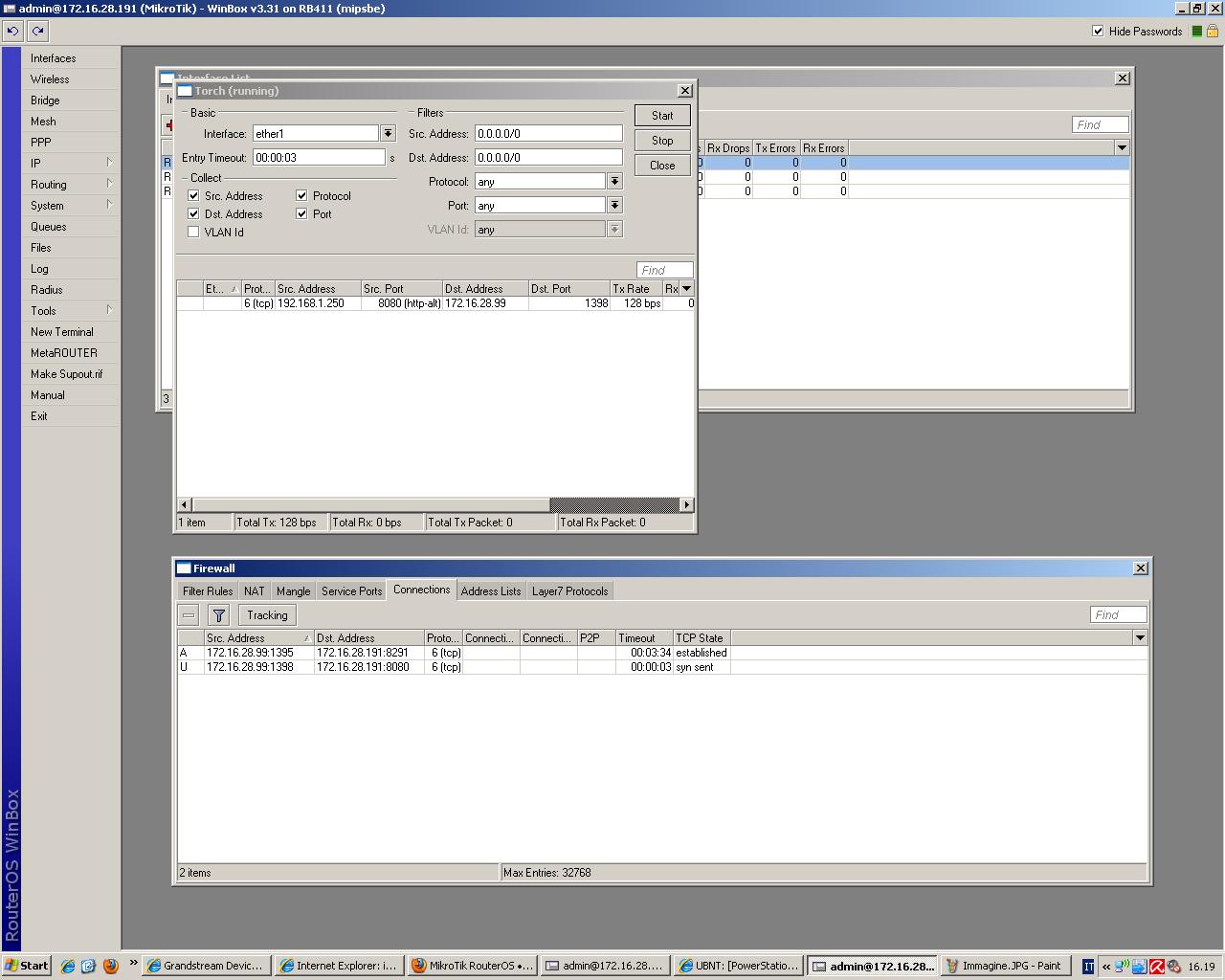

The image below shows what I see.
I confirm that in the lan the webserver is reachable.
