Hello,
I figured I would turn here in hopes somebody smarter than I can assist with my headache. I have a switch that is on 10.0.2.240/24 (VLAN2) and a router that houses the VLAN on 10.0.2.1/24. I have two connections (SFP+ 10G and 1G Ethernet) that I would like to utilize for fail over. My router is the root RSTP bridge at priority 1000 and the switch is at 3000. As far as I can tell STP isn’t related but not entirely sure. The priority and root cost is lower for the SFP+ on both devices (I want it to prioritize the 10G connection).
So the strange part of this is that I get significant packet loss on ONLY the switch IP address (dropped pings, SSH won’t work etc.) when either:
A: HW offload is disabled on my SFP+ port on the switch (HW offload is already disabled on the router side because I believe that it cannot use HW offload)
B: The bridge port is disabled for ether1 on the router.
All other packets work perfectly fine. I have 5 or so VLANs, they all function, and all traffic on the 10.0.2.0/24 subnet work fine except for the one address (10.0.2.240).
Other VLANs have the same issue when trying to ping / access the switch IP as well. I used the packet sniffer and noticed that HW offloading is disabled or the ether1 is disabled, the router does not get any of the traffic for the IP addresses on the same subnet (as it should be). But when either of those is turned on, the router starts getting a portion of the traffic and that is where it seems my packet loss is.
Hopefully somebody has seen this before and knows if the behavior is a bug or something related to hardware? I am not sure why only this one address would be having this issue. I will try to include some configuration but feel free to let me know if there are any other sections that are needed:
Router:
[admin@MikroTik-Router] > /system resource print
uptime: 4d4h21m49s
version: 7.16.1 (stable)
build-time: 2024-10-10 14:03:32
factory-software: 7.9.2
free-memory: 902.6MiB
total-memory: 1024.0MiB
cpu: ARM
cpu-count: 4
cpu-frequency: 533MHz
cpu-load: 3%
free-hdd-space: 478.4MiB
total-hdd-space: 512.0MiB
write-sect-since-reboot: 2446
write-sect-total: 935535
bad-blocks: 0%
architecture-name: arm
board-name: RB4011iGS+
platform: MikroTik
[admin@MikroTik-Router] > /interface bridge print detail
Flags: X - disabled, R - running
0 R name="backup-bridge" mtu=auto actual-mtu=1500 l2mtu=1592 arp=enabled
arp-timeout=auto mac-address= protocol-mode=rstp
fast-forward=yes igmp-snooping=no auto-mac=yes ageing-time=5m
priority=0x8000 max-message-age=20s forward-delay=15s
transmit-hold-count=6 vlan-filtering=no dhcp-snooping=no
port-cost-mode=long mvrp=no max-learned-entries=auto
[admin@MikroTik-Router] > /interface vlan print detail
Flags: X - disabled, R - running
0 R ;;; LAN VLAN
name="VLAN 2" mtu=1500 l2mtu=1588 mac-address=
arp=enabled arp-timeout=auto loop-protect=default
loop-protect-status=off loop-protect-send-interval=5s
loop-protect-disable-time=5m vlan-id=2 interface=bridge
use-service-tag=no mvrp=no
[admin@MikroTik-Router] > /ip route print detail
Flags: D - dynamic; X - disabled, I - inactive, A - active;
c - connect, s - static, r - rip, b - bgp, o - ospf, i - is-is, d - dhcp, v - >
H - hw-offloaded; + - ecmp
1 s dst-address=0.0.0.0/0 routing-table=main gateway=192.168.255.1
immediate-gw=192.168.255.1%ether3 distance=2 scope=30
target-scope=10 suppress-hw-offload=no
DAd dst-address=0.0.0.0/0 routing-table=main gateway=X.X.X.X
immediate-gw=X.X.X.X%ether2 distance=1 scope=30 target-scope=10
vrf-interface=ether2
DAc dst-address=10.0.2.0/24 routing-table=main gateway=VLAN 2
immediate-gw=VLAN 2 distance=0 scope=10 target-scope=5
local-address=10.0.2.1%VLAN 2
[admin@MikroTik-Router] > /interface bridge vlan print detail
Flags: X - disabled, D - dynamic
0 bridge=bridge vlan-ids=2,5,10,20,25,30,250
tagged=bridge,ether1,veth1-reflector,sfp-sfpplus1 untagged=""
mvrp-forbidden=""
current-tagged=bridge,sfp-sfpplus1,veth1-reflector,ether1
current-untagged=""
1 D ;;; added by pvid
bridge=bridge vlan-ids=1 tagged="" untagged=bridge mvrp-forbidden=""
current-tagged="" current-untagged=bridge

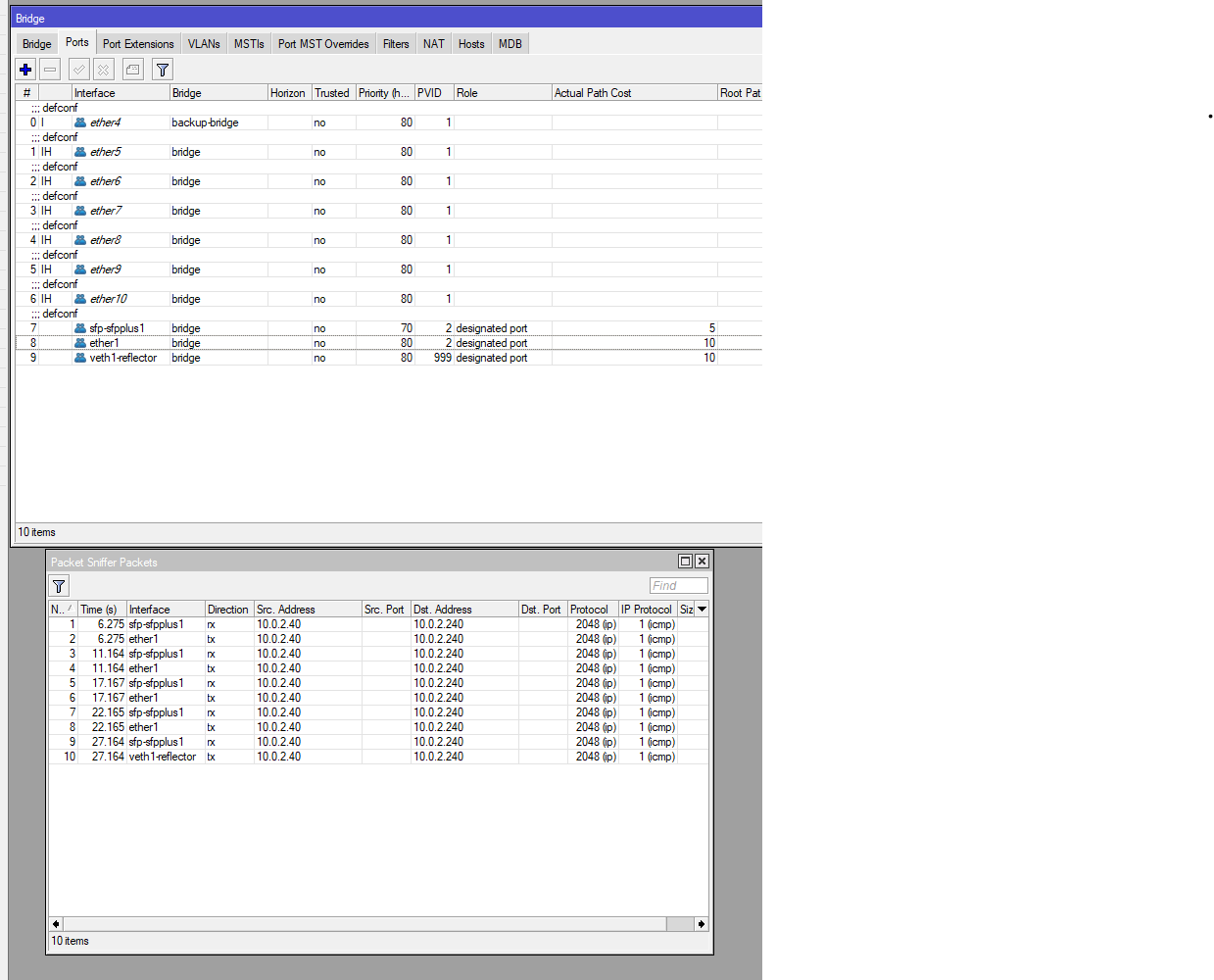

[admin@MikroTik-Router] /interface/bridge> port/print detail
Flags: X - disabled, I - inactive; D - dynamic; H - hw-offload
0 I ;;; defconf
interface=ether4 bridge=backup-bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=1 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
mvrp-registrar-state=normal mvrp-applicant-state=normal-participant
multicast-router=temporary-query fast-leave=no
1 I H ;;; defconf
interface=ether5 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=1 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
mvrp-registrar-state=normal mvrp-applicant-state=normal-participant
multicast-router=temporary-query fast-leave=no
2 I H ;;; defconf
interface=ether6 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=1 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
mvrp-registrar-state=normal mvrp-applicant-state=normal-participant
multicast-router=temporary-query fast-leave=no
3 I H ;;; defconf
interface=ether7 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=1 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
mvrp-registrar-state=normal mvrp-applicant-state=normal-participant
multicast-router=temporary-query fast-leave=no
4 I H ;;; defconf
interface=ether8 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=1 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
mvrp-registrar-state=normal mvrp-applicant-state=normal-participant
multicast-router=temporary-query fast-leave=no
5 I H ;;; defconf
interface=ether9 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=1 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
mvrp-registrar-state=normal mvrp-applicant-state=normal-participant
multicast-router=temporary-query fast-leave=no
6 I H ;;; defconf
interface=ether10 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=1 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
mvrp-registrar-state=normal mvrp-applicant-state=normal-participant
multicast-router=temporary-query fast-leave=no
7 ;;; defconf
interface=sfp-sfpplus1 bridge=bridge priority=0x70 path-cost=5
internal-path-cost=5 edge=auto point-to-point=yes learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=2 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
mvrp-registrar-state=normal mvrp-applicant-state=normal-participant
multicast-router=temporary-query fast-leave=no
8 X interface=ether1 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=yes learn=auto
horizon=none auto-isolate=no restricted-role=no restricted-tcn=no
pvid=2 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
mvrp-registrar-state=normal mvrp-applicant-state=normal-participant
multicast-router=temporary-query fast-leave=no
9 interface=veth1-reflector bridge=bridge priority=0x80 edge=yes
point-to-point=yes learn=yes horizon=none auto-isolate=no
restricted-role=no restricted-tcn=no pvid=999
frame-types=admit-only-vlan-tagged ingress-filtering=no
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
mvrp-registrar-state=normal mvrp-applicant-state=normal-participant
multicast-router=permanent fast-leave=no
Switch:
[admin@MikroTik-Switch] > /system resource print
uptime: 11w4d23h13m14s
version: 6.49.17 (stable)
build-time: Aug/07/2024 11:47:14
factory-software: 6.47.4
free-memory: 477.2MiB
total-memory: 512.0MiB
cpu: ARMv7
cpu-count: 1
cpu-frequency: 800MHz
cpu-load: 5%
free-hdd-space: 2016.0KiB
total-hdd-space: 16.0MiB
write-sect-since-reboot: 2080052
write-sect-total: 7972827
bad-blocks: 0%
architecture-name: arm
board-name: CRS328-24P-4S+
platform: MikroTik
[admin@MikroTik-Switch] > /interface bridge print detail
Flags: X - disabled, R - running
1 R ;;; defconf
name="bridge" mtu=auto actual-mtu=1500 l2mtu=1592 arp=enabled
arp-timeout=auto mac-address= protocol-mode=rstp
fast-forward=yes igmp-snooping=no auto-mac=no
admin-mac= ageing-time=5m priority=0x3000
max-message-age=20s forward-delay=15s transmit-hold-count=6
vlan-filtering=yes ether-type=0x8100 pvid=1 frame-types=admit-all
ingress-filtering=yes dhcp-snooping=no
[admin@MikroTik-Switch] > /interface vlan print detail
Flags: X - disabled, R - running
0 R name="VLAN 2" mtu=1500 l2mtu=1588 mac-address=
arp=enabled arp-timeout=auto loop-protect=default
loop-protect-status=off loop-protect-send-interval=5s
loop-protect-disable-time=5m vlan-id=2 interface=bridge
use-service-tag=no
[admin@MikroTik-Switch] > /ip route print detail
Flags: X - disabled, A - active, D - dynamic,
C - connect, S - static, r - rip, b - bgp, o - ospf, m - mme,
B - blackhole, U - unreachable, P - prohibit
0 A S dst-address=0.0.0.0/0 gateway=10.0.2.1
gateway-status=10.0.2.1 reachable via VLAN 2 distance=1 scope=30
target-scope=10
1 ADC dst-address=10.0.2.0/24 pref-src=10.0.2.240 gateway=VLAN 2
gateway-status=VLAN 2 reachable distance=0 scope=10
[admin@MikroTik-Switch] > /interface bridge vlan print detail
Flags: X - disabled, D - dynamic
0 bridge=bridge vlan-ids=2
tagged=bridge,ether18,ether11,ether23,ether22,ether20,ether24,ether21,
ether15,ether1,sfp-sfpplus1
untagged=ether16,ether12,ether9,QNAP
current-tagged=bridge,ether11,ether15,ether20,ether21,ether23,ether24,sfp-
sfpplus1,ether1
current-untagged=ether9,ether12,QNAP
1 bridge=bridge vlan-ids=5
tagged=ether23,ether24,ether22,ether20,ether11,bridge,ether21,ether15,
QNAP,ether1,sfp-sfpplus1
untagged=ether7,ether8,ether10,ether2,ether3,ether4,ether5,ether6
current-tagged=bridge,ether11,ether15,ether20,ether21,ether23,ether24,
QNAP,sfp-sfpplus1,ether1
current-untagged=ether2,ether3,ether4,ether5,ether6,ether7,ether8,ether10
2 bridge=bridge vlan-ids=25
tagged=QNAP,ether18,ether11,ether23,ether15,ether2,ether3,ether4,ether6,
ether20,ether22,ether24,bridge,ether21,ether1,sfp-sfpplus1
untagged="" current-tagged=bridge,ether2,ether3,ether4,ether6,ether11,
ether15,ether20,ether21,ether23,ether24,QNAP,sfp-sfpplus1,
ether1
current-untagged=""
3 bridge=bridge vlan-ids=250
tagged=QNAP,ether18,ether11,ether23,ether24,ether2,ether3,ether4,ether6,
ether22,ether20,bridge,ether21,ether15,ether1,sfp-sfpplus1
untagged=ether13,ether14,ether16
current-tagged=bridge,ether2,ether3,ether4,ether6,ether11,ether15,ether20,
ether21,ether23,ether24,QNAP,sfp-sfpplus1,ether1
current-untagged=""
4 bridge=bridge vlan-ids=1 tagged="" untagged=bridge current-tagged=""
current-untagged=bridge
5 bridge=bridge vlan-ids=20
tagged=ether18,ether11,ether23,bridge,QNAP,ether15,ether20,ether21,
ether24,ether1,sfp-sfpplus1
untagged="" current-tagged=bridge,ether11,ether15,ether20,ether21,ether23,
ether24,QNAP,sfp-sfpplus1,ether1
current-untagged=""
6 bridge=bridge vlan-ids=30 tagged=QNAP,ether1,bridge,sfp-sfpplus1
untagged="" current-tagged=bridge,QNAP,sfp-sfpplus1,ether1
current-untagged=""
7 X bridge=bridge vlan-ids=10 tagged=QNAP,ether1,sfp-sfpplus1,bridge
untagged="" current-tagged="" current-untagged=""
[admin@MikroTik-Switch] /interface bridge> port print detail
Flags: X - disabled, I - inactive, D - dynamic, H - hw-offload
0 H ;;; defconf
interface=ether2 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=5 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
1 H ;;; defconf
interface=ether3 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=5 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
2 H ;;; defconf
interface=ether4 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=5 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
3 H ;;; defconf
interface=ether5 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=5 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
4 H ;;; defconf
interface=ether6 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=5 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
5 H ;;; defconf
interface=ether7 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=5 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
6 H ;;; defconf
interface=ether8 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=5 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
7 H ;;; defconf
interface=ether9 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=2 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
8 H ;;; defconf
interface=ether10 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=5 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
9 H ;;; defconf
interface=ether11 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=2 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
10 H ;;; defconf
interface=ether12 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=2 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
11 I H ;;; defconf
interface=ether13 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=250 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
12 I H ;;; defconf
interface=ether14 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=250 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
13 H ;;; defconf
interface=ether15 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=2 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
14 I H ;;; defconf
interface=ether16 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=250 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
15 I ;;; defconf
interface=ether17 bridge=backup-bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=1 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
16 I H ;;; defconf
interface=ether18 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=2 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
17 I H ;;; defconf
interface=ether19 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=1 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
18 H ;;; defconf
interface=ether20 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=2 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
19 H ;;; defconf
interface=ether21 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=2 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
20 I H ;;; defconf
interface=ether22 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=2 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
21 H ;;; defconf
interface=ether23 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=2 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
22 H ;;; defconf
interface=ether24 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=2 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
23 I H ;;; defconf
interface=sfp-sfpplus3 bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=1 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
24 H ;;; QNAP
interface=QNAP bridge=bridge priority=0x80 path-cost=10
internal-path-cost=10 edge=auto point-to-point=auto learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=2 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
25 H interface=ether1 bridge=bridge priority=0x80 path-cost=15
internal-path-cost=15 edge=auto point-to-point=yes learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=2 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
26 H interface=sfp-sfpplus1 bridge=bridge priority=0x70 path-cost=5
internal-path-cost=5 edge=auto point-to-point=yes learn=auto
horizon=none hw=yes auto-isolate=no restricted-role=no
restricted-tcn=no pvid=2 frame-types=admit-all ingress-filtering=yes
unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no
multicast-router=temporary-query fast-leave=no
