Hi all,
Yesterday I setup point to point bridge with two SXT 5 AC device but I have problem with bandwith.
Max bandwith is 170 Mbps when I copy files through bridge. Test bendwith in mikrotik say around 125mbps. Ping is excelent 1,2 or 3 ms. CCQ is around 90-100%
I try change all canals, but nothing better. I tried to change all protocols (nstreme, nv2, 802.11), but max bandwith is 170mbps.
Link distance is 750m.
Need help.
Try 40Mhz. It goes up to 250mbps for me.
Yes I tried 40Mhz, but nothing better bandwith. I don’t have idea why is this happening because signal is excellent.
Can you explain me how to use Ap bridge without WDS, what is EIRP? Where I can find this information?
Use Bridge and Station Bridge.
When I use Station bridge on clint side no connection between devices. Need I to configure something extra.

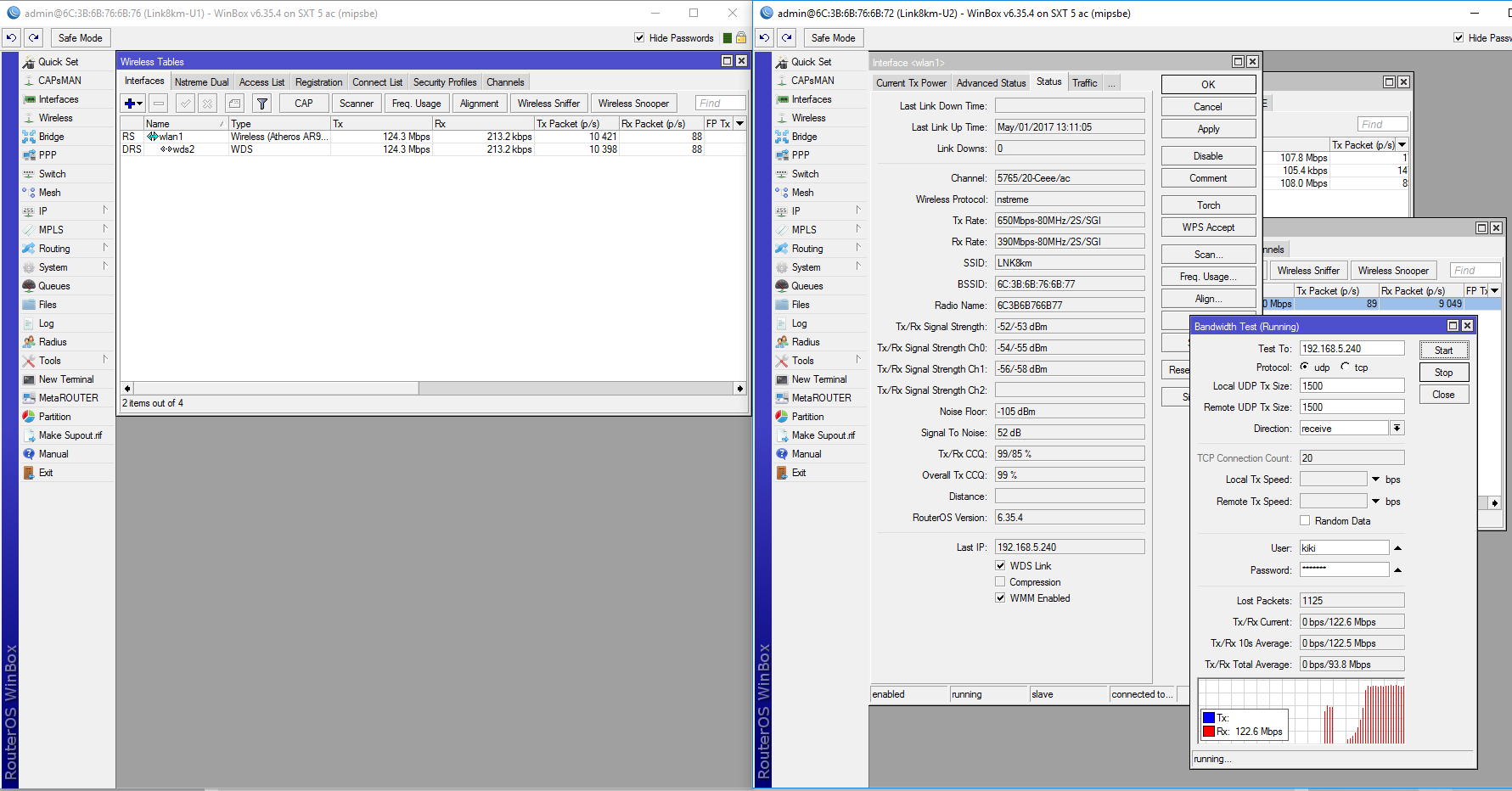

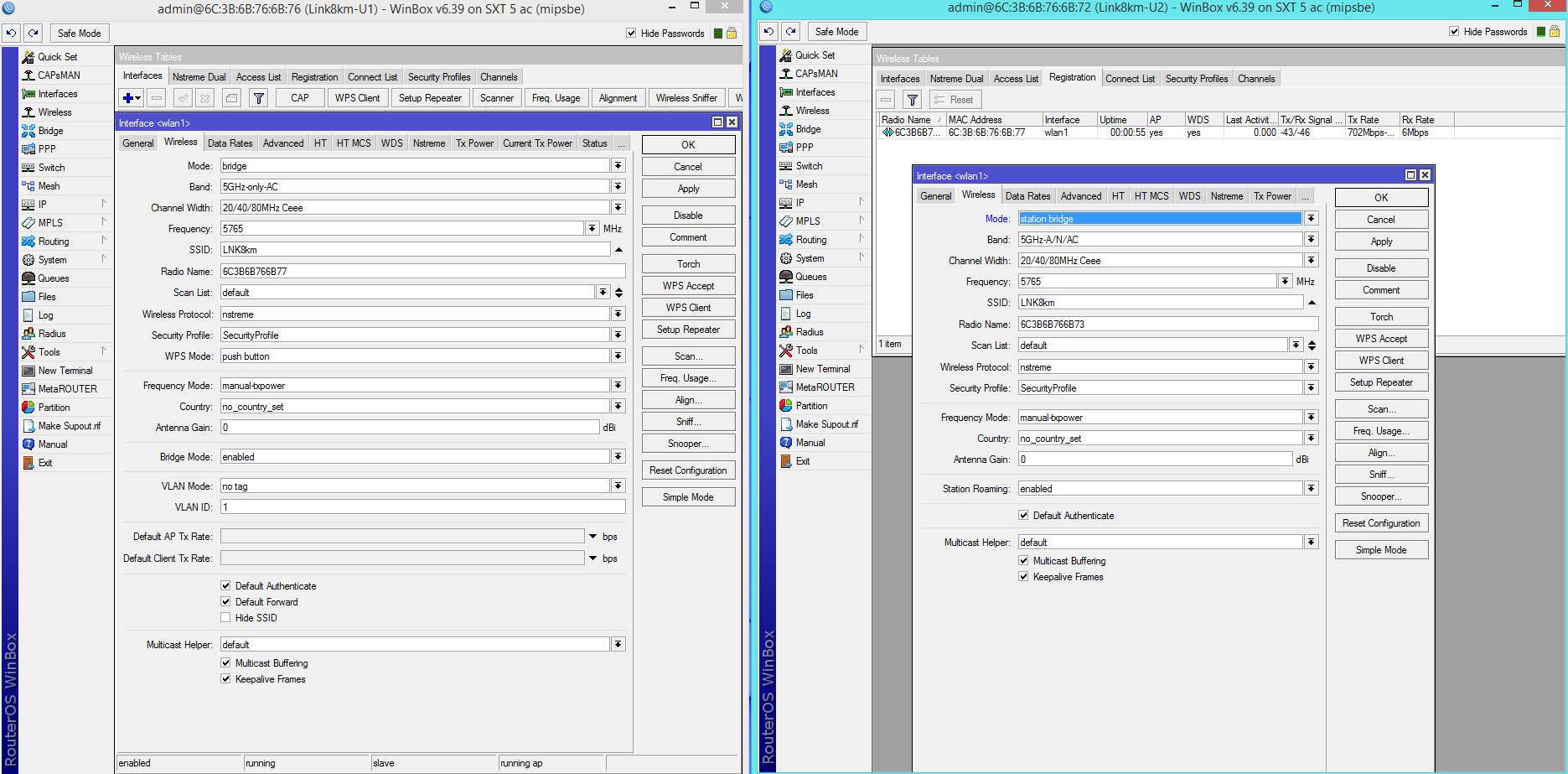

Ok. I understand. You can see in picture AP side is bridge, when I put client side to station bridge, no connection between devices.
I can’t see that.
Anyway you have made a mistake somewhere. Maybe the interfaces are not in bridge mode?
Sorry, yes interfaces in bridge mode now. Now I use WDS and bridge interfaces. I will post configuration when chhange to station bridge.
I tried bridge and station bridge. Device connected but no ping between. Do I have to config something else. Disable WDS or something?
This setup doesn’t work. I don’t know why.
You Need to Creative a Bridge with ether and wlan Interface
Need I add Ip adress on wlan, eth1, bridge?? Can this work without ip address?
Bridge does not need to have ip configured to be able to work as bridge…
OK tnx. Today I successfully setup PTP. Speed is better, but I have one question.
When I transfer data in one way speed is 400mbps in oposite way speed is 300mbps.
Bridge->Station bridge 300mbps
Station bridge->Brige 400mbps
Whay speed is different?
In Most Cases you Hage more Interference on one site, take a Look at ccq
CCQ is around 80-95%.
Did you try changing wireless protocol?For me nv2 nstreme works the best, i have older SXT 5gz and im getting 130mbit speeds over 1KM link.
Yes I try changeing wireless protocol, but best performance I have on 802.11.
400mbps one way, 300mbps opposite way.
