Hello all of you

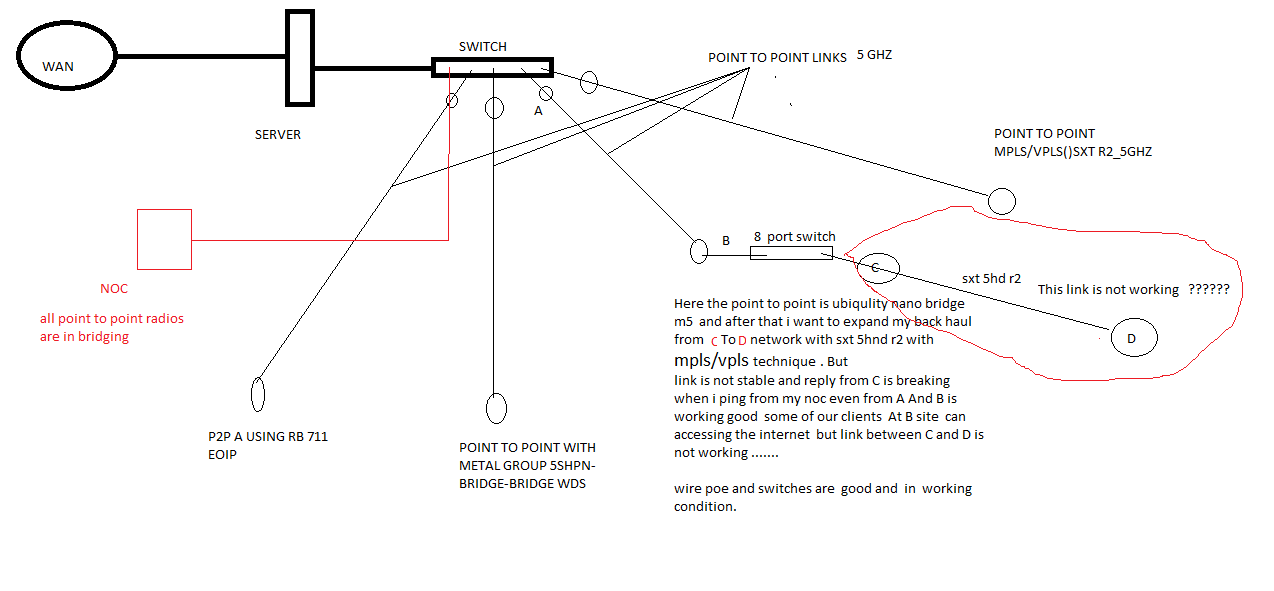

i am facing a problem so , for easly understanding i am attaching an image and ap and station configuration ::
access point side
[admin@MPLS_AP] > export hide-sensitive compact
jan/02/1970 04:23:23 by RouterOS 6.7
software id = NHFA-6QC9
/interface bridge
add l2mtu=1500 name=bridge1
/interface wireless
set [ find default-name=wlan1 ] band=5ghz-onlyn channel-width=
20/40mhz-ht-above disabled=no frequency=5745 hw-retries=14 l2mtu=2290
mode=bridge mtu=1526 ssid=LION_1010 tx-power=5 tx-power-mode=
all-rates-fixed wireless-protocol=unspecified
/interface vpls
add disabled=no l2mtu=1500 mac-address=02:82:06:AE:2F:7E name=vpls1
remote-peer=12.120.120.101 vpls-id=130:130
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip hotspot user profile
set [ find default=yes ] idle-timeout=none keepalive-timeout=2m
mac-cookie-timeout=3d
/ip ipsec proposal
set [ find default=yes ] enc-algorithms=3des
/system logging action
set 0 memory-lines=100
set 1 disk-lines-per-file=100
/interface bridge port
add bridge=bridge1 interface=ether1
add bridge=bridge1 interface=vpls1
/ip address
add address=12.120.120.100/24 interface=wlan1 network=12.120.120.0
add address=18.120.100.150/24 interface=ether1 network=18.120.100.0
/ip service
set api disabled=yes
/mpls interface
set [ find default=yes ] interface=wlan1 mpls-mtu=1526
/mpls ldp
set enabled=yes lsr-id=12.120.120.100 transport-address=12.120.120.100
/mpls ldp interface
add interface=wlan1 transport-address=12.120.120.100
/system identity
set name=MPLS_AP
/system leds
set 0 interface=wlan1
station :
[admin@MPLS_CLIENT] > export hide-sensitive compact
jan/02/1970 04:15:33 by RouterOS 6.7
software id = 99NI-GS00
/interface bridge
add l2mtu=1500 name=bridge1
/interface wireless
set [ find default-name=wlan1 ] band=5ghz-onlyn channel-width=
20/40mhz-ht-above disabled=no frequency=5745 l2mtu=2290 mtu=1526 ssid=
LION_1010 tx-power=5 tx-power-mode=all-rates-fixed wireless-protocol=
unspecified
/interface vpls
add disabled=no l2mtu=1500 mac-address=02:ED:E4:7D:B6:07 name=vpls1
remote-peer=12.120.120.100 vpls-id=130:130
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip hotspot user profile
set [ find default=yes ] idle-timeout=none keepalive-timeout=2m
mac-cookie-timeout=3d
/ip ipsec proposal
set [ find default=yes ] enc-algorithms=3des
/system logging action
set 0 memory-lines=100
set 1 disk-lines-per-file=100
/interface bridge port
add bridge=bridge1 interface=ether1
add bridge=bridge1 interface=vpls1
/ip address
add address=18.120.100.151/24 interface=ether1 network=18.120.100.0
add address=12.120.120.101/24 interface=wlan1 network=12.120.120.0
/ip proxy
set parent-proxy=0.0.0.0
/ip service
set api disabled=yes
/mpls interface
set [ find default=yes ] interface=wlan1 mpls-mtu=1526
/mpls ldp
set enabled=yes lsr-id=12.120.120.100 transport-address=12.120.120.100
/mpls ldp interface
add interface=wlan1 transport-address=12.120.120.101
/system identity
set name=MPLS_CLIENT
/system leds
set 0 interface=wlan1
if any one can help me
Thanks
suraj
