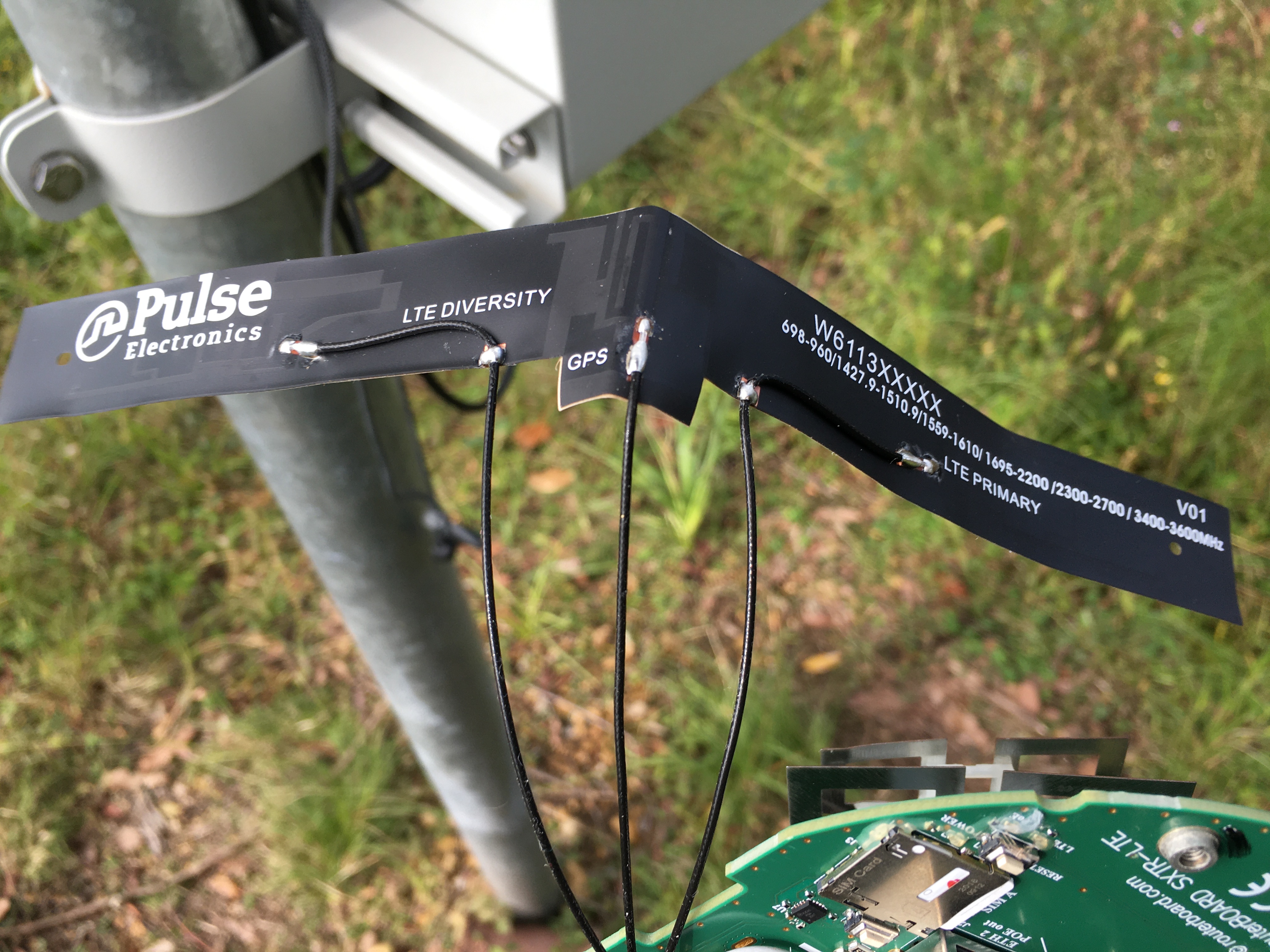

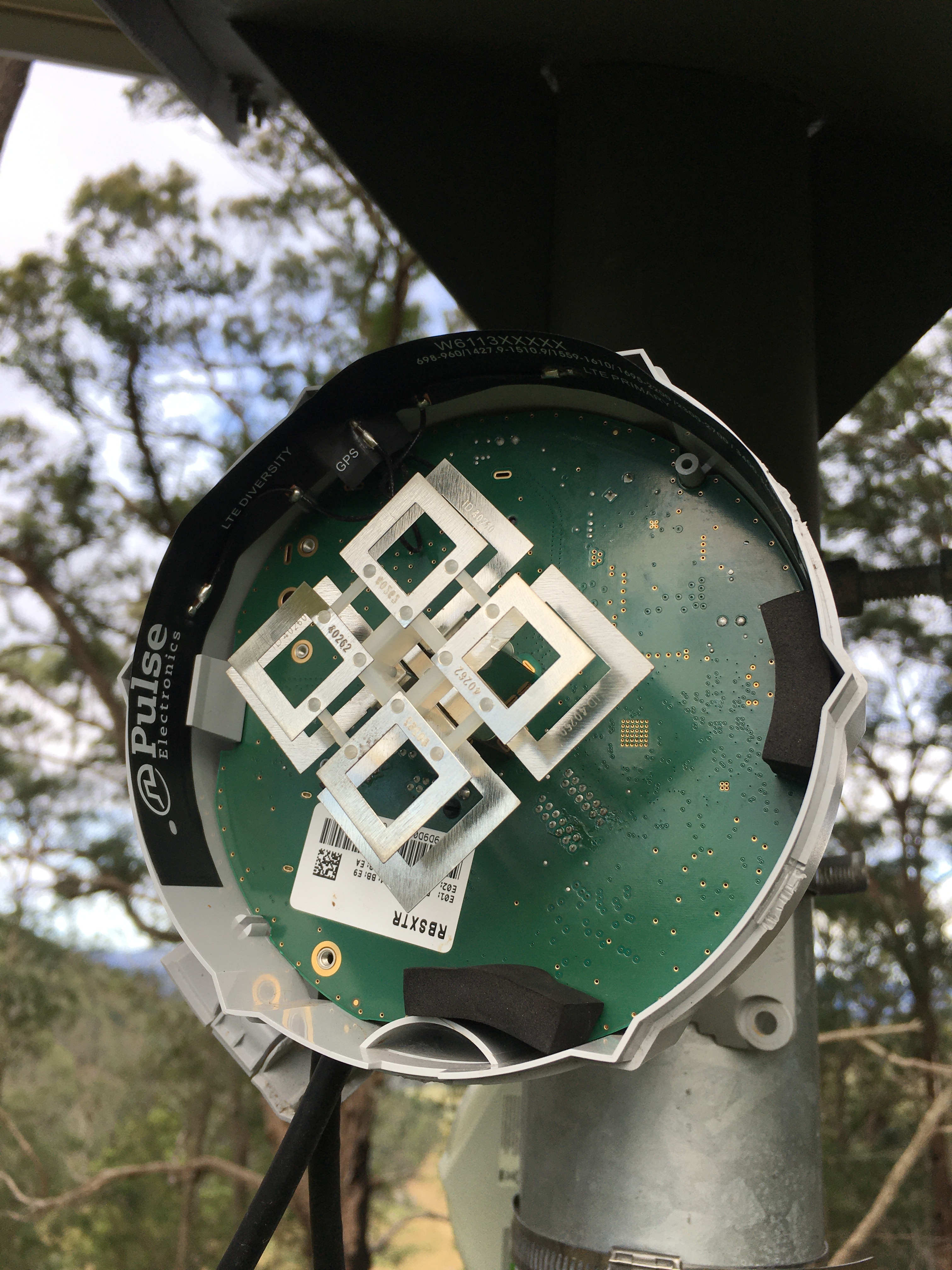

To see if I could utilize a B28 tower that is 10km away, direct LOS, I’ve been testing one of these antennas from Sixfab. The problem as many know is the SXT and LHGs are useless for lower frequencies if it is some distance from a tower. The antenna I’ve been testing has 2.9dBi peak gain and flexible with 3M adhesive on one side. The leads (main, diversity, GPS) are poked around the edge of the PCB and is stuck to the inside of the bottom half of the SXT enclosure.
Sixfab antenna 2.9dBi + B28 @ 10km averages 40Mbps, peaking at 55Mbps
SXT antenna ~7.2dBi + B3 @ 26km averages 10-25Mbps, peaking at 35Mbps
Overall, I’m quite impressed with the results. US$12 to add B28 support to a SXT without any need to physically modify the enclosure/existing antenna, plus is completely removable.
wow, pretty cool, thanks for sharing! we don’t have b28 home (only a handful of counties have it in europe) yet.
extra points for the nondestructive mod
Interesting installation on a SXT.
Band 28 is hard to get right given the physically large antenna required to have a good efficiency(Q rating) for a given antenna.
I’m sending some gear up to rural NSW tomorrow for a B28 job, the other guy is a ham radio operator and is making his own B28 antenna.
The radio supports it? i have a WAP R with a R11e-LTE, if i change the antenna i will be able to get B28?..
If you take a look at the product listing for your device or for the modem installed it should tell you not only what bands it support but if it support mimo or carrier aggregation
https://mikrotik.com/product/r11e_lte
One of the cards we use edit: for band 28 is the quectel ep-06, while this does have some compatibility issues like with devices not having the usb3 pins as well as the default configuration on the modem sets the interface up as a ppp interface requiring you to send some at commands to get it running in LTE mode on router OS7 they work quite well and supports band 28.
On router OS 7 there is more compatibility due to the use of the mbim driver 7 has installed but I would recommend testing our 7 just as you would any ‘stable’ release to make sure it functions as you like (I suggest always staying with long term releases unless a stable or OS7 release has a fix or added functionality you need)
for others reference we have tested these cards out in the LHGr range, wap**G**r range as well as the larger ltaps(only the bottom pcie slot has usb3 pins to my knowledge) and they work quite well.
There is some talk on the forums about being able to disable the usb3 pins on the ep-06 for compatibility with boards without it but I have not seen the commands listed as well as I am unable to find them in the AT commands PDF that you can download from quectel so that might just be a rumour (if someone could prove me wrong I would highly appreciate it
lastly if anyone is thinking of trying out the ep-06 take a look at this post by killersoft as he has put some effort into detailing his testing with the modules and the little caveats he found. http://forum.mikrotik.com/t/quectel-ep06-e-and-wap-r-ac-rbwapgr-5hacd2hnd/131724/1
nice!!
But yes waiting for Low-frequency (620-960mhz ) from b71/n71 till b8 LTE integrated antenna from Mikrotik.
Would be the killer product for total remote places.
I’ve since switched to two Revie Flex (EFF6060A3S-15MHF1) antennas with Quectel EP06. Much better signal than the other one.
It would be terrific if MikroTik make a SXT with a better antenna.
