hi all … I have a sxt5 that I should hook it to the main router to be able to navigate behind the sxt. I also succeeded, but only in static and configuring as a station or station pseudobridge. how can i solve?
Do you mean that the SXT is wirelessly connected to another vendors WiFi ?
If yes then only modes Station and Station Pseudobridge can be used.
The differences on those modes can be found here : https://wiki.mikrotik.com/wiki/Manual:Wireless_Station_Modes
ok thanks, i have done…only problem: after sxt i go to internet only if i have static ip on the pc…why? it’s no possible in dhcp? i send script of configuration?
You could \export hide-sensitive file=any-name …
yes i attach
sxttari.rsc (1.04 KB)
If your purpose is only access to the Internet, remove wlan1 from your Bridge and use mode Station.
Add DHCP-Client on your wlan interface and masquerade it…
Then assign an IP address to your Bridge and create a DHCP server on it using a different subnet…
Of course that way there is no Layer 2 Bridging between the two networks…
Don’t forget to use the correct regulatory domain for your country and also firewall rules in case they are needed…
thanks my friends… i have modified configuration with your message…i stop at 2 link:
and masquerade it…
Then assign an IP address to your Bridge and create a DHCP server on it using a different subnet…
i attach a configuration modified…if possible you see and modified you for me? thanks advance and best regards.
ps: i remember my configuration:
i have my router 192.168.1.1 and dvr 192.168.1.243.
the sxt into modalità station i don’t see on my network for modified or update and i have a ipcam after sxt with 192.168.1 244 that i see and ping regular. the ipcam it’s necessary static ip but not on dhcp and why i don’t see sxt on my network?
sxttarimod.rsc (1.08 KB)
Am not really sure i understand
Can you provide a simple network topology diagram so that i can understand what is the configuration needed ?

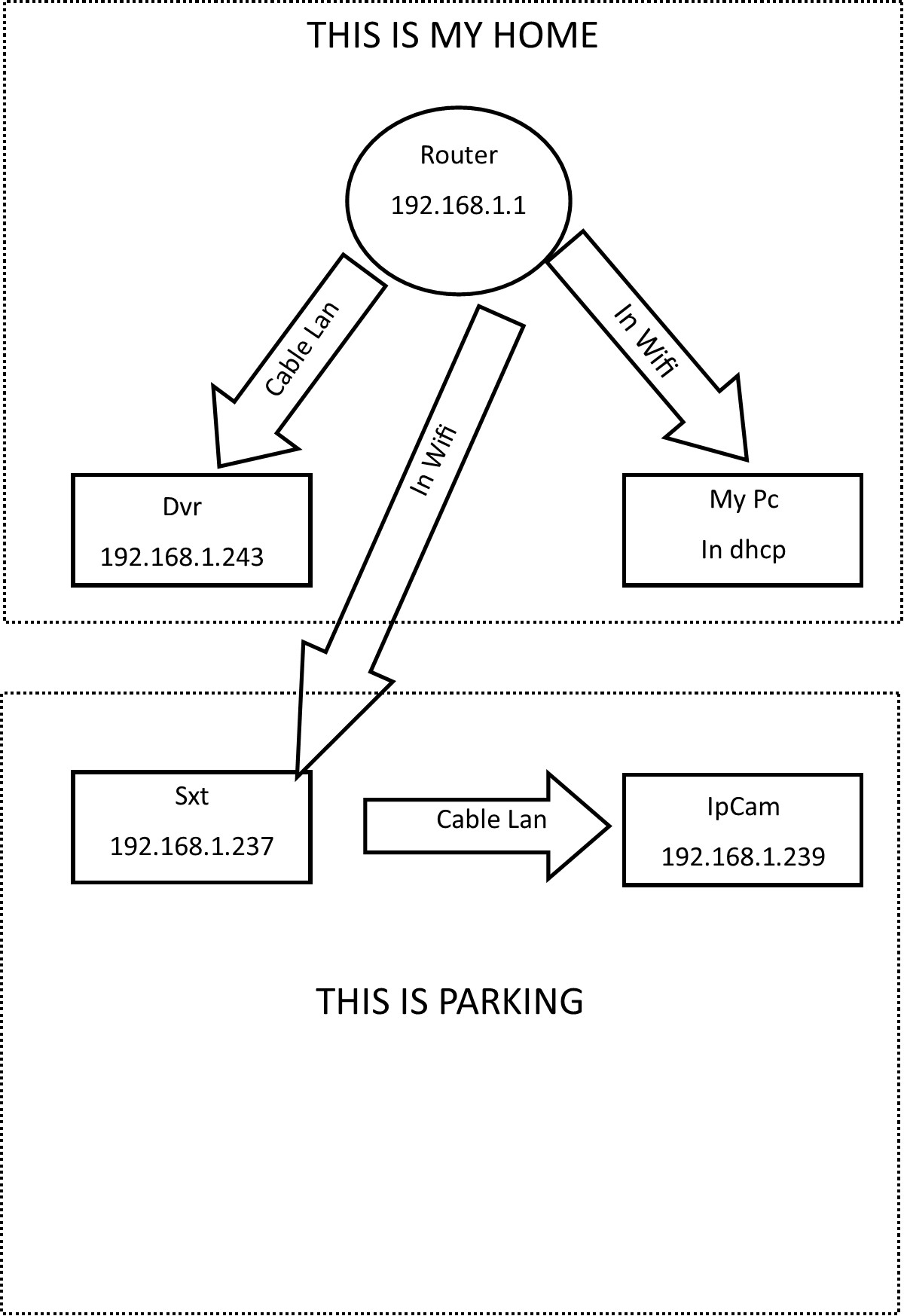

The Diagram is Attacched
The router, is it a MikroTik ?
nono…is telecom tim Hub
station-pseudobridge should work just fine…
hi my friends…i have done and work fine…only that when i am connected with my network, i don’t access at sxt from winbox…why? i attach my script now
Sxt.rsc (1.82 KB)
