Tag Stacking

RouterOS General
1

Hi,

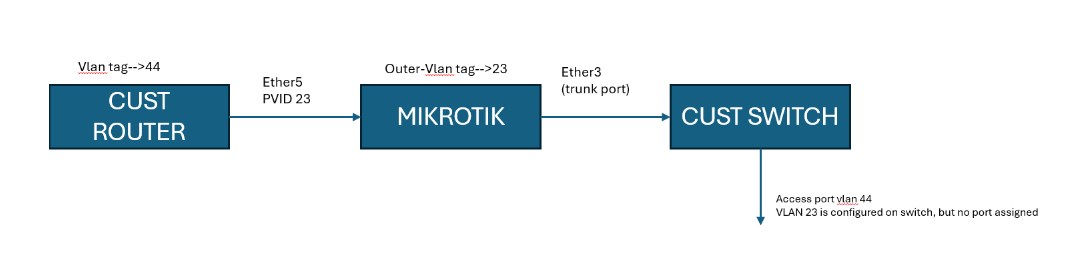

I am fairly new to the MikroTik world and RouterOS. I am trying to configure a bridge with tag stacking. Below is my network diagram.
I have tagged packets coming from another router to MikroTik, and I am not aware of what tag they use (for this case, let’s say the tag is 44). I am trying to perform tag stacking by adding an outer tag of 23 and passing it through my trunk link to a customer switch. On the customer switch, both VLANs 23 and 44 are configured, but the client is connected to an access port with VLAN 44 as the inner tag.Am I missing something, or do I need any additional configuration

/interface bridge
add name=bridge1 vlan-filtering=yes ether-type=0x8100
/interface bridge port
add bridge=bridge1 interface=ether3
add bridge=bridge1 interface=ether5 tag-stacking=yes pvid=23
/interface bridge vlan
add bridge=bridge1 tagged=ether3 untagged=ether5 vlan-ids=23

2

Isn’t that the purpose of Q-in-Q ?
https://help.mikrotik.com/docs/spaces/ROS/pages/88014957/VLAN#VLAN-Q-in-Q

3

What if we don’t know what tag put on CUST Router ?

4

done that today.

#add bridge with NO stp protocol and add forward-reserved-addresses=yes (fully L2 transparent)
/interface bridge
add forward-reserved-addresses=yes name=bridge1 protocol-mode=none vlan-filtering=no

#add uplink port to bridge
/interface bridge port
add bridge=bridge1 ingress-filtering=no interface=“qsfp28-1-1–[uplink]”

#add customer with tag stacking
add bridge=bridge1 edge=no ingress-filtering=no interface=“sfp28-2–[customer-vlan2000]” point-to-point=no pvid=2000 tag-stacking=yes

#vlan12 = mgmt
/interface bridge vlan
add bridge=bridge1 tagged=“bridge1,qsfp28-1-1–[uplink]” vlan-ids=12

#vlan2000 for q-in-q
add bridge=bridge1 tagged=“qsfp28-1-1–[uplink],bridge1” untagged=“sfp28-2–[customer-vlan2000]” vlan-ids=2000

ive also mapped the bridge to the vlan, cause ive configured an ip address for connecting to the customer cisco switches.

vlan 1 native
vlan30 trunk

every packet/vlan gets encapuslated within vlan2000. works perfect - also spanning tree and cdp on the ciscos (due to forward-reserved-addresses).
btw, u should play a little bit with ingress-filtering - actually ive disabled it, but i will keep an eye on it for safety reason.
