Tagged VLANs with Zyxel doesn't work

RouterOS General
1

hy,

im new here and i’m form austria.

I have a real big problem.

my mikrotik router is a 1,8ghz amd pc with 2x D-Link DFE-580TX (4x 100Base-TX, PCI)
router os 2.9.17

my switches are 6x Zyxel GS-2024


i have now 7 vlans on this switches and i ned 3 more but i have only 8 interfaces on the router.
how can i use one physical interface for more vlans?

i’ve tried to create on one physical interface (interface 6 @ image) a vlan interface with vid=60 & name=dev-test mtu=1500

on zyxel i’ve tagged the port 6 on wich the router is connected… but no ping to clients in vlan 60..
i’ve tried mtu 1496 as i read in some forums… nothing
i’ve tried to set the switch port manualy to vlan 60 untagged… nothing…

can anybody help me?

thanks a lot
Manuel

sorry but my english is bad…

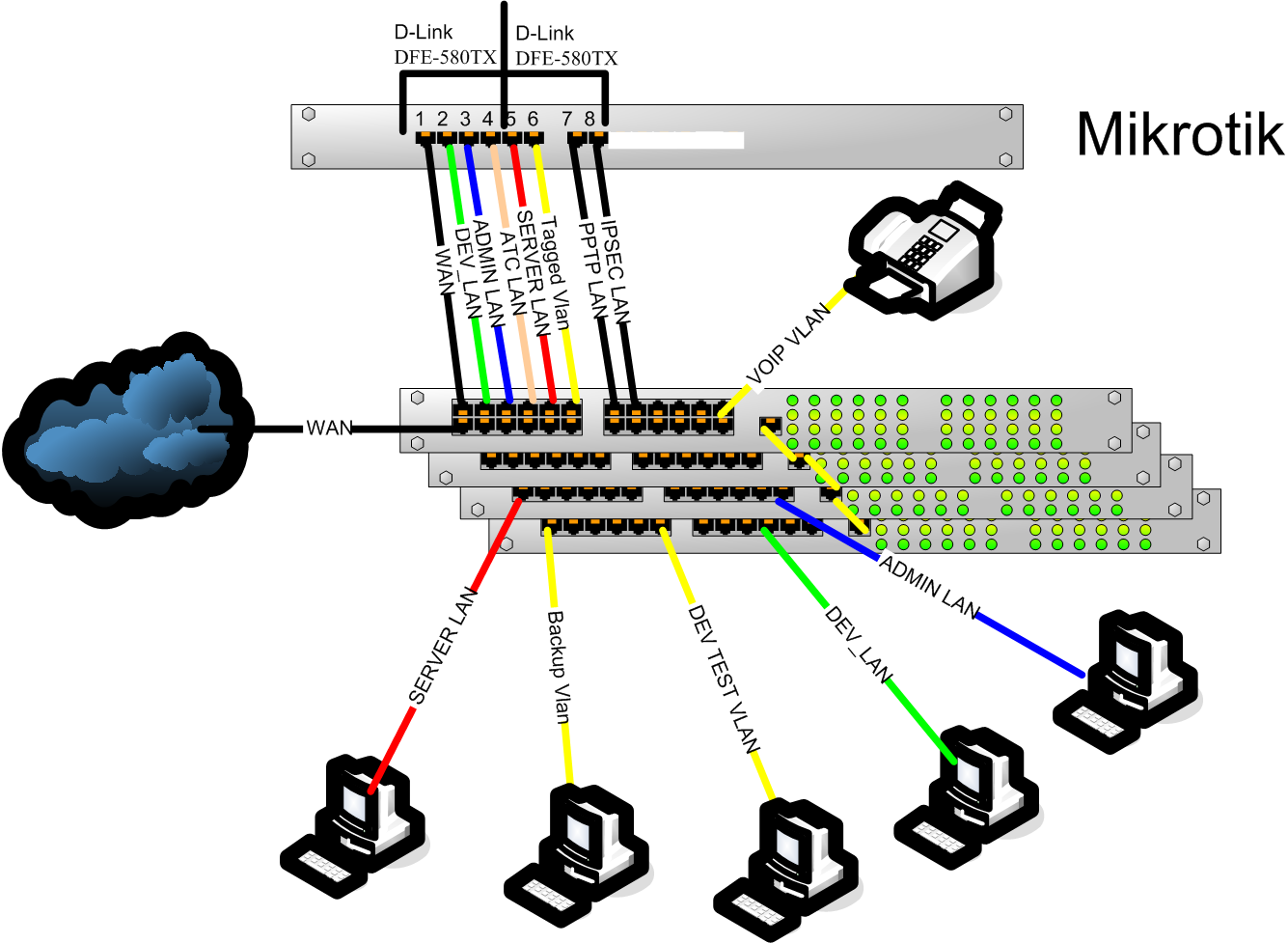

i-new Netzwerk.png

2

switch port should be tagged. do not forget about PVID

3

PVID is 60…
or should i set anything other?

4

did you setup this vlan on all switches?

5

yes

on all switches the ports 23 & 24 are tagged in all vlans and pvid is 1
23 & 24 are the uplinks

the router is conected on switch 4 with port 1-8

6

setups like this works fine for us. try to see switch’s forwarding table, on what VLAN you see router’s or computer’s MAC address…

7

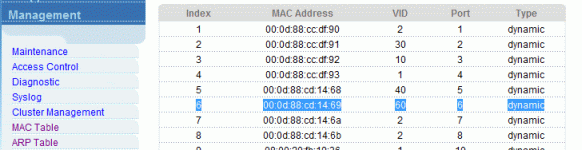

i’ve found this (see image)

8

check this an all switches

9

yes all vlans are working on this switches… but the connection between switches and mikrotik didn’t work!

10

you found any solutions??
i am facing the same issue now
