Hi every one.
I have implemented dude to monitor my network. I have for example 4 site in different places . each site has let’s say 4 router which one of these 4 routers is a edge router. sites are connected together with OPENVPN(or SSTP) tunnels using public IPs to make the tunnels . inside each site, I have got static routes between routers and also OSPF between edge routers …
this was a summery of my network .

And now my question is that :

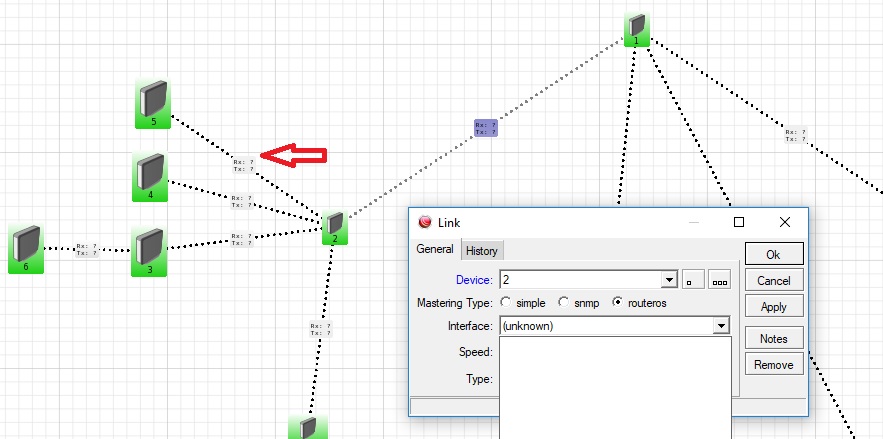

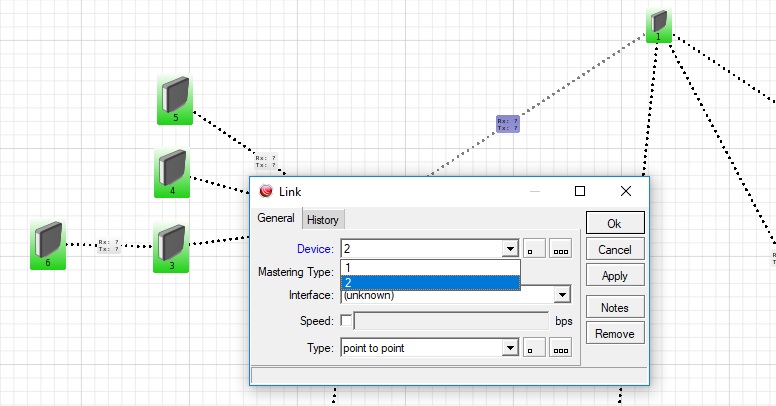

when I add a link between devices I have already added, and I put the mastering Type on “routeros” then thee Interface drop list is completely empty … and after making the link done , there is no rx/tx rate on the link …

could anybody tell me what is the problem ?

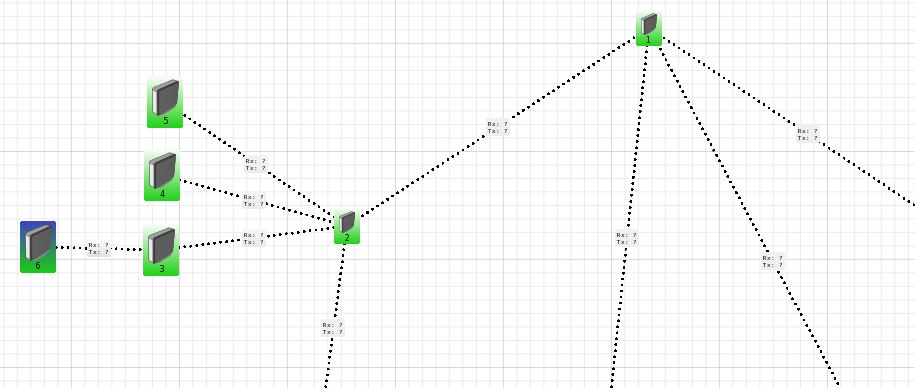

I have attached some photo with the purpose of making the question more clear.

2

I have the same problem with none ARM Mikrotik devices.
My RB3011 and RB4011 populate the Interface drop down.
My other Mikrotiks are a RB1100 Powerpc and a hEX PoE
which has the MIPSBE software and they have an empty
drop down. So it seems to be firmware related.

3

Do all devices allow inbound Winbox port? If yes, it is accessible from all devices?
Have you set the type to RouterOS for each device?

4

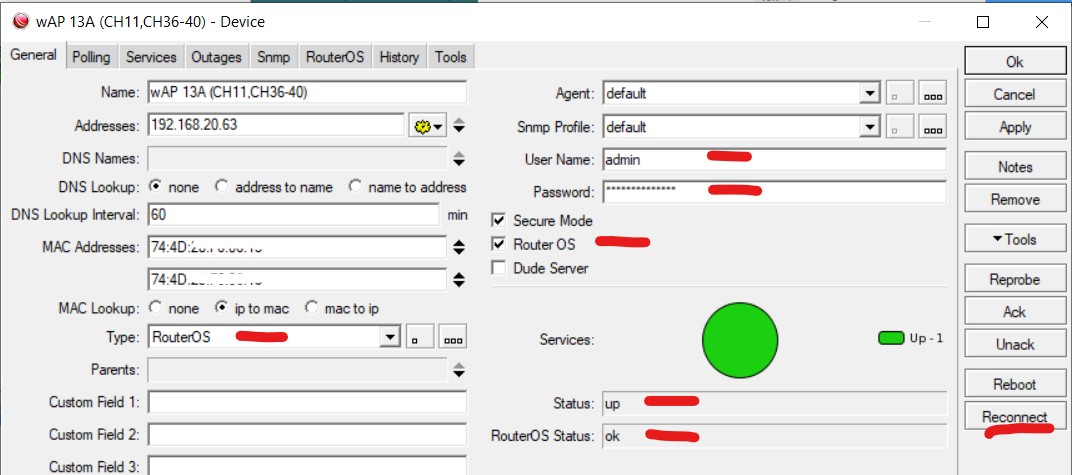

Check your settings for RouterOS. Do a reconnect if RouterOS status is not OK
.
.
.

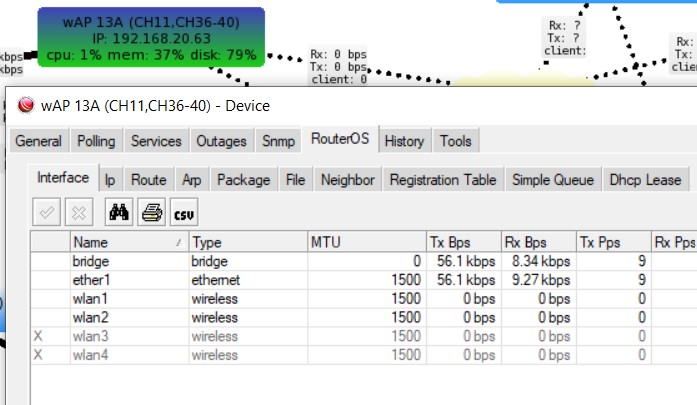

What do you see in the RouterOS tab ? Interfaces should be there.
.
.
.
.

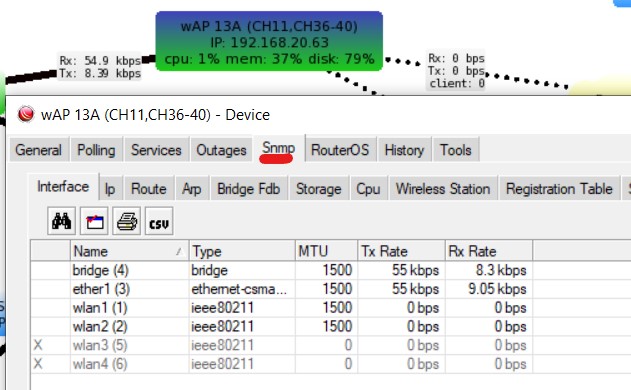

You can do exactly the same with SNMP on MT.
.
.
