The queues to control bandwidth do not work for me

RouterOS General
1

Hello

I have a switch CRS125-24G-1S where I configure queues to control the bandwidth of the connected clients but it doesn’t work for me

I did tests configuring in the targe field the ip and also with the interface, it does not work in both ways

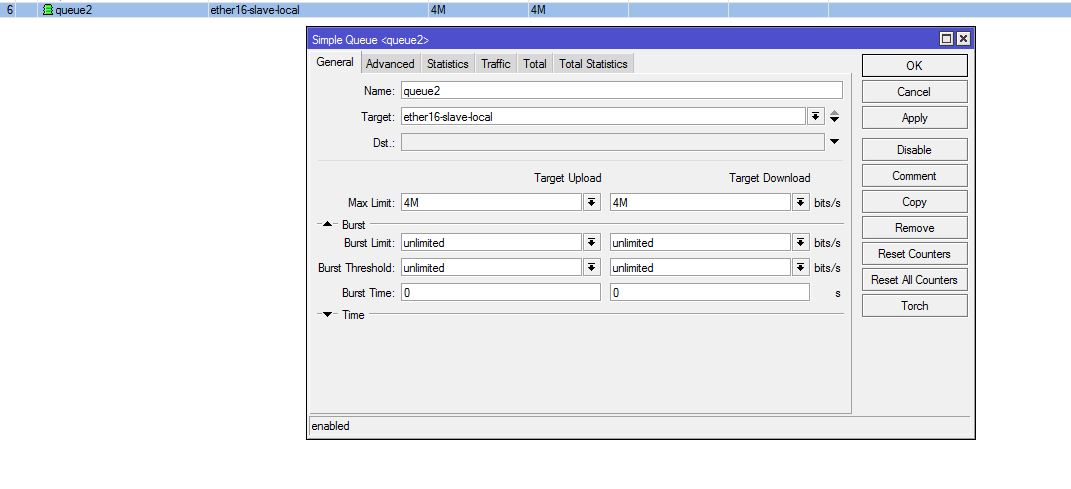

I attach images of the configuration

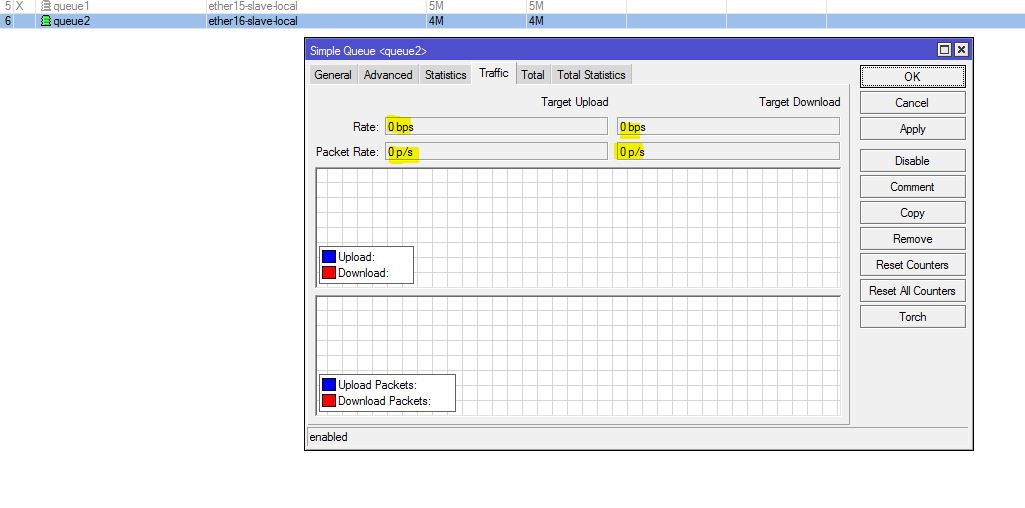

In the traffic tab does not show rate

Please help me to control the bandwidth of the clients by IP or by the Interface


Regards

2

Use the method shown here instead of simple queues: https://wiki.mikrotik.com/wiki/Manual:CRS1xx/2xx_series_switches_examples#Bandwidth_Limiting

3

Hi

Configure port 21 to limit bandwidth on Tx and Rx

Attached image of what is configured

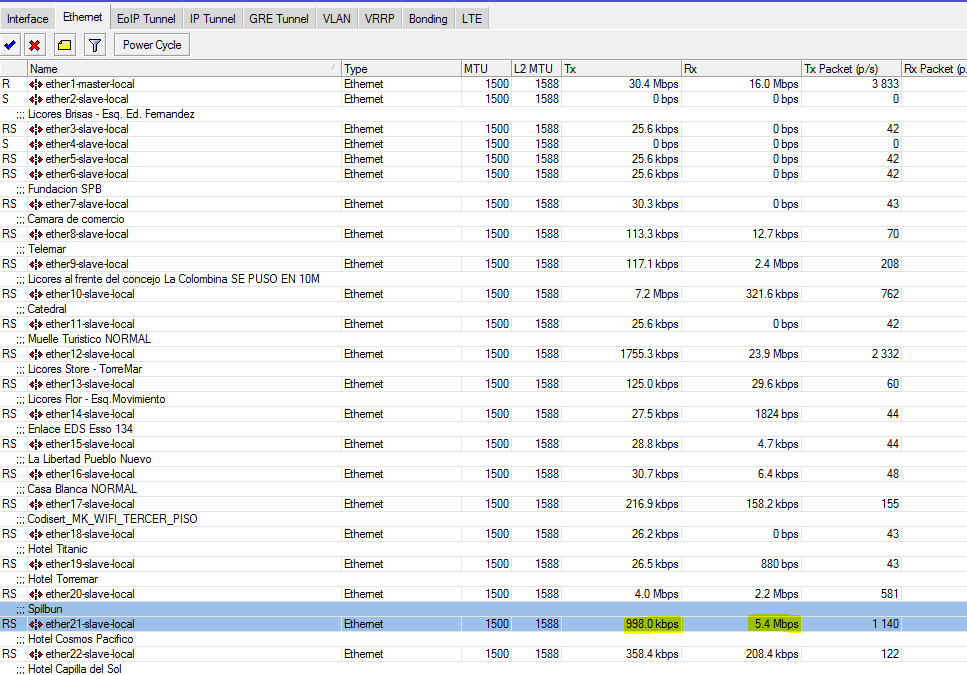

Checking the traffic on interface 21 I see that it only applies in Tx and not in Rx, you can see in the attached image

How can help me limit Rx bandwidth

I am attentive to the answer

regards

4

Hi

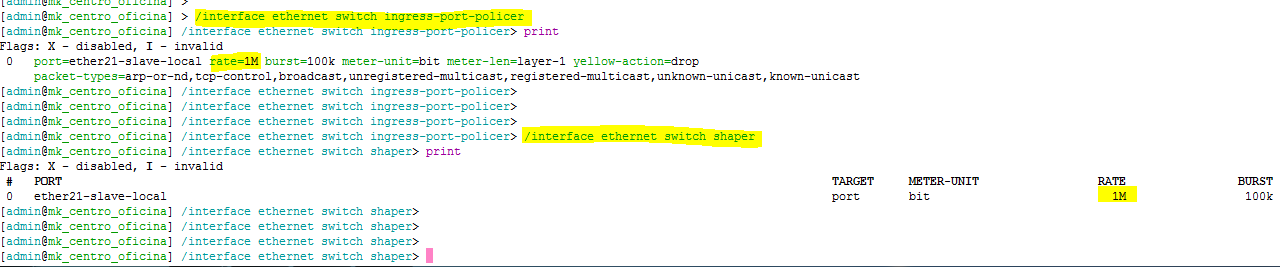

This is the configuration used:

/interface ethernet switch ingress-port-policer
add port=ether21-slave-local meter-unit=bit rate=1M

/interface ethernet switch shaper
add port=ether21-slave-local meter-unit=bit rate=1M

How can help me limit tx bandwidth
I am attentive to the answer

regards
