I was wondering if anyone had tips to help troubleshoot VPN / Routing issues on Mikrotik routers? A couple cases have come up where the configuration appears to be fine, but the routing does not appear to be working…
On the main router:
RB1100AHx2 (RouterOS 5.24, PPTP Server
LAN: 10.0.254.0/24
PPTP local/remote range: 10.99.99.0/24
I have about ~40 sites running RB750GL routers as PPTP clients.
Typically, all these locations have as LAN 192.168.x.0/24 or 172.16.x.0/24 and are configured as PPTP clients to the main site.
I use the same configuration template & checklist when setting up these clients to reduce mistakes & oversights… however I have 3 sites where the PPTP VPN tunnel is up, the client LAN computers are able to ping the main LAN over the VPN at 10.0.254.0/24 over VPN, however, the main LAN computers are not able to ping back these 3 faulty remote sites… Both the host & client side Mikrotiks are able to ping the other side’s LAN computers. Weird.
Here’s screenshots of how I set up the VPN on the HOST & CLIENT routers (attached to this post).
Any tips or advise on either something I might have overlooked or tips on anything else I might be able to try to troubleshoot this issue!
Thanks!

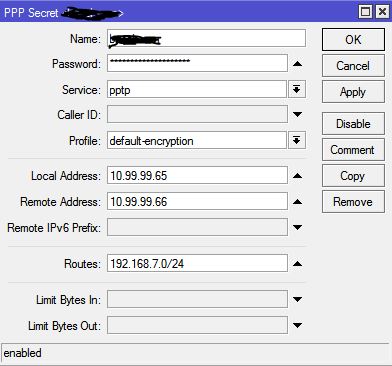

PPP Secret on HOST

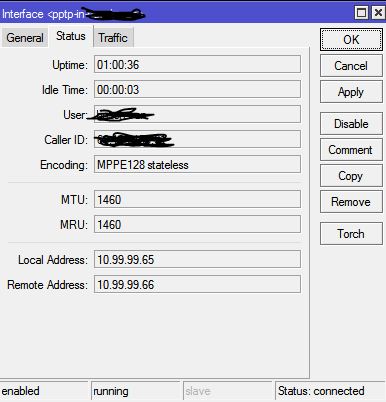

PPTP Server Interface on HOST
IP Route added automatically once PPTP connection is active on HOST
client side screenshots on next post since it won’t let me add more than 3 screenshots in this post…

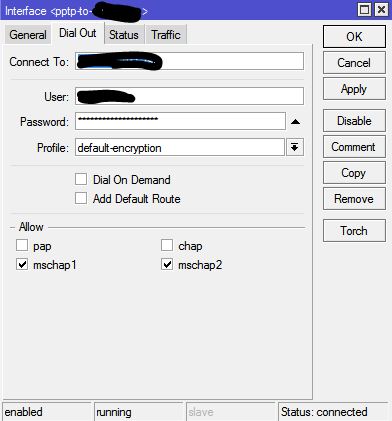

PPTP Client interface 1/2:

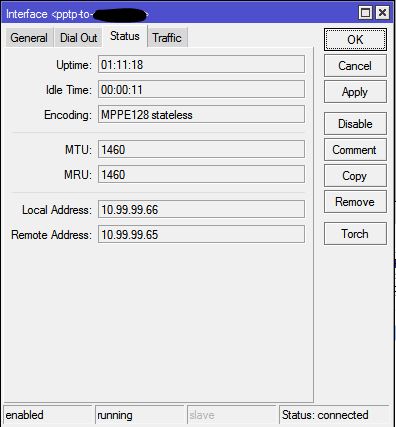

PPTP Client interface 2/2:
IP Route, static route configured manually back to HOST router LAN (10.0.254.0/24)
There are other routes shown in the last screenshot, but those are for VPN connections to other locations that are working fine.
Issue is still unresolved, however, after investigating further, I’ve noticed the thing in common for these 3 locations that have this problem, they all have their ETH1/WAN connection as DHCP, as opposed to all our other locations which use pppoe/dsl or fiber with manually configured static IP’s… So the issue seems to only affect our branches which use DHCP to obtain their WAN IP address.
I’m sorry I’ve not read your question so this isn’t help with the technical part of your question, however:
PPTP is based on MSChapv2 which is TOTALLY broken and vulnerable to any attacker than can capture a handshake/connect. [i.e. Anyone on the route from PPTP client to PPTP server.] (Google Cloudcracker)
If you are relying on any security of PPTP [which you must be, otherwise why not use another protocol] please pick another VPN method. Options are probably: SSTP, OpenVPN, L2TP and perhaps IPSec.
Thus, taking time to explain why PPTP doesn’t work may well be wasted effort.
The issue is reproducible as well if I recreate the VPN tunnel using an SSTP connection.
So far my working theory is that for some reason, when I have a remote site that gets it’s WAN IP via DHCP, for some reason it interferes with the VPN tunnel in one direction (from host LAN to guest LAN).
