I have a ccr1036 with two WAN links (two carriers). By one carrier I receive traffic to one prefix /24 (route traffic, no announce) public and by another carrier, I announce another prefix/24.
World → ISP 1 → WAN 1 (routing traffic) → 138.186.xxx.xxx/24 clients
World → ISP 2 → WAN 2 (BGP announce) → 190.103.xxx.xxx/24 clients
WAN 1 IP: 200.53.xxx.xxx/29
WAN 2 IP: 38.104.xxx.xxx/30
WAN 1 is my default gw (0.0.0.0/0 without mark).
In routes, I configured two routes to 0.0.0.0/0 with mark (one by wan 1 and another by wan 2).
When I execute mtr command from remote side (in example IP address is 167.61.73.190) to one client in prefix announce by ISP 2, I see one hope with WAN 1 IP address.
1.|-- 192.168.66.1 0.0% 5 1.1 1.3 1.0 1.7 0.0
2.|-- 200.40.162.196 0.0% 5 7.9 12.9 2.8 36.4 13.4
3.|-- 200.40.162.14 0.0% 5 47.7 45.3 27.1 82.2 22.2
4.|-- 179.31.59.248 0.0% 5 14.0 16.4 3.3 46.9 17.5
5.|-- 179.31.62.89 0.0% 5 131.2 141.6 131.2 160.5 11.4
6.|-- 179.31.62.4 0.0% 5 128.9 139.5 128.9 175.0 19.9
7.|-- 129.250.194.137 0.0% 5 133.5 142.2 131.3 159.3 13.1
8.|-- 154.54.9.41 0.0% 5 132.0 135.7 127.2 151.0 9.0
9.|-- 154.54.47.17 0.0% 5 129.2 140.9 129.2 157.5 13.5
10.|-- 154.54.82.241 0.0% 5 162.5 164.4 158.6 169.3 4.1
11.|-- 154.54.47.34 0.0% 5 166.1 175.3 163.6 204.5 16.6
12.|-- 154.24.23.26 0.0% 5 180.6 193.5 180.0 220.3 18.2
13.|-- 154.24.62.130 0.0% 5 179.4 187.4 178.7 216.8 16.5
14.|-- 200.53.xxx.xxx 0.0% 5 176.2 182.1 176.2 200.6 10.4 <---- WAN IP Address
15.|-- 190.103.xxx.xxx 0.0% 5 183.6 187.7 182.1 195.6 5.3 <---- IP address from prefix announce by WAN 2 in BGP session
Address list:

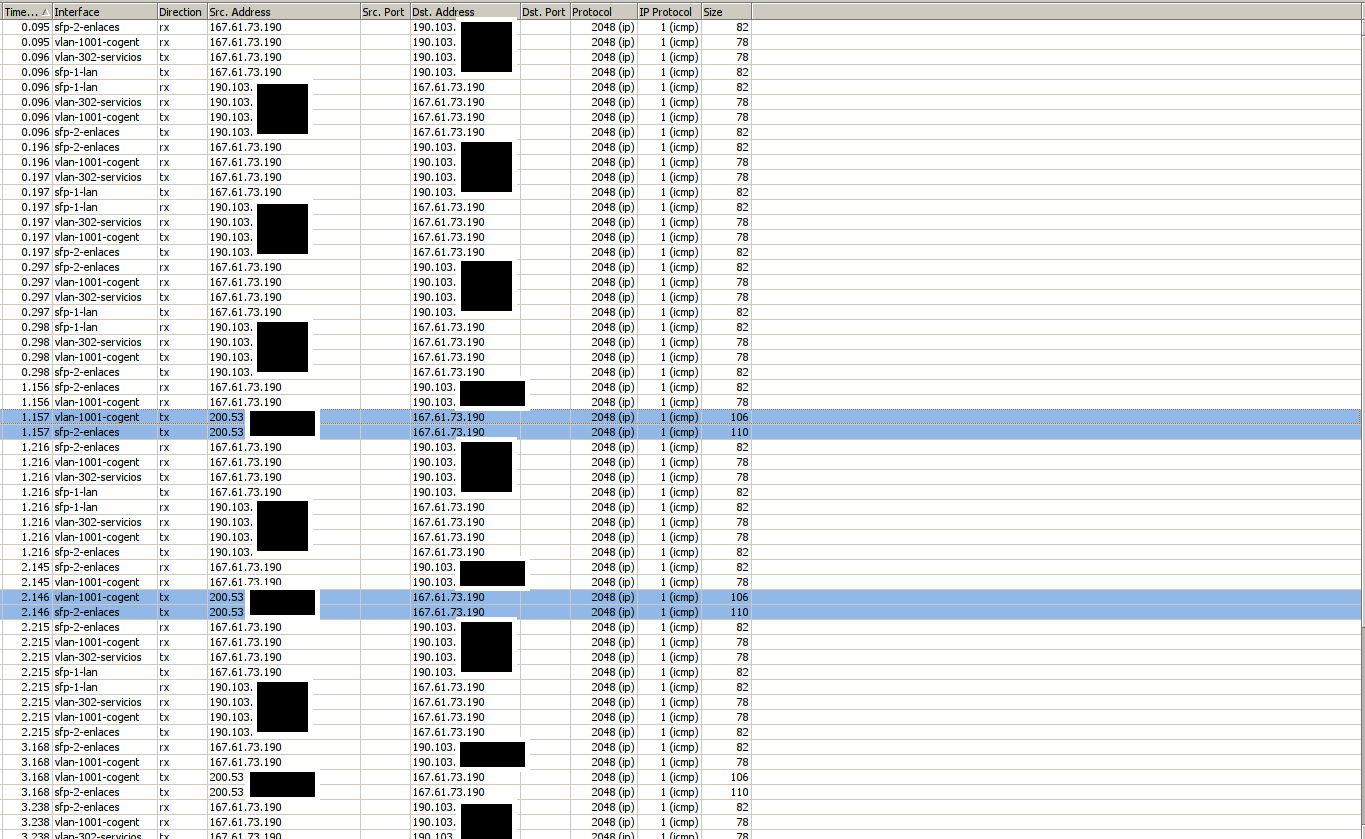

In packet sniffer I see reply icmp with WAN 1 IP address via WAN 2.
