Traffic Flow incorrect kbit/s

RouterOS General
1

Hi Everybody,
I try to get a nice overview of my network traffic. I actual use a RBD52G-5HacD2HnD with RouterOS v6.45.7 (stable) and have Traffic Flow IPFIX setup to send to PRTG Monitor.
It seems the transferred Data (total MB) looks correct but the bandwidth usage is total incorrect, i always see values below 1kbit/s.

Example of the Traffic Log is attached (Streams Sensor 2117)

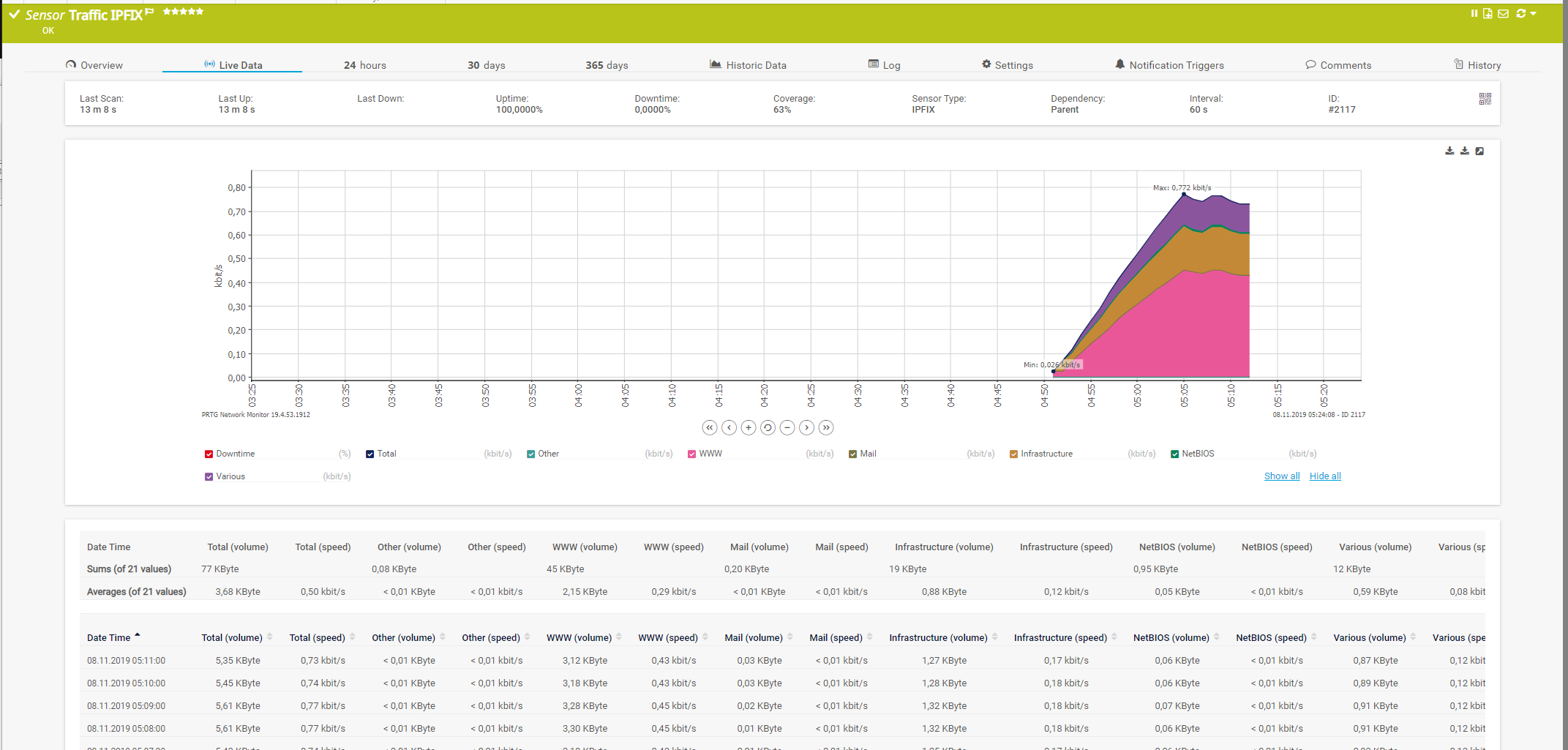

Example of bandwidth usage (Anmerkung…png)

I tried using Version 5 and 9 as well, but there i even get 0 kbit/s.

Is mabye PRTG Monitor not able to get correct analysis or is there something i should change on the mikrotik?

thanks a lot
michael
Anmerkung 2019-11-08 052434.png
Streams Sensor 2117 (1).txt (1.19 MB)

2

Did you solve the problem. Have exactly the same one.

Bridge configuration with attached IP address to the Bridge. Expecting all traffic flowing through the Bridge to be recorder by the PRTG

3

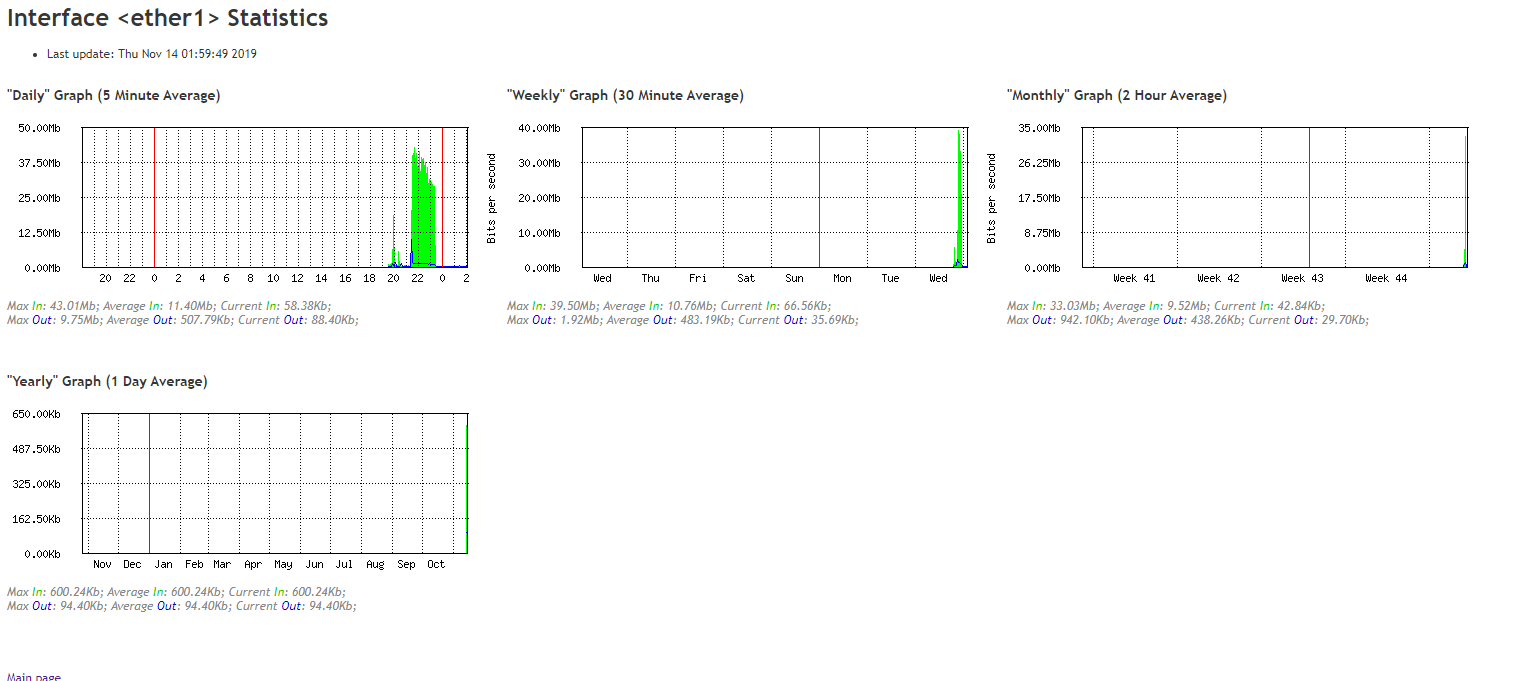

No, sadly not, but at the moment i use the built in graphs, to show me the traffic:
They are configured here: IPmikrotik/webfig/#Tools:Graphing
and can viewed here: ipmiktorik/graphs
Anmerkung 2019-11-14 020857.png

4

IPFIX does not contain a kbit/s field. The only way this can be displayed by a graphing package is by taking total bytes transferred over some time interval and dividing that by the interval.
So when your total bytes transferred is OK, there is no way the MikroTik can be involved in this.
(I have some other issue where the total bytes transferred is suspicious)
