Hi there,
I am using an RB450G running RouterOS 4.10 to try and have a dual outbound link for a customer using a bridge.
I am having some issues however with the bridge transmitting the traffic to both physical ports assigned to it even when the second CPE unit has its LAN disabled.
The type of CPE equipment we are using has the ability to disable its LAN port via adding a firewall rule to deny all traffic.
It doesn’t bring the port physically down but stops any MAC addresses being seen by the Routerboard.
When the second unit has its port disabled, the routerboard cannot see any MAC addresses on the port yet it is still transmitting outbound traffic at the same rate it is transmitting the same traffic out the first port.

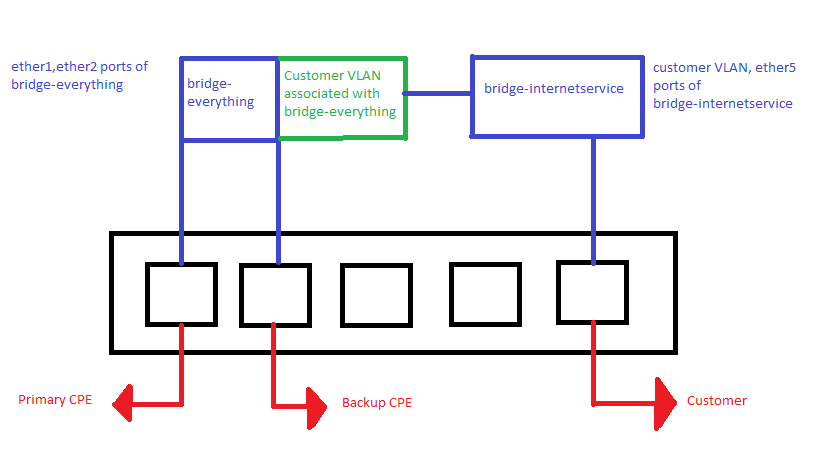

I have pasted relevant configs below and have drawn a quick diagram to aid understanding.
Sorry if it looks a bit pre-school.
Any help with this would be much appreciated.
/interface bridge host> print
Flags: X - disabled, I - inactive, D - dynamic
# INTERFACE BRIDGE PRIORITY PATH-COST HORIZON
0 ether1 bridge-everything 0x80 10 none
1 ether2 bridge-everything 0x80 10 none
2 ether5 bridge-internetservice 0x80 10 none
3 BReverything-vlan68-internetservice bridge-internetservice 0x80 10 none
> int bridge print
Flags: X - disabled, R - running
0 R name="bridge-everything" mtu=1500 l2mtu=1524 arp=enabled mac-address=00:0C:42:51:FD:B0 protocol-mode=none priority=0x8000 auto-mac=yes admin-mac=00:00:00:00:00:00
max-message-age=20s forward-delay=15s transmit-hold-count=6 ageing-time=5m
1 R name="bridge-internetservice" mtu=1500 l2mtu=1520 arp=enabled mac-address=00:0C:42:51:FD:B0 protocol-mode=none priority=0x8000 auto-mac=yes
admin-mac=00:00:00:00:00:00 max-message-age=20s forward-delay=15s transmit-hold-count=6 ageing-time=5m
> int bridge port print
Flags: X - disabled, I - inactive, D - dynamic
# INTERFACE BRIDGE PRIORITY PATH-COST HORIZON
0 ether1 bridge-everything 0x80 10 none
1 ether2 bridge-everything 0x80 10 none
2 ether5 bridge-internetservice 0x80 10 none
3 BReverything-vlan68-internetservice bridge-internetservice 0x80 10 none
