Hi Guys,
I’m running into a loop problem i guess. The case is as follows.
Hardware: Mikrotik connected to managed switch, and behind that clients.
The internet line got multiple IP adresses, a /29. The mikrotik gets 1 IP on the WAN bridge, the other IP’s i want to give to some clients who have their own router. and the others get a LAN ip from the mikrotik.

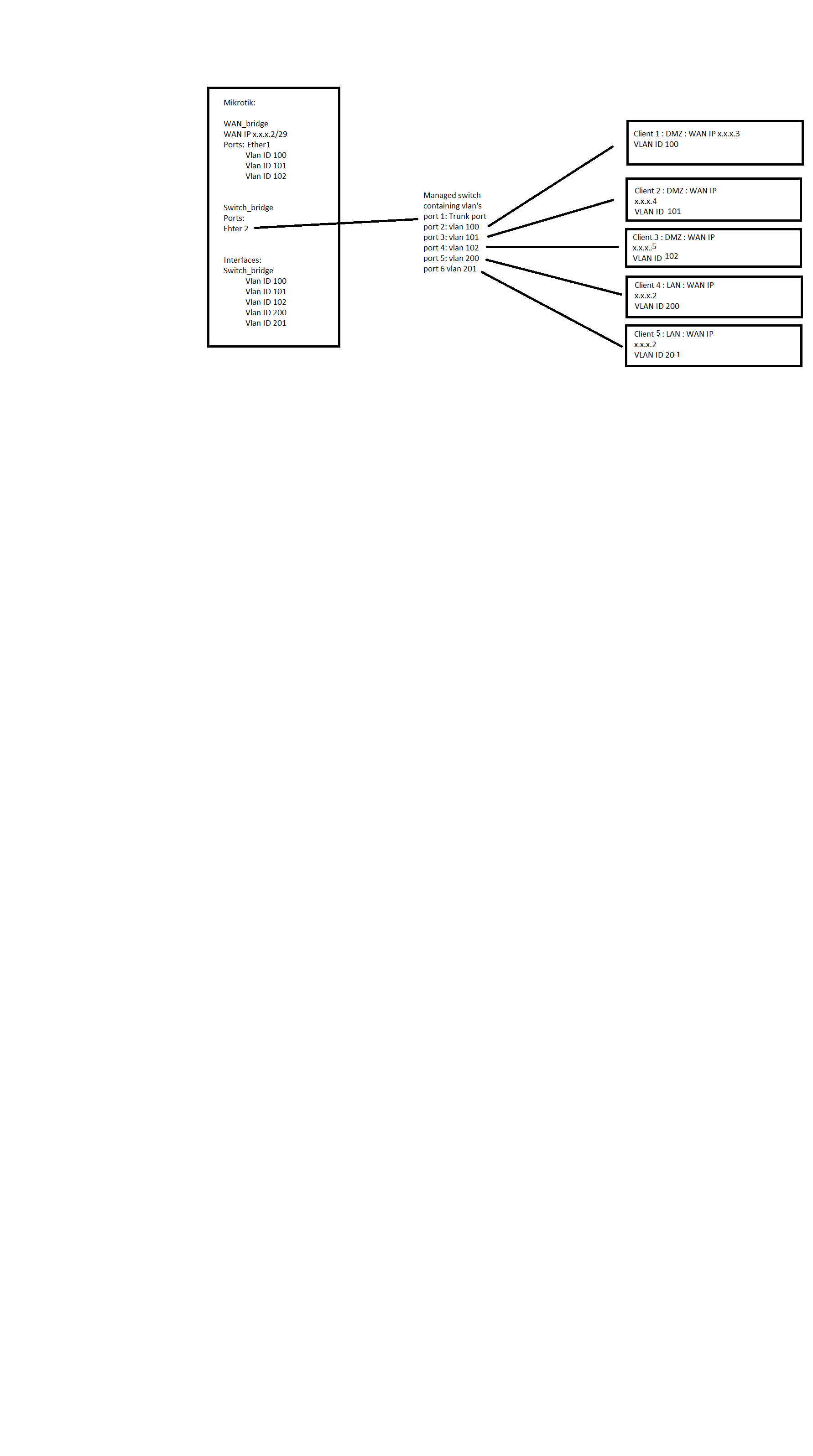

See attached diagram how its configured, when i connect my laptop to ehterport 2, and give my interface VLAN TAG 100 and fill in the IP adress x.x.x.3 it works, but when i connect a switch with trunk port configured on ehter 2, the port gets blocked by spanning tree.
In the logging i also see the following message:
Ehter1 : bridge port received packet with own address as source address (mac address), probably loop.
Anyone any ideas how to fix this?
