Two questions about Multicast

RouterOS General
1

Two questions about Multicast:

Question 1. Router with two network adapters for IPTV.

/ip address
add address=129.109.1.22/24 broadcast=129.109.1.255 comment= IPTV
disabled=no interface=ether1 network=129.109.1.0
add address=192.168.0.1/24 broadcast=192.168.0.255 comment= Lokal
disabled=no interface=ether2 network=192.168.0.0

/routing igmp-proxy interface
add alternative-subnets=135.17.21.17/32 comment=“” disabled=no interface=
ether1 threshold=1 upstream=yes
add comment=“” disabled=no interface=ether2 threshold=1 upstream=no

IPTV via IGMP-proxy works. Bur now there is a new task – to transmit IPTV on the other router. As far as I understand, I should use PIM. I delete IGMP-proxy settings. Config PIM:

/routing pim interface
add interface=ether2
add interface=ether1 alternative-subnets=135.17.21.17/32

/routing pim rp
add address=192.168.0.1

After that I reboot the router. Here is log:
07:14:22 system,info router rebooted
07:14:26 pim,info Added new address to interface register: 127.0.0.2/8
07:14:26 pim,info PIM interface started: register
07:14:26 pim,info Added new address to interface ether2: 192.168.0.1/24
07:14:26 pim,info PIM interface started: ether2
07:14:26 pim,info IGMP interface started: ether1
07:14:26 pim,info IGMP interface started: ether2
07:14:26 pim,info Added new address to interface ether1: 129.109.1.22/24
07:14:26 pim,info PIM interface started: ether1
07:14:28 pim,warning RX PIM_BOOTSTRAP from 129.109.1.1 to 129.109.1.22 on v
if ether1: sender is not a PIM-neighbor router

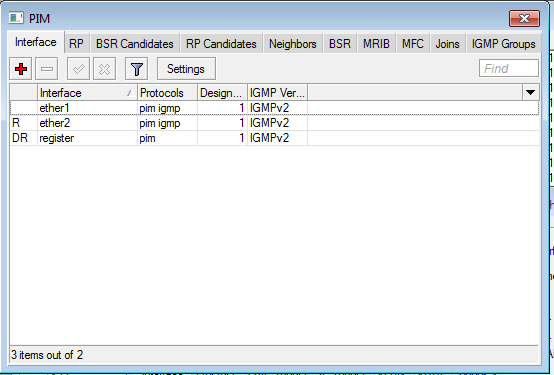

Herewith in the PIM interface disappears letter «R». As far as I understand, I can not use pim in my net? Is there any way to solve my problem?

Question 2. Is there any opportunity to broadcast IPTV (multicast) PPTP or PPPOE for users? I can add these interfaces (PPTP, PPPOE) in IGMP-proxy or PIM, but IPTV doesn’t work.

2

Tell me please, PPTP or PPPOE users (win 7) can watch IPTV through IGMP-proxy or PIM? Or is it fundamentally impossible?

3

You say you wish to broadcast on other router…
What is the config on this other router.

Should it not also have pim setup?

4

I will answer myself to my question:
In order for PPTP or PPPOE win 7 users can watch IPTV, you need to install updates from the Microsoft website. This applies to Win 7 and Win Vista.

To experiment, I used this example
http://wiki.mikrotik.com/wiki/Multicast_detailed_example

In my case, I brought the set «Router A». Interface ether1 (129.109.1.22/24) looks to the provider. When you configure this «Router A» in the log gives me:
07:14:28 pim,warning RX PIM_BOOTSTRAP from 129.109.1.1 to 129.109.1.22 on v
if ether1: sender is not a PIM-neighbor router

and 129.109.1.1 - router provider, and to him I do not have access.

I «Router B» have not yet set up so that Router A has given this error.
