Two SXT LTE, one for each subnet - how?

RouterOS General
1

Hi,

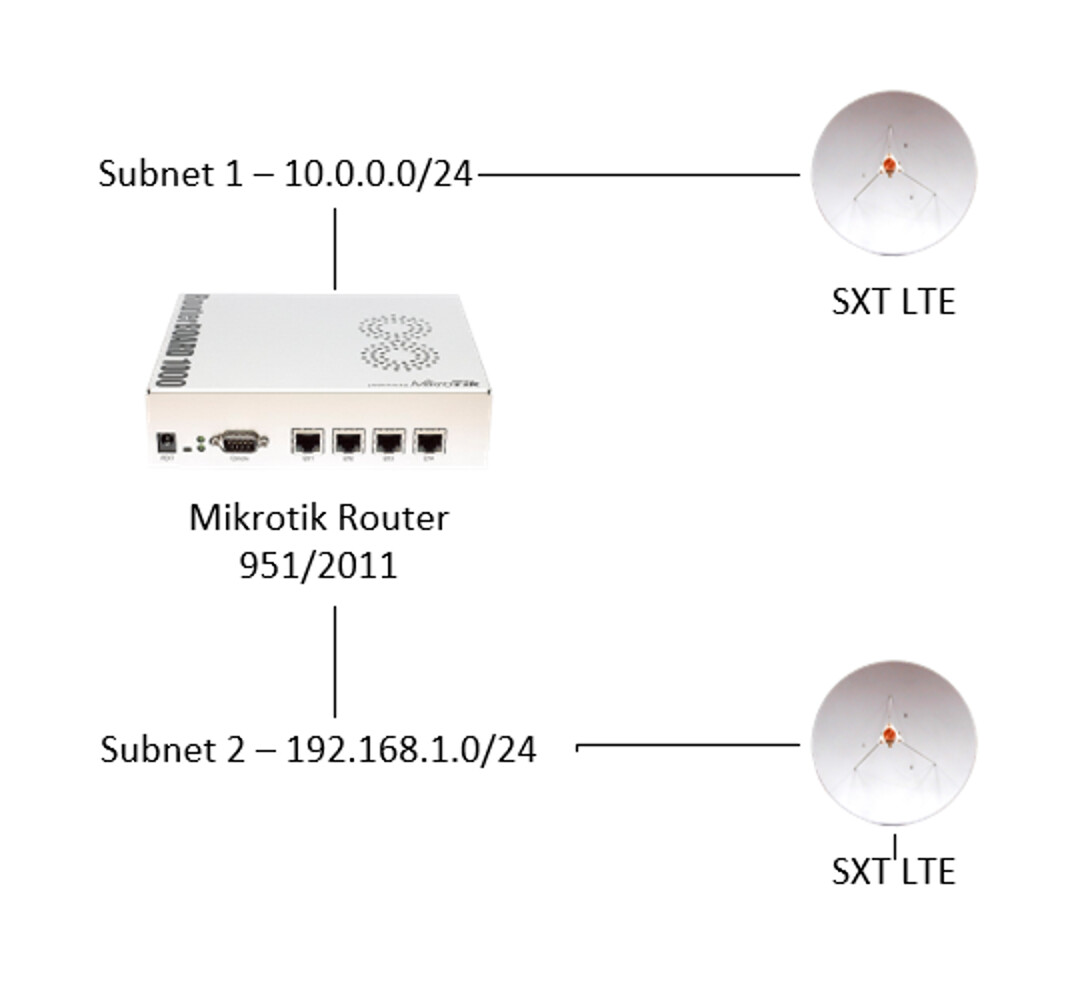

i have a question. How can i setup a MT router with two different subnets so that each subnet uses its own SXT LTE antenna?
Screen Shot 2019-04-25 at 00.56.35.png
tx

korg

2

Hi

What could work: dedicated routing tables for both lte links, and a set of routing rules to direct traffic in these directions.
/ip route
add comment=LTE1 gateway= routing-mark=lte1
add comment=LTE2 gateway= routing-mark=lte2

/ip route rule
add action=lookup src-address= dst-address= table=main (assuming you want connectivity between local subnets)
add action=lookup src-address= table=lte1
add action=lookup src-address= table=lte2

If you configure your subnets closer to each other say 10.0.0/24 & 10.0.1/24 (or 192.168.1/24 & 192.168.2/24), it would be easier to define a “global” local address pool, Ex 10.0/16 or 192.168/16.

3

Ok.. tx.. i’ll post a rsc file when i’ve set up this configuration but .. tx for your idea :slight_smile:

korg

4

I could emulate such a configuration in GNS3?

5

You could indeed.
