TX Drops on PPTP and L2TP tunnels

pkelly1603 · August 23, 2019, 5:03pm

I’m having a problem on both PPTP and L2TP tunnels periodically where the TX drops are occurring. The WAN interface shows no TX drops.

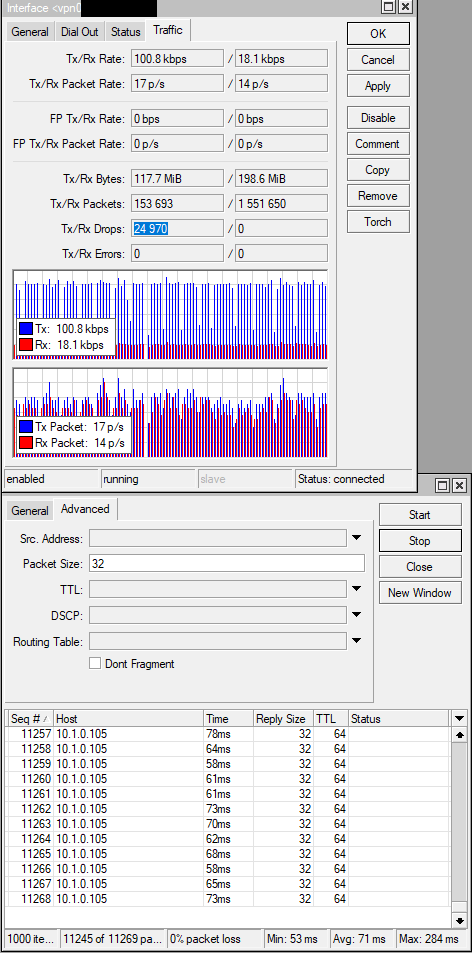

I’ve attached an example of this situation showing a small packet loss (11245 out of 11269 / .2% loss). When I watch the counters on the interface, it seems most of the time the packet loss is caused by a TX drop on the VPN interface. The WAN interface shows no TX drops. The WAN interface bandwidth utilization is very low (less than 1mbps) and circuit capacity is about 20mbps down / 5mbps up.
TX drops - PPTP.png
Does anyone know how a PPTP or L2TP interface decides whether to drop a TX packet?

Sunlight · August 25, 2019, 10:59am

The same problem: http://forum.mikrotik.com/t/v6-45-3-stable-is-released/132037/1

pkelly1603 · August 26, 2019, 2:32pm

Thank you. I turned off discovery on the interface and the TX drops stopped.

Sunlight · August 26, 2019, 9:08pm

Confirmed, disable discovery on PPP interfaces fixed the problem.
Аннотация 2019-08-27 000723.png
