Unable to access internet but able to ping websites.

yedhu226 · September 10, 2023, 9:55am

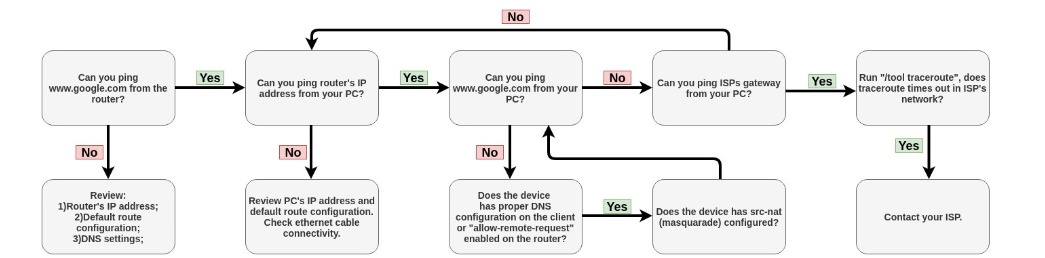

Hi, I have setup my Mikrotik 2011UiAS-2HnD as my main router by making the ISP one as a Bridge, This was done a few years ago by someone else. Recently due to some issues we had to reset and re configure this setup which I have done so, There is a server that is connected to this that needs to be accessed remotely hence we have a static IP setup, I am able to access this server fine but devices connected to this router both LAN and WiFi cannot access the net. I followed the first time config guide’s toruble shooting flowchart on this site:

and I am able to ping google from PCs connected to the network yet I am not able to access it.

My config:

# sep/10/2023 09:45:56 by RouterOS 6.49.10
# software id = F0DG-HDXR
#
# model = 2011UiAS-2HnD
# serial number = XXXXXXXXXX
/interface bridge
add fast-forward=no name=bridge
/interface ethernet
set [ find default-name=ether1 ] speed=100Mbps
set [ find default-name=ether2 ] speed=100Mbps
set [ find default-name=ether3 ] speed=100Mbps
set [ find default-name=ether4 ] speed=100Mbps
set [ find default-name=ether5 ] speed=100Mbps
set [ find default-name=ether6 ] advertise=\
    10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full
set [ find default-name=ether7 ] advertise=\
    10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full
set [ find default-name=ether8 ] advertise=\
    10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full
set [ find default-name=ether9 ] advertise=\
    10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full
set [ find default-name=ether10 ] advertise=\
    10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full
/interface wireless
set [ find default-name=wlan1 ] antenna-gain=0 band=2ghz-b/g/n country=\
    no_country_set disabled=no frequency-mode=manual-txpower mode=ap-bridge \
    ssid=Q4 station-roaming=enabled wireless-protocol=802.11
/interface pppoe-client
add add-default-route=yes disabled=no interface=ether1 name=pppoe-out1 user=\
    XXXXXXXXXXXX
/interface list
add name=WAN
add name=LAN
/interface wireless security-profiles
set [ find default=yes ] authentication-types=wpa2-psk mode=dynamic-keys \
    supplicant-identity=MikroTik
/ip pool
add name=dhcp_pool2 ranges=192.168.1.3-192.168.1.255
/ip dhcp-server
add address-pool=dhcp_pool2 disabled=no interface=bridge name=dhcp2
/user group
set full policy="local,telnet,ssh,ftp,reboot,read,write,policy,test,winbox,pas\
    sword,web,sniff,sensitive,api,romon,dude,tikapp"
/interface bridge port
add bridge=bridge interface=wlan1
add bridge=bridge interface=ether3
add bridge=bridge interface=ether4
add bridge=bridge interface=ether5
add bridge=bridge interface=ether6
add bridge=bridge interface=ether7
add bridge=bridge interface=ether9
add bridge=bridge interface=ether2
/ip neighbor discovery-settings
set discover-interface-list=!dynamic
/interface list member
add interface=pppoe-out1 list=WAN
add interface=bridge list=LAN
/ip address
add address=192.168.1.1/24 interface=bridge network=192.168.1.0
add address=192.168.1.1 interface=ether1 network=192.168.1.0
/ip dhcp-server network
add address=192.168.1.0/24 dns-server=8.8.8.8,8.8.4.4 gateway=192.168.1.1 \
    netmask=24
/ip dns
set allow-remote-requests=yes servers=8.8.8.8,8.8.4.4
/ip firewall address-list
add address=192.168.1.0/24 list=LAN
add address=XXXXXXXXXXX list=WAN
/ip firewall filter
add action=fasttrack-connection chain=forward connection-state=\
    established,related
add action=accept chain=forward connection-state=established,related
add action=drop chain=forward connection-state=invalid
/ip firewall mangle
add action=mark-connection chain=prerouting dst-address-list=WAN \
    new-connection-mark=hairpinNAT passthrough=yes src-address-list=LAN
/ip firewall nat
add action=masquerade chain=srcnat comment=hairpin connection-mark=hairpinNAT
add action=masquerade chain=srcnat out-interface=pppoe-out1 \
    out-interface-list=WAN
add action=dst-nat chain=dstnat dst-address-type="" dst-port=5432 protocol=\
    tcp src-address-type="" to-addresses=192.168.1.2 to-ports=5432
add action=dst-nat chain=dstnat comment=ssh dst-port=22 protocol=tcp \
    to-addresses=192.168.1.2 to-ports=22
add action=dst-nat chain=dstnat dst-port=443 protocol=tcp to-addresses=\
    192.168.1.2 to-ports=443
/ip service
set telnet disabled=yes
set ssh port=2200
/ip ssh
set forwarding-enabled=remote strong-crypto=yes
/ipv6 nd
set [ find default=yes ] advertise-dns=no
/lcd
set default-screen=stats-all
/lcd interface pages
set 0 interfaces=wlan1
/system clock
set time-zone-name=Africa/Accra
/system identity
set name=XXXXXXX

torubleshoot guide.jpeg

yedhu226 · September 10, 2023, 9:56am

Just to add one more thing, I tried using both ISP DNS(one obtained from pppoe) and external dns like google and cloudfare but still no luck

Rudios · September 10, 2023, 10:20am

You have to remove the IP address assigned to ether1

yedhu226 · September 11, 2023, 6:58am

Thanks for the reply, but Its still not working, As of now I have contacted ISP to check if something is wrong on their end

AntiUltimate · September 11, 2023, 7:18am

There is NOTHING wrong from your ISPs side.

Add Input Chain Filters on Firewall, your router is currently open, anyone can access your services like DNS etc.

add action=dst-nat chain=dstnat dst-port=443 protocol=tcp to-addresses=\
    192.168.1.2 to-ports=443

Add “in-interface” here then internet should work again

anav · September 11, 2023, 1:35pm

Changes I would make.

(1) /ip neighbor discovery-settings
set discover-interface-list=LAN

(2) WHAT ARE YOU DOING WITH THIS ???
/ip address
add address=192.168.1.1/24 interface=bridge network=192.168.1.0
add address=192.168.1.1 interface=ether1 network=192.168.1.0

—> ETHER1 is for your WAN, and yet you are mimicking the bridge IP here… NONSENSICAL!!!

(3) Where are firewall rules ??? Use this:

/ip firewall filter
{Input Chain}
(default rules to keep)
add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid
add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
add action=accept chain=input comment="defconf: accept to local loopback (for CAPsMAN)" dst-address=127.0.0.1
(admin rules)
add action=accept chain=input in-interface-list=LAN
add action=drop chain=input comment="drop all else"
{forward chain}
(default rules to keep)
add action=fasttrack-connection chain=forward comment="defconf: fasttrack" connection-state=established,related
add action=accept chain=forward comment="defconf: accept established,related, untracked" connection-state=established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" connection-state=invalid
(admin rules)
add action=accept chain=forward comment="allow internet traffic" in-interface-list=LAN out-interface-list=WAN
add action=accept chain=forward comment="allow port forwarding" connection-nat-state=dstnat
add action=drop chain=forward comment="drop all else"

…

(4) Why the hairpin nat rule in mangling**???** Firstly it does NOT belong in mangling but in sourcenat!! I would assume you have servers on the LAN and you want LAN users to access these servers using something other than the servers direct LANIP address??

Thus from this:
/ip firewall mangle
add action=mark-connection chain=prerouting dst-address-list=WAN
new-connection-mark=hairpinNAT passthrough=yes src-address-list=LAN
/ip firewall nat
add action=masquerade chain=srcnat comment=hairpin connection-mark=hairpinNAT
add action=masquerade chain=srcnat out-interface=pppoe-out1 </small>
TO:
/ip firewall mangle ( no entries )
/ip firewall nat
add chain=srcnat action=masquerade dst-address=192.168.1.0/24 src-address=192.168.1.0/24
add action=masquerade chain=srcnat comment=“defconf: masquerade” out-interface-list=WAN

(5) Your DST NAT rules are Wrong.
For plain dynamic WANIP you are missing the 'in-interface-list=WAN" but if you have hairpin nat required, then the dyndns name USers have to use to reach the router both externally and internally then you need the following stepsl

/ip firewall address-list
add address=dyndnsURL/domain name list=DOMAIN-ID

From:
add action=dst-nat chain=dstnat dst-address-type=“” dst-port=5432 protocol=
tcp src-address-type=“” to-addresses=192.168.1.2 to-ports=5432
add action=dst-nat chain=dstnat comment=ssh dst-port=22 protocol=tcp
to-addresses=192.168.1.2 to-ports=22
add action=dst-nat chain=dstnat dst-port=443 protocol=tcp to-addresses=
192.168.1.2 to-ports=443

TO:
add action=dst-nat chain=dstnat dst-address-list=DOMAIN-ID protocol=tcp
dst-port=22,443,5432 to-addresses=192.168.1.

If to ports same as dst ports, not required for entry.
Can put dst-ports on same rule if protocol and to-address the same etc..

yedhu226 · September 12, 2023, 6:10am

Thank you very much for the reply, I changed my setup as you have mentioned and its working now. I believe the mistake was the firewall rules part, I only made the 3 shown in the first time config article and not the others you have mentioned especially the one allowing traffic from LAN to WAN. Thank you again, you are a lifesaver, spent weeks trying to resolve this issue.
