Unable to RDP routed via l2tp

RouterOS General
1

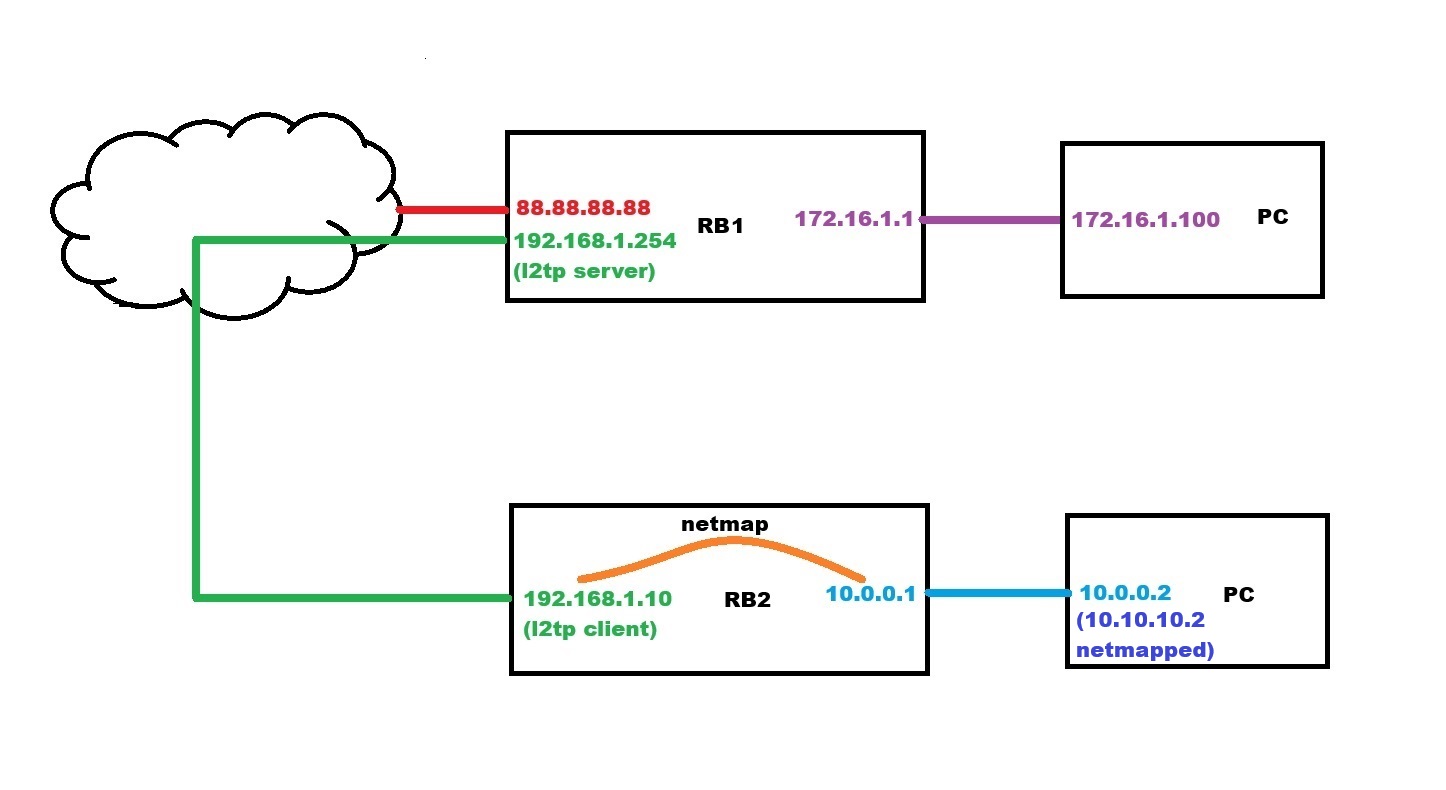

Scenario:

172.16.1.100 can reach on Remote Desktop Protocol 10.0.0.2 PC with "fake" address 10.10.10.2 via routing and netmap:

RB1:

add distance=1 dst-address=10.10.10.0/24 gateway=192.168.1.10
add action=masquerade chain=srcnat dst-address=10.10.10.0/24 out-interface=all-ppp src-address=172.16.1.0/24

RB2:

add action=netmap chain=srcnat out-interface=l2tp src-address=10.0.0.0/24 to-addresses=10.10.10.0/24
add action=netmap chain=dstnat dst-address=10.10.10.0/24 in-interface=l2tp to-addresses=10.0.0.0/24
add action=masquerade chain=srcnat dst-address=10.0.0.0/24 src-address=192.168.1.254

172.16.1.100 calls 10.10.10.2
RB2 manages packets as they was generated by 192.168.1.254 first and further masqueraded to 10.0.0.2 so no routes other than dynamically generated by interfaces are needed.
Then 10.10.10.0/24 is netmapped to 10.0.0.0/24.

All is working fine.

Now from internet I want to reach 10.0.0.2 RDP by connecting 88.88.88.88:3389
So I add on RB1:
add action=dst-nat chain=dstnat comment="Test rdp " dst-port=3389 in-interface=ether6-wan protocol=udp to-addresses=10.10.10.2
add action=dst-nat chain=dstnat comment="Test rdp " dst-port=3389 in-interface=ether6-wan protocol=tcp to-addresses=10.10.10.2

It doesn't work as torching RB2 l2tp interface, the called PC answer back to caller PUBLIC ip address
I can't find the right way to (double) masquerade caller in order to work.

Any hint please ?

2

I answer myself......

The right masquerade rule is:

add action=masquerade chain=srcnat dst-port=3389 out-interface=l2tp protocol=tcp

but the silly mistake is the lack of firewall forward rule:

add action=accept chain=forward dst-address=10.10.10.2 dst-port=3389 in-interface=ether6 out-interface=l2tp protocol=tcp

otherwise the packets were dropped...

3

The src-nat on RB1 only masquerades src-address if it's originally from 172.16.1.0/24 subnet ... which internet client isn't.

[edit] Good that you caught the mistake already yourself. :+1:
