I’m having problems with 2 APs in the same instalation.
Both APs with ROS 4.9.
APs hardware is 433AH and XR5s.
Hotspots hardware are UB5 or R5H connecting with one radio to the APs and with a hotspot in another.
My APs has ap-bridge mode and are getting costumers to the master interface or to the VirtualAP1, with a hotspot on it.
Also I have virtual APs to make wds links to many repeaters (2 or 3)

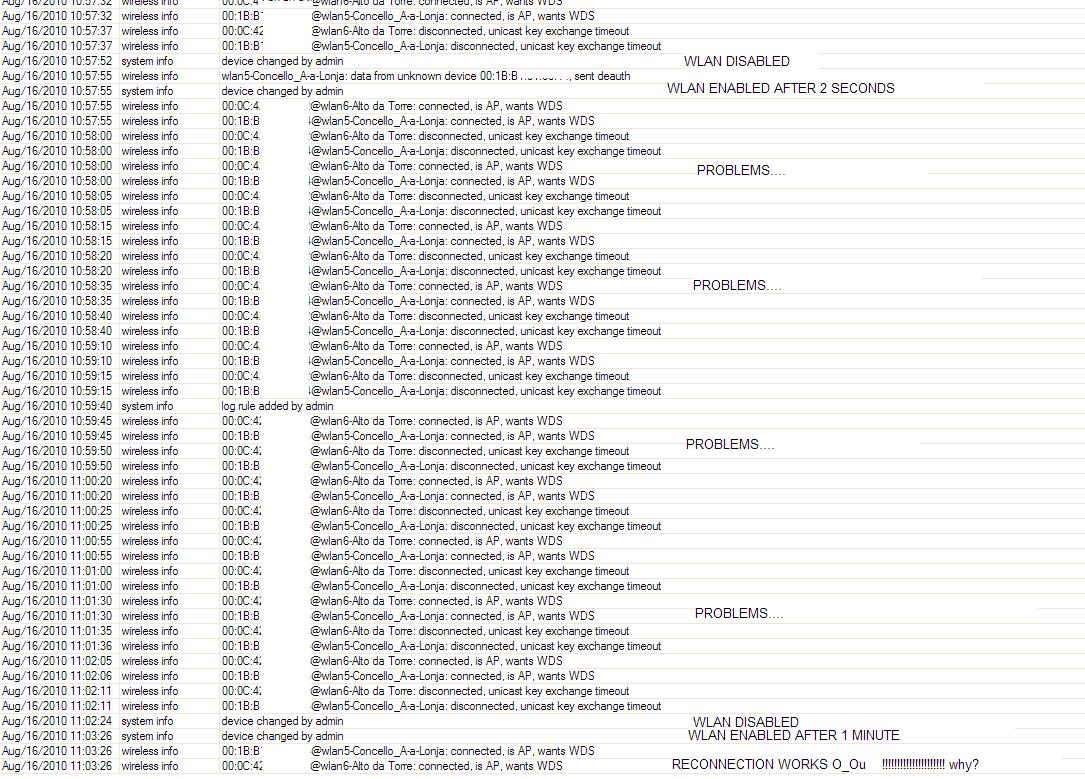

My links are with static WDS and are working fine, till I get the unicast key exchange timeout problem when the AP is bored.. =_=
I’m using WPA keys instead of tkip and I use one wpa key fot the hotspot users and another one for the repeater links.
I can solve the problem by disableing master interface for 20-30 or one minute and enabling it.. but, why it stops linking with the repeaters?
Al the links are with signal of -65 and 100% CCQ. All the network is 5GHz and no turbo mode.
I noticed that if you change anything in a virtual AP, al the others disconnects and then reconnects, but there is sometimes that only one reconnects, perhaps 2, or perhaps.. all the 3 repeaters.. it depends on a random variable that I don’t know what is.
ITS POSSIBLE TO FIX IT DOING SOMETHING?
Use the wds-mode=static-mesh
Then you will not notice this problem. The wds link on one end was disconnected and connected back, but the wireless encryption key sequence on one end is restarted and that is why you got such problems.
No, you just need to switch from regular wds to mesh-wds and that is all, it is not required to use /mesh.
Only thing is that you need to upgrade your all the WDS links as WDS mesh isn’t compatible with regular WDS.
I will consider this just in case that the problem persists, but now I’m working only with static ccm keys.
Now I’m having a lot of problems with data from unknown device 00:15:6D:xxxxxxxx (MAC of my 3 remote wds ap) send deauth. This could be related with the other problem? : /
Thanks Uldis - Finally Found this Thread… is an issue I have had intermittently for a while on random nodes. Switching to static-mesh - all STA associated Instantly - YAY. Will bear this in mind for next design upgrade (coming soon )
Bud, I think you’ll find that an AP with Clients Denotes a type of “Mesh” (conglomeration of network devices) - Star Configuration.
We tend to think of a mesh as multiple links linking to each other - as the term itself would indicate. However, presumably due to the way Mikrotik’s handle themselves in an AP situation, I now Recommend that if you have more than 1 STA connecting to any Mikrotik AP, that you turn on static mesh - it has resolved systems on 3 Nodes for me, and on a new install I used Dynamic Mesh - this also worked well, but kept dropping off (was up to wds300 as the wds interface within 5 days). Switched back to static and added the wds interfaces - all solid now, no drop-offs.
With Static Mesh on the WDS - you DO NOT need to have the network(s) setup on a mesh, a Bridge will still work well. I personally don’t trust “Mesh” in ROS, however I have not had enough time to research exactly what the advantages/scenarios that would suit the protocols.
There was 2 meshes setup prior to me starting with the company I am at (and even learning about ROS) - both of which were having intermittent issues. When I was confident in my abilities, I cracked both of them over remotely to a Static Mesh WDS with a RSTP Bridge Network, and both have been solid for months.
So again, I reiterate, Activate “Static Mesh”(or Dynamic Mesh - but still recommend Static) on the wireless interface, and attach those interfaces to your bridge - job done
Well… All I was saying is that when I Activated “Static Mesh” in the WDS Settings on the Wireless AP - This Issue went away for me… I AM NOT using Mesh, and AM NOT Meshing my AP’s Together - in fact it is a Standard AP/STA Wireless Network. These is one AP, and Multiple Stations - all working Independent of Bridge, or as an RSTP Bridge… No Mikrotik Mesh.
You have to try to realise here that WDS Meshing and RB Meshing are 2 separate things - once you get this - you may activate the WDS Static Mesh under your wireless settings in your AP, and potentially it will be required on your stations also, and then you may find that this problem goes away - because this is what i did, and that is what happened
)
