Use NV2 - question about information in the news-59-JUN2014

RouterOS General
1

Hi ,
I understand how to connect Station–>AP in NV2 (One direction) ,
but how do I connect Both direction
this is what I have now in the station:

 0  R name="wlan1" mtu=1500 mac-address=D4:CA:6D:14:40:B1 arp=enabled
      interface-type=Atheros AR92xx mode=station-bridge ssid="david"
      frequency=auto band=2ghz-onlyg channel-width=20mhz scan-list=default
      wireless-protocol=nv2 vlan-mode=no-tag vlan-id=1 wds-mode=disabled
      wds-default-bridge=none wds-ignore-ssid=no bridge-mode=enabled
      default-authentication=yes default-forwarding=yes default-ap-tx-limit=0
      default-client-tx-limit=0 hide-ssid=no security-profile=default
      compression=no

and this is what I have in the AP

0  R name="wlan1" mtu=1500 mac-address=D4:CA:6D:11:35:B6 arp=enabled
      interface-type=Atheros AR92xx mode=ap-bridge ssid="david" frequency=auto
      band=2ghz-onlyg channel-width=20mhz scan-list=default
      wireless-protocol=nv2 vlan-mode=no-tag vlan-id=1 wds-mode=disabled
      wds-default-bridge=none wds-ignore-ssid=no bridge-mode=enabled
      default-authentication=yes default-forwarding=yes default-ap-tx-limit=0
      default-client-tx-limit=0 hide-ssid=no security-profile=default
      compression=no

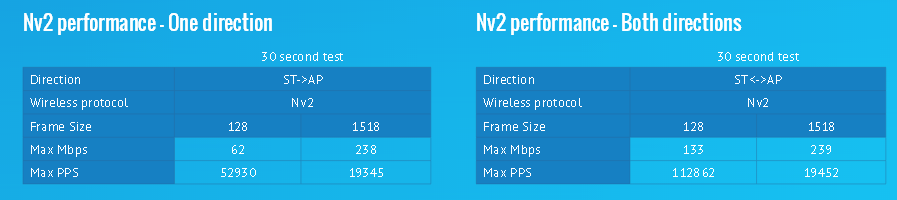

like it said in the news latter? and in the image ?

does it mean using both main and secondary Ant (Main&AX)?and using 2 more antennas?
or do I need to setup it other way?

Thanks,

2

I believe that’s on the wireless-fp package, did you enable it?

3

Your configuration is correct. The pictures in the newsletter just show how they did the tests. In the first case they make the test only in 1 direction and in the other they put load on the link on both directions at the same time.

4

o.k.
I have enable the wireless-fp package.

but when I try I only get 54MB/54MB at max , the signal is -64/-65.
and also when I do Bandwidth test
protocol UDP direction receive\both I get 13.5M
so what am I doing wrong?

5

This is why you get only 54mbit rate :

band=2ghz-onlyg channel-width=20mhz

Change it to :

band=2ghz-b/g/n channel-width=20/40mhz-Ce

6

I will try ,
by the way - do you know what does Ce and eC stand for?

7

Yes. This is the new name for below/above extension channel.
Ce - 20/40-above
eC - 20/40-below
