Users to PPPoE and Hotspot

arjuneu · November 12, 2011, 3:32pm

Hello,

How can I make users to login into PPPoe and Hotspot only. All the users are via Usermanager. I mean, is there anyway to allow a user to log into only via PPPoE not in hotspot. And the other user via hotspot not in PPPoE.

jandafields · November 12, 2011, 6:08pm

You should be able to specify what servcies their username can access. (hotspot, pptp, pppoe, etc)

arjuneu · November 13, 2011, 2:55am

How to specify services for username.

sadeghrafie · November 13, 2011, 11:17am

You are able to specify the services in radius. But the point is what ever you specify for each radius server and you can separate services in the user manager easily.

When you are creating a user you can specify the services by choose the correct profile

arjuneu · November 13, 2011, 1:03pm

How can I specify the service via profile. I have assigned different profiles for hotspot and pppoe. But hotspot user can login into pppoe, pppoe users can login into hotspot. And mikrotik doesn’t support the two raduis client with same ip or if you used another ip other than 127.0.0.1, radius server don’t respond.

sadeghrafie · November 13, 2011, 2:58pm

Hmmmmm… So I will try what you say and hope to find any solution. before I tried for login and PPPoE and it works I think.

I think It’s need to experts comes and take a look on it.

arjuneu · November 17, 2011, 4:25am

I have figured it out..

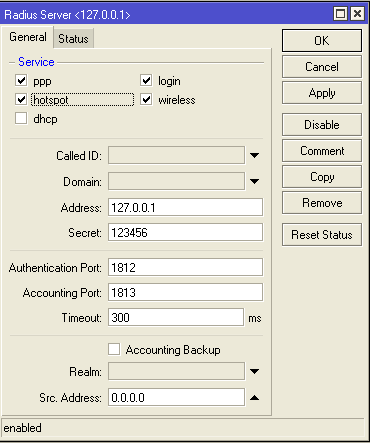

Add radius clients with two ip address

127.0.0.1 ----- service - hotspot shared sectet–xxxx (as you like)
Your Mikrotik Router IP (aaa.bbb.ccc.ddd)----- service --ppp shared secret-yyyy (as you like)

Then, login to UM
Go to customers

Create two customers
One for hotspot (eg. hotspotadmin)
One for pppoe (eg. pppadmin)

then go to routers,
Create two routers

Name-Hotspot (or anything you like) ------IP address- 127.0.0.1—shared secret=xxxx (as in the radius client) owner-hotspotadmin
Name-PPPOE(or anything you like) ------IP address- (aaa.bbb.ccc.ddd)—shared secret=xxxx (as in the radius client) owner -pppadmin

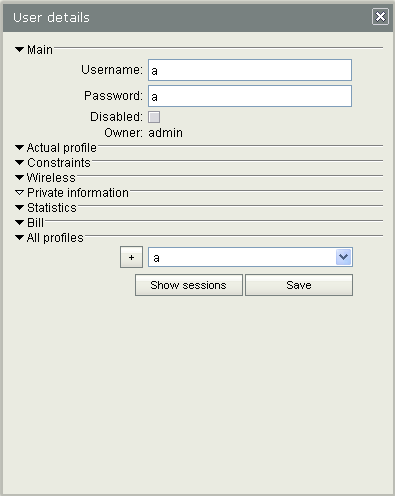

Now, create the users…
For ppp users, use the owner-pppadmn
For hotspot users, use the owner-hotspotadmin

sadeghrafie · November 17, 2011, 8:39am

Nice job, I will try it.

danielillu · November 22, 2011, 7:11pm

The field “Name” which identify any “PPP → Profile” and “Hotspot → User Profile” matches de “Group Name” field in Usermanager.

When any usermanager user has this field filled and tries to login via any service (PPPoE or Hotspot in this case) the Mikrotik Box tries to match it with its “Profile Name” for the current service.
