v.7.16.2 BFD Session is not coming up to juniper

RouterOS General
1

Hi guys,

i have an issue with BFD… BFD Session is not comming up.

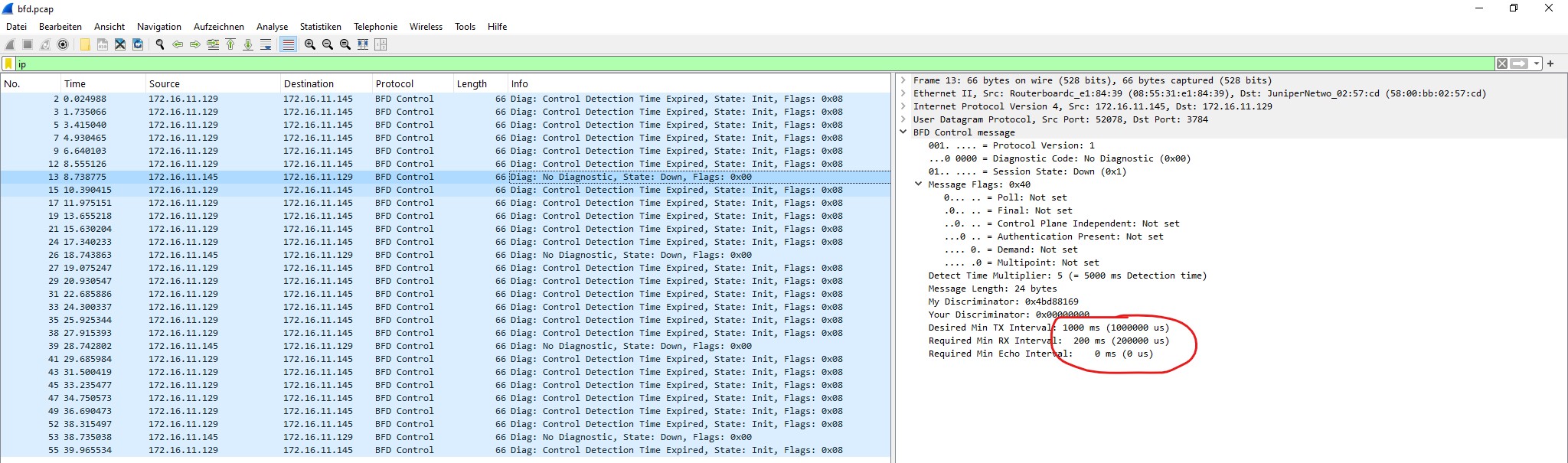

Setting 200ms and in the raw packet there is 1000ms sent. WHY?

I have attached the pcap-file as ZIP and the logging from juniper

BFD-Configuration Mikrotik

[admin@router.de.obing.landertsham] > /routing/bfd/export
# 2024-12-21 10:04:19 by RouterOS 7.16.2
# model = CCR2004-1G-12S+2XS
/routing bfd configuration
add disabled=no interfaces=sfp-sfpplus1.upstream.v2220 min-rx=200ms min-tx=200ms multiplier=5
add disabled=no interfaces=sfp-sfpplus1.upstream.v2221 min-rx=200ms min-tx=200ms multiplier=5
add disabled=no interfaces=all min-rx=200ms min-tx=200ms multiplier=5
[admin@router.de.obing.landertsham] >

BFD-Configuration Juniper

bfd-liveness-detection {
    minimum-interval 200;
    minimum-receive-interval 200;
    multiplier 5;
    transmit-interval {
        minimum-interval 200;
    }
}

wrong data.jpg
bfd.zip (1.11 KB)
juniper see mikrotik bfd.txt (13.7 KB)
