When configuring MPLS/VPLS with LDP signaling, there is a bug if using IPv6, it only works if only using LDP IPv4

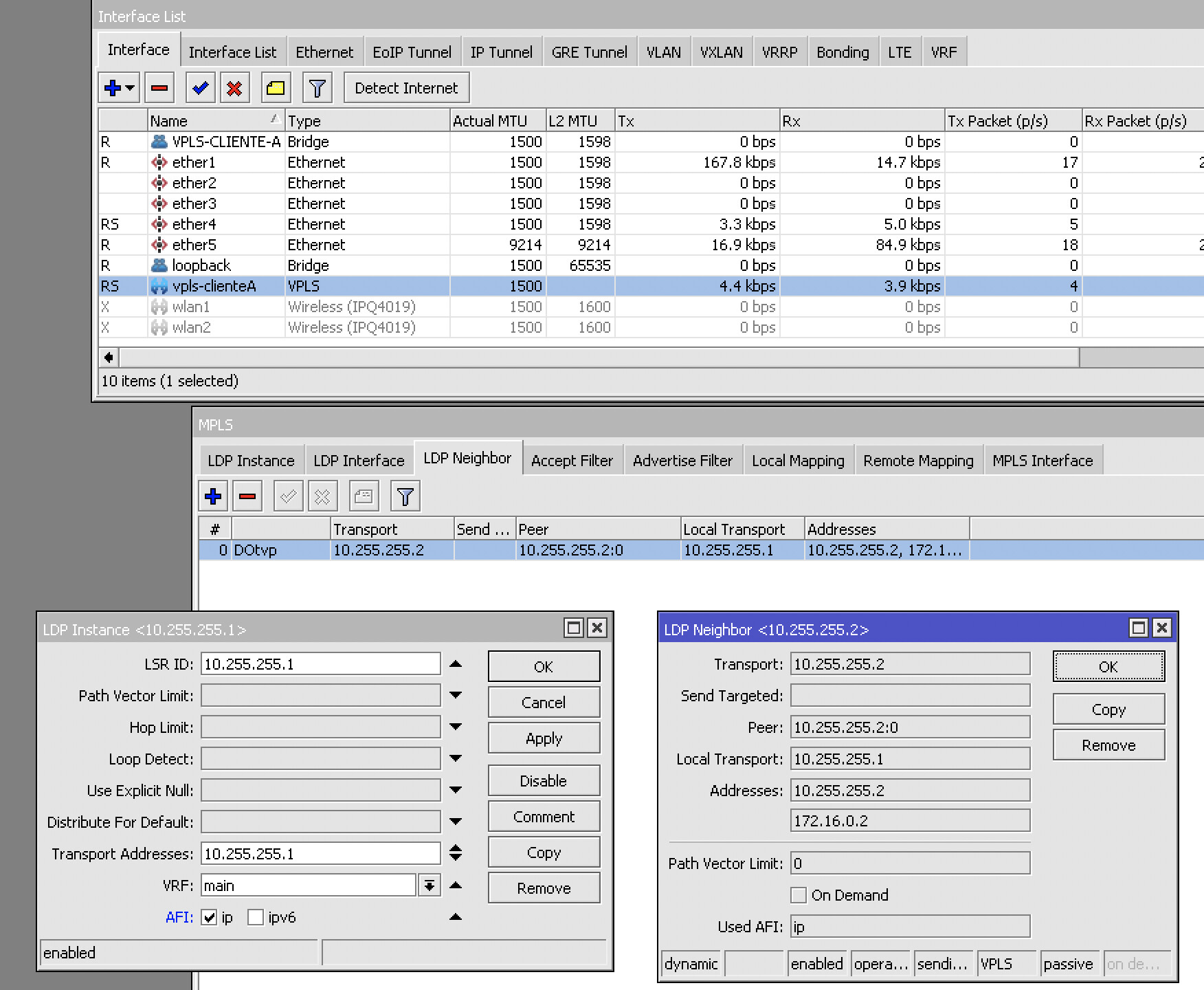

VPLS with IPv4-only LDP
Now if we activate ipv6
the only thing that was to change and activate IPV6 so that the ipv6 packets also pass through the MPLS after that the VPLS falls and doesn’t work until you disable the ipv6 option of the LDP Instance
Thanks for that.
i didn’t test mpls in v7.
I thing that i need to wait for a bit.
While we are here,im wondering what VRF doen on LDP interface
I ran into a similar issue. In 7.2rc7, the IPv4 afi works by itself and the ipv6 afi does too. But if you use the IPv4 and IPv6 afi together, LDP becomes non-functional and targeted LDP for VPLS stops working for IPv4 and IPv6.
Submitted this as a bug to MikroTik (SUP-78710)
if the ip afi is set, ldp becomes operational and VPLS works
[zuul@ccr2004-2splus-01.test.lab.ipa] > mpls/export
/mpls interface
add input=yes interface=vlan3100 mpls-mtu=1530
add input=yes interface=vpls-101-ipv6
add input=yes interface=vpls-101-ipv4
/mpls ldp
add afi=ip disabled=no lsr-id=100.127.1.1 transport-addresses=100.127.1.1
/mpls ldp interface
add afi=ipv6 disabled=yes interface=vlan3100 transport-addresses=200:127:1::1
add afi=ip disabled=no interface=vlan3100 transport-addresses=100.127.1.1
[zuul@ccr2004-2splus-01.test.lab.ipa] > mpls/ldp/neighbor/print
Flags: D, I - INACTIVE; O, T - THROTTLED; t - SENDING-TARGETED-HELLO; v - VPLS; p - PASSIVE
Columns: TRANSPORT, LOCAL-TRANSPORT, PEER, ADDRESSES
# TRANSPORT LOCAL-TRANSPORT PEER ADDRESSES
0 DOtvp 100.127.1.2 100.127.1.1 100.127.1.2:0 10.255.44.15
100.126.1.9
100.127.1.2
198.18.0.2
203.0.113.2
1 DO p 100.127.1.3 100.127.1.1 100.127.1.3:0 10.255.44.23
100.126.1.2
100.126.1.10
100.127.1.3
if the ipv6 afi is set, ldp becomes operational and VPLS works
[zuul@ccr2004-2splus-01.test.lab.ipa] > mpls/export
/mpls interface
add input=yes interface=vlan3100 mpls-mtu=1530
add input=yes interface=vpls-101-ipv6
add input=yes interface=vpls-101-ipv4
/mpls ldp
add afi=ipv6 disabled=no lsr-id=100.127.1.1 transport-addresses=200:127:1::1
/mpls ldp interface
add afi=ipv6 disabled=no interface=vlan3100 transport-addresses=200:127:1::1
add afi=ip disabled=yes interface=vlan3100 transport-addresses=100.127.1.1
[zuul@ccr2004-2splus-01.test.lab.ipa] >
[zuul@ccr2004-2splus-01.test.lab.ipa] > mpls/ldp/neighbor/print
Flags: D, I - INACTIVE; O, T - THROTTLED; t - SENDING-TARGETED-HELLO; v - VPLS; p - PASSIVE
Columns: TRANSPORT, LOCAL-TRANSPORT, PEER, ADDRESSES
# TRANSPORT LOCAL-TRANSPORT PEER ADDRESSES
0 DOtvp 200:127:1::2 200:127:1::1 100.127.1.2:0 200:126:2::2
200:127:1::2
203:0:113::2
fc00:da7a:44:1:de2c:6eff:fe8a:990d
fe80::87:6fff:fe98:ee32
fe80::1458:daff:fe81:387e
fe80::9472:c1ff:fe70:168f
fe80::de2c:6eff:fe8a:990d
fe80::de2c:6eff:fe8a:990f
1 DO p 200:127:1::3 200:127:1::1 100.127.1.3:0 200:126:1::3
200:126:2::3
200:127:1::3
fe80::1458:daff:fe81:387e
fe80::9472:c1ff:fe70:168f
fe80::de2c:6eff:fe7a:d0e6
fe80::de2c:6eff:fe7a:d0f6
if the ip and ipv6 afi is set, ldp for IPv6 becomes operational but ldp for IPv4 does not. After rebooting the router, LDPv6 neighbors will become operational, but targeted LDP for VPLS over the LDPv6 neighbors no longer functions.
[zuul@ccr2004-2splus-01.test.lab.ipa] > mpls/export
# apr/03/2022 08:24:25 by RouterOS 7.2rc7
# software id = XF0U-LU9N
#
# model = CCR2004-16G-2S+
# serial number = HBJ07YRKGA0
/mpls interface
add input=yes interface=vlan3100 mpls-mtu=1530
add input=yes interface=vpls-101-ipv6
add input=yes interface=vpls-101-ipv4
/mpls ldp
add afi=ip,ipv6 disabled=no lsr-id=100.127.1.1 transport-addresses=100.127.1.1,200:127:1::1
/mpls ldp interface
add afi=ipv6 disabled=no interface=vlan3100 transport-addresses=200:127:1::1
add afi=ip disabled=no interface=vlan3100 transport-addresses=100.127.1.1
[zuul@ccr2004-2splus-01.test.lab.ipa] >
[zuul@ccr2004-2splus-01.test.lab.ipa] > mpls/ldp/neighbor/print
Flags: D, I - INACTIVE; O, T - THROTTLED; t - SENDING-TARGETED-HELLO; v - VPLS; p - PASSIVE
Columns: TRANSPORT, LOCAL-TRANSPORT, PEER, ADDRESSES
# TRANSPORT LOCAL-TRANSPORT PEER ADDRESSES
0 DOtvp 200:127:1::2 200:127:1::1 100.127.1.2:0 200:126:2::2
200:127:1::2
203:0:113::2
fc00:da7a:44:1:de2c:6eff:fe8a:990d
fe80::87:6fff:fe98:ee32
fe80::1458:daff:fe81:387e
fe80::9472:c1ff:fe70:168f
fe80::de2c:6eff:fe8a:990d
fe80::de2c:6eff:fe8a:990f
1 D tv 100.127.1.2
2 DO p 200:127:1::3 200:127:1::1 100.127.1.3:0 200:126:1::3
200:126:2::3
200:127:1::3
fe80::1458:daff:fe81:387e
fe80::9472:c1ff:fe70:168f
fe80::de2c:6eff:fe7a:d0e6
fe80::de2c:6eff:fe7a:d0f6
#### After reboot
[zuul@ccr2004-2splus-01.test.lab.ipa] > mpls/ldp/neighbor/print
Flags: D, I - INACTIVE; O, W, T - THROTTLED; t - SENDING-TARGETED-HELLO; v - VPLS; p - PASSIVE
Columns: TRANSPORT, LOCAL-TRANSPORT, PEER, ADDRESSES
# TRANSPORT LOCAL-TRANSPORT PEER ADDRESSES
0 DWtvp 100.127.1.2 100.127.1.1 100.127.1.2:0
1 D tv 200:127:1::2
2 DO p 200:127:1::3 200:127:1::1 100.127.1.3:0 200:126:1::3
200:126:2::3
200:127:1::3
fe80::1458:daff:fe81:387e
fe80::9472:c1ff:fe70:168f
fe80::de2c:6eff:fe7a:d0e6
fe80::de2c:6eff:fe7a:d0f6
The lab topology is below
I’ve seen an update about MPLS path selection on che the last changelog, was it linked to this issue ?
