hi

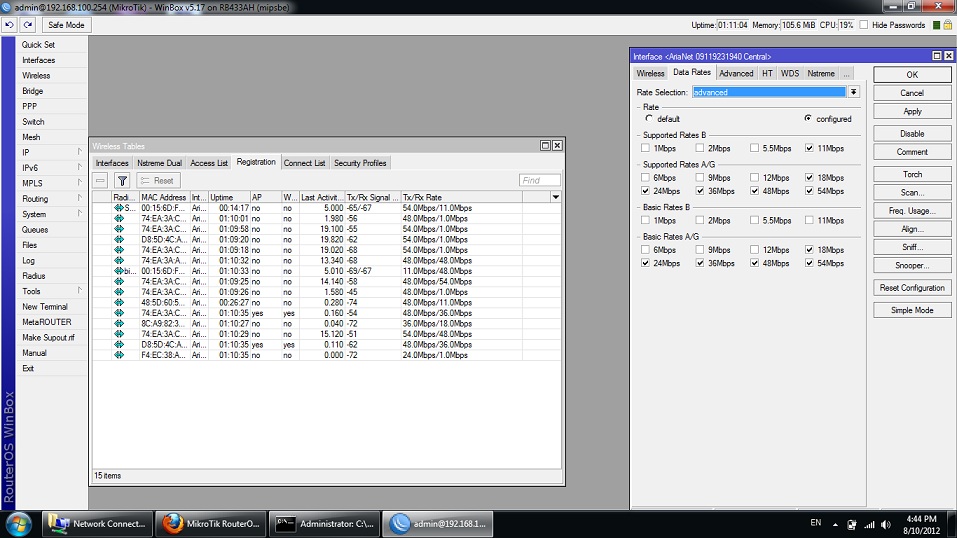

please see attached image
distance is only two meter
whats the problem in tx rate?
your signal is much too strong (-32). try to increase distance to get tx power -50 or -60
i tried tx power from 5 dbm to 17 and then default with no change.
i tried distance about 2 kilometer with no change
only when i enable just G and 54Mbps speed and disable all modes and speed the problem will solved and ccq=90 to 100
but my network is ptmp and i want good ccq and speed for clients that have good signal

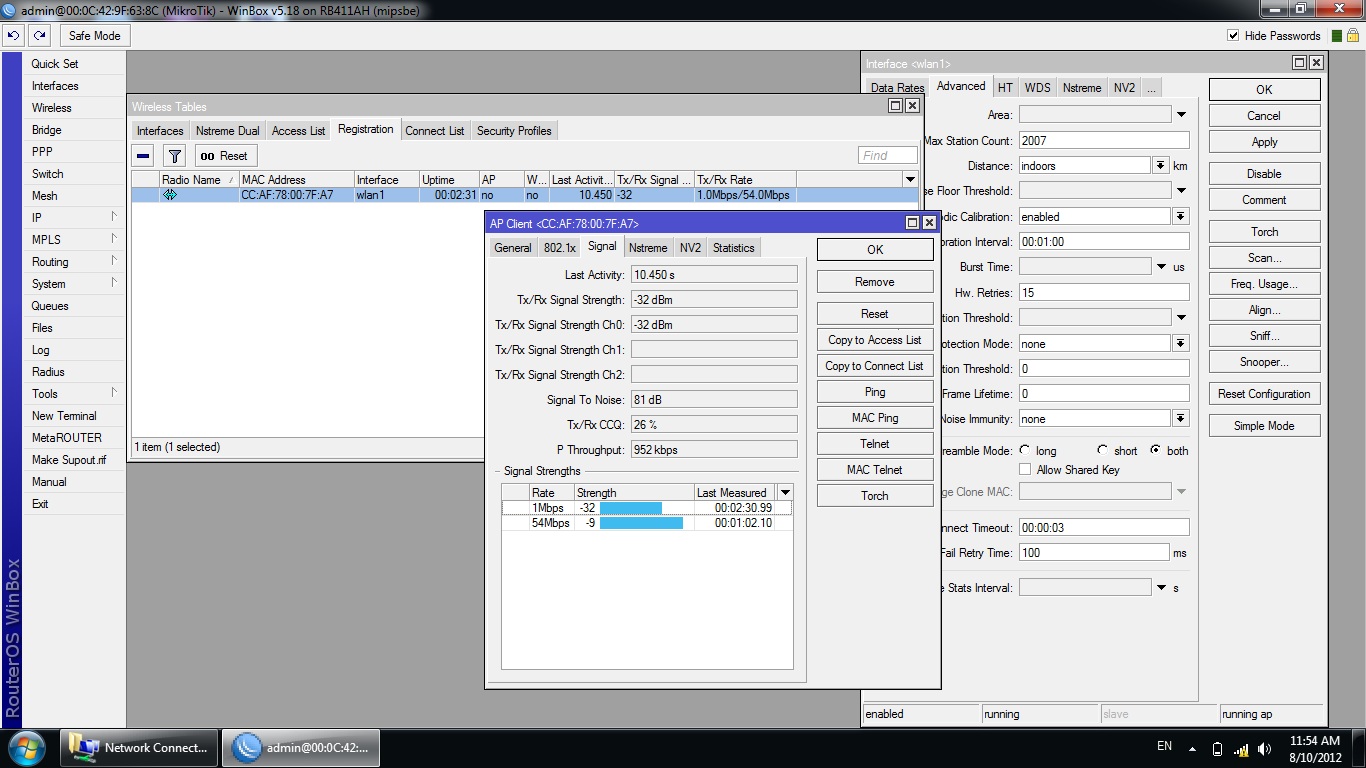

post an image when your Tx power will show -60
this is another AP
I forced to check good speeds and uncheck low speeds to increase ccq and speed
and enable just G mode.
I don’t see CCQ in those images. What do you consider “bad CCQ”? What values do you get when signal is -60?
Why have “uspecified” wireless protocol on the AP?
n21roadie: i dont know.whats the problem?
I thought there was a screenshot of the AP on this post but on checking i don’t see it, so maybe i confused this with another post which may have been opened at the time - sorry
i checked again and see that speed and ccq goes up after afew minutes
n21roadie : yes,i removed it because of my visible SSID.
Ok - You removed the screenshot of AP
If you are using on a AP a wireless protocol of “unspecified” this could confuse the CPE as it tries to decide which protocol to use, I use on all CPE’s “NV2, Nstreame, 802.11” on the AP I use select NV2 or Nstreme or 802.11, I never use “any” and no problems with network
thank you my friend.
