Vlan behind another switch

SwOS
1

Good afternoon.
I have a problem with the swos setup.
I use vlan to split the network. I have hap ax3 installed as the main router. next to it is the crs326, on which the cranes work as they should. The crs326 is backed by the css326, but other vlans with ID 1 no longer work on it.

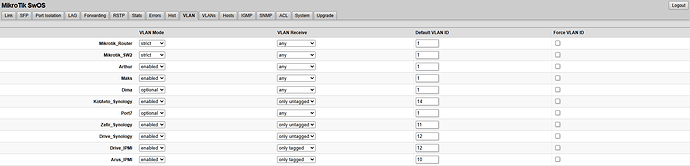

CRS326:

{A0F842A7-02A2-4B14-940A-32E707C97A69}
{A0F842A7-02A2-4B14-940A-32E707C97A69}1905×460 29 KB

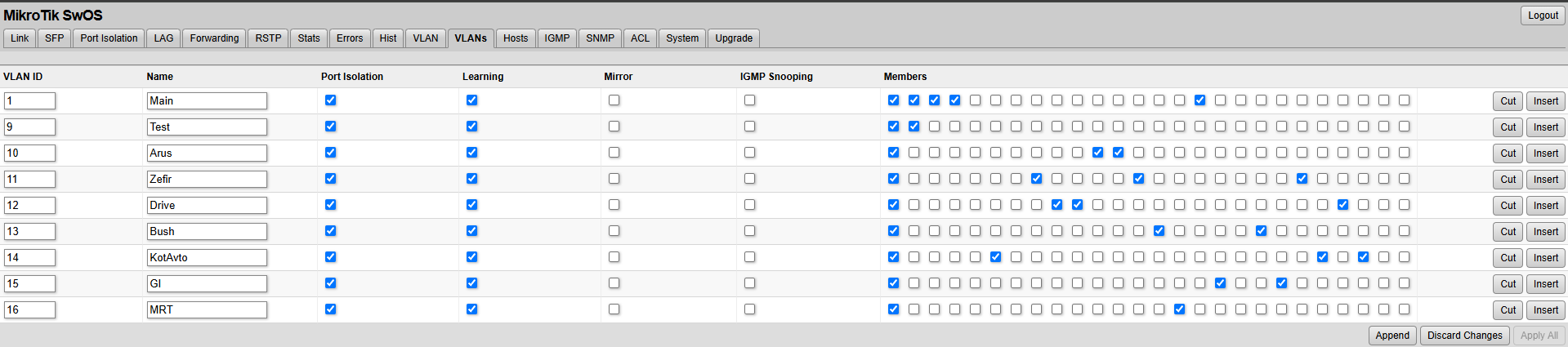

{F9FE2254-EA84-4C2E-BE18-CBD4C4B04343}
{F9FE2254-EA84-4C2E-BE18-CBD4C4B04343}1919×425 37.2 KB

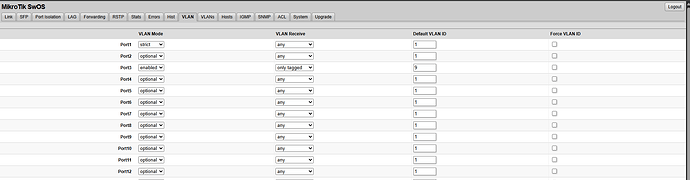

CSS326:

{8E042A11-992F-4522-9B6A-2ABA7A28EB5D}
{8E042A11-992F-4522-9B6A-2ABA7A28EB5D}1916×502 28.9 KB

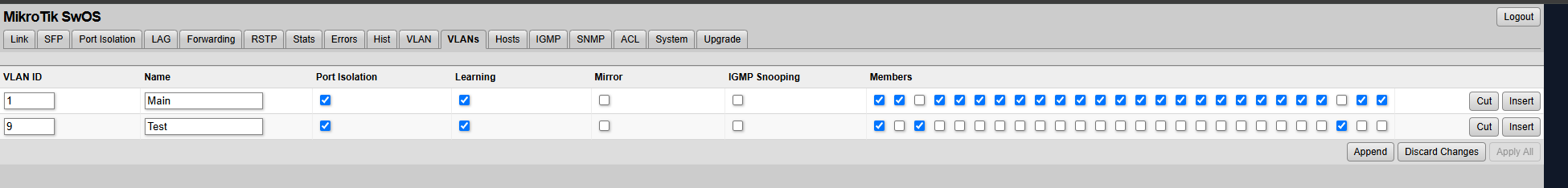

{11E8D650-2BC7-4B7F-A50E-0D0B046F705A}
{11E8D650-2BC7-4B7F-A50E-0D0B046F705A}1950×234 16.5 KB

I want to forward vlan 9 to css326. I've tried many settings and combinations, but I can't figure out why it doesn't work.
Can you tell me where to read it or figure it out? I've re-read several forums, but I haven't found anything similar to my problem.

2

Things to check:

  • which port from AX3 is used to feed CRS326 ? Is that port defined as trunk incl VLAN9 ?
  • which port from CRS326 this trunk comes in ? Is that port defined to carry VLAN9 ?
  • which port of CRS326 is used to feed CSS326 ? Is that port defined as trunk incl VLAN9 ?
  • which port of CSS326 this trunk comes in ? Is it defined to handle VLAN9 ?

You are running SWOS on both CRS326 and CSS326 ?

3

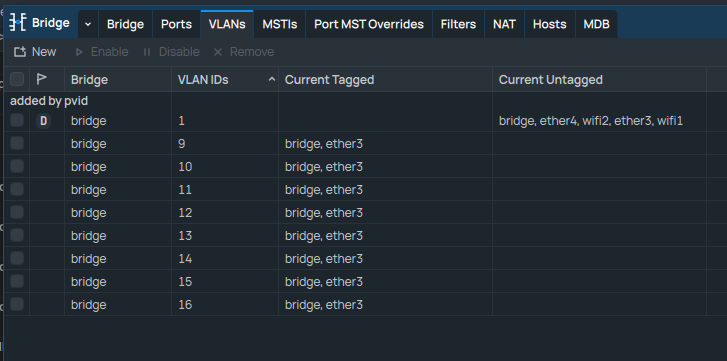

AX3:
3 The port is named as tagger

{711595FB-D16D-472C-9CCF-37B3AB35678D}
{711595FB-D16D-472C-9CCF-37B3AB35678D}727×361 39.3 KB

SWos is used on crs326 and on css326
I also attached screenshots of the settings from the swos vlan and vlans tabs.

4

Can you also respond to questions 2, 3 and 4 ?
I am not going to guess nor assume your settings are correct (which they are not since it doesn't work).

Also, generally it's recommended once you use VLAN, you don't use VLAN1 anymore.

5

2.port 1 is specified as sctict and assigned to VLAN9
3.uses the 2nd port. it is designated as strict and has 9 vlans assigned to it
4.the 3rd port has been assigned and is marked as tagged for vlan 9

6

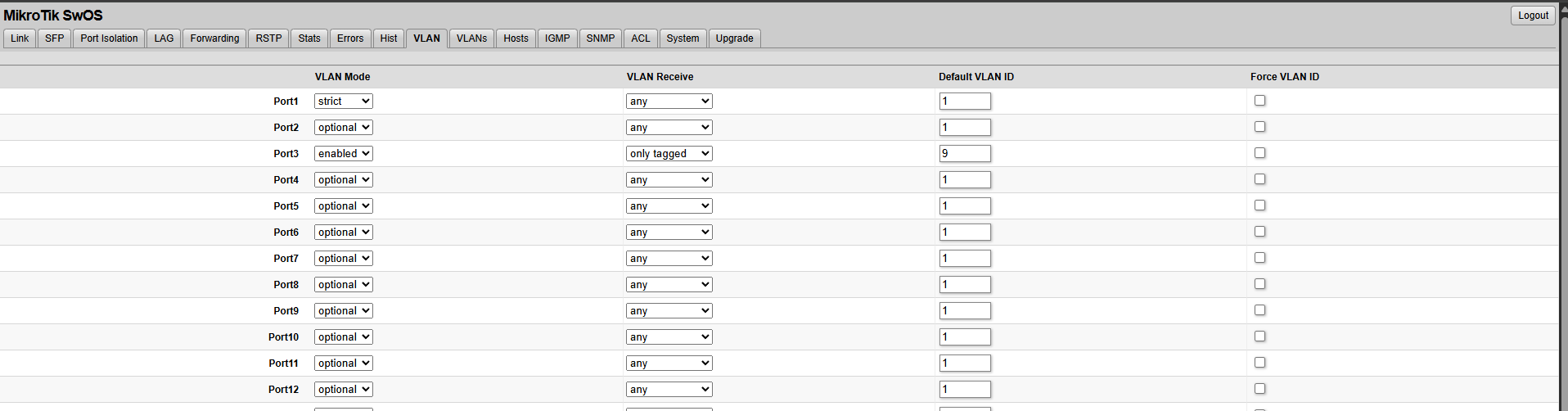

NOT, according to this screenshot:


If you want VLAN 9 to be tagged on that 3rd port, don't set PVID 9 on that port, use the default value 1.

And the two Drive_IPMI and Arus_IPMI of this screenshot is also wrongly configured.

7

I have further installed vlan9 on the network card on the device itself. and it works.

8

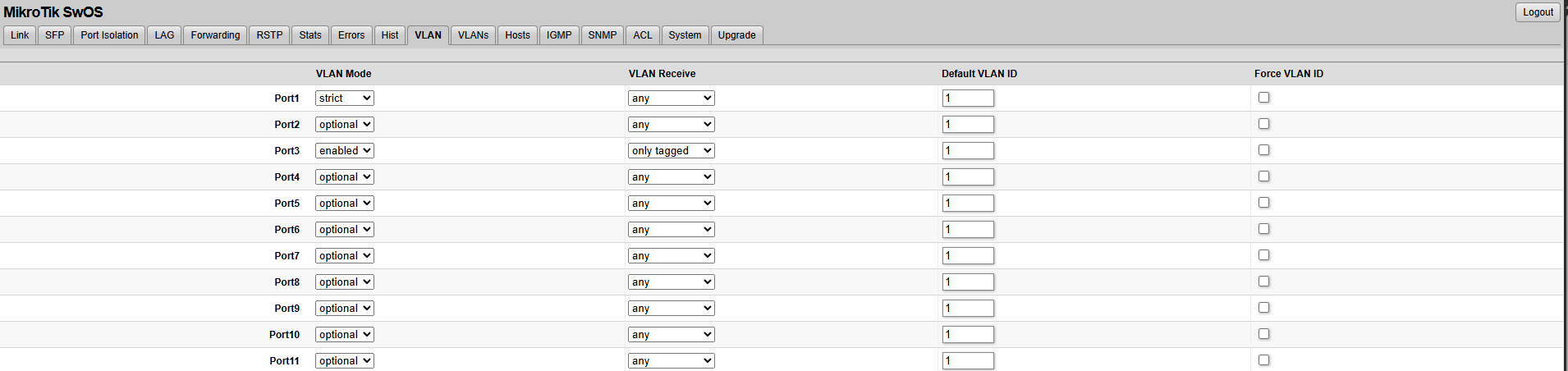

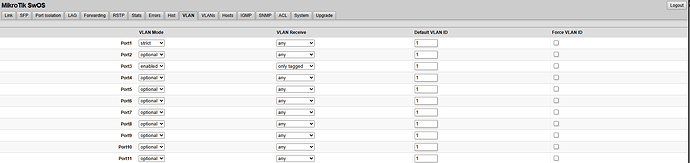

{1F619770-BE72-471C-83FE-B99BA9B9D427}
{1F619770-BE72-471C-83FE-B99BA9B9D427}1910×452 26.5 KB

I set it up as you said, but I get ip 169,,,,

I also tried to set untagger, and it didn't work.

9

Maybe I'm doing something wrong or I don't understand?

10

It might be wise to remove those Port Isolation flags from your VLAN ports in tab VLANs.
I suppose you did not define those settings in Port Isolation Tab ?

More info on it, see here:

1 Like
11

I still don't understand why vlans don't want to work on the 2nd sw. On the first sw, which stands in front of the 2nd, all the cranes work perfectly, but they don't want to on the 2nd(
