VLan, Bridge, Hotspot and switch - RB1200

RouterOS General
1

Hello, I’m starting here.

I have the following configuration:

  • RB01 linked to RB02 through unmanaged switch 3com (SW01)
  • RB03 linked to RB02 directly
  • Radio R1 (AP) connected to the switch (SW01) using vlan.33

I would like the binding of RB01 and RB03 were of a switch on RB02 (rb1200).
The issue is that I have to be configured in a Hotspot for Radio Vlan.33 R1 (AP).

How would setup Hotspot? I’ll create a vlan.33 the switch (on rb1200) and configure Hotspot it?

PS: Sorry my english.

2

Deleted because not related.

3

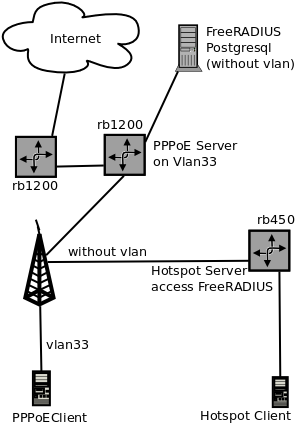

What I want to do is that the link to rb450 and the tower stay at the gates of the switch chip with the output link to the Internet and there is a port connected vlan 33 with pppoe server.
