VLAN problems

RouterOS General
1

I have two VLANs set on a bridge on a Mikrotik. On a switch connected to said bridge i have access ports assigning VLANs 10 and 20 and then trunking on a third port to the Mikrotik. I can pull DHCP, but i cannot ping either of the VLANs. This seems odd to me and I was hoping that you guys might be able to shed some light on the situation. The router configuration can be found at http://www.cticonnect.com/george/export.txt

If more information is needed please let me know.

FYI I removed the WAN IP address and route statements.

Thank you,

George

2

Do not configure VLAN on the bridge !
Set VLAN to actual interface and add VLAN interface to the bridge.

3

I have tried adding the VLANs to the port and removing the port from the bridge. It seems no matter what i do i cant get the VLAN interface to ping.

Any other thoughts?

Thanks,

4

I think that we need to see network topology diagram to make any advices.

5

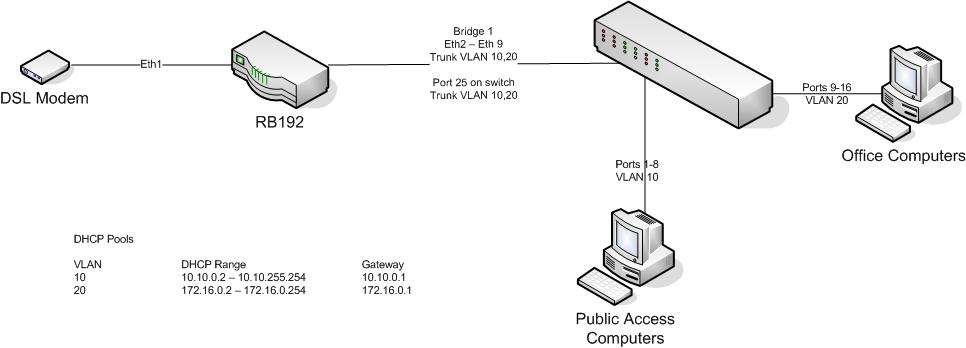

Please see attached. Its a fairly basic topo.
Ragged Topo.jpg

6

Why do you need bridge for all interfaces ?
I guess it’s enough to create VLAN on the interface, which is connected to the switch, then setup DHCP servers on VLAN interfaces.

7

Irregardless of where i put the VLANs i am having problems. I have tried placing them on ether2 and just not doing the bridge, but even when I do that i still cant get them to cooperate.

Any thoughts?

8

Well, I suggest you to reset the router and start configuration from the beginning.
I don’t think that there should be any problems from MikroTik side to support such kind of setup [if you have proper configuration].
